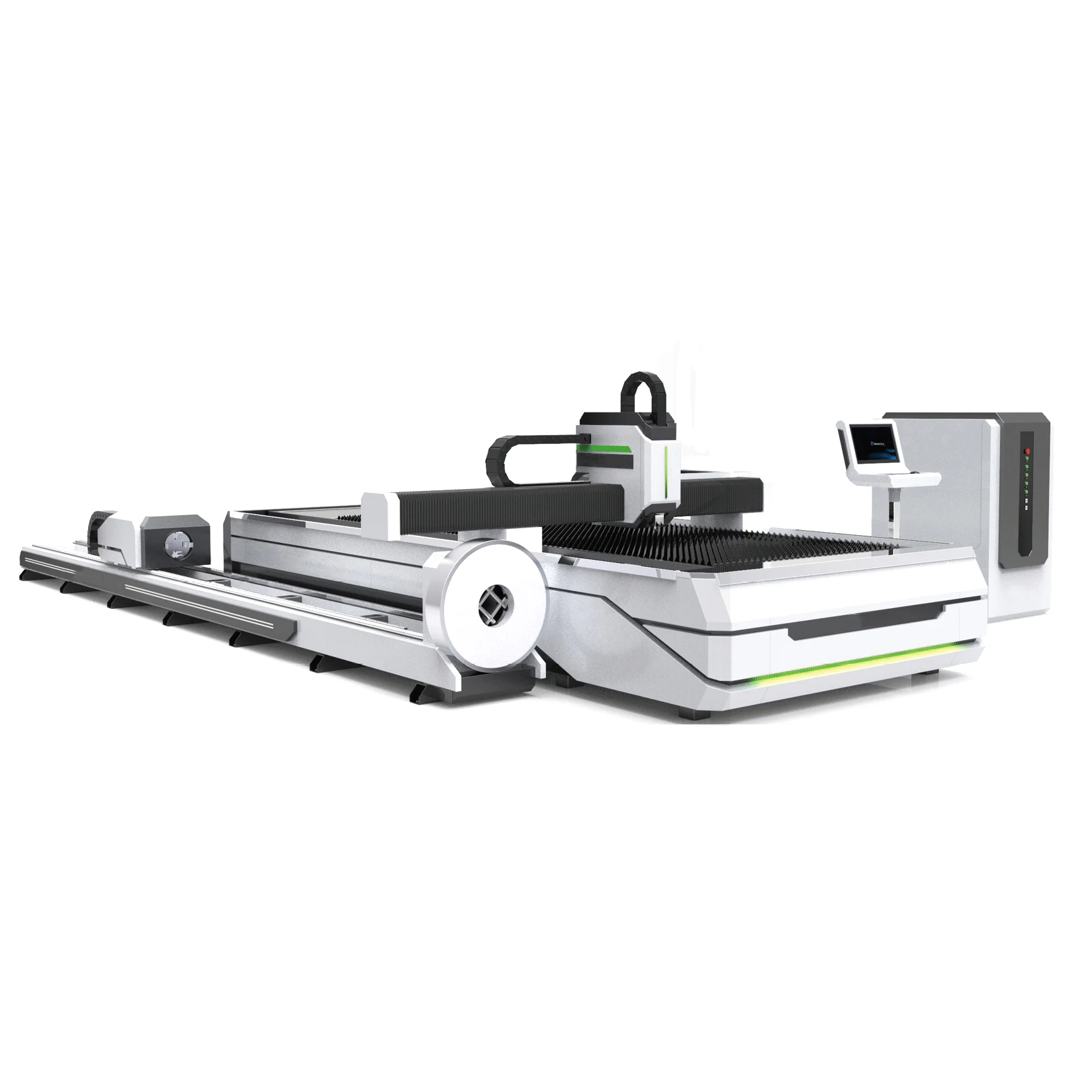

    Fiber Laser Cutting Machine Robotic Arm 3D Laser Cutter For Metal Tube Pipe and Sheet

    Fiber Laser Cutting Machine Robotic Arm 3D Laser Cutter For Metal Tube Pipe and Sheet

    ¥4,390.00 CNY
    ¥424,363.00 CNY ¥4,390.00 CNY
    Oferta Agotado
    Los gastos de envío se calculan en la pantalla de pago.
    Model Number
    Power
    Product Description
    1. This model integrates square tube, circular tube, oblate tube, and plate cutting in one, with multifunction and high practicality. 2. Gantry structure and dual drive, Germany imported rack & pinion drive system. Excellent cutting performance and stability. 3. Self-centering jig system ensures stable process of conveying pipes, so that it can ensure high accuracy and high quality of products. 4. The machine, with high accuracy of machining dimension, can take the place of traditional processing equipment, such as sawing and punching. 5. Saddle-shaped pipe type support beam is with high precision calibration, no derformation during 6m pipe cutting.
    Specification
    Plane working area
    3000*1500mm
    Positioning accuracy
    ±0.15mm/1000mm
    Max length of pipe
    3000mm or 6000mm
    Repeatability
    ±0.0℃2mm/1000mm
    Limits of pipes (Customized)
    Circle: Ø20~200mm. Square tube: Ø20~120mm
    Graphic format supported
    AI, CAD, DXF, Dwg, Plt, BMP etc.
    Laser type
    Fiber laser generator
    Working environment
    Temp: 0~40℃, humidity: ≤80%, no condensation
    Laser power ( optional)
    500~6000W
    Total power
    10KW
    Transmission system
    Double servo motors & gantry & rack & pinion
    Power supply
    3PH 380V±10% 50/60Hz
    Pipe cutting system (optional)
    Yes
    Overall dimension (including cutting machine in 3 meters length)
    4350mm*3200mm *1740mm
    Max speed
    60m/min
    Overall dimension (including cutting machine in 6 meters length)
    7650mm*3200mm *1740mm
    Max accelerated speed
    0.6G
    Gross weight
    6000kgs
    Packing & Delivery
    To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

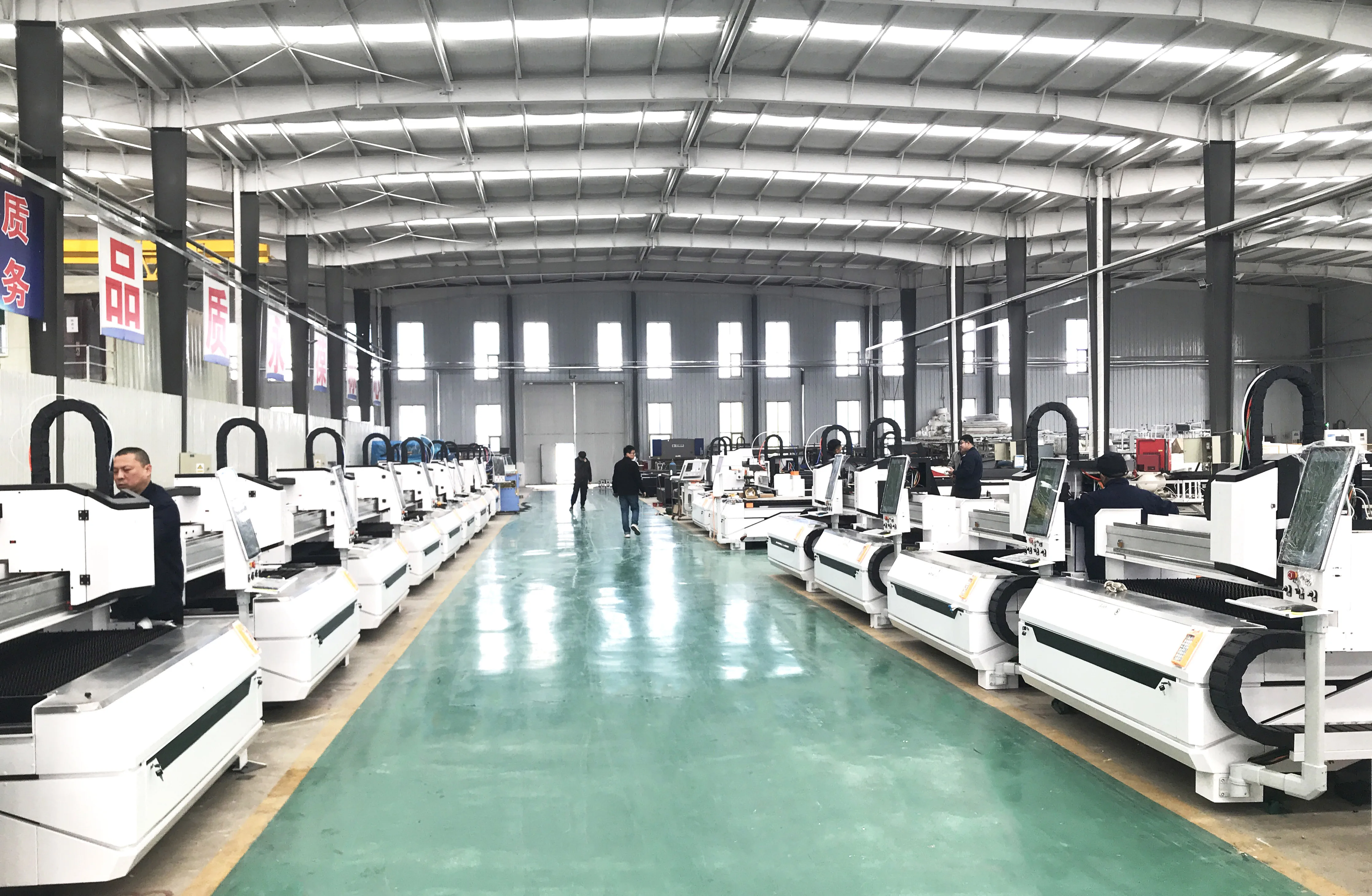

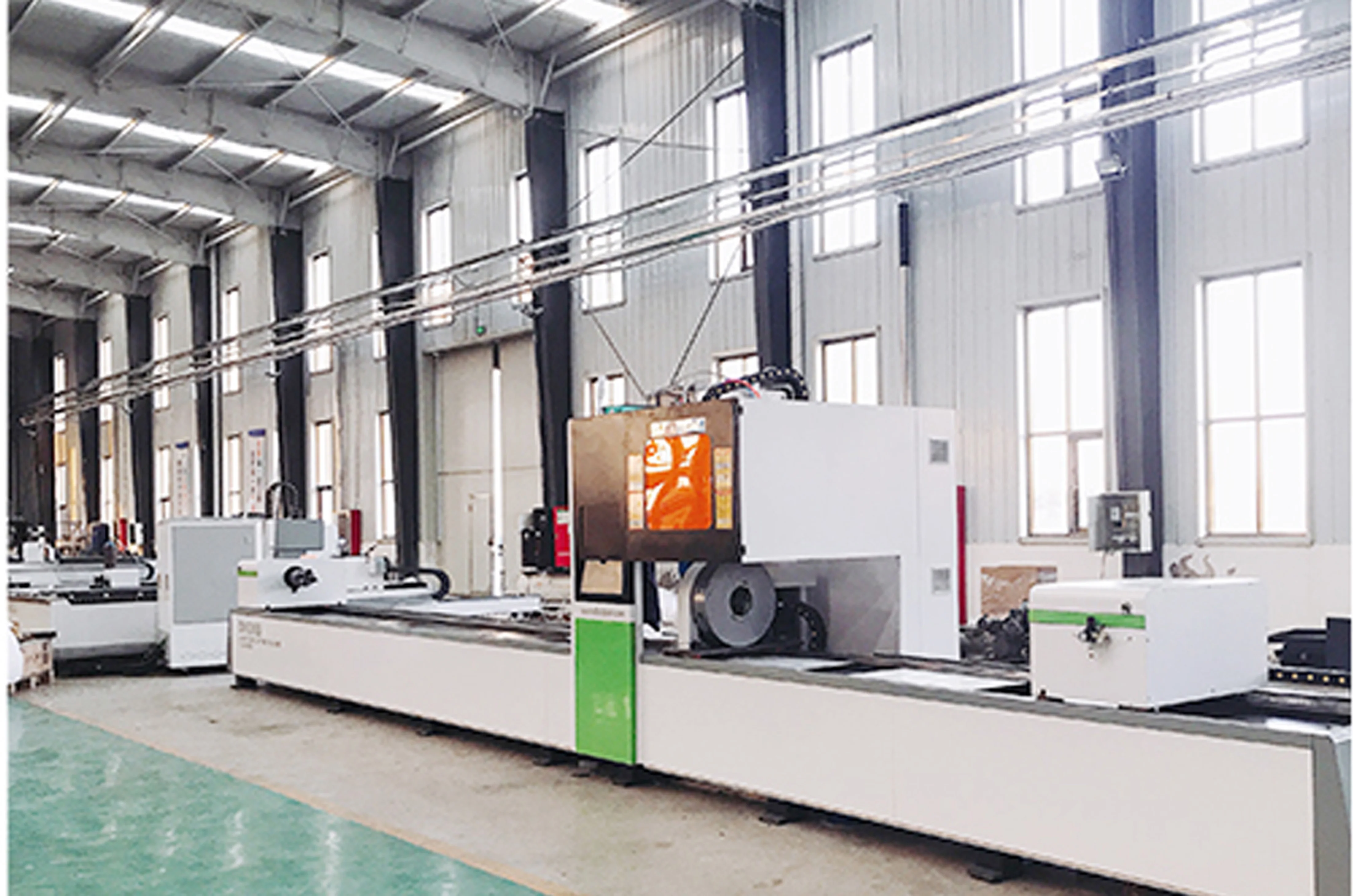

    Company Profile
    With 12 years production experience in laser cutting, marking equipment production, developing and sales, and provide customers with comprehensive solutions. Our products are exported to more than 60 countries and areas allover the world, including America, Russia, Germany, Turkey, Southeast Asia etc. We have the first class production line, formed various types of the product structure. In the competitive market, we absorbed fully advanced ideas from international laser field. We have researched a series of laser engraving and cutting products independently. High quality is our forever pursuit, we adopt original imported components, advanced manufacturing technology, large mass production and high standard testing, perfect after-sale service, have won customers’ trust and support. “ Customer first, credit first” is our highest faith, through our persistent effort, we believe, we will build a brilliant future with you!
    FAQ
    1，How can I get samples?
    For stocks items, we will send out within 7-10days after receiving the payment;
    For OEM items, we will send out 15-45days after receiving the payment and details.
    2.Payment terms: T/T, LC, Western union, MoneyGram, Paypal
    3.Delivery time:
    The order delivery time is 30-60 days after receiving deposit. The delivery time depends the quantity.
    4.Can you provide ODM/OEM service?
    Yes we can provide ODM/OEM service.
    5.How about quality control about the goods?
    We can provide inspection pictures or video for the products if you require.
    6.How about the guarantee time?
    It's within 1 year after goods is discharged in the destination.
