20w 30w 50w portable fiber laser marking machine for name plates barcode labels asset tags

20w 30w 50w portable fiber laser marking machine for name plates barcode labels asset tags

Regular price ¥4,372.00 CNY
Regular price ¥4,372.00 CNY Sale price ¥4,372.00 CNY
Sale Sold out
Shipping calculated at checkout.
Material
Product Description

20w 30w 50w portable fiber laser marking machine for marking name plates / barcode labels / asset tags

Specification

Technical Parameters

 Type

TS-F

 Power

20W/30W

Laser Brand

Maxphotonics (Raycus/IPG Optional)

 Optional Marking Area

 110mm*110mm / 150mm*150mm /200mm*200mm

 Marking Depth

≤1.2mm

 Marking Speed

800 standard characters/second

 Minimum Line Width

0.012mm

 Minimum Character

0.15mm

 Repeated Precision

±0.003mm

 Life-span of Fiber Laser Module

100 000hours

 Beam Quality

M2 <1.5

 Focus Spot Diameter

<0.01mm

 Output Power of Laser

10%~100% continuously to be adjusted

 System Operation Environment

Windows XP / W7--32/64bits / W8--32/64bits

 Cooling Mode

Air cooling--Built-in

 Temperature of Operation Environment

15℃~35℃

 Power Input

220V / 50HZ / single phase or 110V / 60HZ / single phase

 Power Requirement

<400W

 Communication Interface

USB

Package Dimension

890mm x 430mm x 860mm

 Gross weight

80KG

 Optional (Not free of charge)

Rotary Device, Moving Table, other customized Automation

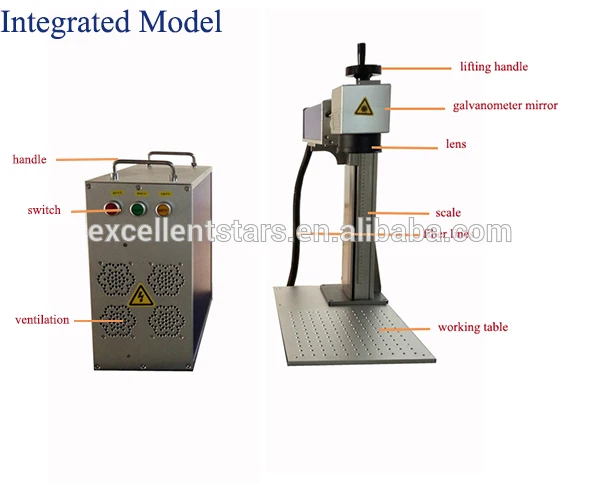

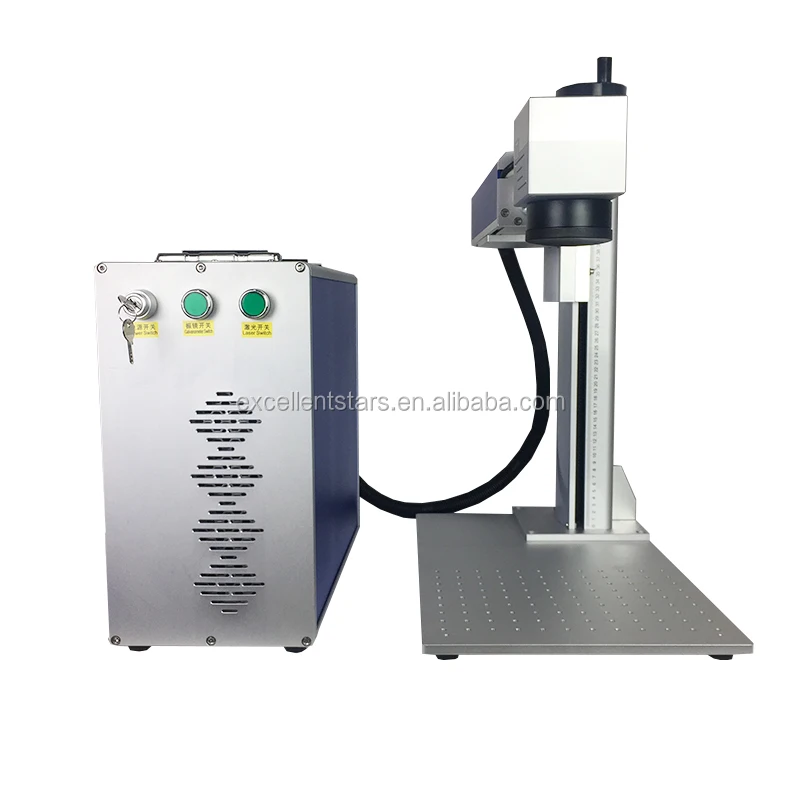

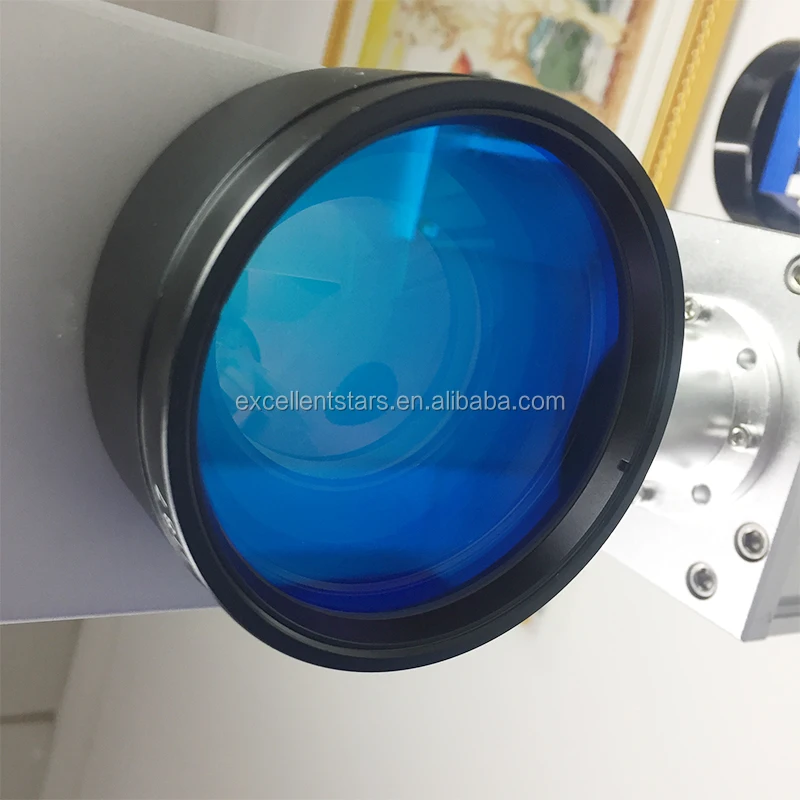

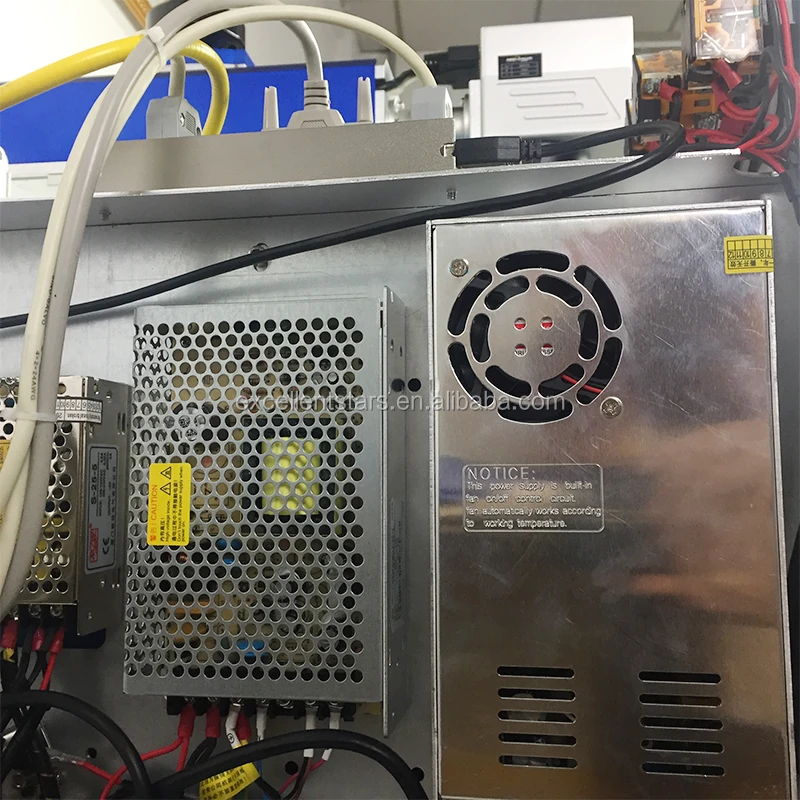

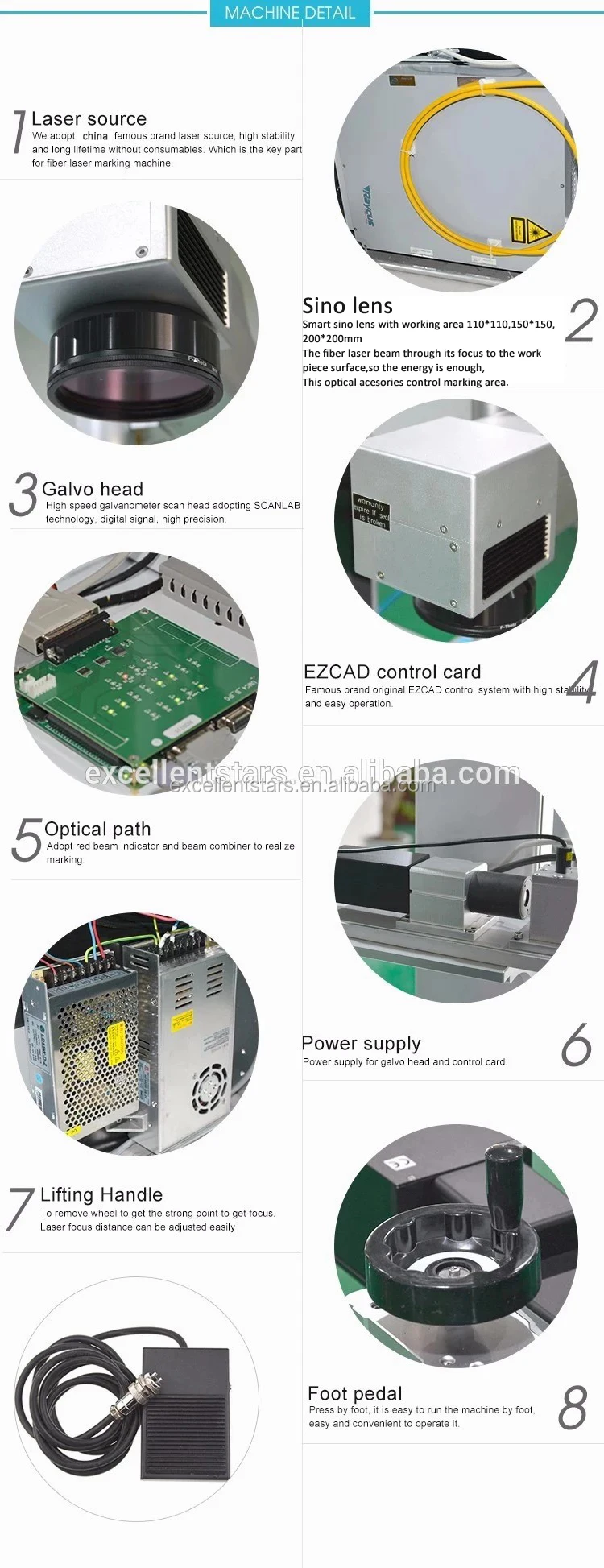

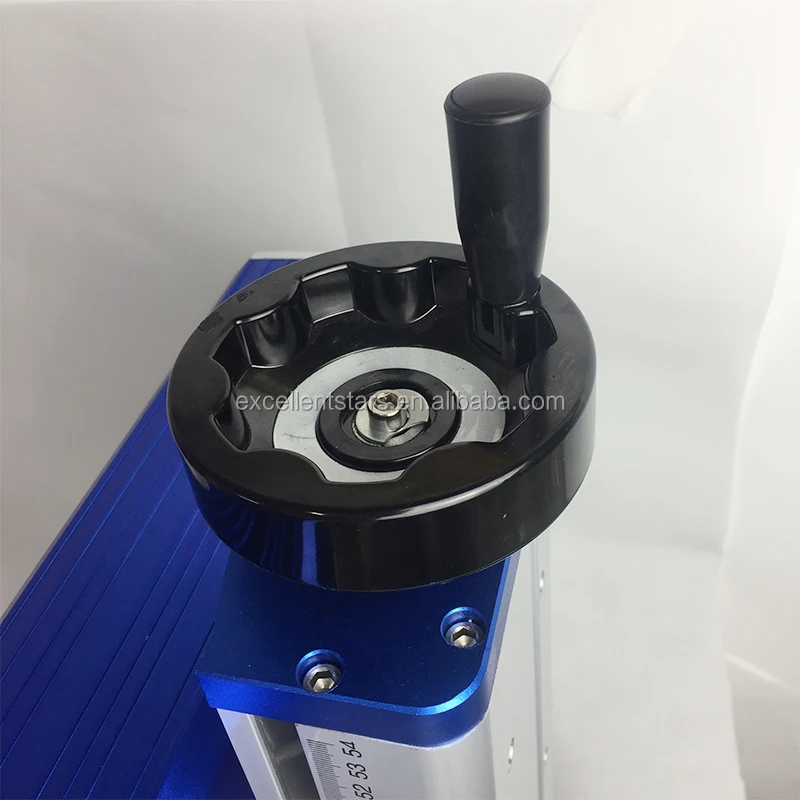

Detailed Images

Features

Applicable material

Sample Show



Packaging & Shipping

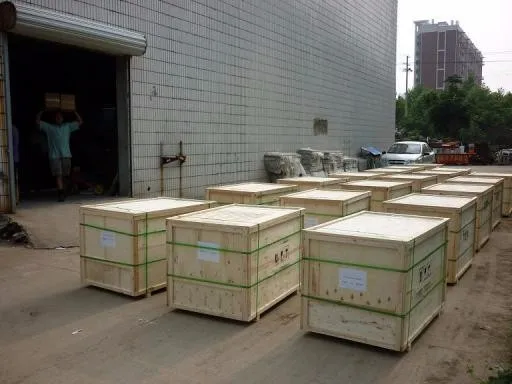

Package details

packed in the plywood box







Our Services

 1.24 months quality guaranty, the machine with main parts(excluding the consumables)
shall be changed free of charge if there is any problem during the warranty period.
2. Free training course at our plant.
3. We will provide the consumable parts at an agency price when you need replacement.
4. Can help you solve problems online or by email in 24hrs, free technical support.
5. Our staff can be sent to your company to install or adjust if necessary.

FAQ



FAQ:

Q1. How to get the most suitable machine and best price
Please tell us the material you want to king on ? How to working on it ? Engraving ? Cutting ? Marking Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2. How to use the machine? And How about your after-sales service?
Sure, the machine installation,operation and training instruction CD video are delivered along with the machine.. you can learn how to use it well. And on line 24 hours technical people teach you directly via call, computer remote control, skype video etc. So, don’t worry even you are a beginner on the machine.
Q3 Guarantee and Quality Control :
2 years guarantee
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. Our machine passed CE Certificate, meet European and American standard, were exported to more than 100 Countries.
Q4. How we pay you?
Before you place order, you’d better confirm machine details with us, then you can pay by TT,Western union, Paybal, Alipay etc.
Q5:How about the documents after shipment?
After shipment, we’ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
Q6:How long is the delivery time?
For standard machines, it would be 3-7 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
