600*1000mm Gantry Type Large Working Area Raycus JPT 30W 50W Fiber Laser Marking Machine For Coated Mirror Metal Plate
600*1000mm Gantry Type Large Working Area Raycus JPT 30W 50W Fiber Laser Marking Machine For Coated Mirror Metal Plate
Couldn't load pickup availability
600*1000mm Gantry Type Large Working Area Raycus JPT 30W 50W Fiber Laser Marking Machine For Coated Mirror Metal Plate
Buying tips:
Could you tell us the information below, so we can give you more customized solution:
1. What do you mark? metal or non-metal
Fiber laser is for marking metal part and CO2 laser is for marking non-metal part.
2. What is your marking area?
Usually our marking area is 70mm*70mm-300mm*300mm
3. Do you want mark on flat surface or curved surface?

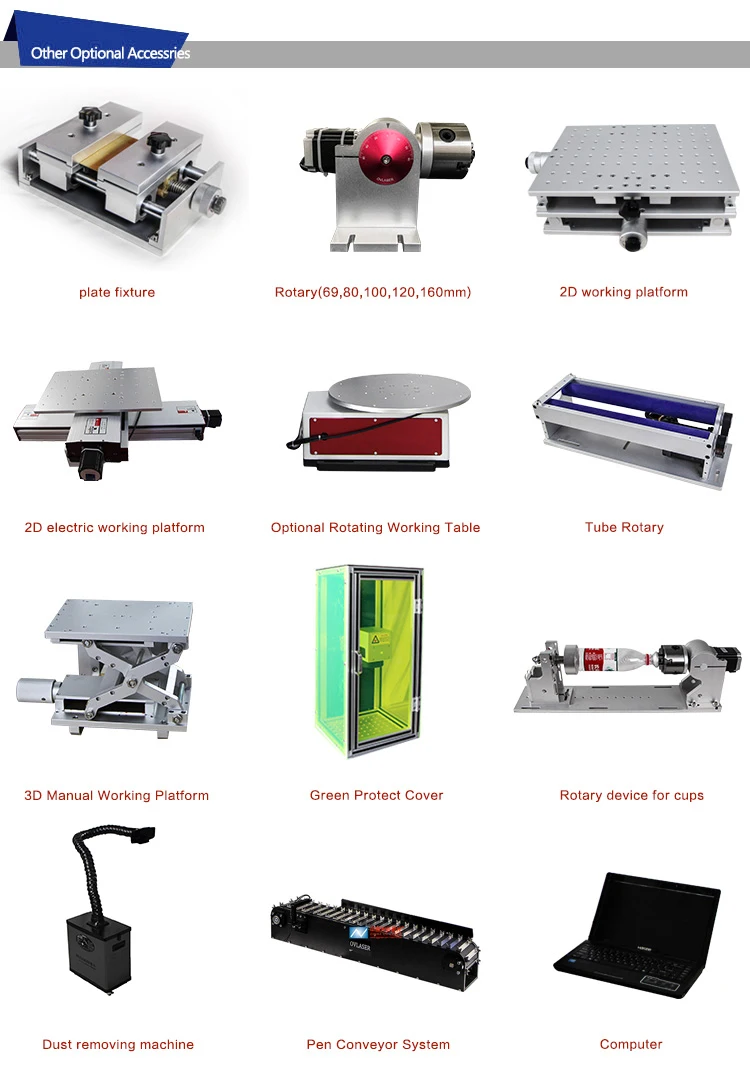

Standard models can mark on flat surface, if you want mark on curved surface, you need a rotary fixture(USD200)
4. What is your marking depth?
All laser marking depth is less than 1mm, but if you keep marking and marking, it will be deeper.
Features:
Fiber Laser marking machine: Open worktable, easy to load the material.
Application Materials:

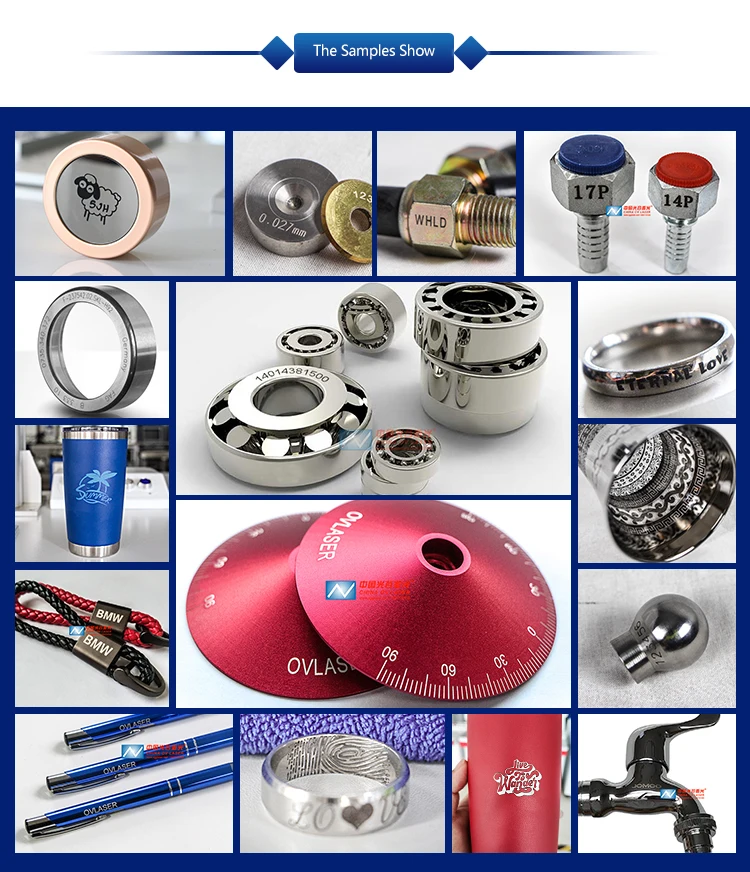

Fiber laser marking machine can work with most metal marking applications, such as Stainless Steel, Brass, Aluminium, Steel, Iron etc, and can also mark on many non-metal materials, such as
ABS, Nylon, PES, PVC, Makrolon,etc.
Applicable Industries:
Electronic Components: Resistors,Capacitors,Chips,Printed Circuit Boards, Keyboard, etc.
Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.
Instrument: Panel Board, Nameplates, Precision equipment, etc.
Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.
Automobile Parts: Pistons&Rings,Gears,Shafts,Bearings,Clutch,Lights.
Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.
Technical data:
|
Model |
OV SF-20/30/50 |
|
Wave length of laser |
1064nm |
|
Laser repetition frequency |
106kHz~1000kHz |
|
Laser power |
20W/30W/50W |
|
Marking area |
Max 600mm*1000mm |
|
Laser source |
JPT, Raycus |
|
Laser head |
SINO-GALVO Galvanometer |
|
Field lens |
Nanjing wavelength |
|
Control system |
JCZ- EZCAD2 dual axis/EZCAD3 |
|
Working accuracy |
0.001mm |
|
Marking speed |
7000mm/s |
|
Repeated accuracy |
0.003mm |
|
Cooling ways |
Air cooling |
|
Power supply |
220V/50HZ/1-PH or 110V/60HZ/1PH |
|
Process Material |
All kinds of metal and part of Non-metal Materials |
|
Support format |
PLT, BMP, DXF, JPG, TIF, AI etc |
|
Package |
Wooden case for export |

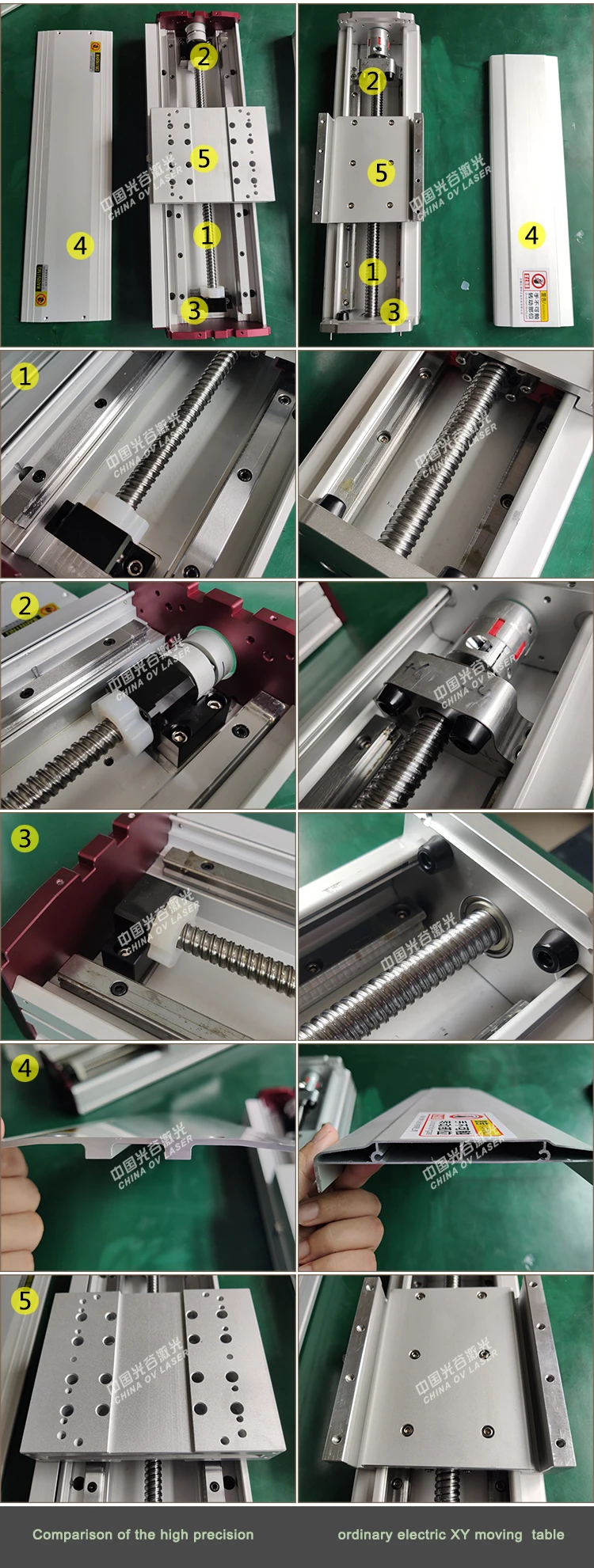

Differences in quality of electric shafts
>>Nonmetallic Material
>>Metal Material Marked on Surface
>>Metal cutting and deep engraving
>>Firearms engraving
>>2.5D relief engraving
We strongly encourage customers to pay through Alibaba trade assurance order. On the one hand, customers will pay more safely, on the other hand, they will be more secure for future after-sales services.
If you think our machine is very good, please give us a good evaluation of five stars. Thank you.
Q1: How can I get the best machine for me?
You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.
Q2: If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under "normal use".
Q3:What's the guarantee, in case the machine breaks down?
The machine has two years' guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client's feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
Q4:How about the documents after shipment?
After shipment, we'll send all original documents to you by DHL, TNT etc., including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
Q5:How long is the delivery time?
For standard machines, it would be 5-7 days; For non-standard machines and customized machines according to client's specific requirements, it would be 15 to 30 days.
