CFP1530 cnc fiber laser cutting machine 1000w for metal and steel and iron sheet
CFP1530 cnc fiber laser cutting machine 1000w for metal and steel and iron sheet
Couldn't load pickup availability

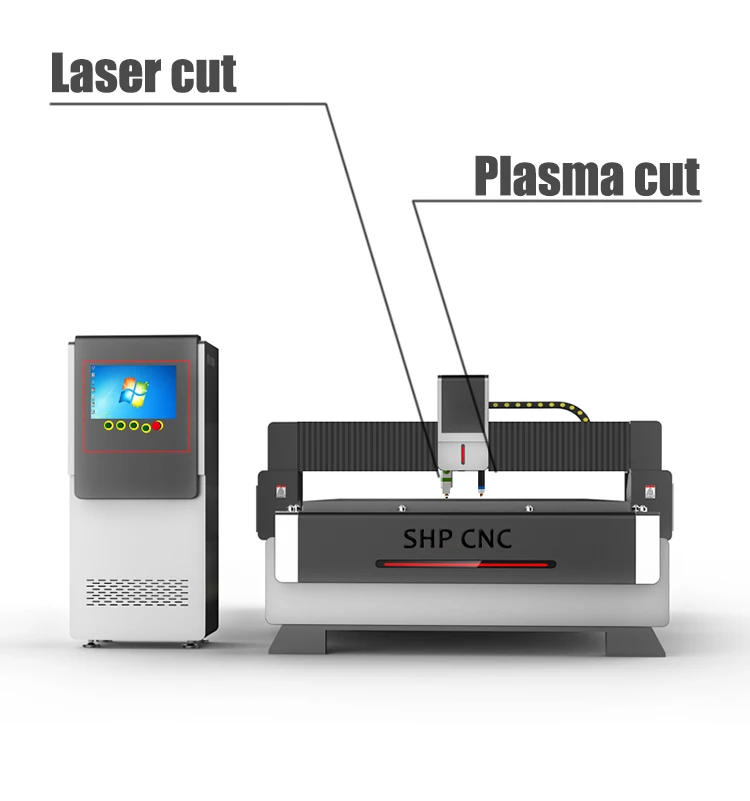

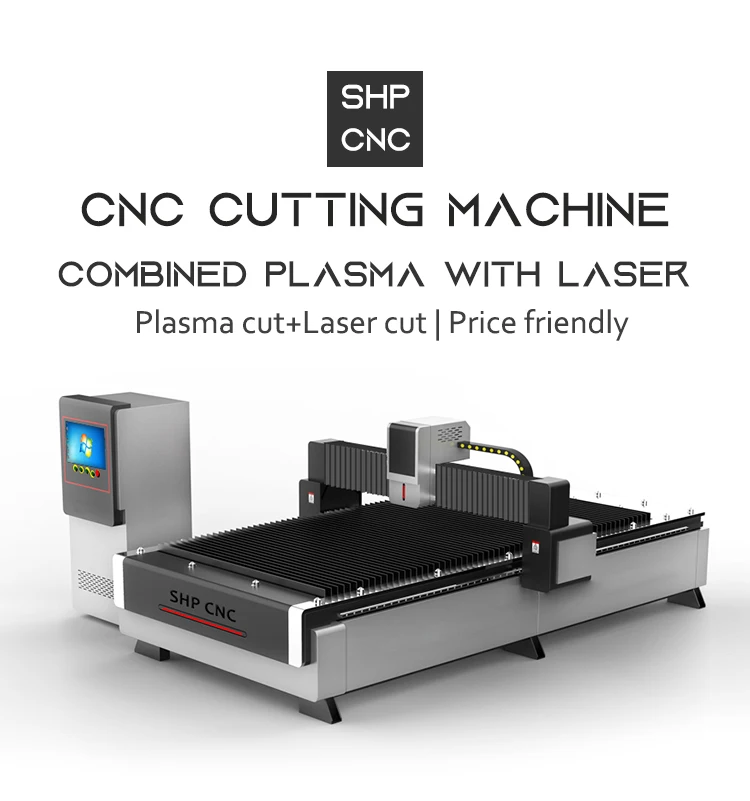

CFP Laser and plasma cutting machine
Why combine plasma with laser in one machine ?
1.Laser cut are much better than plasma cut,but very expensive.
1000w laser cut 10mm mild steel,5mm stainless steel maximum.
Plamsa 130A cut up to 20mm mild steel,15mm stainless,prices are very cheap,
we also have 200A plasma,cutting up to 40mm mild steel,30mm stainless steel.
300A,400A,500A plasma are also optional.

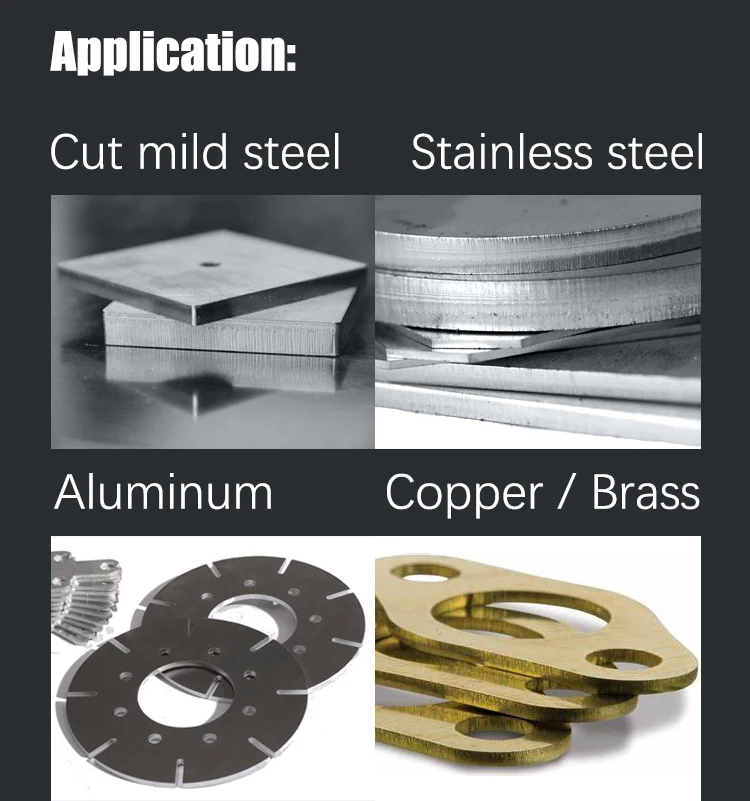

2.Laser cut in Aluminum and brass / copper are difficult ,and that cutting have risk of burning to laser source.
Plasma cut in aluminum ,brass,copper are without any risk of burning of plasma source.
parameters
|
Name |
CNC plasma and laser cutting machine |
|
Working size |
1500*3000mm |
|
Model |
CFP1530 |
|
Laser power (fiber laser) |
1000w,1500w,2000w,3000w,4000w,6000w |
|
plasma power |
63A to 500A Opional ,Huayuan / Hypertherm |
|
laser brand |
Max,Raycus,JPT,IPG optional |
|
working bed |
saw teeth blades and ventilation bed |
|
Max.cutting thickness |
0-50mm,depending on materials and power |
|
control method |
Computer operation |
|
Runing speed |
0-60m/min |
|
Cutting speed |
0-35m/min |
|
cutting accuracy |
0.02mm |
|
Repeatable locating accuracy |
0.02mm |
|

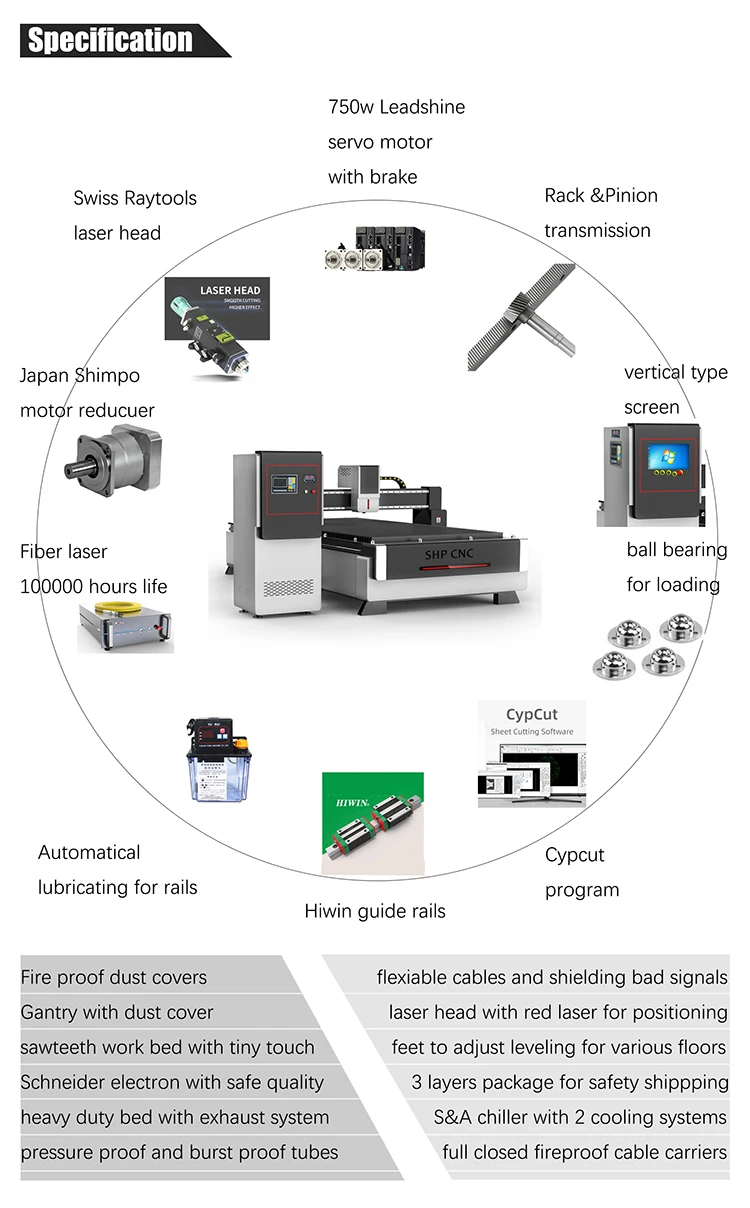

Motor and driver |
750w servo motors and driver,rack and gear |
| Maximum Acceleration | 1.5G |
| Minimum line width | 0.1mm |
|
transmission system |
Hiwin Linear guide rails + rack and pinion gear |
|
Memory |
256MB |
|
Software program |

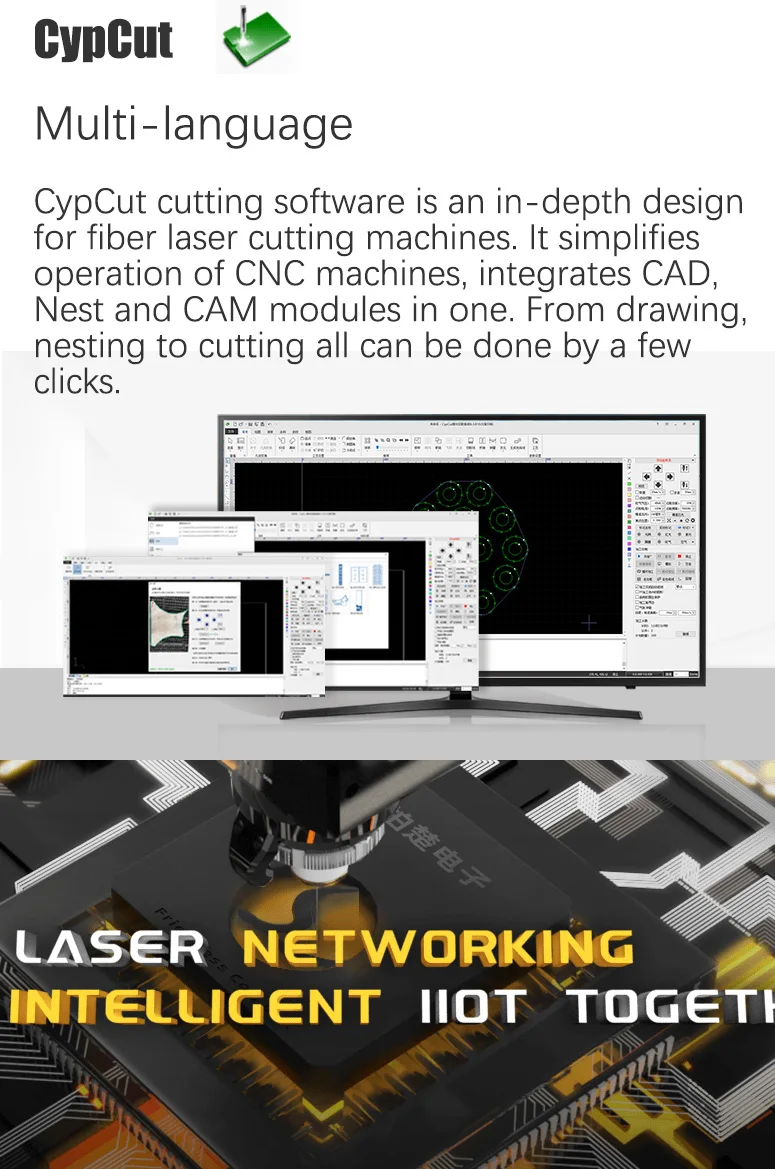

CYPCUT + Starfire |
|
Auxiliary accessories |
Exhaust fan,fume tubes,water chiller,tools box |
|
file format |
*.plt, *.dst, *.dxf, *.dwg, *.ai, support AutoCAD, CorelDraw software |
|
Voltage/ Frequency of machine table |
3-Phase 340~420V |
|
Dimension |
3.5*2.15*1.1 m |
|
Packing size |
3.65*2.25*1.3m |
|
Weight |
2600KGS |
|
Package |
plywood crate for export |
|
warranty |
2 years |
