    co2 1300*900 cnc laser cutting machine

    co2 1300*900 cnc laser cutting machine

    ¥729.00 CNY
    ¥729.00 CNY ¥729.00 CNY
    Sale Sold out
    Shipping calculated at checkout.
    Material

    CC1309 co2 laser cutting engraving machinehina 100w 150 watts 1390 co2 plywood mdf wood stencil jigsaw puzzle paper cake toppers acrylic letter laser cutting machine price for sale plastic sheet balsa wood with rdworks v8

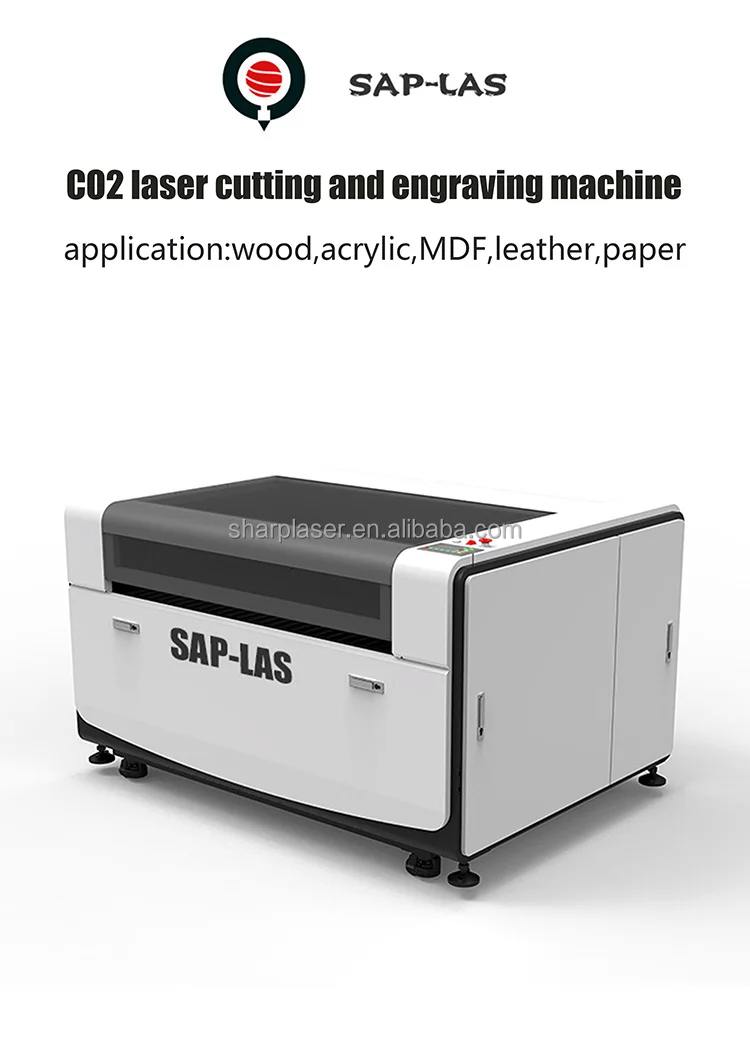

    The laser cutter is CO2 standing laser cutting machines designed for efficient processing of plastics, wood, textiles and many more. Available in different workstations sizes with several power options, these laser cutting systems provide high-quality results at maximum speed.



    Product Description



    RDWORKS V8 Program with 14 languages

    what material can the laser handle?
    Material Engrave cut
    Acrylic √ √
    Glass √ ×
    Laminates √ √
    Leather √ √
    Paper √ √
    Plastics √ √
    Stone √ ×
    Textiles √ √
    Wood √ √
    Metal  x ×





    Parameter
    Name CO2 laser engraving cutting machines
    Model           CC1309 / CC0906
    Working area   1300*900mm  /900*600mm
    Laser power  80w,100w,130w,150w,180w

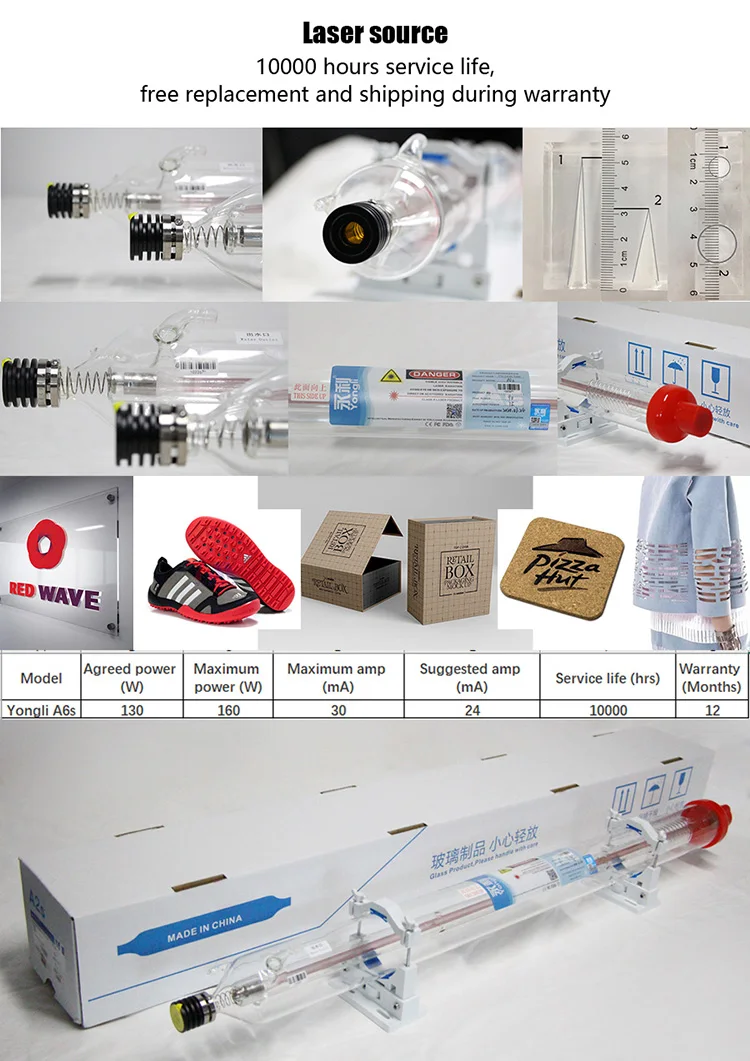

    Laser type         CO2 laser tube,Yongli brand,>10000 hrs service life
    Cooling ways                         Water cooling
    Engraving speed                                   0-60000mm/min
    Cutting speed 0-40000mm/min
    Laser output control 0-100% controlled by software
    Min engraving size English letters,1*1mm
    Locating accuracy                 ≤0.01mm
    Controlling software               DSP controlling system,RDWORKS V8
    Format supported                 DST,PLT,DXF,AI,LAS,BMP,JPG,PNG,etc
    Software environment           Windows xp/7/8/10
    Compatible software Coreldraw,Autocad
    Color separation output        Yes
    Slope engraving                     Yes
    Driving system                         High precision stepper motor with belt

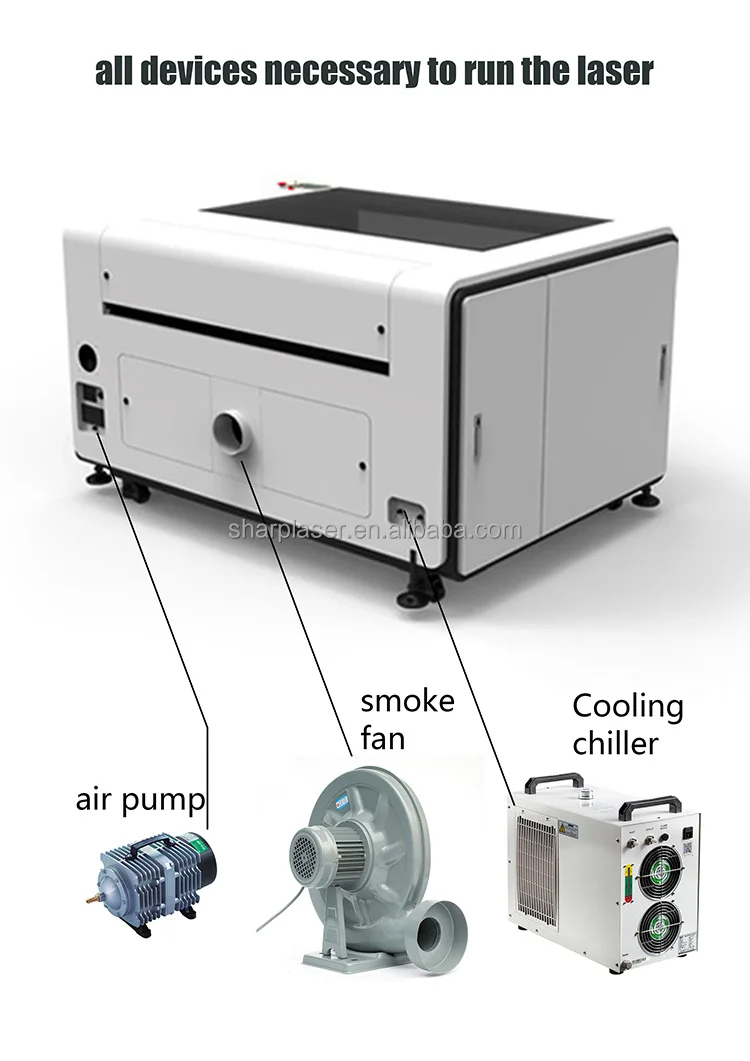

    Auxiliary accessories            Exhaust fan,fume tubes,air pump

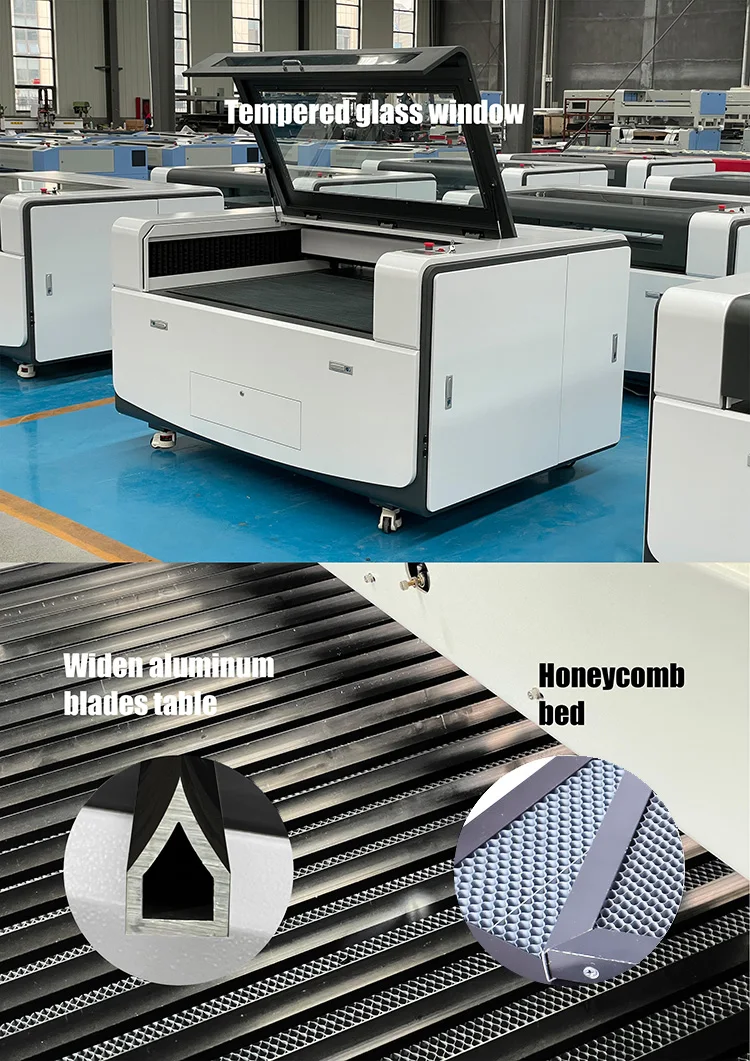

    Working table                          Blades table or Honey comb
    Applicable materials Acrylic,wood,plywood,MDF,glass,stone,plastic,rubber ,leather
    Working environment              Temperature 0-45℃,Humidity5-95%(no condensate water.)
    Power supply                         110v/220v,50hz/60hz
    Weight 350kg
    Dimension 185*145*105cm

    Our Services



    Packaging & Shipping





    Certifications





    Inquire now





    Contact us

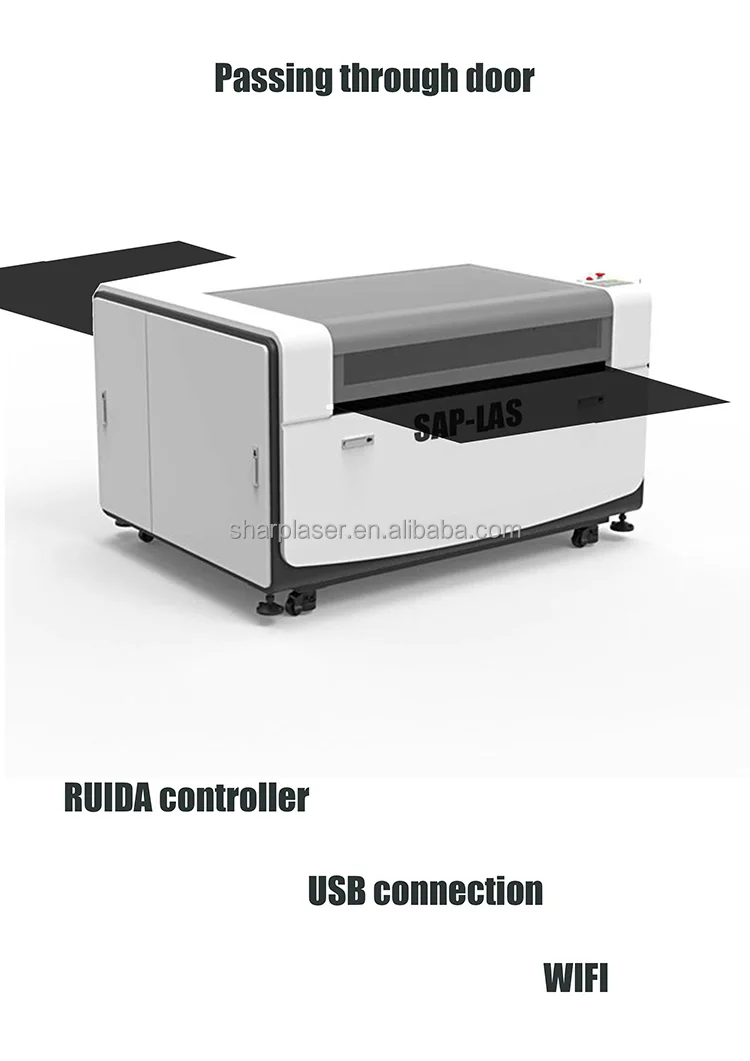

     This machine can use Wifi control, no need the wire to connect the computer.  So one computer can control many machines . Applicable materials:wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials.Applicable industries:advertisement, arts and crafts, leather, toys, garments, model , building upholster, computerized embroidery and clipping, packaging and paper industry.
