Customized Gantry 50w Fiber Laser Marking Machine Large Working Area 600*600/600*800/600*400mm 20W 30W 50W 60W 70W 80W 100W
Customized Gantry 50w Fiber Laser Marking Machine Large Working Area 600*600/600*800/600*400mm 20W 30W 50W 60W 70W 80W 100W
Regular price
¥728.00 CNY
Regular price
¥728.00 CNY
Sale price
¥728.00 CNY
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Factory customized large format laser marking machine
FACTORY LOW PRICE!!! PROFESSIONAL BEST QUALITY!!!
Contact: Janet Hou
008619969999101
Please tell us your requirements firstly by sending inquiry ☞☞☞➩➩➩
008619969999101
Please tell us your requirements firstly by sending inquiry ☞☞☞➩➩➩

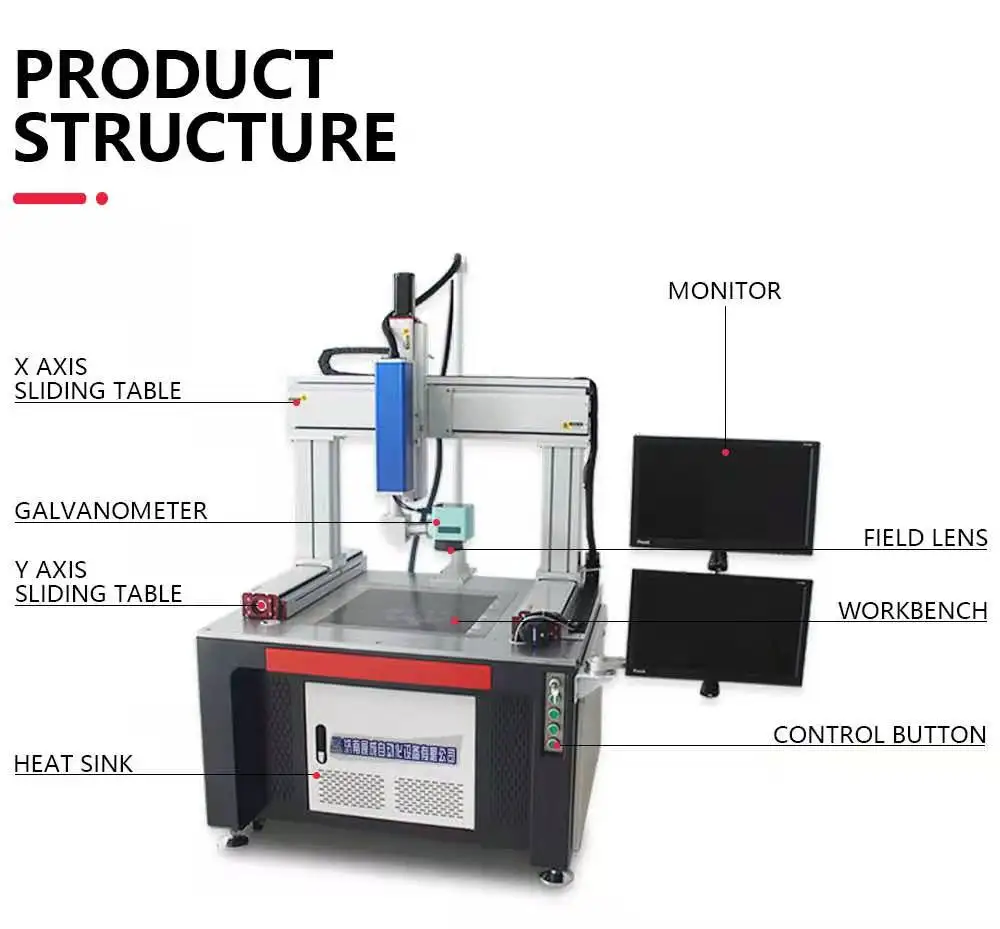

Product configuration
ZCLASER Large Working Area Fiber Machine
Application With Normal Fiber Laser :
1. This is big working area fiber laser marking machine, and electric XYZ axis for moving to mark its materials.
2. This gantry structure has an electric xyz axis, with a range of 600*600/600*900/900*900 etc. Supports custom work area.
3. Because the traditional sense of XYZ electric axis, will limit the size of the axis, because too large, the axis will be very heavy, resulting in pressure or easy to affect the accuracy.
Compared with the ordinary electric moving X Y Z electric axis, the design of the gantry structure bears more points, is more stable and more reasonable, and has less restrictions on the size of the range.
About XYZ axis moved fiber laser marker
1> Long and economic lifetime: We use China best or Germany best laser source, which has a lifetime more than 100,000 hours. It does not need consumable parts as like as diode and lamb lasers in short periods . This saves you from service and cost of parts.
2> Low energy consumption: Electro-optic productivity which is the most significant advantages of fiber laser technologies provides you to process with very low energy consumptions.
3> Air-cooling: Energy consumption being low, reduces the heating and cooling needs of the system makes air-cooling possible.
4> Fast Speed: Speed can reach 8000mm/s, which can suitable for various speed big work area marking.
5> Environmental-friendly: We will send protection glasses which will protect your eyes well.
6>Transmission:X,Y,Z axis by module system(High accuracy, strength, speed, etc) parameters.
1> Long and economic lifetime: We use China best or Germany best laser source, which has a lifetime more than 100,000 hours. It does not need consumable parts as like as diode and lamb lasers in short periods . This saves you from service and cost of parts.
2> Low energy consumption: Electro-optic productivity which is the most significant advantages of fiber laser technologies provides you to process with very low energy consumptions.
3> Air-cooling: Energy consumption being low, reduces the heating and cooling needs of the system makes air-cooling possible.
4> Fast Speed: Speed can reach 8000mm/s, which can suitable for various speed big work area marking.
5> Environmental-friendly: We will send protection glasses which will protect your eyes well.
6>Transmission:X,Y,Z axis by module system(High accuracy, strength, speed, etc) parameters.
Specification |
Parameter |
||||||
Laser Source |
Raycus/JPT/Max (Optional) |
Laser Power |
20W 30W 50W 60W 70W 80W 100W |
||||
Laser Head |
Sino-Galvo Scanning Head |
Marking Speed |
8000mm/s |
||||
Main Board |
JCZ Control Card |
Min Line Width |
0.012mm |
||||
Working area |
110*110/150*150/175*175/200*200 mm |
Laser Wavelength |
1064nm |
||||
Software |
Taiwan SYNTEC of Taiwan control board with the system 71SA Software |
Power Supply |
AC220V/110V 50Hz/60Hz |
||||
Power Supply |
Taiwan MeanWell |
Cooling System |
Air cooling |
||||
Packed Size |
130*120*200 cm |
Marking depth |
≤0.4mm(By materials) |
||||
Packed Weight |
400 kg |
Cabinet |
Large working area cabinet |
||||
Details

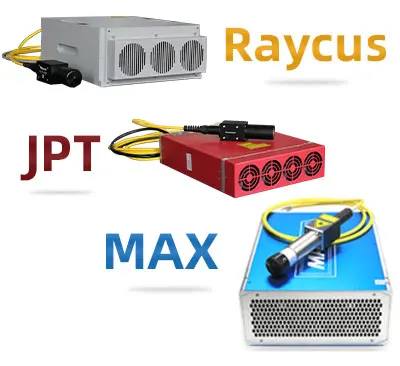

Laser Source optional
High peak power, high single pulse energy, and optional spot diameter. They can be widely used in non-metallic materials, such as gold, silver, copper, aluminum and non-high reflective materials such as stainless steel. In the fields of marking, precision machining, graphic engraving, etc., its marking application process is cheaper than traditional lasers and is more stable.

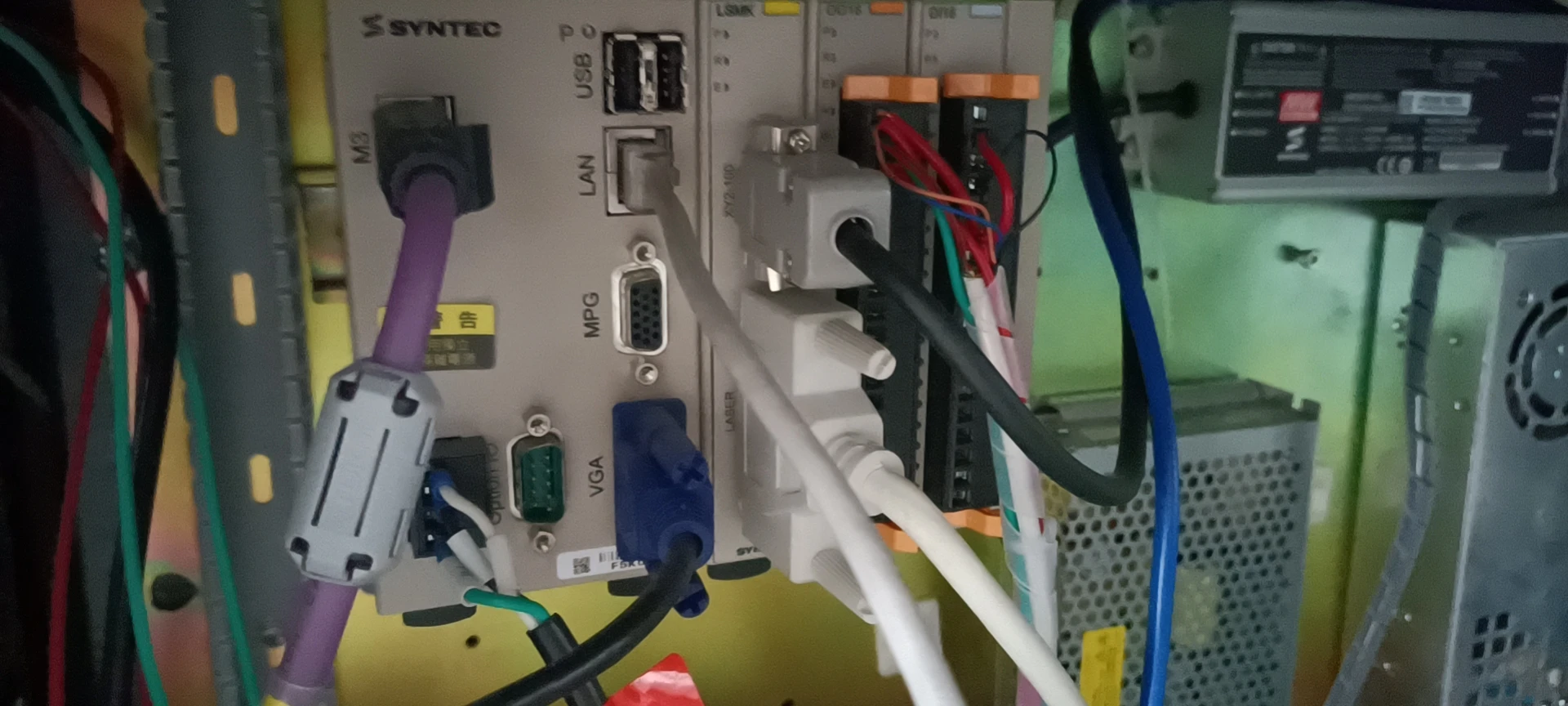

Control board
SYNTEC of Taiwan control board with the system 71SA, Up to 4 axes, up to 16 axes in series. It is used in multiple applications such as marking of material plate and laser flower bite.
Sino Glavo Scanning Head
1. Marking Speed: 8000mm/s
2. Positioning Speed: 10000mm/s
3. Tracking Error: ≤180us
4. Small step response time: ≤0.4ms
3. Tracking Error: ≤180us
4. Small step response time: ≤0.4ms

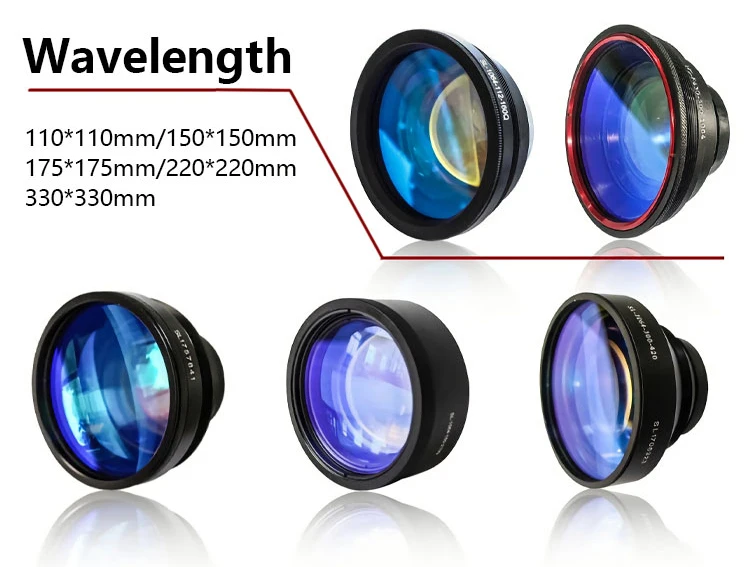

F-Theta Lens
The OPEX brand field lens is the greatest quality in China with a wide range of types from 110*100/150*150 for big working area moving working. (With small precise lens for large area marking)

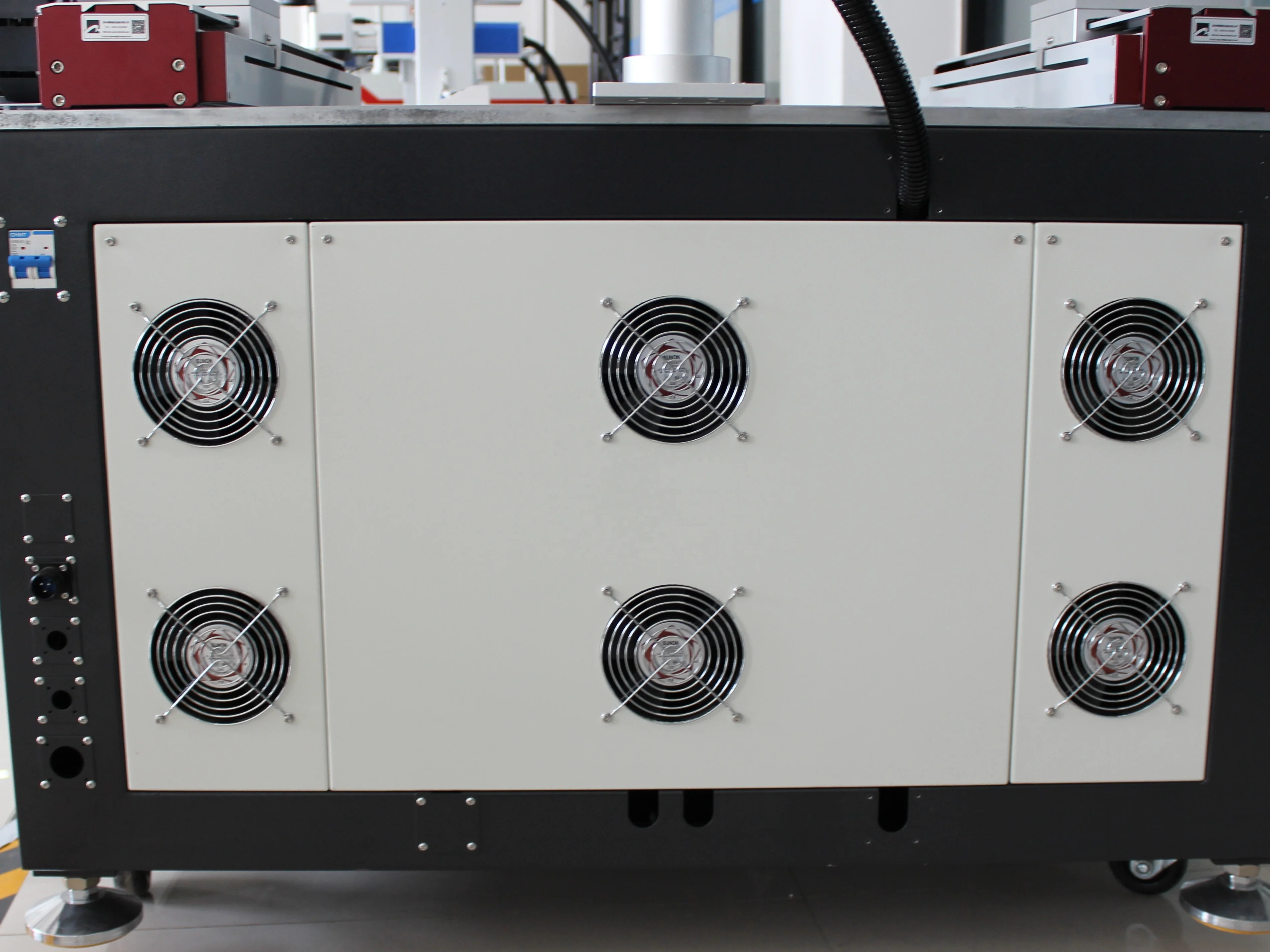

Strong air cooling

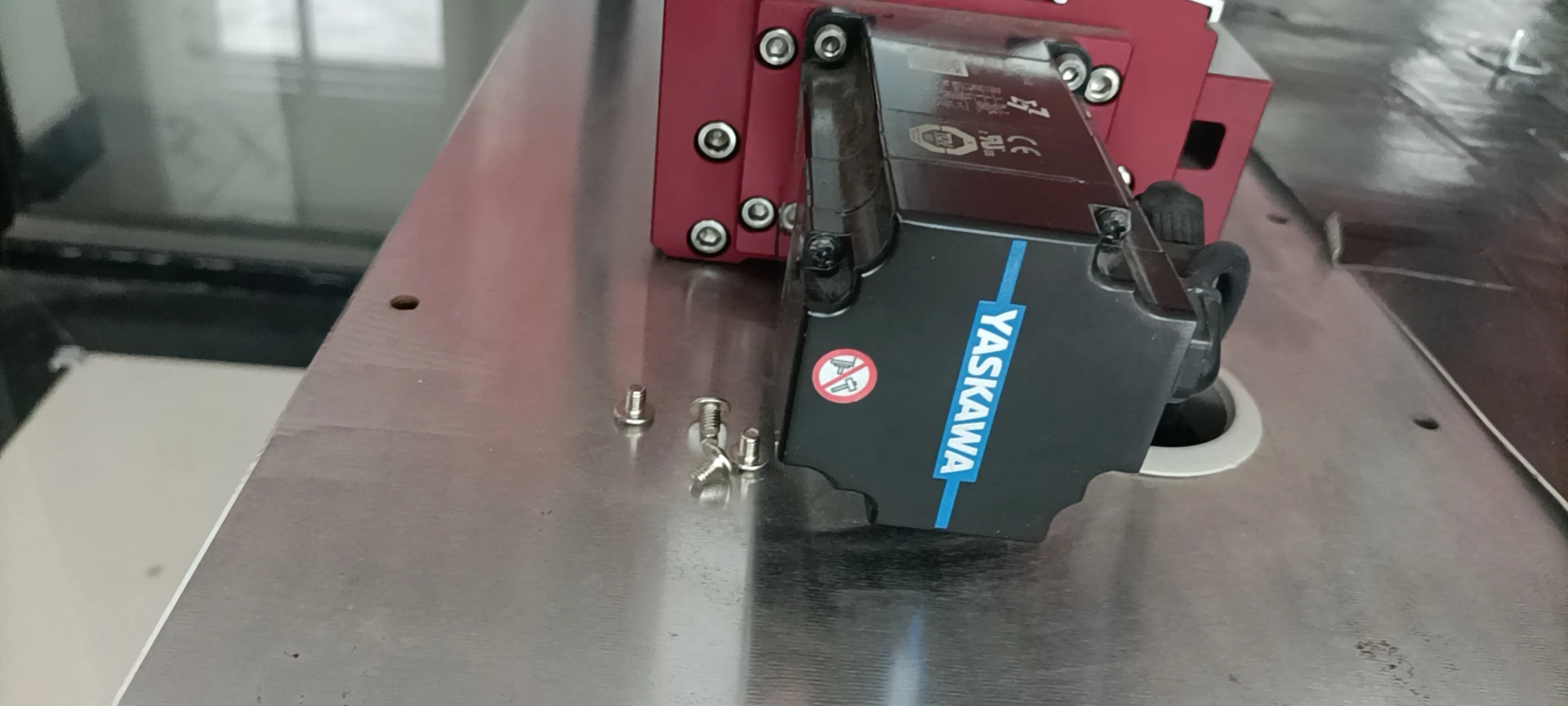

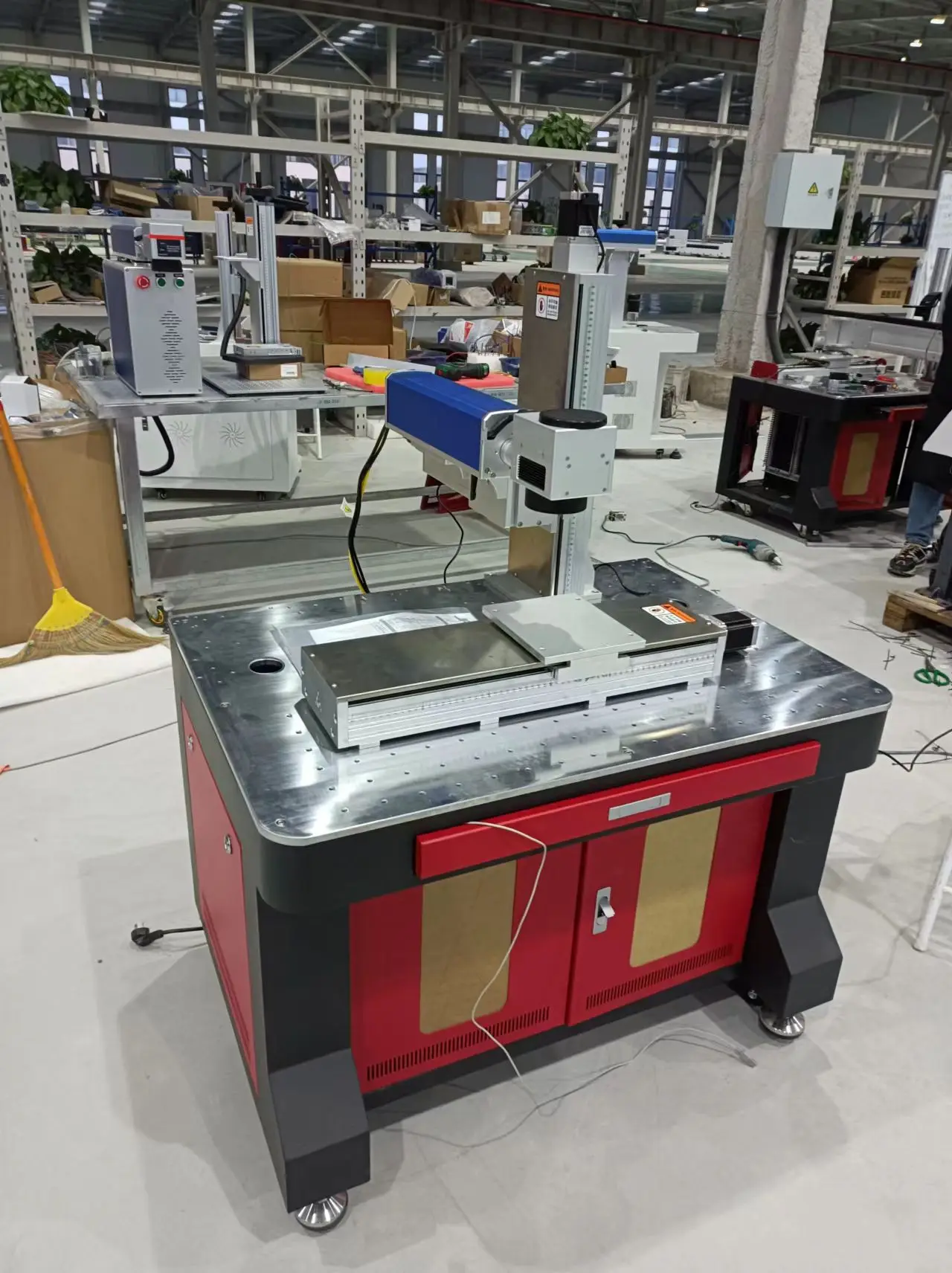

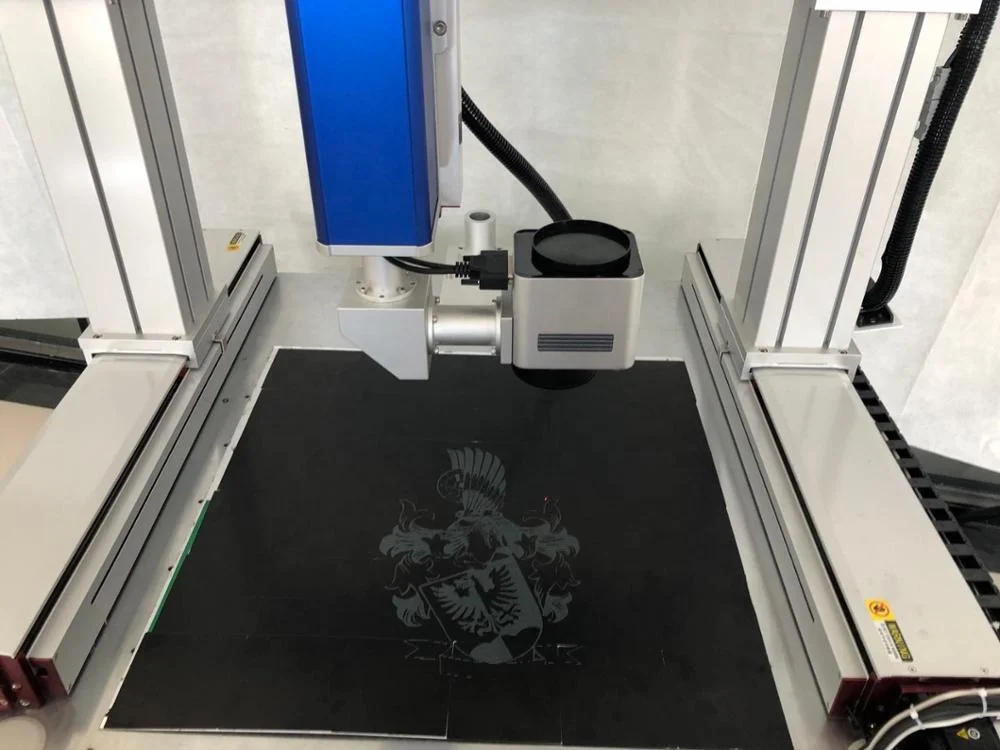

Electric X Y Z Axis Matched with the software

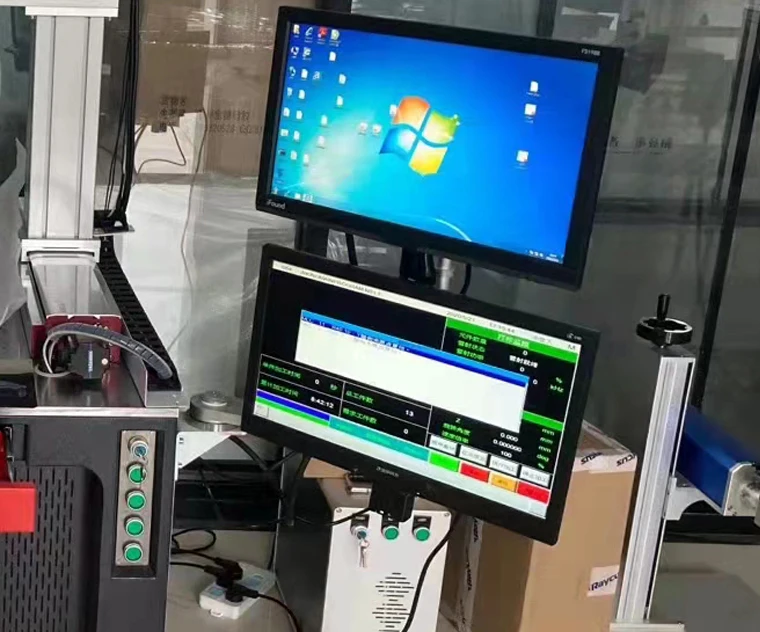

Taiwan famous control software

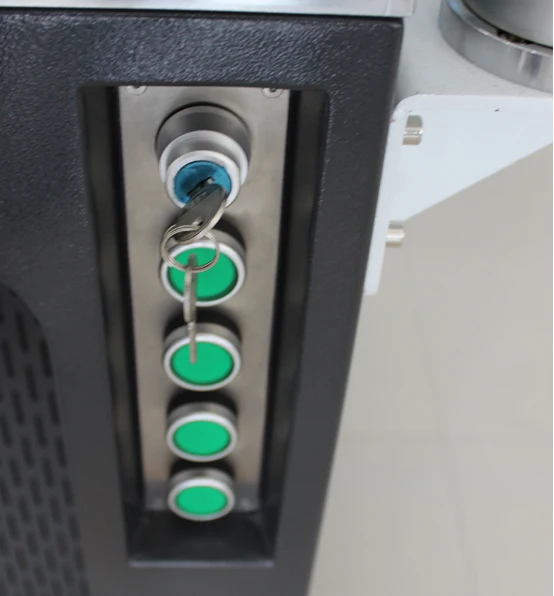

Electric button for axis
Taiwan Software
Samples
ZCGX-LSF fiber laser marking coding machine is specially designed for big work size marking.
Fiber lasere marking machine can mark on metal, steel, aluminum, copper, silver, HDPE, PVC, PE, ceramic and other kinds of materials. Logo, serial number, code, characters, Qr code...can all be marked with high accuracy.
Fiber lasere marking machine can mark on metal, steel, aluminum, copper, silver, HDPE, PVC, PE, ceramic and other kinds of materials. Logo, serial number, code, characters, Qr code...can all be marked with high accuracy.
Large-format splicing fiber laser marking machine can be customized according to requirements, and the XYZ axis moves in parallel.
Why choose a large-format splicing laser marking machine?
The marking range of the commonly used laser marking machine is generally within 300*300 mm, which can not achieve good marking results. The field lens range is limited and the spot will be very weak. In this case, mobile splicing is required for marking. Advantages of gantry structure marking machine It can realize large-format engraving, the laser power can be selected freely, and it can be matched with 20W 30W 50W 60W 70W 80W 100W 120W 200W etc., and the field lens can be selected in many ways, such as 110*110 mm, 150*150 mm and other focusing lenses. The moving range can reach 600*600 mm, which means that precision marking can be achieved within this range. With precision screw transmission, large moving distance and high flexibility.
Why choose a large-format splicing laser marking machine?
The marking range of the commonly used laser marking machine is generally within 300*300 mm, which can not achieve good marking results. The field lens range is limited and the spot will be very weak. In this case, mobile splicing is required for marking. Advantages of gantry structure marking machine It can realize large-format engraving, the laser power can be selected freely, and it can be matched with 20W 30W 50W 60W 70W 80W 100W 120W 200W etc., and the field lens can be selected in many ways, such as 110*110 mm, 150*150 mm and other focusing lenses. The moving range can reach 600*600 mm, which means that precision marking can be achieved within this range. With precision screw transmission, large moving distance and high flexibility.
Laser Marking Machine Applications:Laser marking machines are mainly used in some occasions requiring finer and higher precision.
The machine can handle all metal materials, such as gold, silver, copper, stainless steel, aluminum, etc.; and some non-metal materials.
1.Electronic Components: Resistors, Capacitors, Chips, Printed Circuit Boards, Keyboard, etc.
The machine can handle all metal materials, such as gold, silver, copper, stainless steel, aluminum, etc.; and some non-metal materials.
1.Electronic Components: Resistors, Capacitors, Chips, Printed Circuit Boards, Keyboard, etc.
2.Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.
3.Instrument: Panel Board, Nameplates, Precision equipment, etc.
4.Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.
5.Automobile Parts: Pistons&Rings, Gears, Shafts, Bearings, Clutch, Lights.
6. Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.
7. Part of nonmetals such as plastic animal ear tag, ear tag marking, pig ear tag marking, pet bowl marking etc.
3.Instrument: Panel Board, Nameplates, Precision equipment, etc.
4.Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.
5.Automobile Parts: Pistons&Rings, Gears, Shafts, Bearings, Clutch, Lights.
6. Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.
7. Part of nonmetals such as plastic animal ear tag, ear tag marking, pig ear tag marking, pet bowl marking etc.
