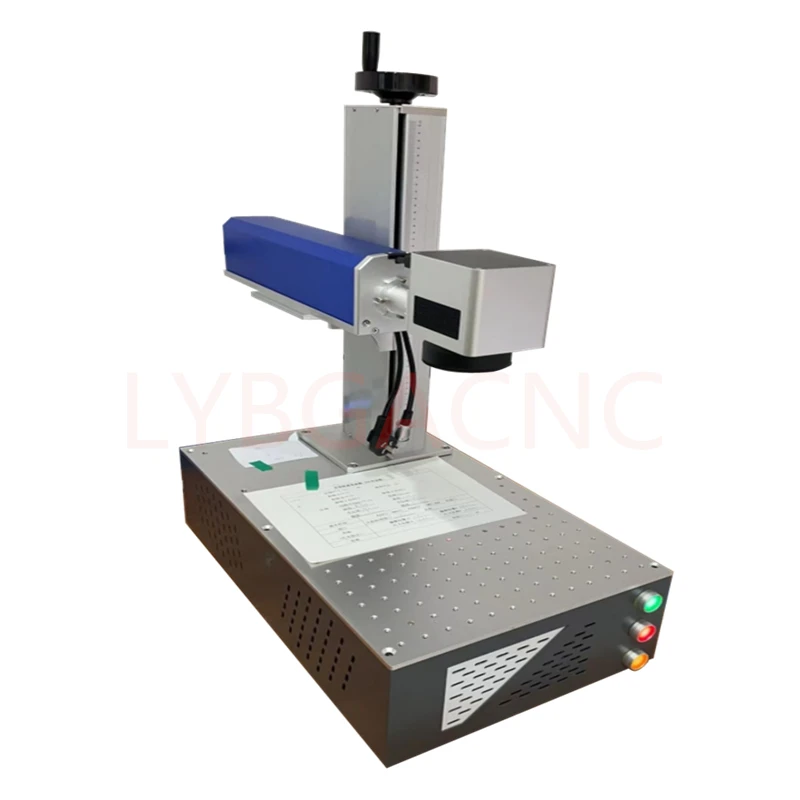

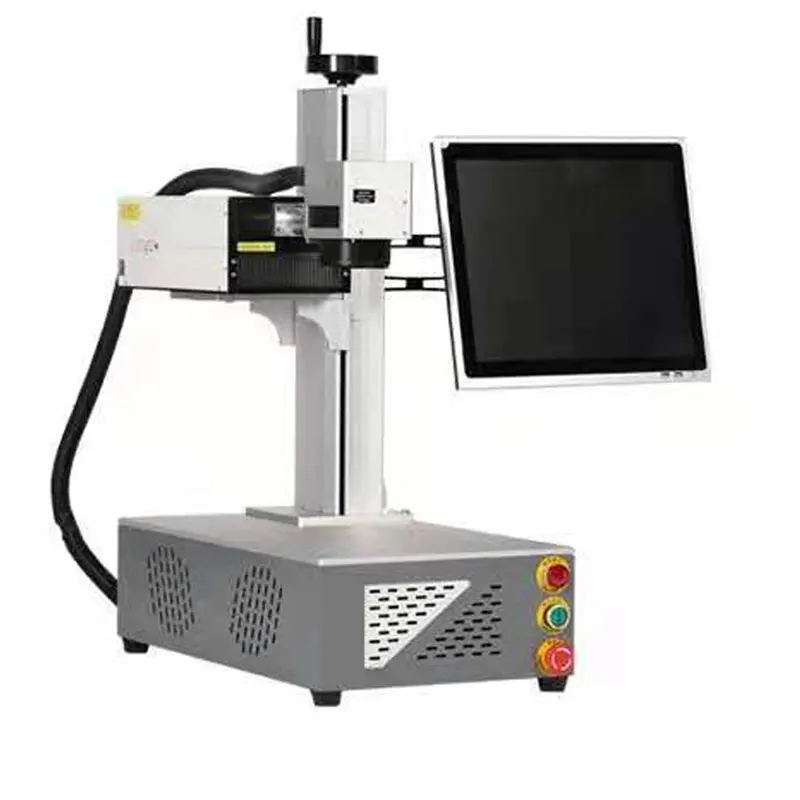

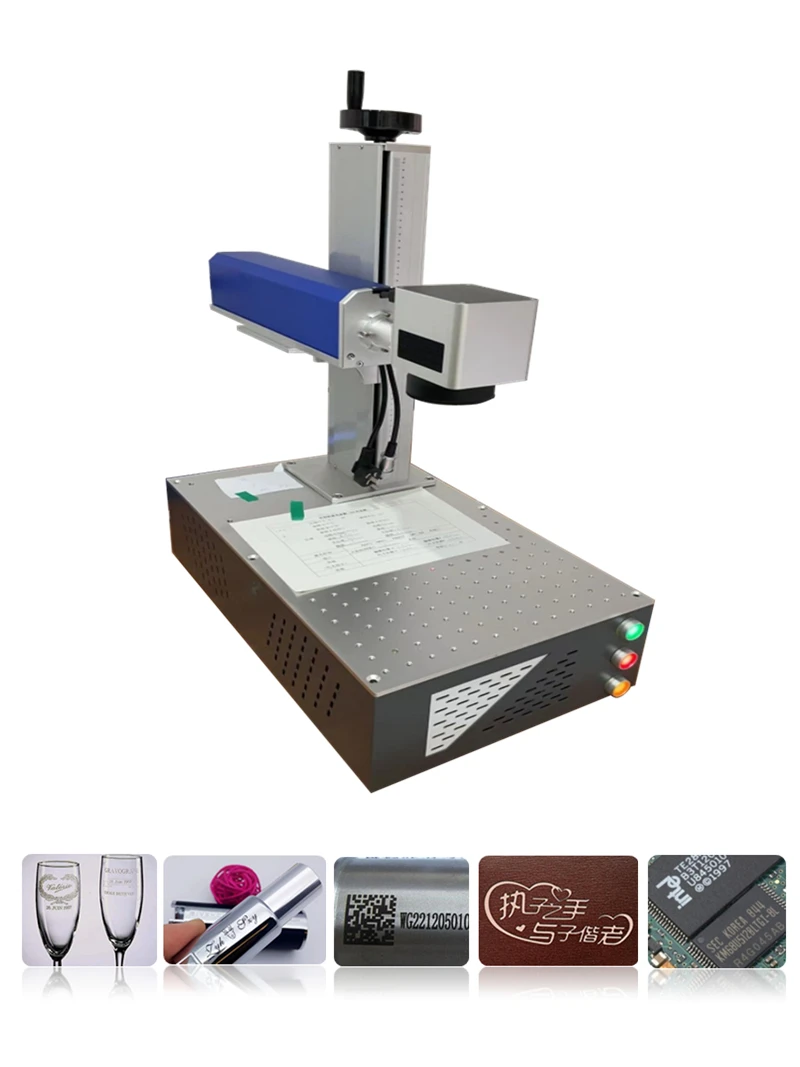

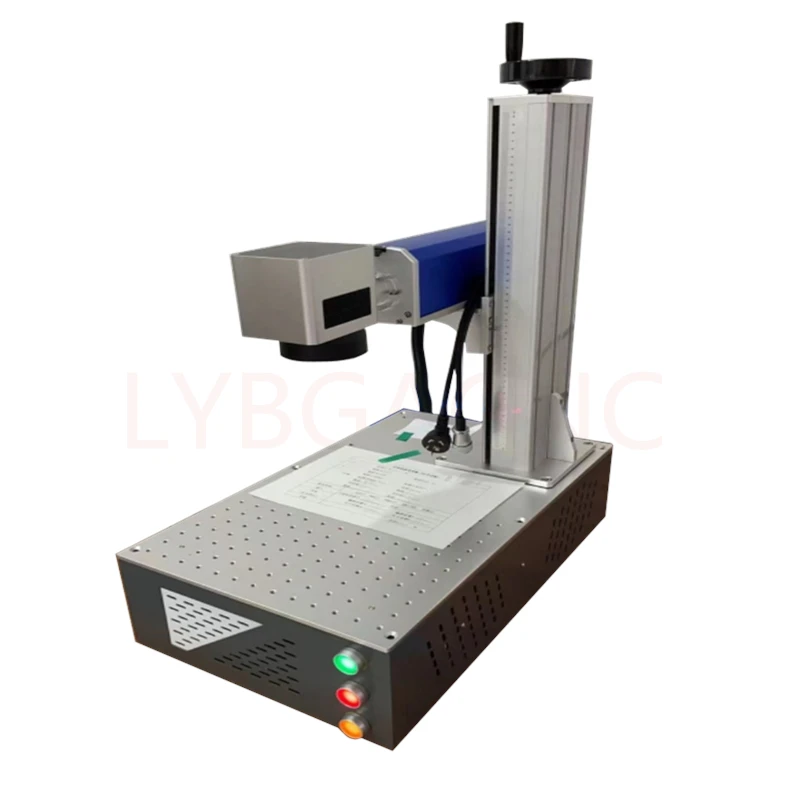

Disassembled LY Desktop Mini Galvo Scanner Align System All In One 20W 30W 50W Raycus Max Fiber Laser Nameplate Marking Machine
Disassembled LY Desktop Mini Galvo Scanner Align System All In One 20W 30W 50W Raycus Max Fiber Laser Nameplate Marking Machine
Couldn't load pickup availability
Disassembled LY desktop mini galvo scanner align system all in one optical fiber laser nameplate Marking machine Fiber laser engraver engraving compatible 20W 30W 50W upgrade Rotation axis Rolling roller axis
Technical Parameter
|
Model |
|
|
Laser power |
20W/30W/50W |
|
Working Area |
20W 110*110mm (Default) or 70*70mm 150*150mm(Optional) 30W 150*150mm (Default) or 70*70mm 150*150mm 200*200mm(Optional) 50W 200*200mm (Default) or 110*110mm 150*150mm 300*300mm(Optional) |
|
Cooling Mode |
Air Cooling |
|
Laser Wavelength |
10.64 um |
|
Frequency of pulse |
20-100 KHz |
|
Marking Depth |
≤0.3 mm |
|
Marking Speed |
≤7000 mm/s |
|
Marking Lines |
1-10 lines |
|
Minimum Line Width |
0.01 mm |
|
Minimum Character |
0.15 mm |
|
Repeatability Accuracy |
±0.002 mm |
|
Resolution Ratio |
0.1 mm |
|
Marking Content |
Text, pattern, date, bar code, etc |
|
Operation System |
Microsoft Windows XP or Windows 2000,WIN 7, WIN8, WIN 10 |
|
Control Software |
EZCAD ENGLISH Control Software |
|
Graphic Format Supported |
BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc. |
|
Unit Power |
500W |
|
Operation Temperature |
5°C-40°C |
|
Relative Moisture |
≤ 90%, no fog |
|
Dimensions(L*W*H) |
45 x 55 x 75 cm |
|
Power supply requirements |
220 V or 110V |
|
Weight |
35KG |
|
Warranty |
24 months |
