007TECH

DOYA Fiber Laser Marking Machine Fiber Laser Engraving Machine for Metal Stainless Steel Jewelry Gold Silver Aluminum

¥730.00 CNY

~~¥730.00 CNY~~ ¥730.00 CNY

Sale Sold out

Shipping calculated at checkout.

Material machine car

Quantity

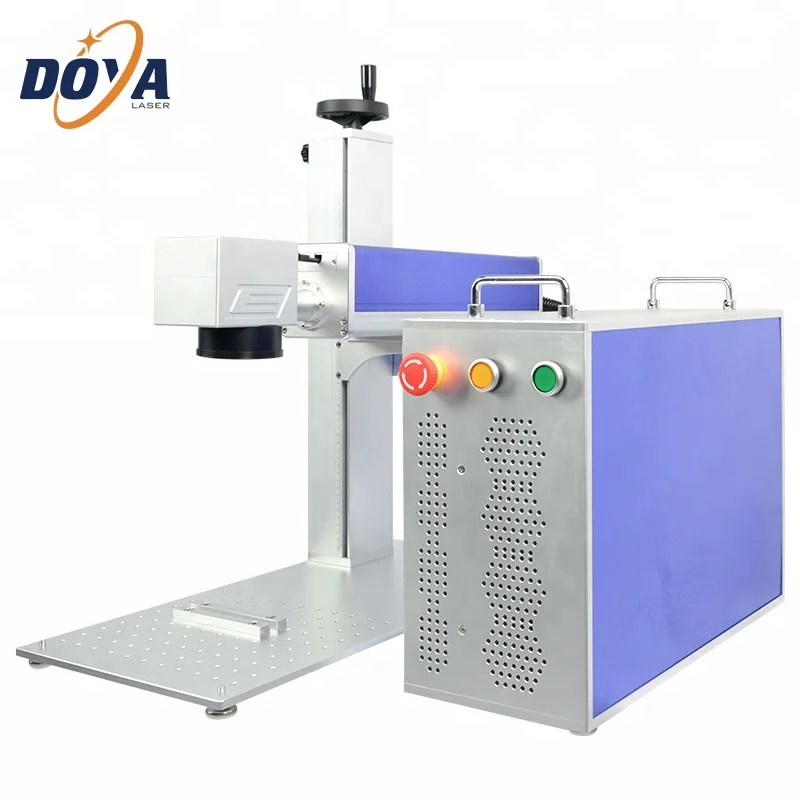

Desktop Split Laser Marking Machine

The laser marking machine adopts the most advanced laser technology, which has the advantage of high beam quality and high reliability. It is suitable for processing fields that need high marking depth, smoothness and accuracy. The fiber laser marking machine is environmentally friendly, low consumption, fully automatic and leading laser system. Its software has already been installed and the parameter is settled before delivery. Once received, the laser etcher could work directly without data adjustment.

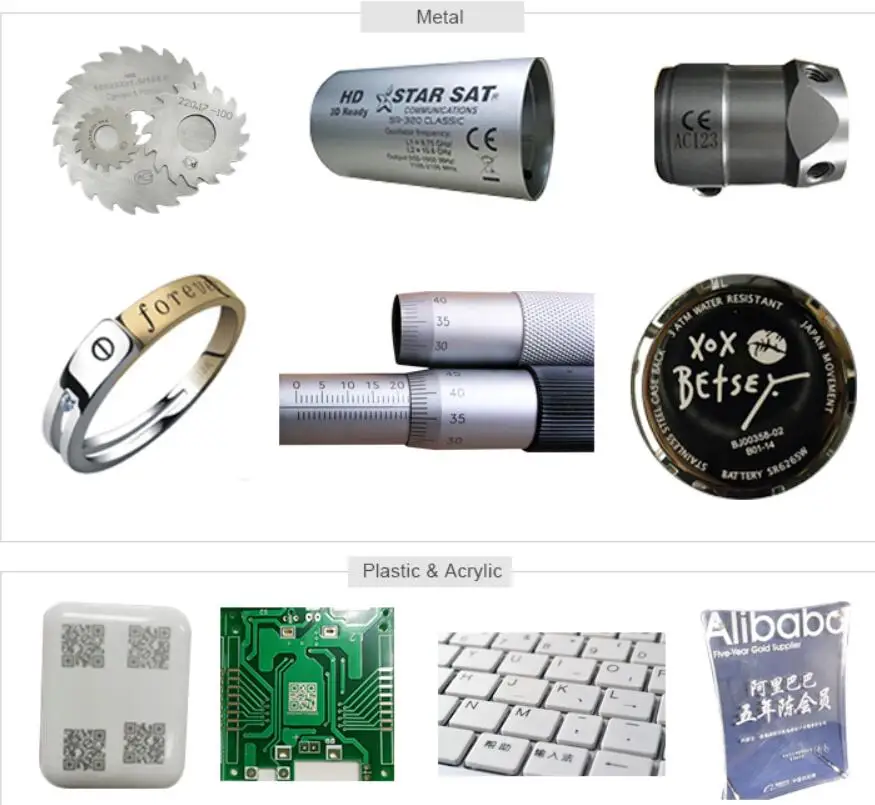

It is widely used in metal materials and some non-metallic materials. In the case of marking on Alumina materials with black logo, model or letters, the MOPA laser marking machine could meet this requirement. This desktop all-in-one type laser marking machine is fully functional, compact and convenient, making it a good choice for export transportation.

Laser Type: Fiber	Power: 20W/30W/50W/100W
Laser Wavelength: 1064nm	Laser Beam Quality: ＜1.5
Marking Speed: ≤ 7000mm/s	Min. Linear Width: 0.01m
Marking Depth: 0.4mm(based on materials)	Repeat Frequency: 20KHz-80KHz
Repeat Positioning Accuracy: 0.001mm	Standard Marking Area: 110mm x 110mm(optional)
Power Consumption: ≤ 500W	Power Supply: AC 220V 50KHz
Protective Cover: Optional	Cooling: Air Cooling

After-sales service & Customer visiting:

1.Two years for laser source, one year for other spare parts free and longtime maintenance.

2. Plenty of technical support online is available.
3. Quick back-up parts available & technical assistance.
4. "Training Video","Instruction Book",and"Operation Manual"will be offered.

All machines, passed the European Union CE authentication and American Certification.

Accoroding to different products and size, we use different packaging materials, our packaging staff are very experieneced, and we absolutely guarantee the satety of products during transportation.
