durable and professional Senfeng 3015H cnc fiber laser cutting machine
durable and professional Senfeng 3015H cnc fiber laser cutting machine
Regular price
¥728.00 CNY
Regular price
¥728.00 CNY
Sale price
¥728.00 CNY
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description

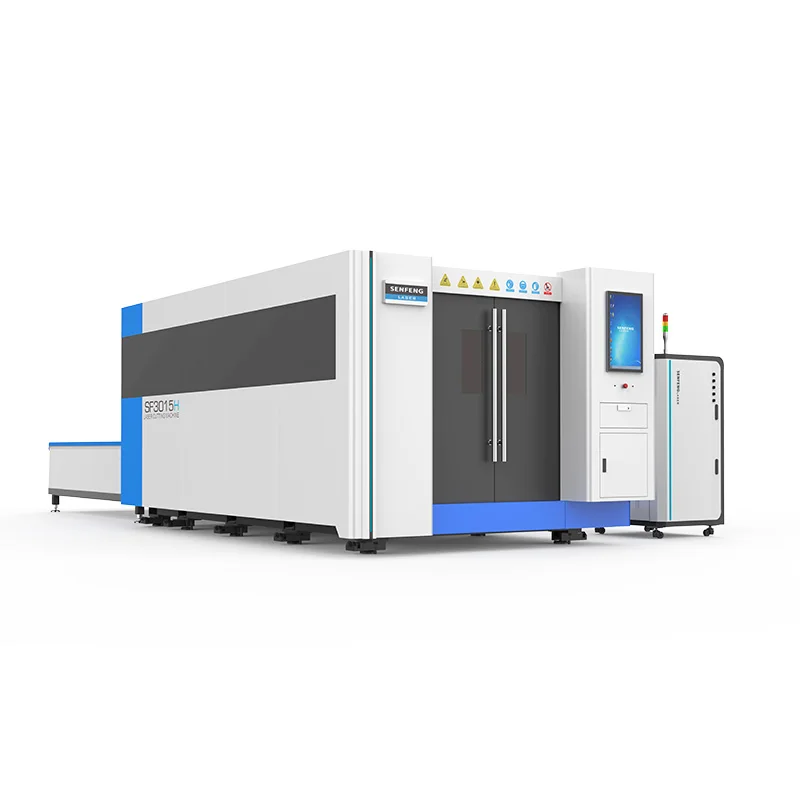

Senfeng full cover fiber laser 2kw metal cutting machine
with pallet exchanger SF3015H
Product Features
1.Stable and reliable light path system and control system.
2.Imported original fiber laser generator with great and stable performance to ensure the lifespan over 100,000 hours.
3.High cutting quality and efficiency with smooth cutting edge.The cutting speed up to 60m/min.
4.Full protection cover to ensure the operator safety and reduce the factory air pollution.
5.Dual and exchange work table to save uploading time.
6.The dual gear and driver system to ensure high work precision.Imported guide rail and ball screw to guarantee machine stable work process.
2.Imported original fiber laser generator with great and stable performance to ensure the lifespan over 100,000 hours.
3.High cutting quality and efficiency with smooth cutting edge.The cutting speed up to 60m/min.
4.Full protection cover to ensure the operator safety and reduce the factory air pollution.
5.Dual and exchange work table to save uploading time.
6.The dual gear and driver system to ensure high work precision.Imported guide rail and ball screw to guarantee machine stable work process.
Application
High-power fiber metal laser cutter with full cover is specially used for cutting 0.4-25mm carbon steel;0.4-18mm stainless
steel,galvanized steel,Electrolysis board,Silicon steel;0.4-16mm Alluminum Alloy;0.4-10mm brass and cooper and other thin metals.
steel,galvanized steel,Electrolysis board,Silicon steel;0.4-16mm Alluminum Alloy;0.4-10mm brass and cooper and other thin metals.
Technical Parameters
Model |
SF 3015H |
Working area |
3000*1500mm |
Laser power |
1500w to 6000w |
Laser wavelength |
1060nm-1080nm |
Cutting speed |
0-60m/min |
Gross power |
20kw-30kw |
Positioning accuracy |
±0.05mm/m |
Repositioning accuracy |
±0.03mm |
Max velocity of movement |
130m/min |
Cooling model |
Water-cooling |
Supply power |
3 phase/380V/50HZ |

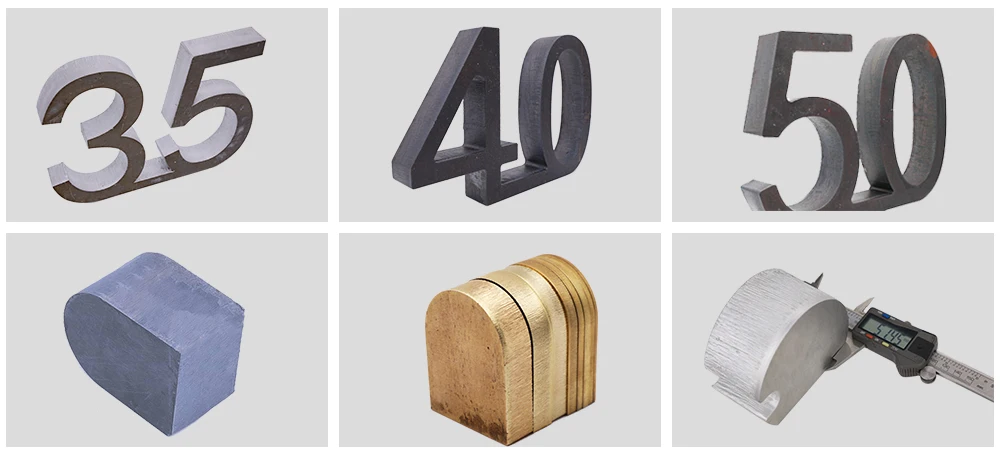

Cutting Samples

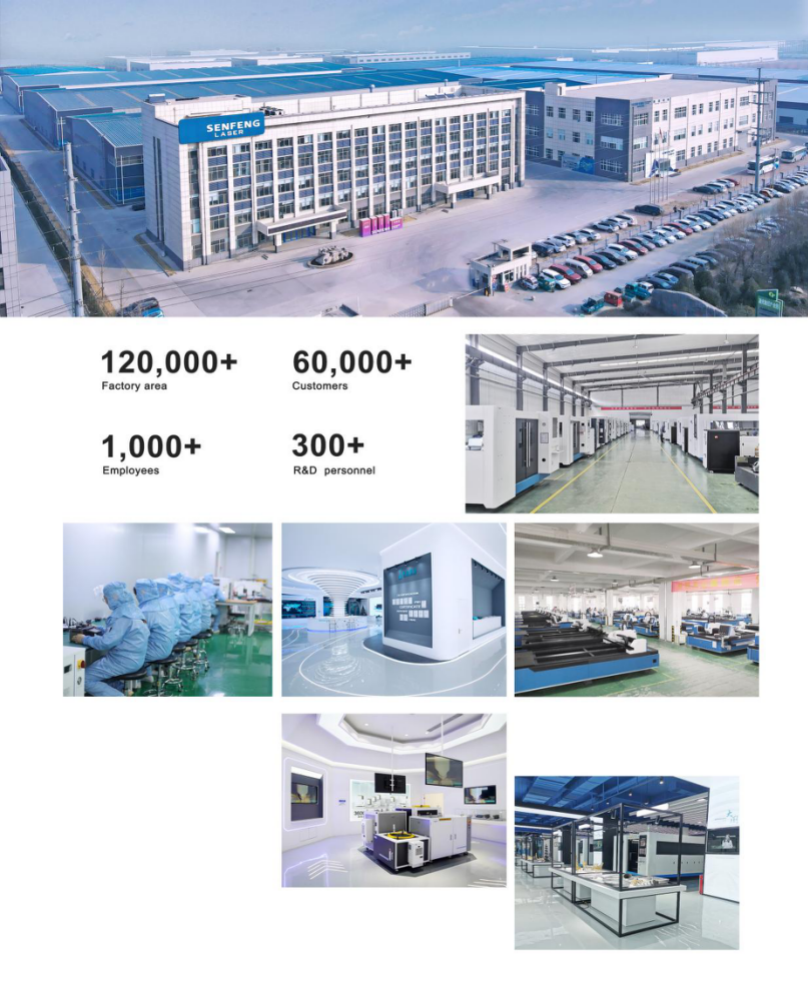

Our Company
Our Team

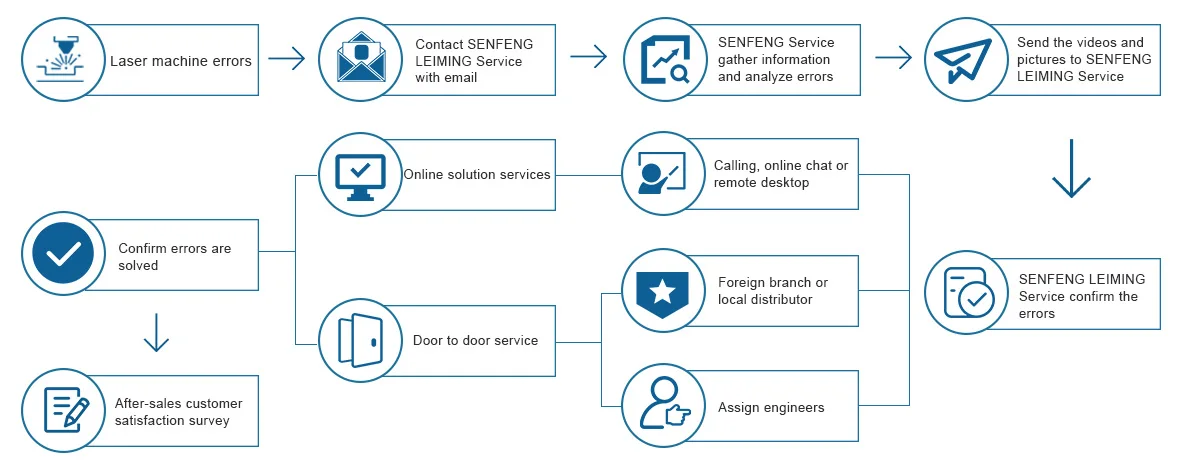

Our Service
