Factory price handheld fiber laser welding machine for metal welding

Factory price handheld fiber laser welding machine for metal welding

¥4,444.00 CNY
¥26,661.00 CNY ¥4,444.00 CNY
Sale Sold out
Shipping calculated at checkout.
Power
Model Number
Product Description

Features

1.This machine adopts 1000-2000w fiber laser, which has high electro-optical conversion efficiency and long laser life.
2.Maintenance: No adjustment, low energy consumption, no consumables, long-term use can save users a lot of processing costs.
3.Size: Small size and compact structure, built-in water cooling, flexible and convenient hand-held welding, and can realize outdoor welding.

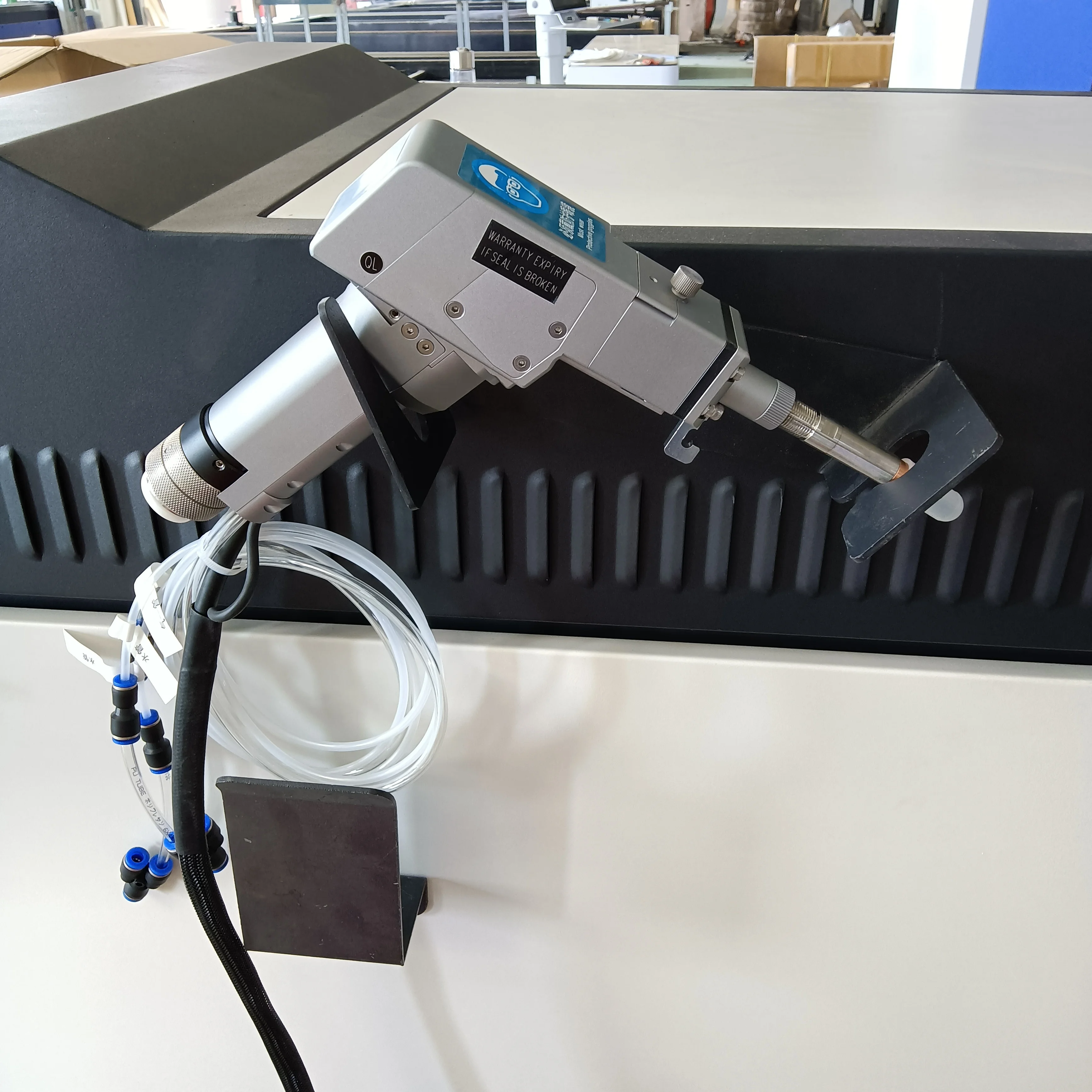

4.Handheld welding head: Equipped with 15 meters of imported optical fiber, it can weld all kinds of work pieces with complex welding seams and large work pieces with irregular shapes, and realize welding at any angle.
5.The beam quality transmitted by the optical fiber is better, the solder joints are more uniform, and the penetration depth is better.
6.It is especially suitable for ultra-thin welding that cannot be welded by argon arc welding. It has a good welding effect.
7.The special aircraft has strong customization capabilities, and can be customized according to customer needs. The operation is simple, easy to learn, and quick to learn.
Specification
Model
GD-500W
GD-1000W
GD-1500W
Power
500w
1000w
1500w
Power Adjustment Range
10-100%
10-100%
10-100%
Center Wavelength
1080mm
1080mm
1080mm
Sport Mode
Continuous
Continuous
Continuous
Long-term Power Stability
+-1%
+-1%
+-1%
Modulation Frequency
20KHZ
20KHZ
20KHZ
Red Light Indicates Output Power
0.5-1mW
0.5-1mW
0.5-1mW
Beam Quality
<1.3
<1.3
<1.3
Switch Light Time
20US
20US
20US
Fiber Core Diameter
50um
50um
50um
Electricity Demand
220v/Hz
380v/Hz
380v/Hz
Power Consumption Of The Whole Machine
<=1.5kw
<=2.5kw
<=3.5kw
Machine Size
900*540*1030mm
Weldable Materials
Common Metals Can Be Welded
Consumables
Protect Lens, Protective Gas (Or Compressed Air)
Continuous Working Time
24 Hours
Welding Method
Pulse Spot Welding, Continuous Welding.
Spot Diameter
0---4mm
Swing Welding Head
Optional
Cooling Method
Water Cooling
Laser Fiber Length
10m/Optional 15m

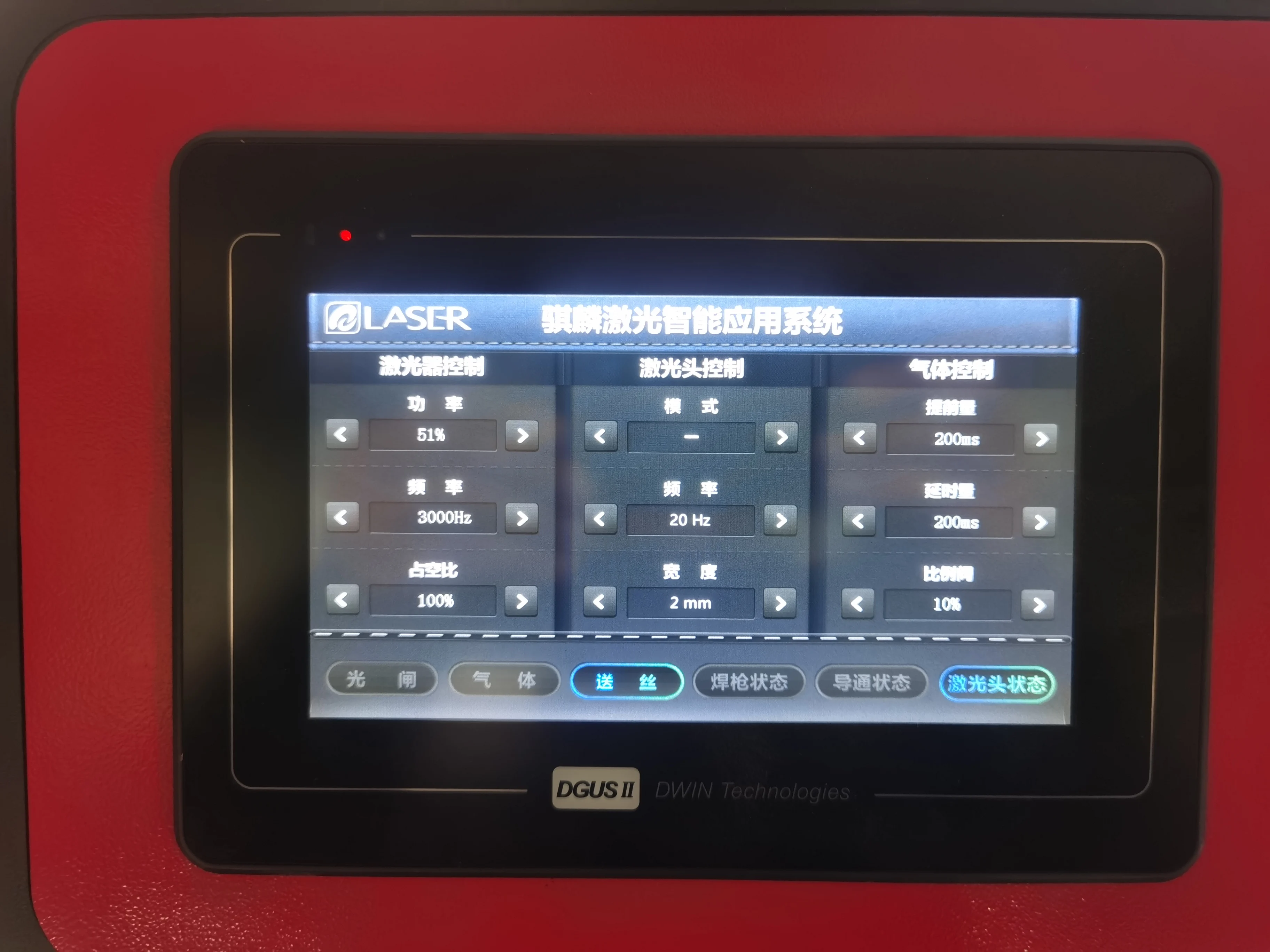

Operation Mode
LCD Touch Screen

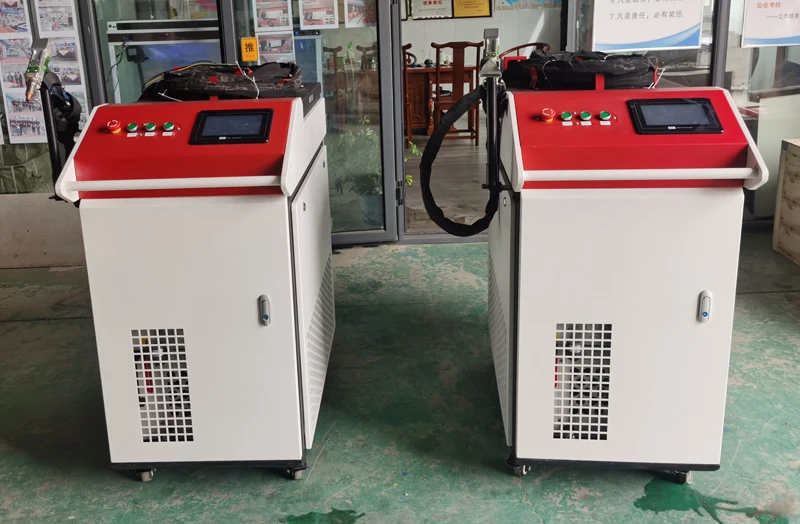

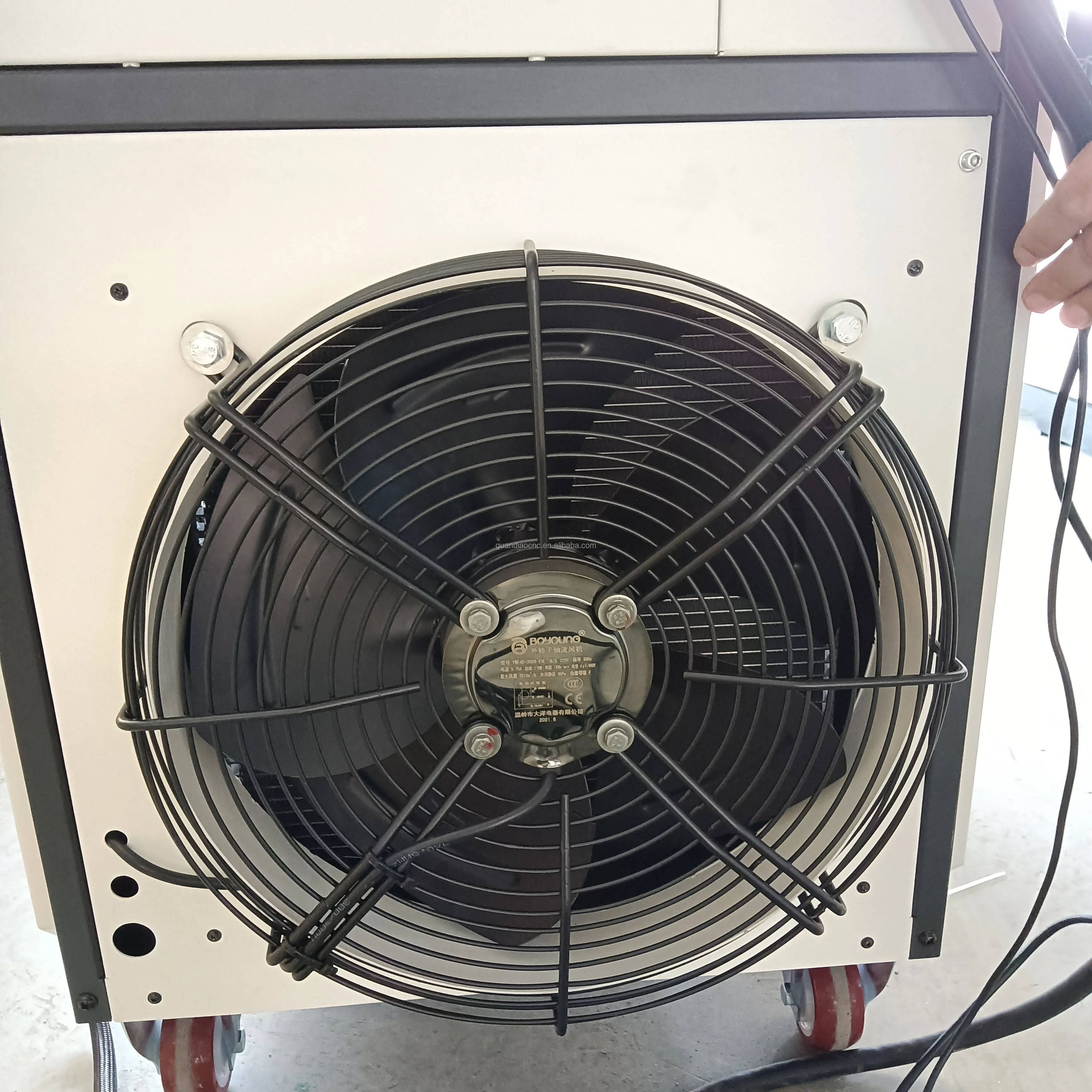

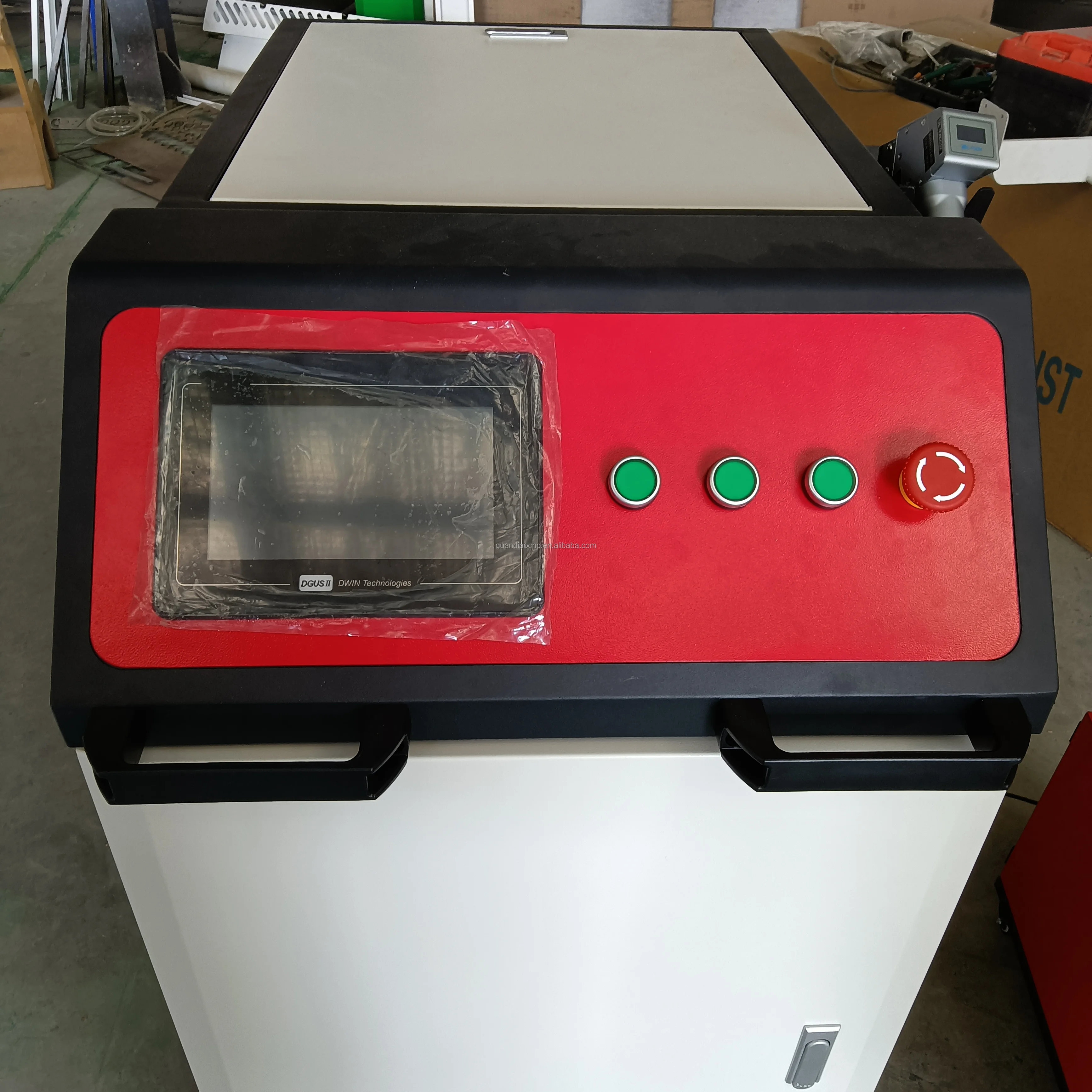

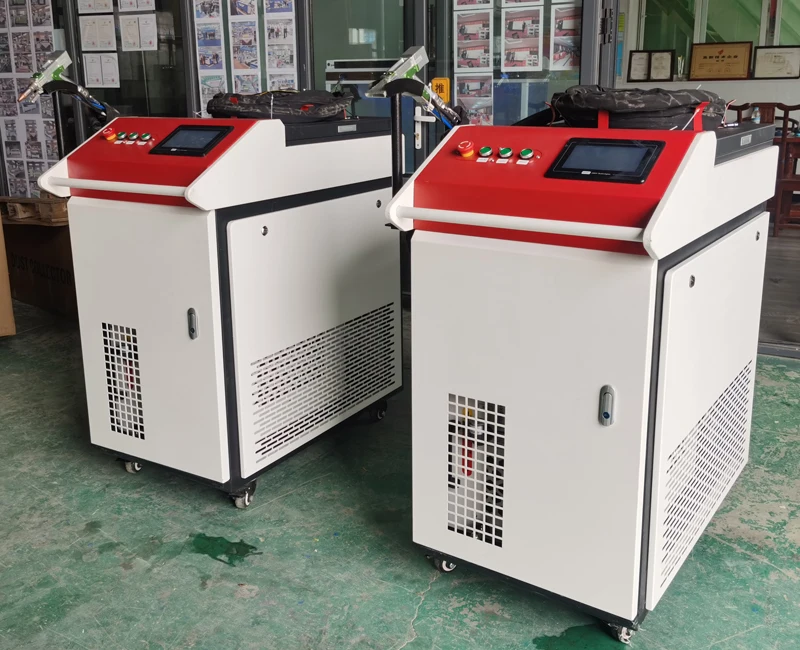

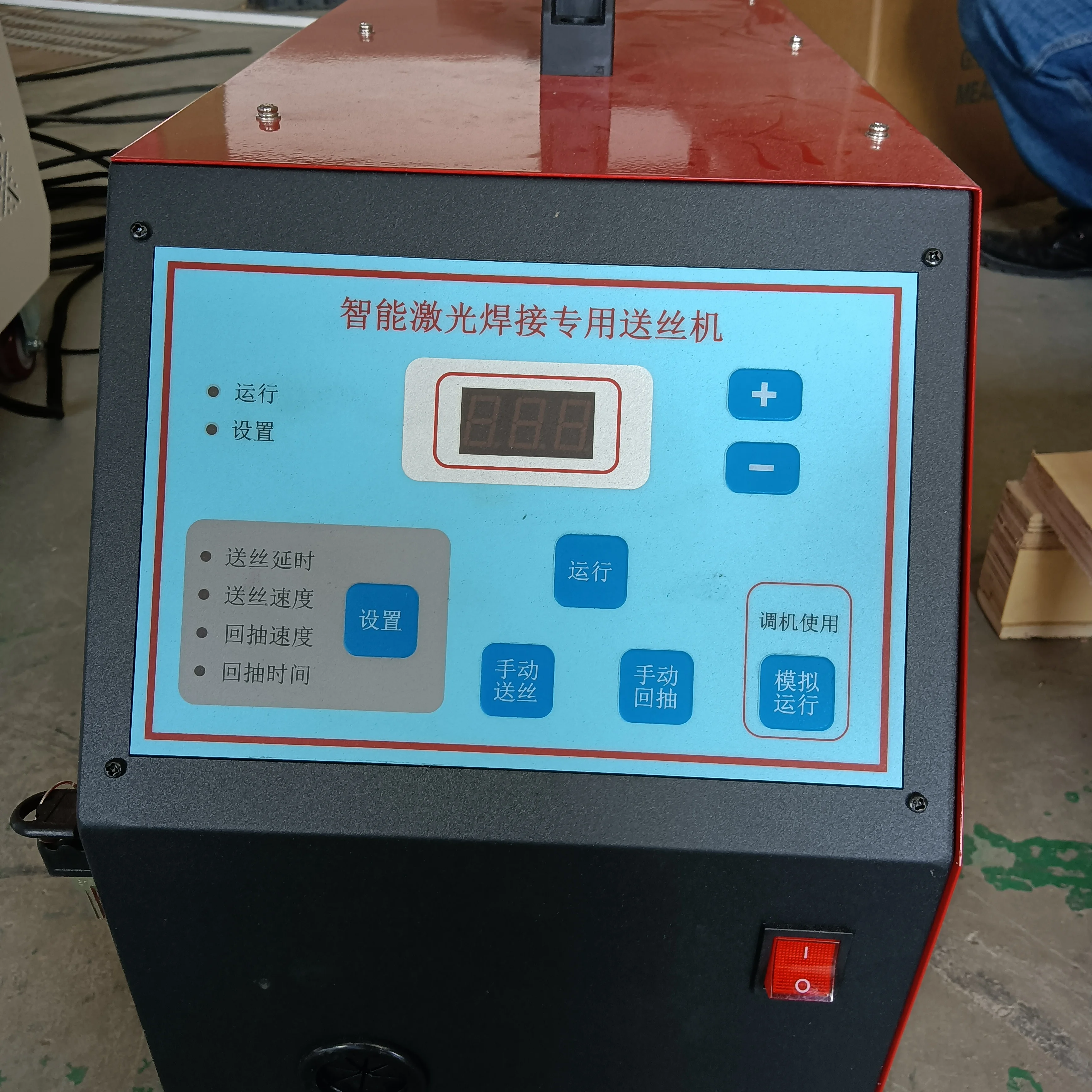

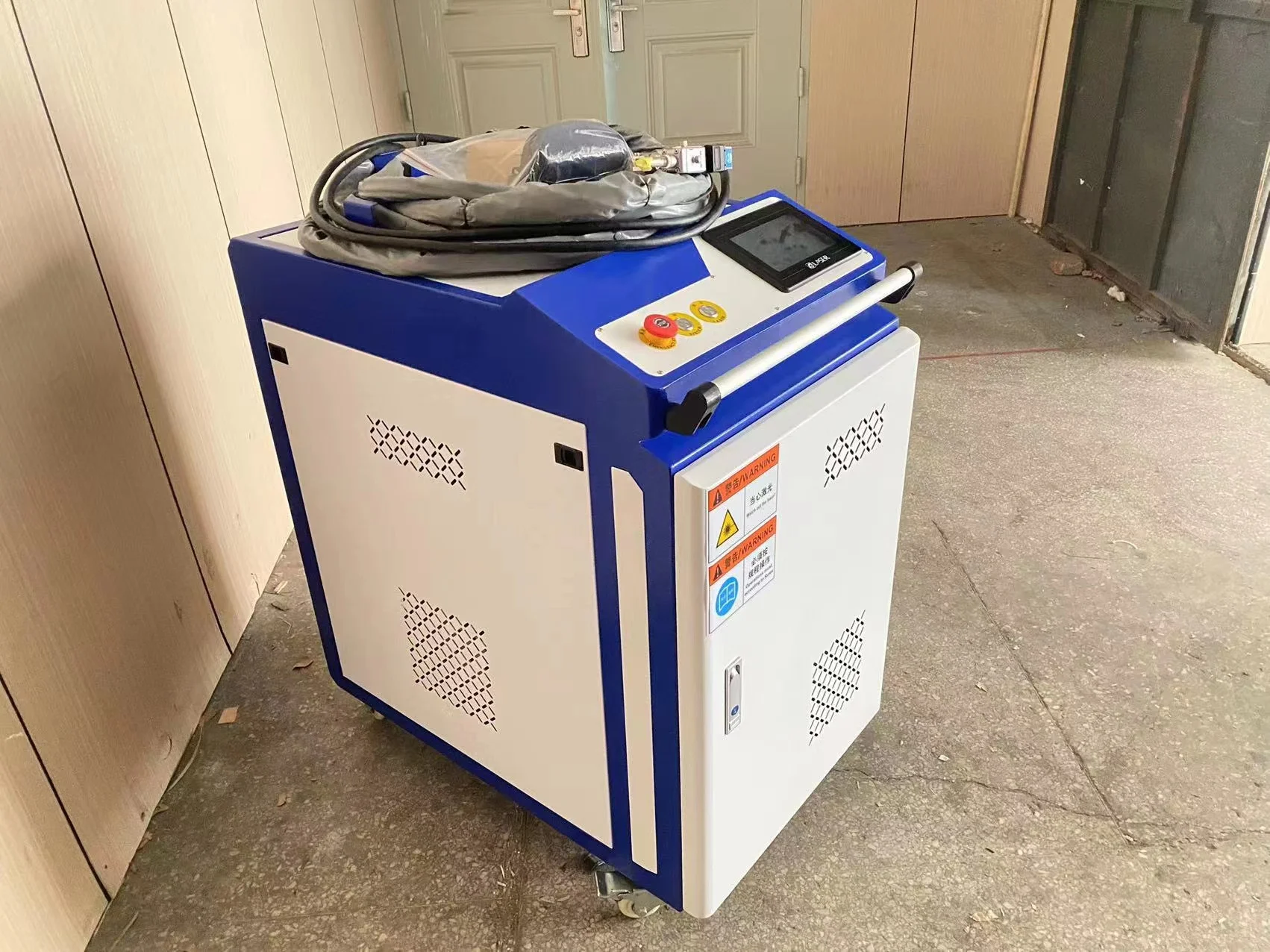

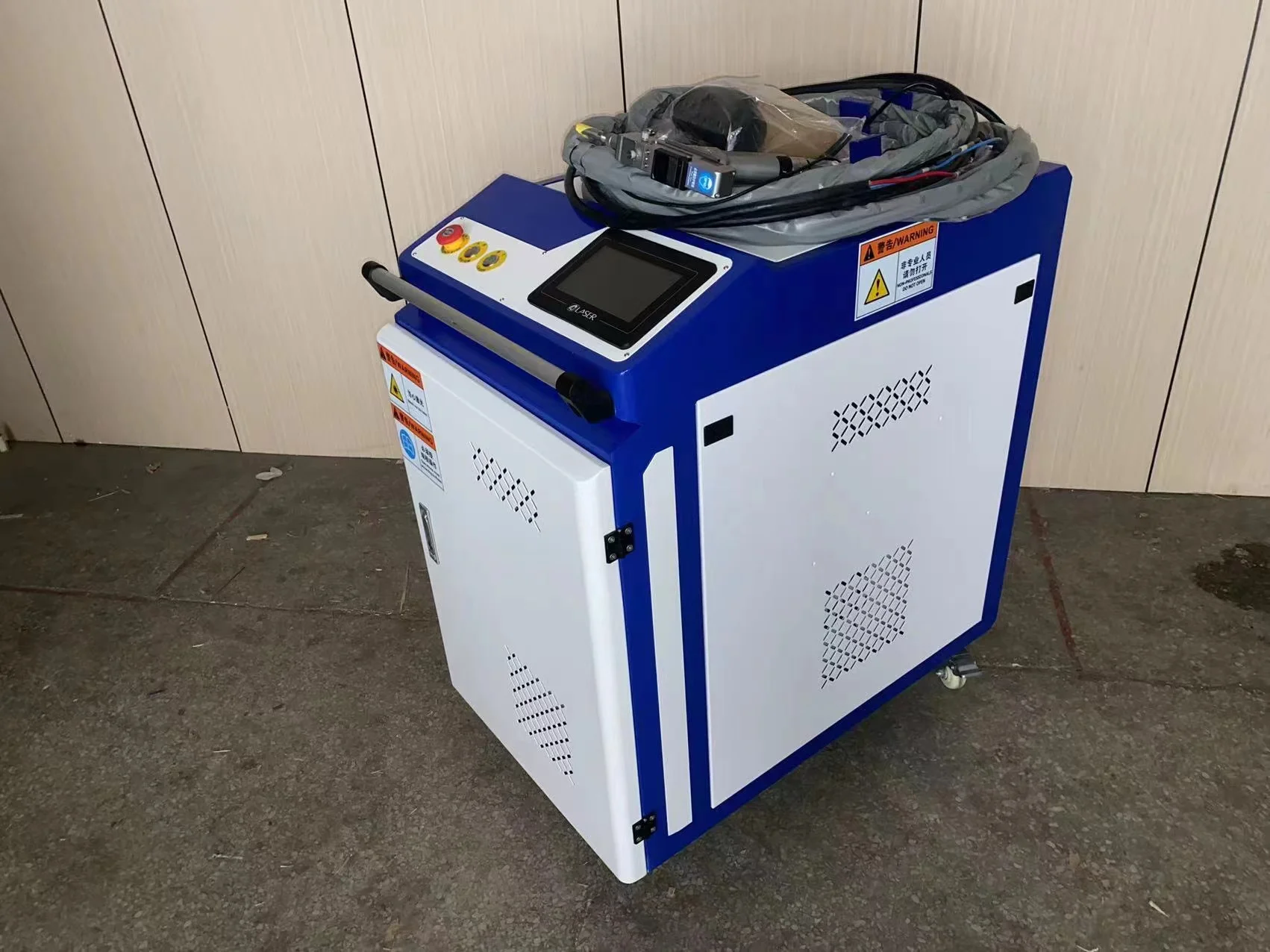

Machine Details

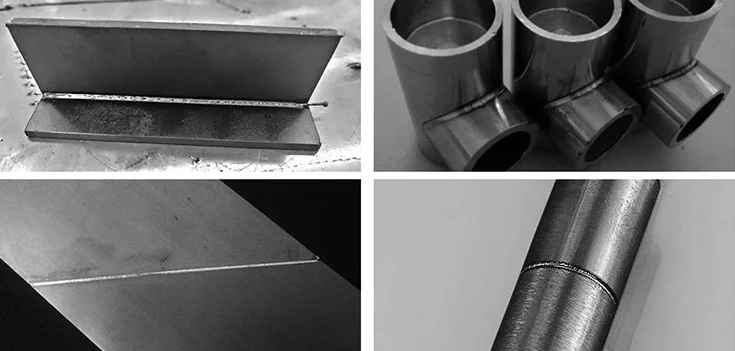

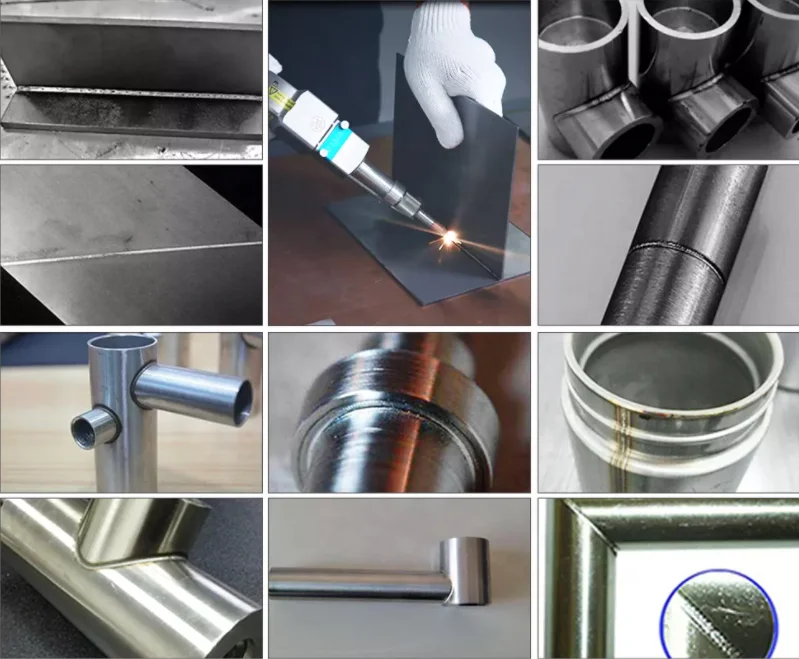

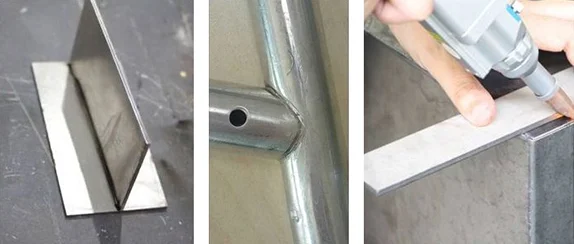

Application
Package & Delivery

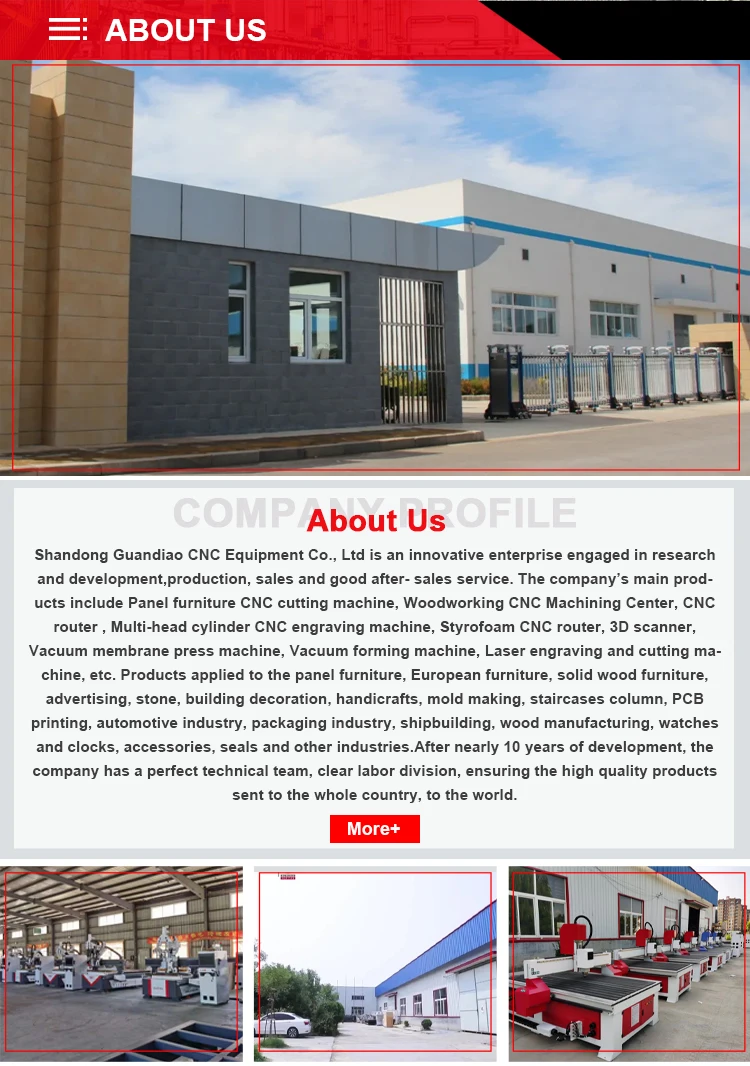

Company Profile
Shandong Guandiao CNC Equipment Co., Ltd is an innovative enterprise engaged in research and development, production, sales and good after- sales service. The company's main products include Panel furniture CNC cutting machine, Woodworking CNC Machining Center, CNC router, Multi-head cylinder CNC engraving machine, Styrofoam CNC router, 3D scanner, Vacuum membrane press machine, Vacuum forming machine, Laser engraving and cutting machine, etc. Products applied to the panel furniture, European furniture, solid wood furniture, advertising, stone, building decoration, handicrafts, mold making, staircases column, PCB printing, automotive industry, packaging industry, shipbuilding, wood manufacturing, watches and clocks, accessories, seals and other industries.
After nearly 10 years of development, the company has a perfect technical team, clear labor division, ensuring the high quality products sent to the whole country, to the world. We offer our customers best solutions, including product design, installation, training, aftersales service, etc. With the market development demand as the orientation, we stick to innovate and improve technology continuously, to the peak of CNC industry is our relentless drive. At present, the company's products are sold to major and small cities and regions in China. The company has independent import and export right, products are exported to southeast Asia, the Middle East, Africa, Europe and the United States and other places, and with its excellent quality, excellent performance and perfect after -sales serves won the customer the consistent approval.
