Fiber CNC Metal 1000W 1500W 2000W 3 in 1 Handheld Laser Welders Welding Copper Carbon Steel Aluminum Laser Welders

♣Applied for the welding of various metal letters, LED illuminated letters, customized metal signage, and exterior billboards.

♣Welding Materials:
Stainless steel, carbon steel, titanium, auminum, galvanized sheet, gold, silver and brass, etc





















1. Nozzle1

Customer can change the corresponding nozzle according to different welding processes, and can twist the copper nozzle to adjust the focal length, and the adjustable range of the focal position is ±15mm.

2. Wire Feeding Device:

Lightweight bend wire feeding structure, wire feeding Angle position can be adjusted conveniently.



3. Trachea Interface

Protective gas inlet.



4. Lead Signal Line

It is communicated with copper nozzles. When welding, contact with iron plate ground wire will produce a circuit, which plays a role of safety protection.



5. Protective Lens Mounting Port

The protective lens is equipped with water-cooled structure, so the protective lens can last longer. It is recommended to wipe the dust of protective lens once a day with alcohol-free cotton swab.

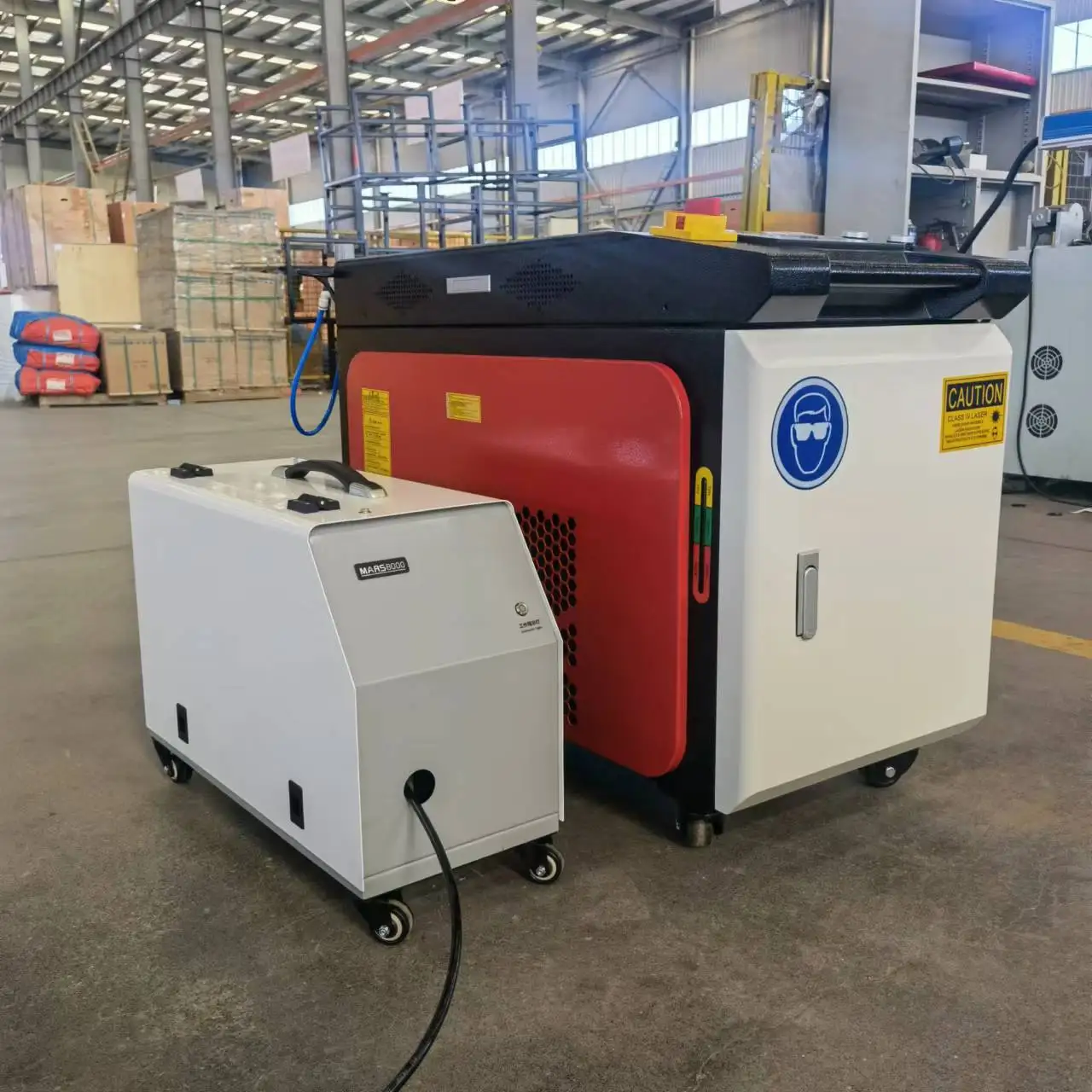

SPECIFICATIONS FOR Fiber Laser Welding Machine
Model		1000w  1500w  2000w
Laser Source	IPG(Germany)	Laser Power	1000W ~2000W
Welding Metarials	Metal and Non-Metal	Welding Thickness	4mm
Laser Mode	Multimode	Laser Wavelength	1070nm
Working Mode	Continuous	Power Instability	3%
Transmission Fiber Diameter	50um	Min Light Spot	0.2mm
Fiber Length	5,10,15m	Power Adjusting Range	5~95%
Cooling Method	Water Cooling	Power Supply	220V,50/60

Details for the machine and our service, do you have any questions, we help you to solve, we provide you with high quality products and considerate service

Q1. Are you a manufacture or trading company?

A:

We are a manufacture with export license. Choose us, you will ;have better prices and better after sale services.

Q2. How can I pay for my order?

A:

Usually by T/T, you can pay 50% of total amount as deposit. We will begin production once received, and will send pictures to inform you about production status, later you can pay the balance after production finished. Then the goods will be shipped to you at the soonest time. For other payment ways, you can contact your sales to know detailed info.

Q3. How about your After-sale service?  Can your engineer speak English?

A:

We have professional technical support team. Yes, they can speak English. You can contact us by email, Whatsapp, Skype or other popular communication way to inform about your problem, we will give you feedback within 24 hours. Every one of us will try the best to help you solve problems.

Q4. How long do you need for production?

A:

For standard size machine, usually it will be around 7 working days.
For customized machine, it needs longer time based on the requirements.

Q5. How about the documents?

A:

After shipment, we can send all original documents to you by courier. Besides Commercial Invoice, Packing List, Bill of lading, if you need further certificates or other documents, please contact your sales to prepare for you.

Guarantee and after-sale services

~36 Months Warranty For the machine
~All extra spare parts for the machine can be purchased at agent price
~Email/ Skype/ MSN/ Trade manager online support
~Free professional Training offered
~oversea technical support and online/Phone technical support available
~Door to door service if necessary
