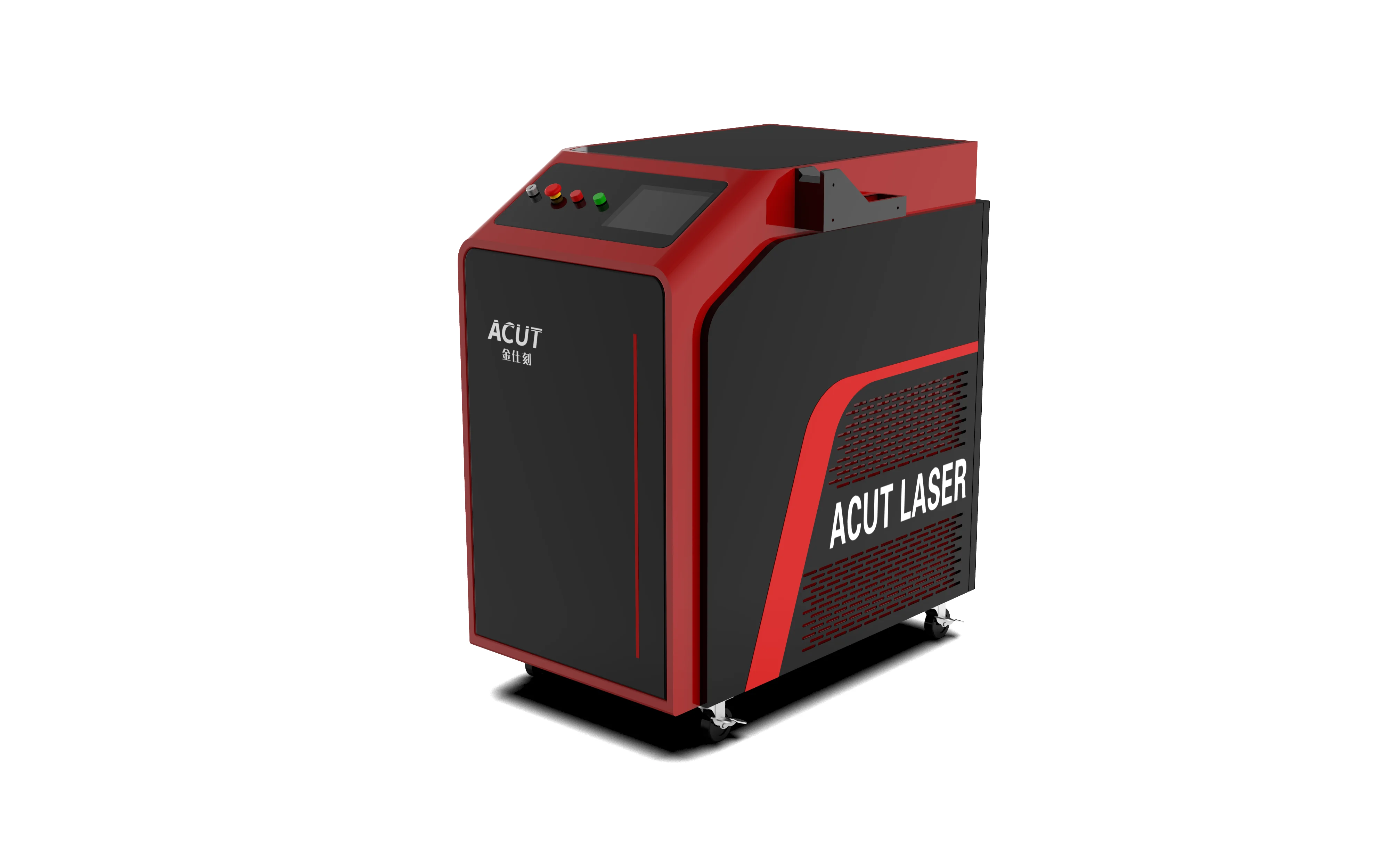

    Fiber Handheld Laser Welding Machine Spot Welding Machine Fully Automatic Handheld Fiber Laser Welding Machine 3kw 2kw 1.5kw 1kw

    Fiber Handheld Laser Welding Machine Spot Welding Machine Fully Automatic Handheld Fiber Laser Welding Machine 3kw 2kw 1.5kw 1kw

    ¥728.00 CNY
    ¥728.00 CNY ¥728.00 CNY
    Sale Sold out
    Shipping calculated at checkout.
    Material
    Description
    Laser welding is a high-energy-density laser beam as a heat source, which locally heats the material in a small area and melts the material to form a specific molten pool to achieve the effect of welding. Laser welding is mainly used for welding of thin-wall materials, precision parts, etc., which can realize spot welding, splicing welding, seal welding, overlap welding, etc.

    The heat distortion is small, the weld seam is beautiful and smooth, and the weld seam quality is high, and no secondary grinding treatment is required. In recent years, laser welding has been widely used for welding stainless steel, carbon steel, galvanized sheet, copper, aluminum and other products.

    The hand-held laser welding machine uses a hand-held swing welding head, which is flexible and simple to operate without the need for professional welder technology, Suitable for small batch and large batch production. Widely used in sheet metal processing,kitchen cabinets, cabinets, stair handrails, elevator escalators, display shelves, doors and windows, advertising models,stainless steel products and many other industries.
    Description and Specifications
    Model NO.
    ACUT-1000W Handheld laser welding machine
    Model type
    ACUT-1000W
    Laser Power
    1000W Raycus
    Laser source
    1000w (1500w 2000w 3000w Optional)
    Laser wavelength
    1070nm
    Fiber core diameter
    20μm
    Fiber length
    10m
    Laser working mode
    Continuous / Modulation
    Transmission
    Taiwan TBI ball screw
    Galvanometer width
    0.5-6mm
    Galvo scan speed
    ≤8000mm/s
    Welding speed
    0-120mm/s
    Refrigeration unit
    Intelligent dual temperature chiller
    Welding material thickness
    ≤2mm
    Welding gap requirements
    ≤0.5mm
    Package
    wooden box
    Voltage requirement
    220V±10%
    Total power
    ≤5KW
    Machine size
    1350mm*600mm*1300mm
    ACUT-1000W HANDHELD FIBER LASER WELDING MACHINE APPLICATIONS:
    Applications: Machine shell sheet metal welding,Kitchen cabinets,staircase elevator,Food Machinery,shelf, oven,stainless steel door,window guardrail,distribution box,communications equipment,craft gifts,household and other industries.
    Materials: Stainless steel, copper, aluminum, gold, chromium, silver, titanium, nickel and other metals or alloys, it can also be used for a variety of welding between different materials.

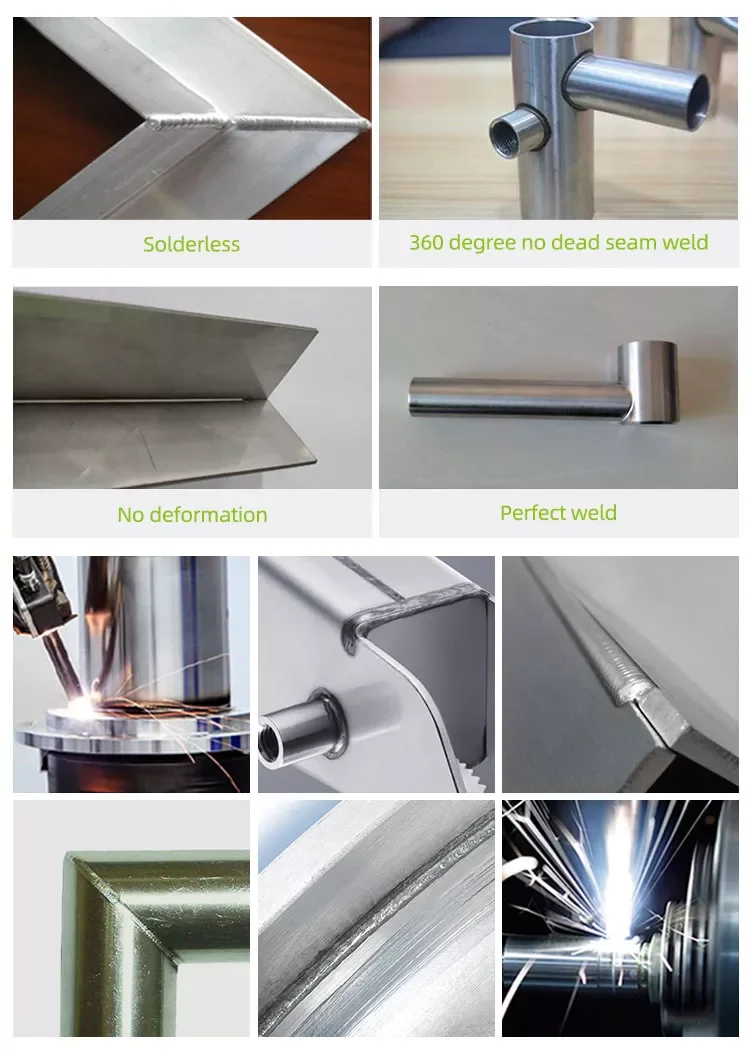

    Sample:
    Recommend Products
    Customer Feedback
    Our Service
    Company Profile
    Package and Delivery
    FAQ
    Q1.How to get the most suitable machine and best price? please tell the material you want to working on ? How to working on it ? Engraving ? Cutting ? Or other ? What’s the MAX size of these material ?( length ? Width ? Thickness ?) Q2.If we don’t know how to use the machine,can you teach us? Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy ,we will have the special engineer to your country,but you need to bear some fee,like tickets and hotel and meal. Q3.How about your after-sales service? we offer you 24 hours service phone,skype or MSN. Q4.How about your guarantee period? one year and during the time,if you have any questions ,we will solve it for free. Q5.How to maintenance the CNC Router? 1. First cut the power when maintain the machine. When check work must open the power, need the professional electrician to do this check work. 2. Repair and replacement the parts, please first confirm the specifications of the technical. 3. Regular clean the cooling system. 4. Should always monitor the voltage and electricity grid of the CNC Router. 5. Prevent the dust into the machine.
    Q6 How can i confirm machine? Dear, in order to recommend the best suitable machine with the best quality and price for you, please kindly contact me with below questions, our professional services will satisfy you! 1. what is you product? 2. what is the material of you product, and the size( length/width/thickness)? 3. what do you want to do on your product, cutting, drilling, milling, evgraving etc.? 4.what is the working area do you want? 5. do you have any other technical requirements? the more the better. if you can provide some pictures of your products,that would be great!
