Fiber Laser Cutting Machine Cypcut 2000 Cypcut 6000W CNC Fiber Laser Cutting Machine Stainless Steel
Fiber Laser Cutting Machine Cypcut 2000 Cypcut 6000W CNC Fiber Laser Cutting Machine Stainless Steel
Regular price
¥4,442.00 CNY
Regular price
¥219,581.00 CNY
Sale price
¥4,442.00 CNY
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description
LF-BStandard Fiber Laser Cutting Machine
6000W for Sheet Metal
LF-B Optic Fiber Laser Cutting machine is a standard cutter. Supporting power ranges up to 12000w, and the cutting area will be3015, 4020, 6015 , 6025 and others based on your need. The machine is a standard model of laser cutter, with very sincere materials. The sheet metal design of the device's exterior is more rational, allowing for the shipment of four units in a single container, thus reducing transportation costs for customers. And this machine can also support different materials cutting and a wide range of application scenarios. Leapion offers a wide range of choices for customers, including laser sources control systems, laser heads, and other essential components. Additionally, Leapion provides OEM services to meet specific requirements.
Traditional Cutting VS Fiber Laser Cutting |
||||||||||
Fields |
Cutting Effect |
Cutting Speed |
Presicion |
Environment |
Application |
|||||
Traditional |
Rough |
Slow |
Low |
Contaminated |
Limited |
|||||
Fiber Laser |
Smooth |
Fast |
High |
Eco-friendly |
Wide |
|||||

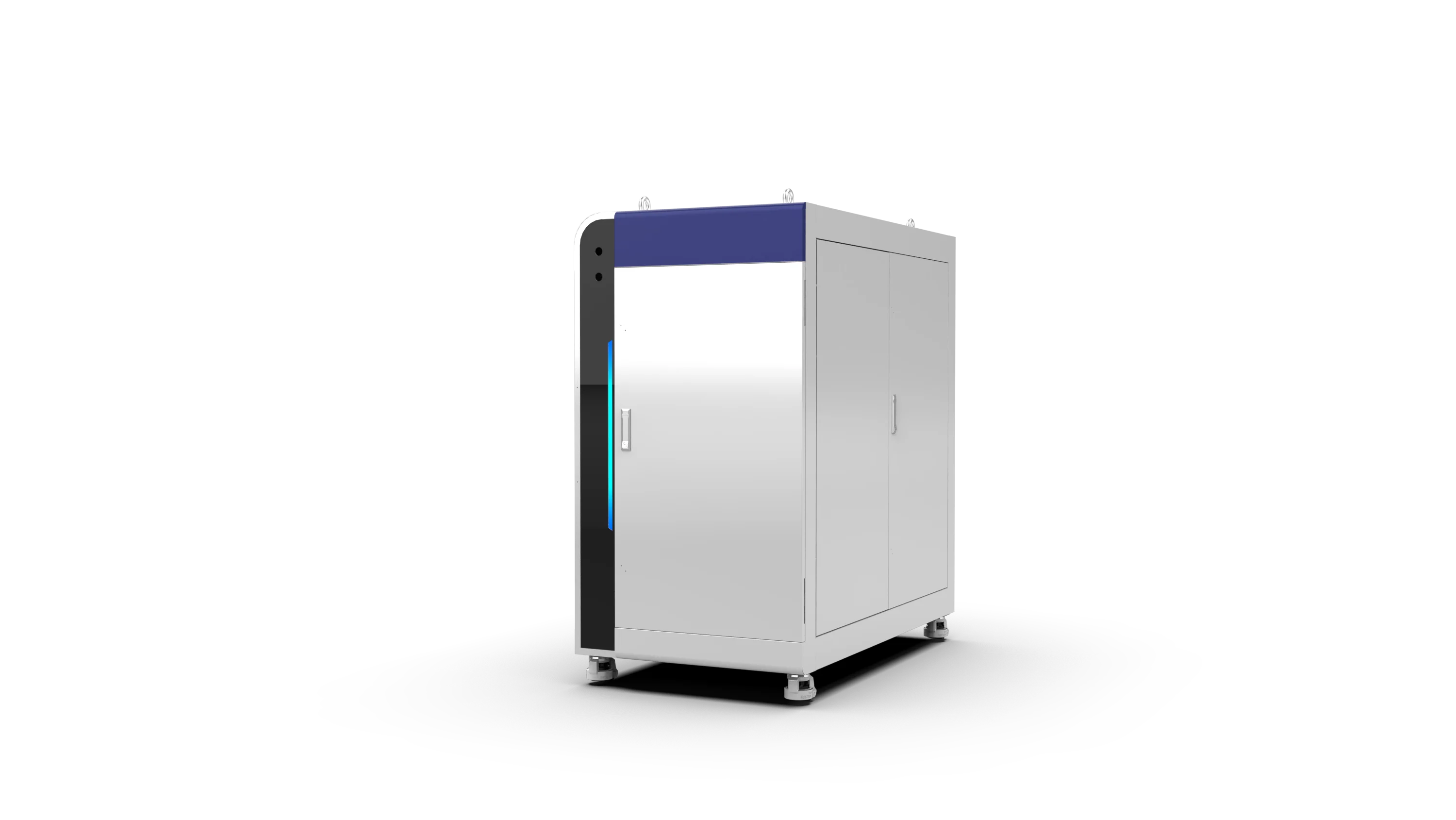

Independent Control Box
The Gen3 device offers a standalone control cabinet design, All electrical components and lasers are housed in a separate control
cabinet with dust-proof design to improve the life of electrical components and save material andassembly time costs for
personnel.
cabinet with dust-proof design to improve the life of electrical components and save material andassembly time costs for
personnel.
Machine Details
Machine frame
Strength steel plate welding bed using bevelling welding process, to achieve equal strength welding between steel plates, after
the internal stress annealing process, to ensure that the bed is sturdy and durable, not easy to deform, more stable. Great vibration damping effect, to ensure that the high cutting accuracy.
the internal stress annealing process, to ensure that the bed is sturdy and durable, not easy to deform, more stable. Great vibration damping effect, to ensure that the high cutting accuracy.

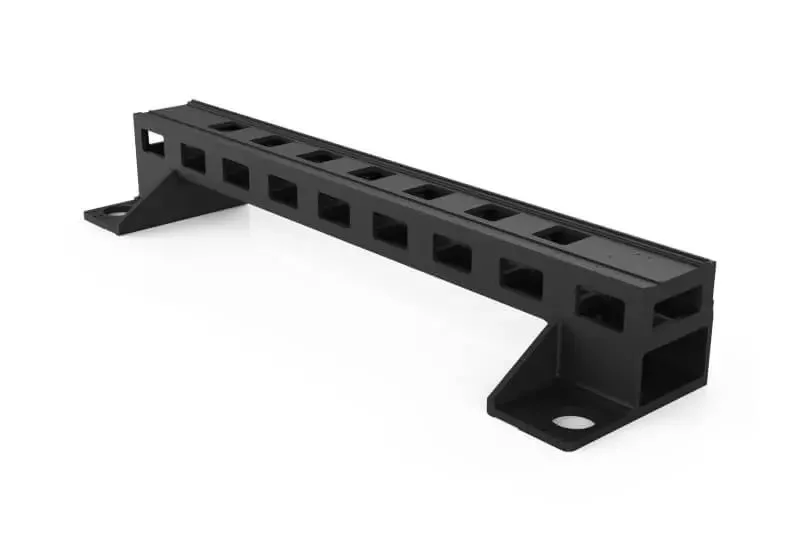

Cast Aluminium Gantry
Our beam is made from high-grade aluminum. This material is chosen for its strength. It ensures swift and agile cutting motions.
Precision is maintained and effectively ensures that the bed will not be deformed in long-term use, and has excellent shock
resistance, rigidity and stability.
Precision is maintained and effectively ensures that the bed will not be deformed in long-term use, and has excellent shock
resistance, rigidity and stability.
Laser System

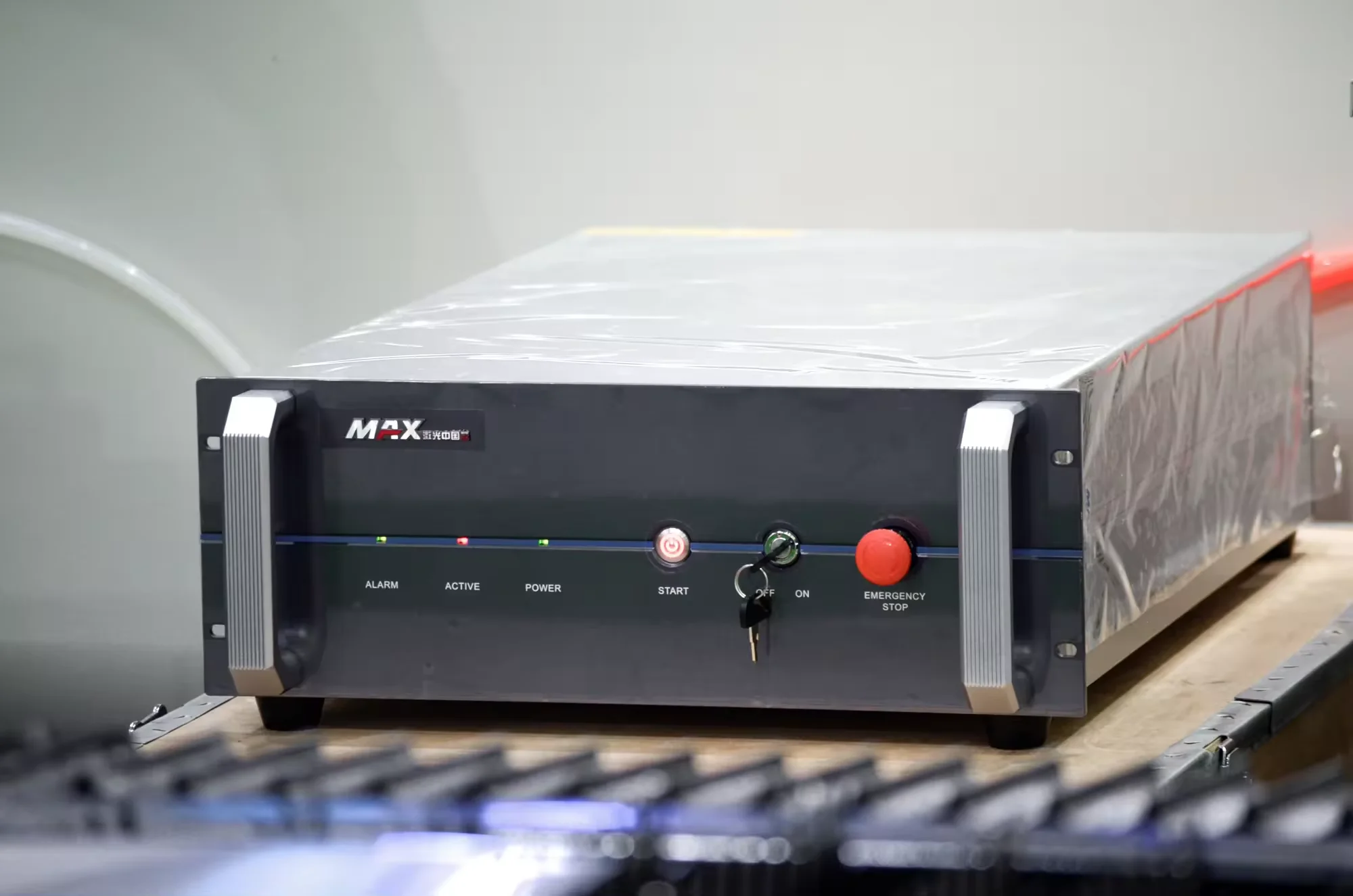

Laser Source
Professional cutting laser source, small in size, light in weight, and easy to move. With high-quality beam quality, high light
conversion efficiency, the light emitting mode is more conducive to achieving a good cutting effect.
conversion efficiency, the light emitting mode is more conducive to achieving a good cutting effect.

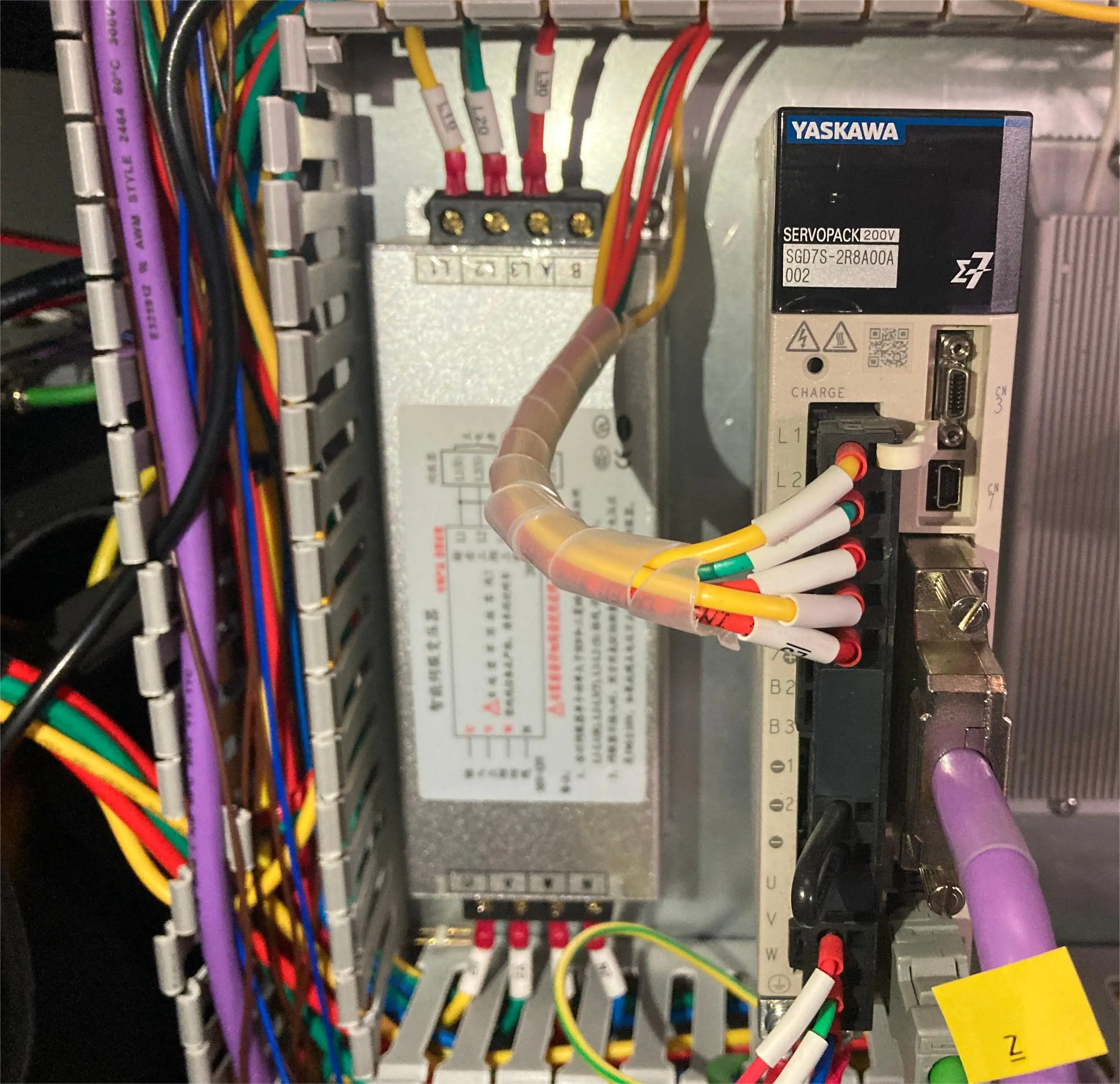

Servo Driver
The fast-responding, enabling high-speed, high-precision control and efficient use of energy, with stable motors. keeping the
distance between the nozzle and the pipe unchanged, effectively guaranteeing the cutting quality.
distance between the nozzle and the pipe unchanged, effectively guaranteeing the cutting quality.

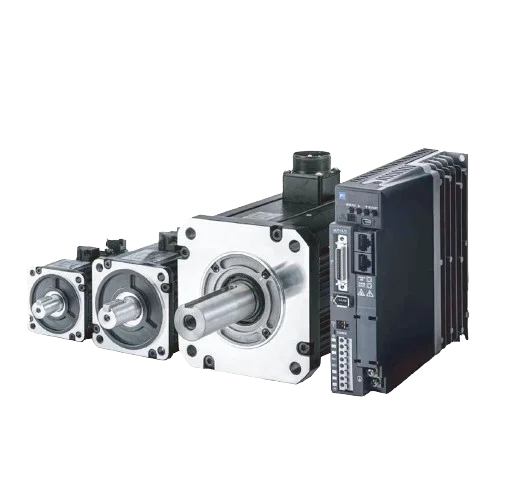

Servo Motor
Servo motors stabilise and drive the beam to control the movement of the Z-axis according to the programmed instructions to
complete the cutting operations with complex precision, and the user can adjust the parameters according to their needs..
complete the cutting operations with complex precision, and the user can adjust the parameters according to their needs..

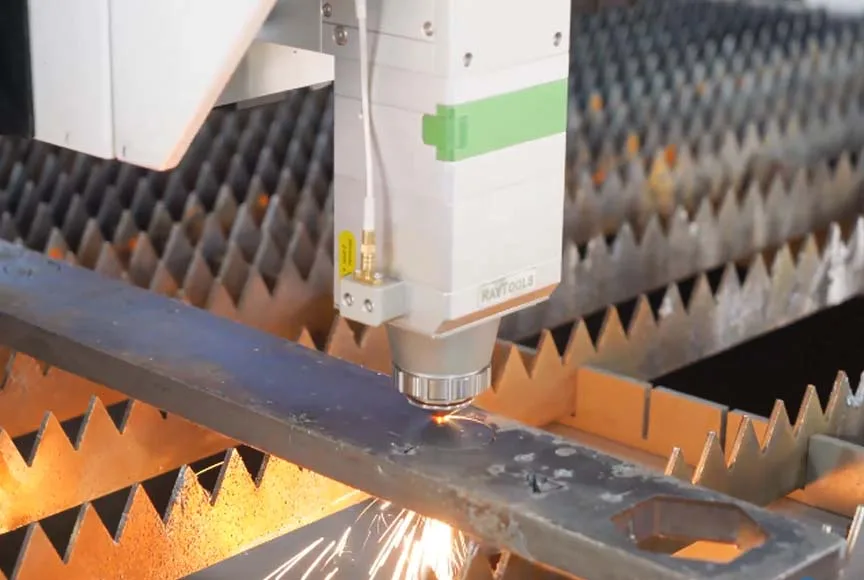

Laser Head
Professional fiber optic cutting head can be continuously focused to complete the rapid perforation of thick plates and automatic
cutting of different thicknesses and materials, and work continuously and stably for a long time under high power.
cutting of different thicknesses and materials, and work continuously and stably for a long time under high power.

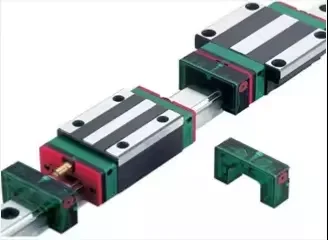

HIWIN Rail
Hiwin linear guide, for the four-row single arc tooth contact linear guide, while integrating the optimised structure design of
the heavy-duty precision linear guide, high speed, high load, high rigidity and high precision.
the heavy-duty precision linear guide, high speed, high load, high rigidity and high precision.

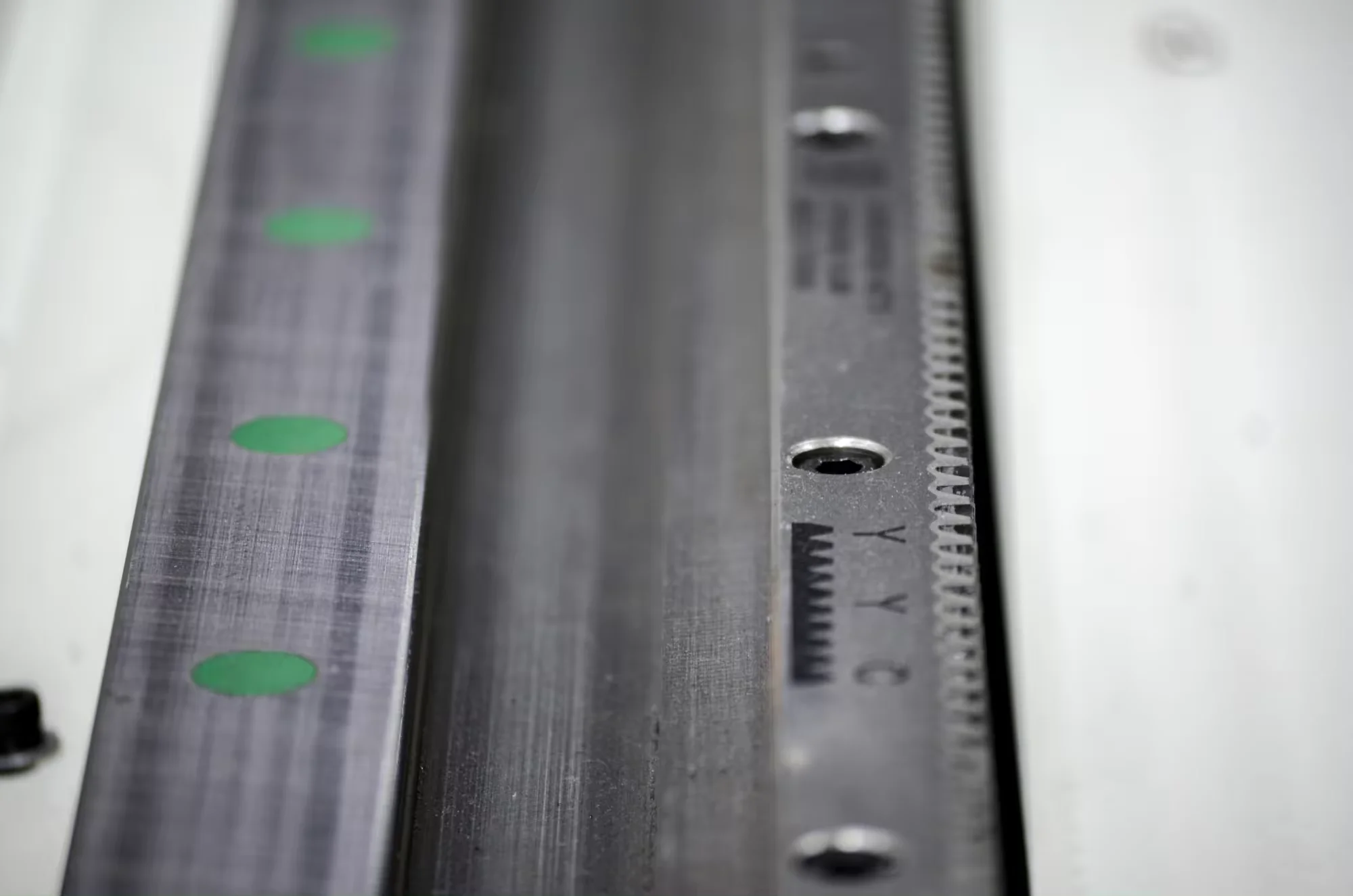

YYC Gear
YYC Gear adopts German standard precision manufacturing, rack tooth surface quenching hardness HRC58, can reach DIN6 level precision requirements, suitable for precision CNC equipment, high precision, wide range of applications.
Control System

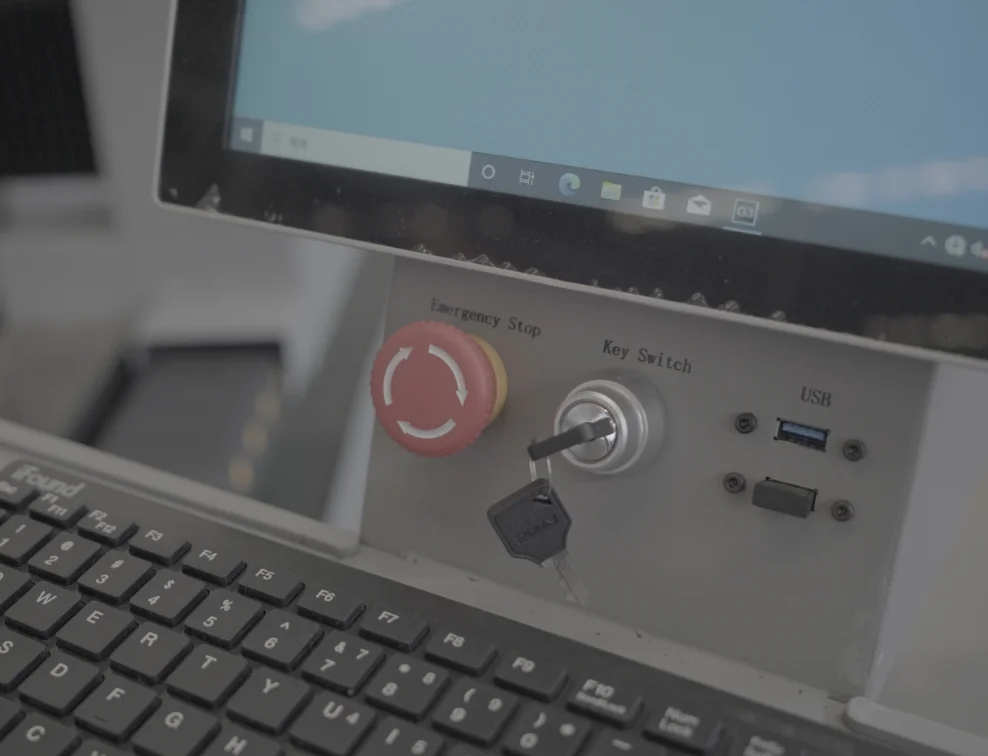

Control Panel
Emergency stop switch position change is convenient to shoot close to the emergency stop button in case of emergency , with
keyboard and usd socket for easy data recording.and the large-size operation screen caters to various customer needs.
keyboard and usd socket for easy data recording.and the large-size operation screen caters to various customer needs.

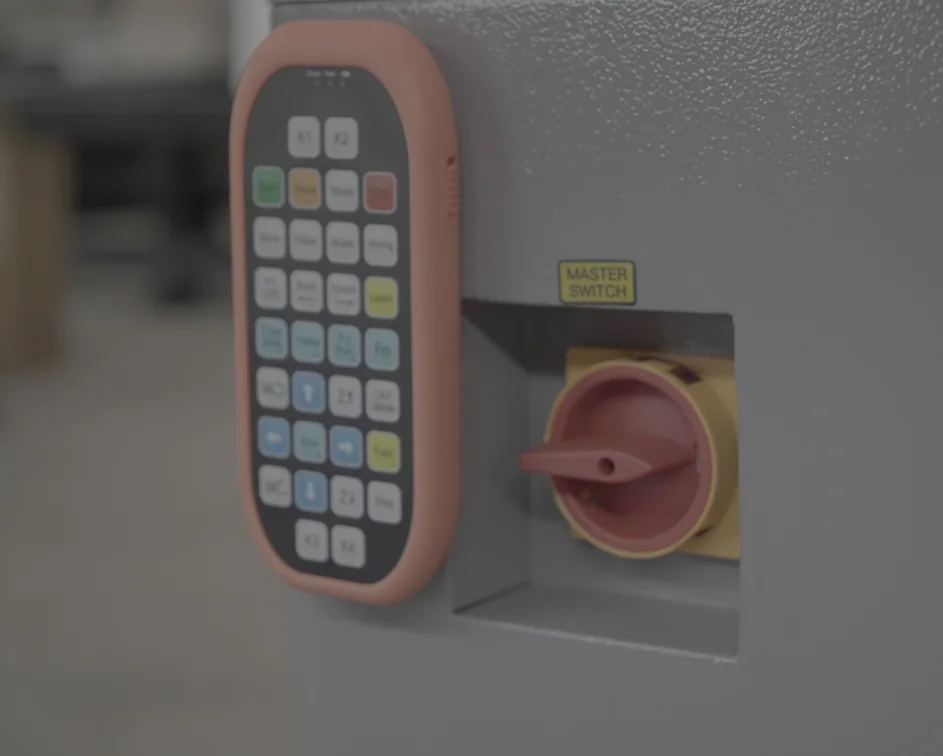

Wireless Controller
The machine comes with the wireless controller, which is easy to use and allows most operations to be carried out just through the handle, allowing control operations to be carried out from a distance when the machine is in operation, for safe operation.
Control System
Leapion use the most famous brand for high power in China, with great feedback from our customers and special functions such as
flying cutting to help customers better use, improve production efficiency and save resources. We also supply Leapion own made
system.
flying cutting to help customers better use, improve production efficiency and save resources. We also supply Leapion own made
system.

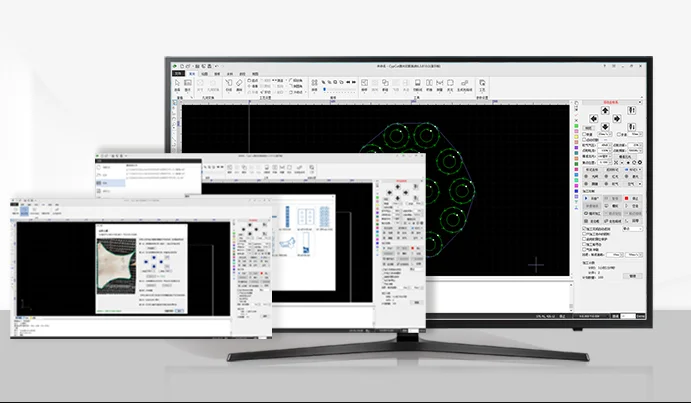

Cutting Software
This is a set of software developed specifically for the laser cutting industry depth custom, easy to use, feature-rich, suitable for a variety of processing occasions, and it includes laser cutting process handling, common nesting functions and laser processing control.
Product Parameters
Model |
LF-B Standard Fiber Laser Cutting Machine |
Laser Power |
6000W (Option: 2000W, 3000W,4000W,6000W,12000W) |

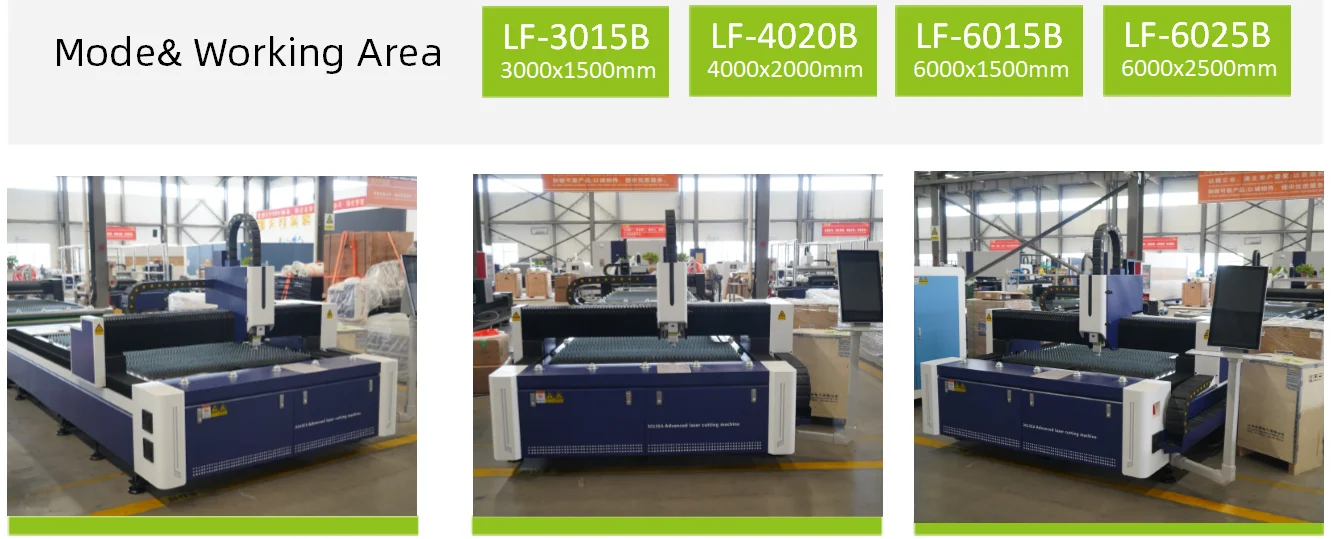

Cutting Area |
3000x1500mm |
Laser Output Power Adjustment Range |
10% - 100% |
Laser Source |
MAX (Option: Raycus, IPG, BWT, Reci) |
Cutting Ability |
Carbon Steel: 0.8-20mm, Stainless Steel: 0.8-10mm |
Laser Cutting Head |
Leapion (Option: Raytools, WSX, Au3tech) |
Control System |
Leapion (Option: FSCUT, Au3tech, Raytools) |
Support Languages |
Chinese Simplified, Chinese Traditional, English, Polish, Turkish, Arabic, Japanese, Korean, German, Spanish, Russian, French, Portuguese, Italian, Hungarian, Czech, Finnish, Vietnamese and so on.
Customized language accepted
|
Maximum Acceleration |
1.5G |
Positioning Accuracy |
±0.03mm |
Auxiliary Gas |
Compressed air, oxygen, nitrogen |
Voltage |
380V 3PH 50HZ/60HZ (Option: 440V) |
Recommend Container |
One 20GP |
Application ＆ Samples
Application Industry
Wide range of industry applications, Large diameter pipes, pressure vessels, boilers, bridges, offshore platforms, ships,tanks,armour, vehicles, building components, machine structures, steel construction industry, metal processing industry, lift manufacturing, and other fields.

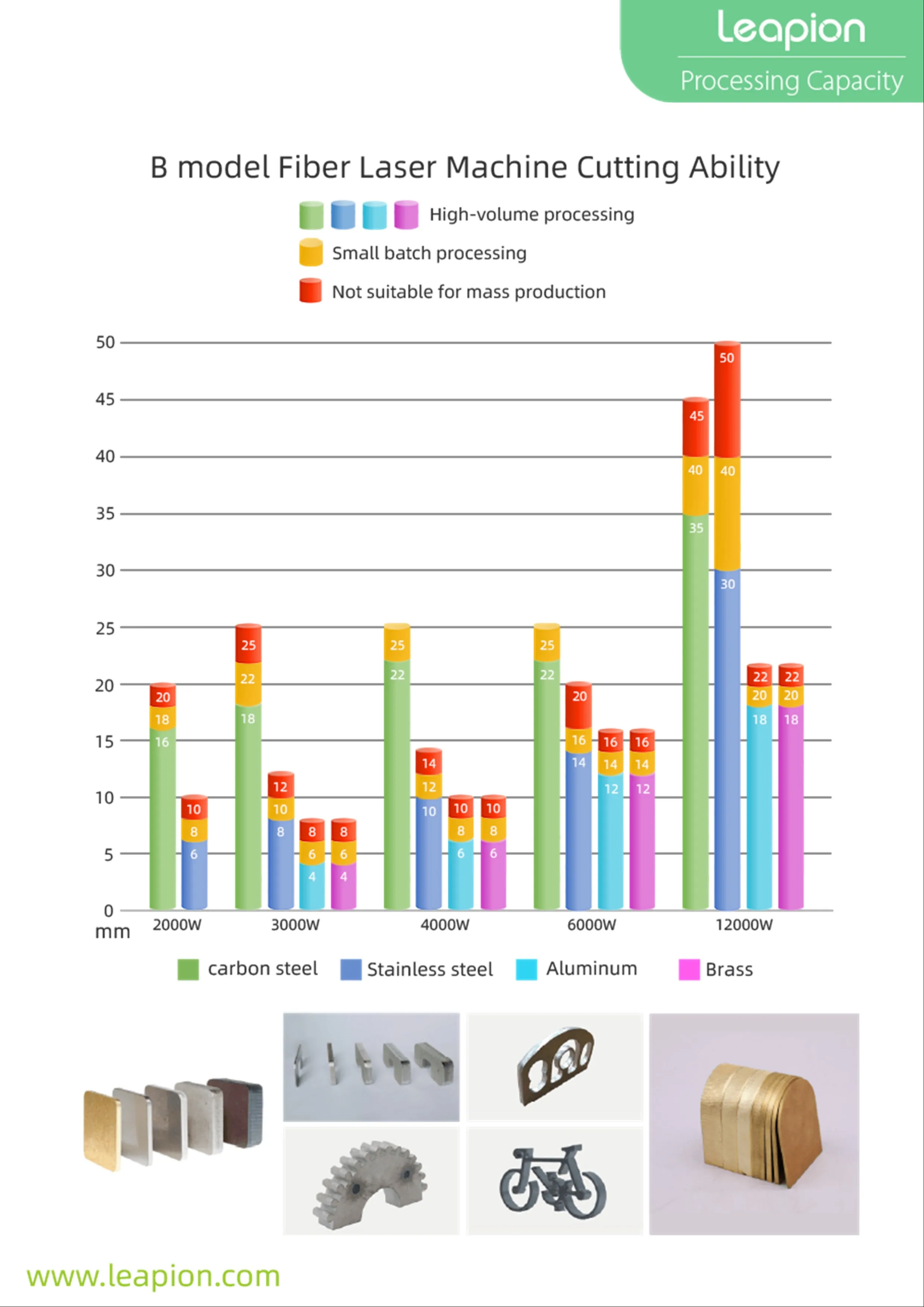

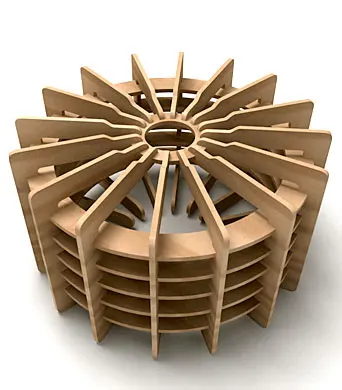

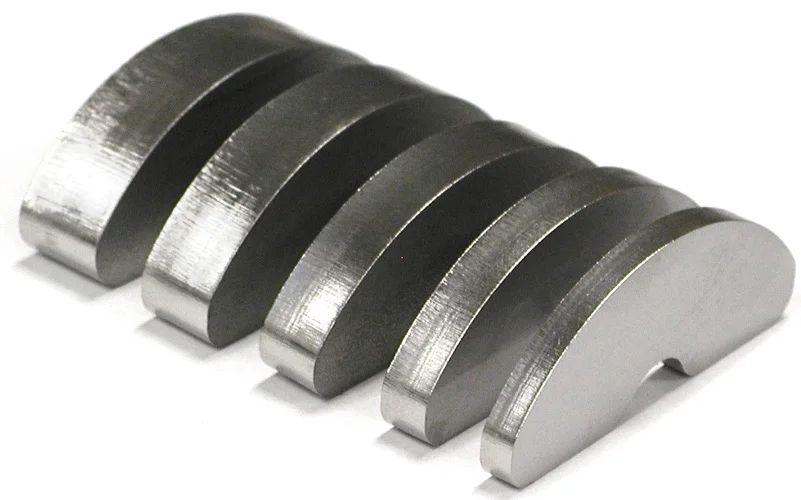

Cutting Sample & Ability
Product Shipment
Shipment Method |
Land freight, Sea Freight |
Package Method |
Direct load machine into Container
Load 1 set 3015 Machine in One 20GP ,
1 set 4020, 6015 Machine in One 40HQ , 1 set 6025 Machine in One 40FR . |
Certifications
Warm Tips
If you need us to make the corresponding certification. Please inform Leapion's sales staff and we will do our best to cooperate and provide maximum support to you.
Company Introduction
Company Video
FAQ
1. What is the MOQ?
The minimum order is 1 unit. For customers who need to customize the logo, the MOQ is also 1 unit, and for customers who need to modify the exterior color, the MOQ is also 1 unit, but the production time will be longer.
2. What terms of trade are offered?
Leapion can provide suitable terms according to your specific needs, including: EXW, FOB, CFR, CIF, DAP, DDP, etc.
3. What payment methods are accepted?
We accept: credit card, debit card, bank transfer, L/C, etc. You are welcome to pay us through Alibaba's "Trade Assurance Order", which can guarantee your rights and interests.
4. How to get sample testing service?
Please send us the DXF. format to make the cutting test for you.
We provide three options for sample testing service.
① If you don't need us to mail the tested samples to your address, and we have the metal materials you need to tested in stock, then we offer free testing service. Simply contact us with your specific needs. We will send you the test pictures and videos within 5 working days.
② if you need us to send the tested samples by Express, please pay the express fee.
③ If you need special metal samples for testing, please send the samples to our address or pay us the cost for purchasing metal materials.
5. How to confirm the most suitable model of equipment for me?
We suggest you can contact us, Leapion will provide you 1 to 1 VIP service, professional sales staff will recommend the most suitable equipment for you. For faster communication, we recommend that you confirm the following information before contacting us:
① which metal material you need to cut
② the maximum thickness of each metal material
③ the voltage of your local factory
④ the trade terms you required
⑤ Required Time
