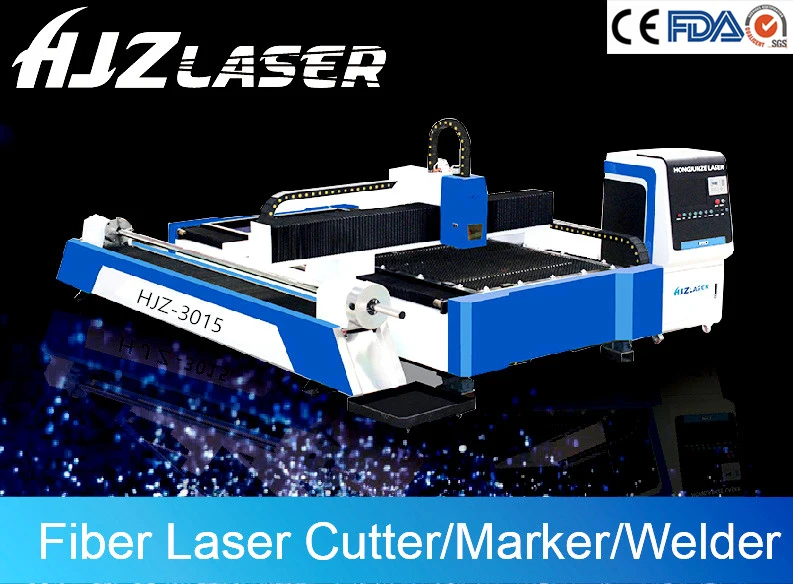

Fiber Laser Cutting Machine Stainless Steel 1500x3000 Mm Cnc Laser Cut Machines 2024 Best Cost High Speed Fiber Laser Cutters
Fiber Laser Cutting Machine Stainless Steel 1500x3000 Mm Cnc Laser Cut Machines 2024 Best Cost High Speed Fiber Laser Cutters
Regular price
¥733.00 CNY
Regular price
¥733.00 CNY
Sale price
¥733.00 CNY
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

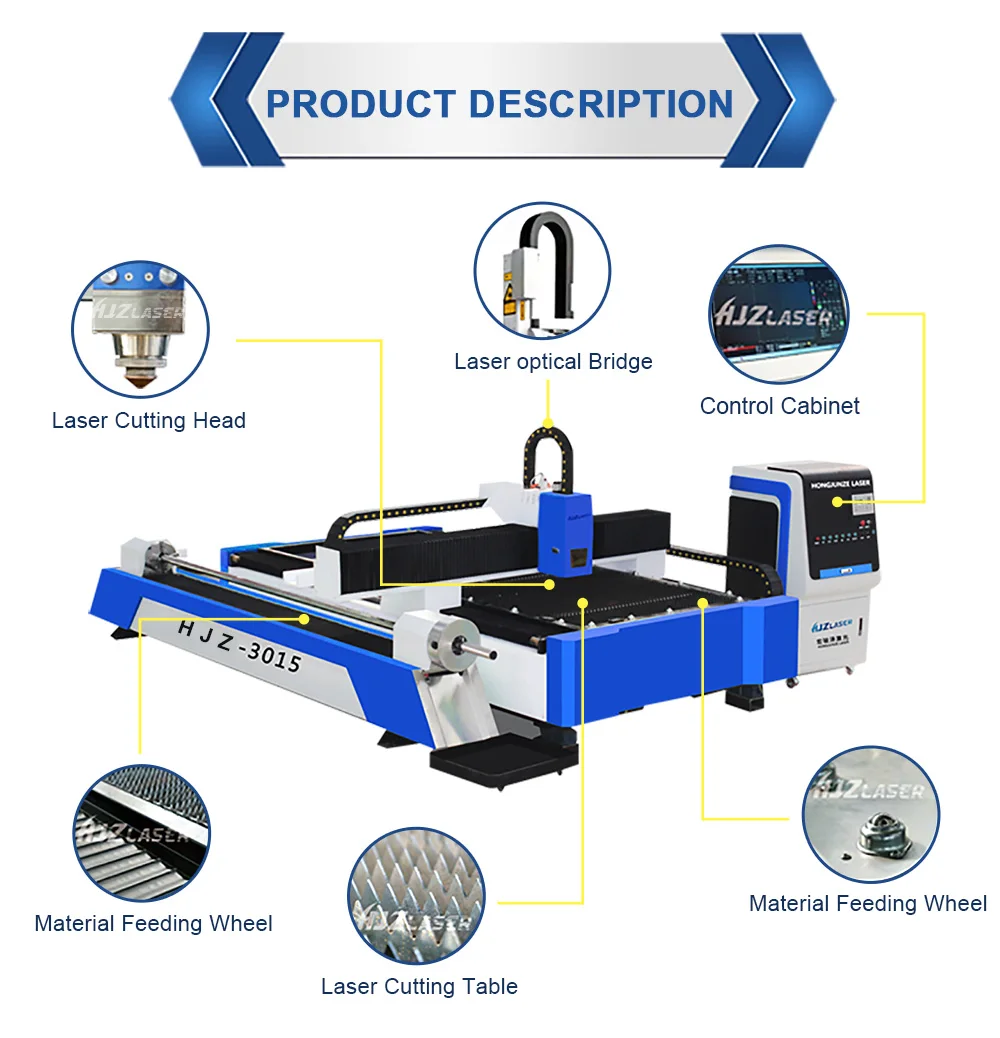

Product Description
Bodor Economical A-T Series 3000w cnc fiber laser cutting machine sheet metal cutting for sale

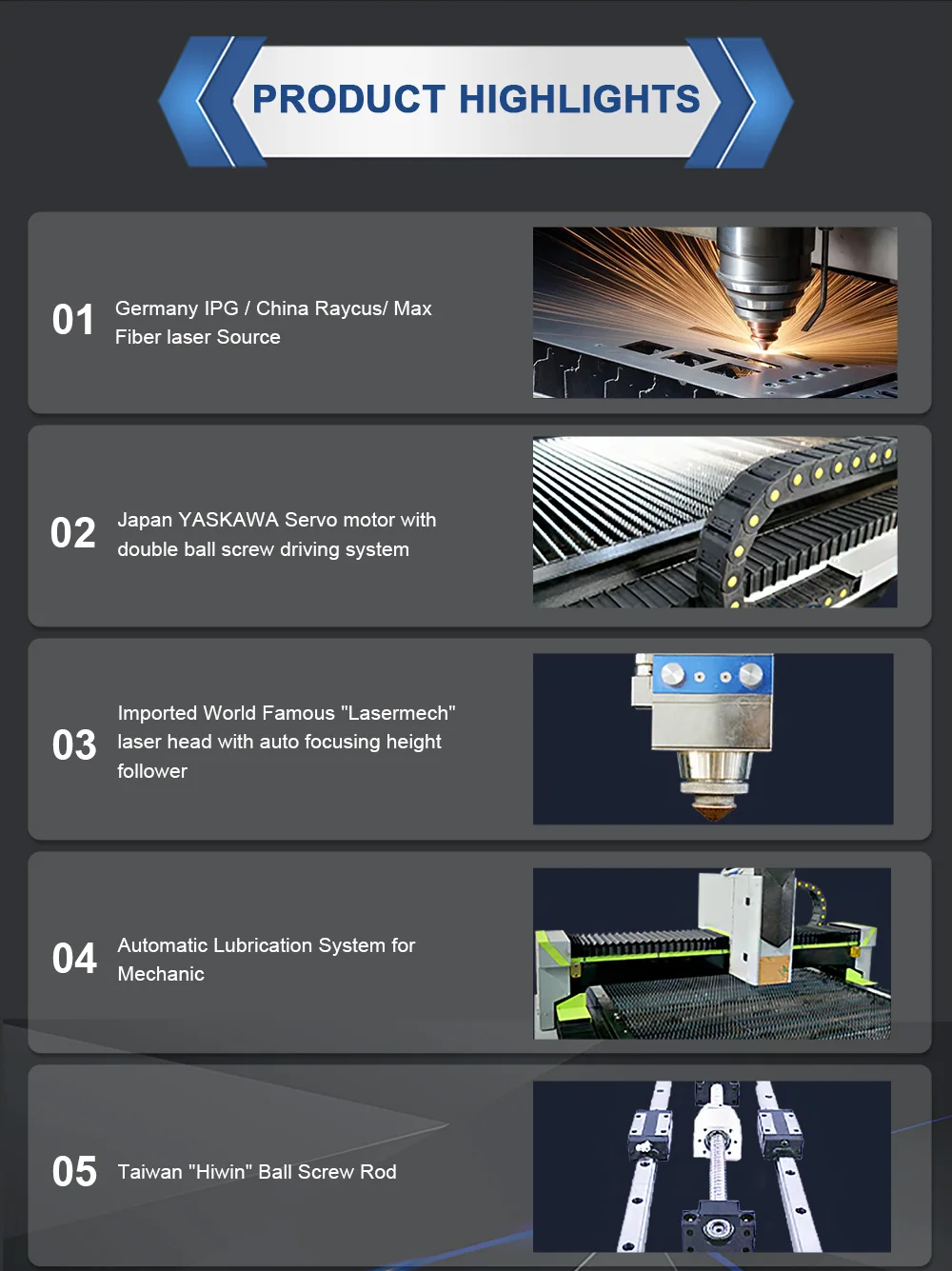

Standard Configuration of Fiber laser cutting machine:
1. German IPG Fiber laser source;
2. Japan YASKAWA Servo motor with double ball screw driving system
3. Imported World Famous "Lasermech" laser head with auto focusing height follower
4. Automatic Lubrication System for Mechanic
5. Taiwan "Hiwin" Ball Screw Rod
6. Laser Moving Control Card
7. Red Light Pointer
8. US imported Focus Lens
9. Japan SMC Gas system
10. Imported Germany Stowe the Bell / Niu Kate Reducer
1. German IPG Fiber laser source;
2. Japan YASKAWA Servo motor with double ball screw driving system
3. Imported World Famous "Lasermech" laser head with auto focusing height follower
4. Automatic Lubrication System for Mechanic
5. Taiwan "Hiwin" Ball Screw Rod
6. Laser Moving Control Card
7. Red Light Pointer
8. US imported Focus Lens
9. Japan SMC Gas system
10. Imported Germany Stowe the Bell / Niu Kate Reducer

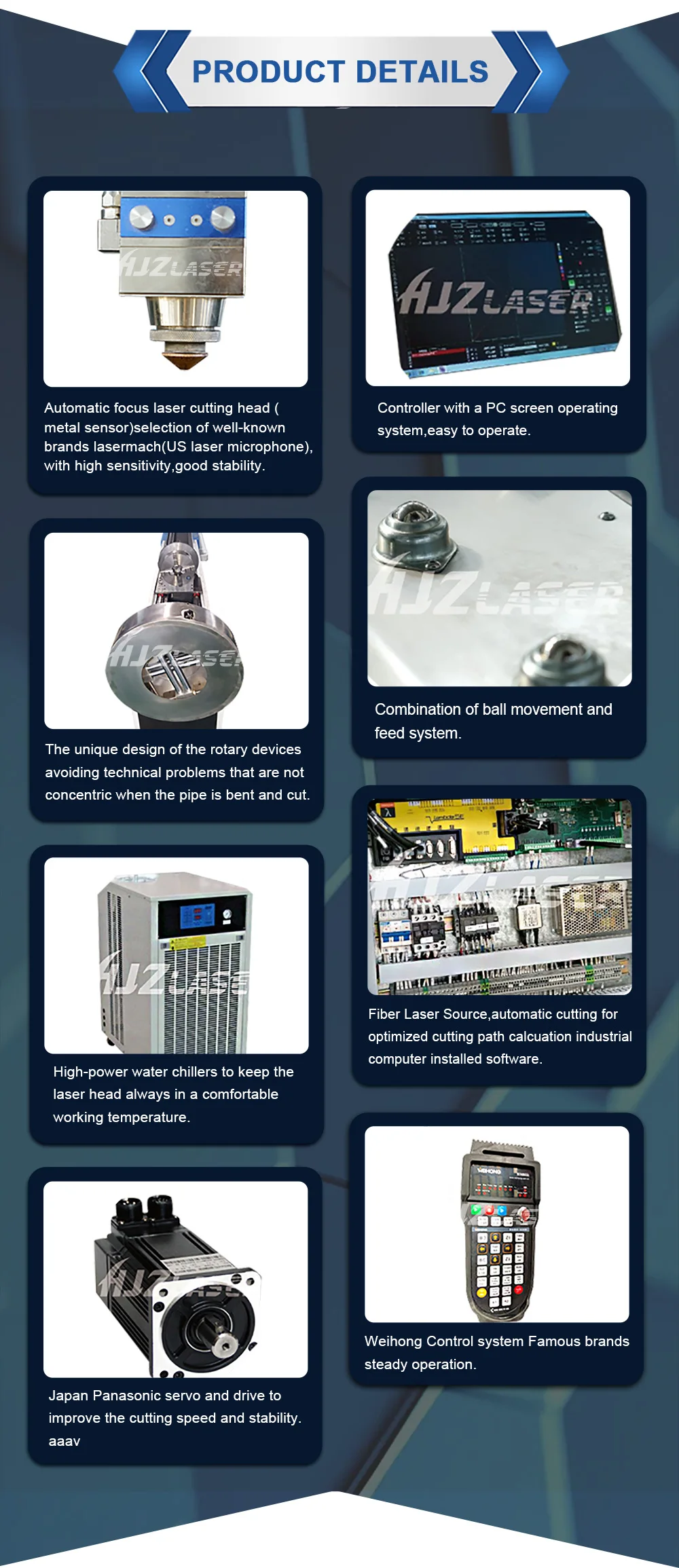

Detailed Images

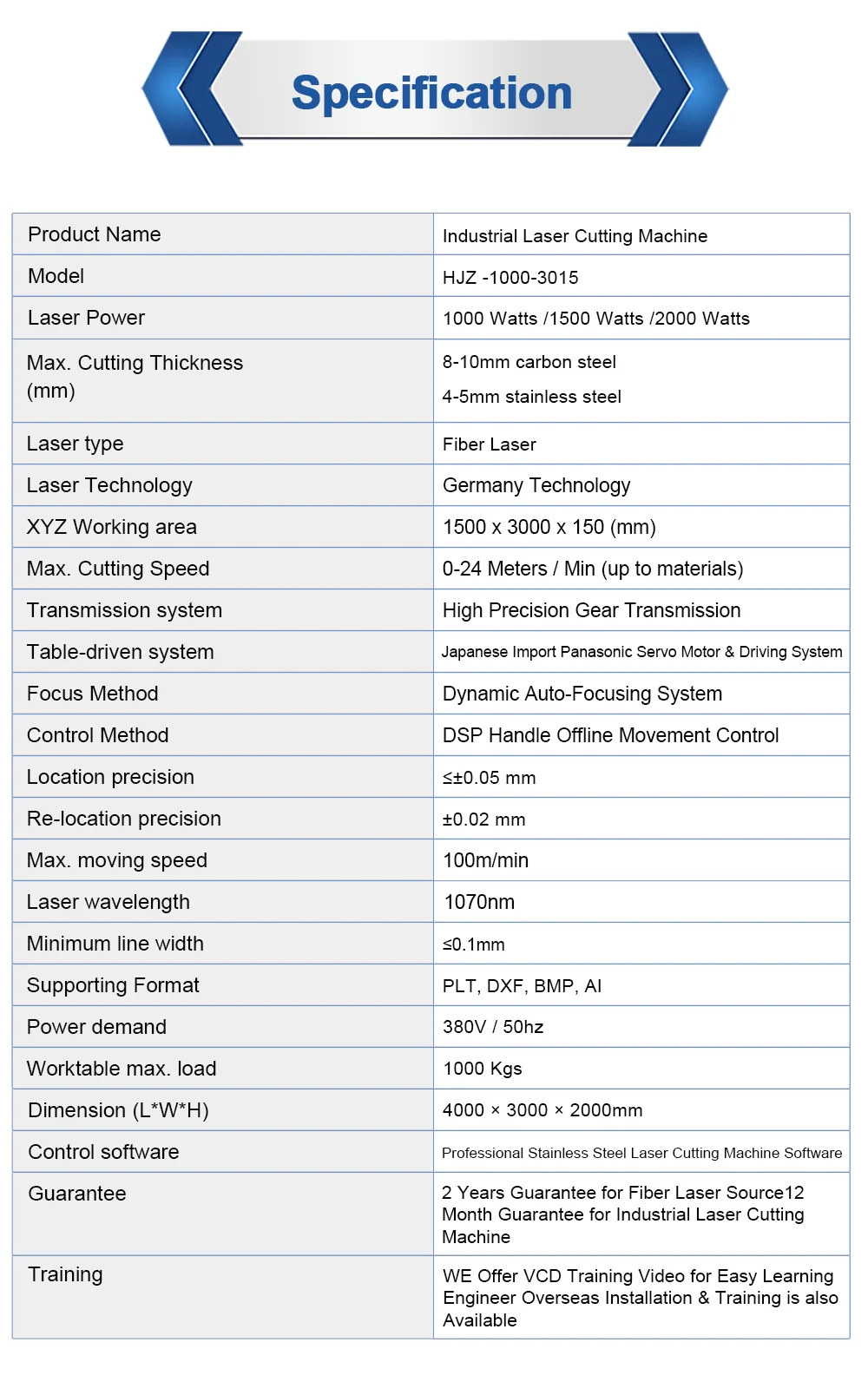

Product Name |
Fiber Laser Cutting Machine |
Model |
HJZ -1000-3015 |
Laser Power |
1000 Watts /1500 Watts /2000 Watts |
Max. Cutting Thickness (mm) |
8-10mm carbon steel 4-5mm stainless steel |
Laser Type |
Fiber Laser |
Laser Technology |
Germany Technology |
XYZ Working area |
1500 x 3000 x 150 (mm) |
Max. Cutting Speed |
0-24 Meters / Min (up to materials) |
Transmission system |
High Precision Gear Transmission |
Table-driven system |
Japanese Import Panasonic Servo Motor & Driving System |
Focus Method |
Dynamic Auto-Focusing System |
Control Method |
DSP Handle Offline Movement Control |
Location precision |
≤±0.05 mm |
Re-location precision |
±0.02 mm |
Max. moving speed |
100m/min |
Laser wavelength |
1070nm |
Minimum line width |
≤0.1mm |
Supporting Format |
PLT, DXF, BMP, AI |
Power demand |
380V / 50hz |
Worktable max. load |
1000 Kgs |
Dimension (L*W*H) |
4000 × 3000 × 2000mm |
Control software |
Professional Stainless Steel Laser Cutting Machine Software |
Guarantee |
2 Years Guarantee for Fiber Laser Source 12 Month Guarantee for Industrial Laser Cutting Machine |
Training |
We offer VCD Training Video for Easy Learning Engineer Overseas Installation & Training is also Available |
Packing&Shipping
Company Introduction
Our After sale Services
1) Workers of customers can come to our factory in Wuhan, China to get the most professional hand-by-hand training.
2) We can send engineers to customers' country and do training for workers in customers' target factory. However, tickets and daily consumption like food and accommodation should be afforded by customers.
3) Remote training through Internet tools like Team-viewer, Skype and other instant communication software.
2) We can send engineers to customers' country and do training for workers in customers' target factory. However, tickets and daily consumption like food and accommodation should be afforded by customers.
3) Remote training through Internet tools like Team-viewer, Skype and other instant communication software.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory. And we have been in the laser field for more than 10 years.
Q: How long is your delivery time?
A: Generally, it will take 7 to 10 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q: Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample for free charge, but customers should pay the courier cost.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shipment.
A: We are factory. And we have been in the laser field for more than 10 years.
Q: How long is your delivery time?
A: Generally, it will take 7 to 10 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q: Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample for free charge, but customers should pay the courier cost.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shipment.
