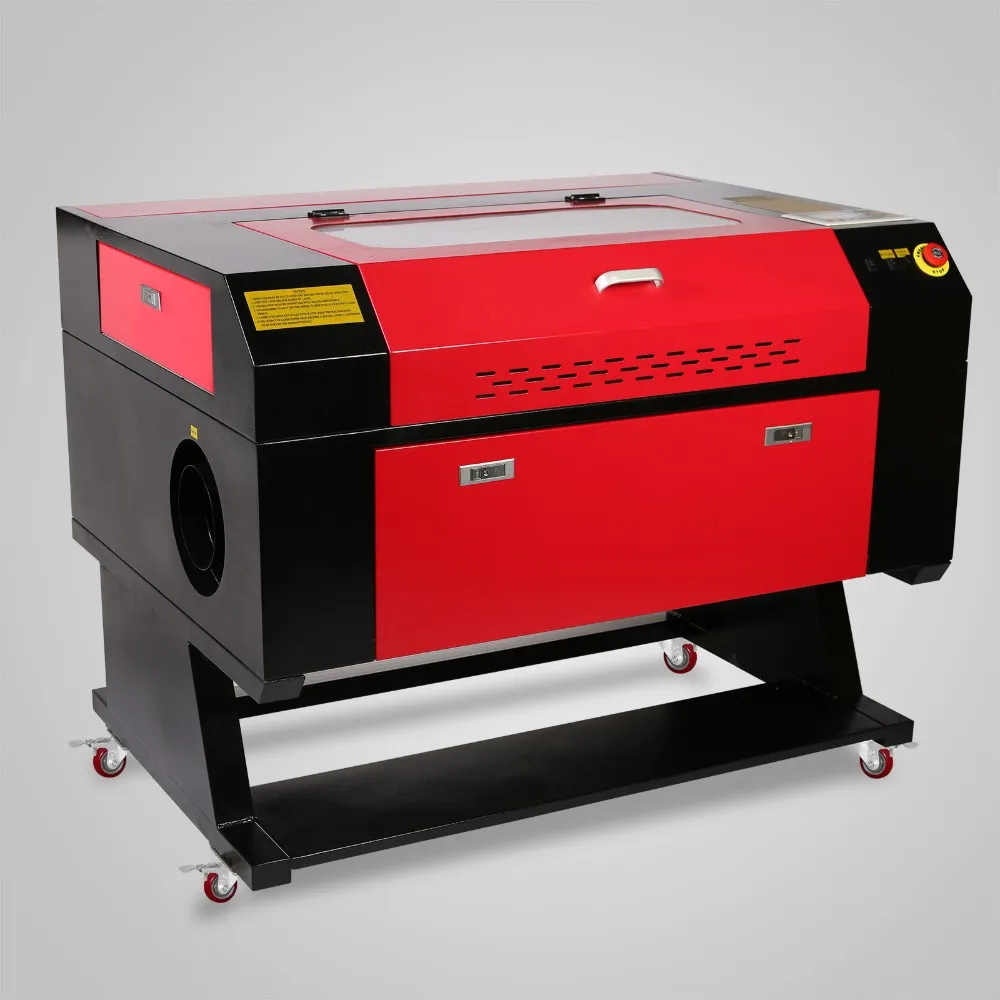

BEST 80W CO2 Laser Cutting Machine 700*500mm Support Rotary Axis 3d laser engraving machine

80W CO2 LASER ENGRAVING MACHINE ENGRAVER

New Laser Engraving and Cutting Machine. The machine is a kind of Laser Engraving Machine System equipped with CO2 laser Tube, it is used to engrave on wood, bamboo, plexiglass, crystal, leather, rubber, marble, ceramics and glass and etc. It is most suitable and the preferred choice of equipments in industries such as advertisement, gifts, shoes,toys and etc. It supports multiple graphic formats, such as HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI and so on.

Product Application

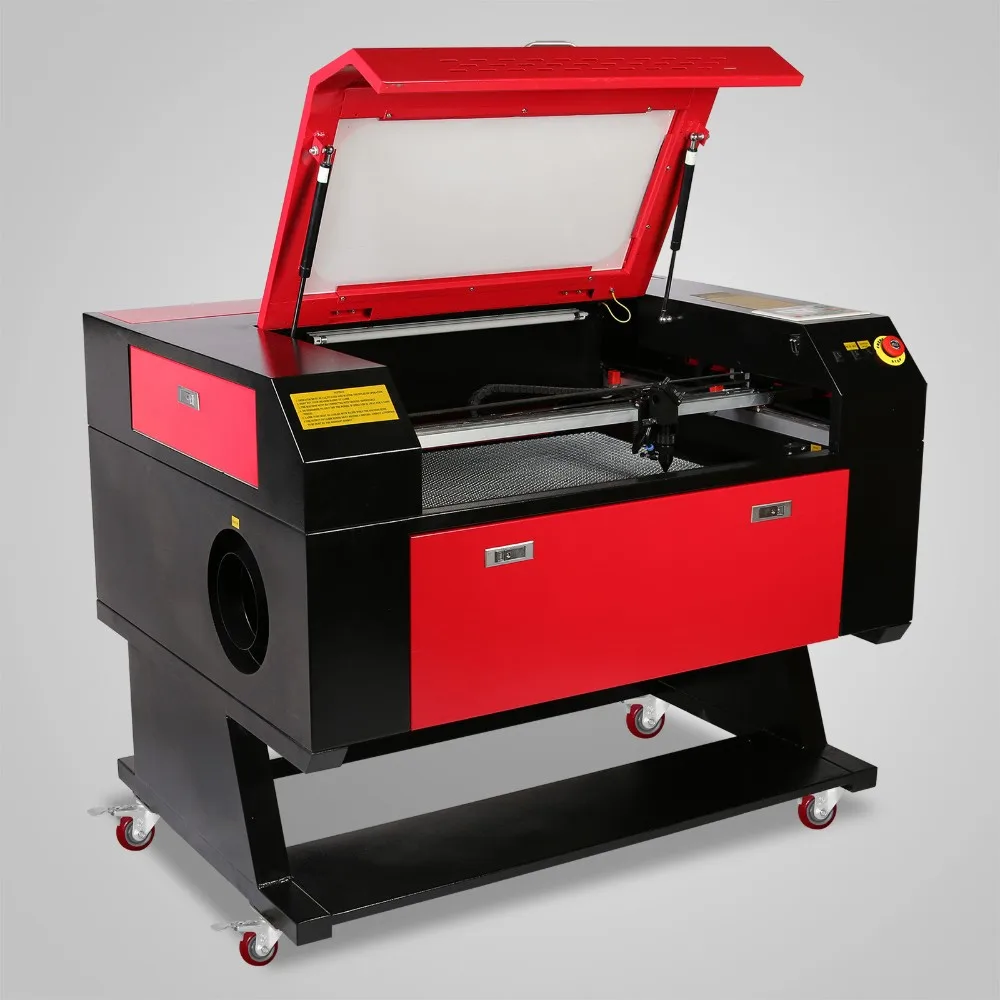

This machine is equipped with DSP Control System for RDdraw directly,also supports CoreDraw and Auto CAD and other advance software. It must connect with computer with USB cable when you change the settings of machine for the design files,you can transfer the file with USB memory stick to the machine, or can download it to the machine directly with USB cable from computer. Even on the same Job, you can do setting with different colour in the software and also can making holes.And it can the legs separate from the main body of the machine. The machine has doors which can be opened to accommodate larger materials.

Applicable Material:
Wood,bamboo,jade,marble,organic glass, crystal, plastic, garments, paper, leather, penelope, rubber, ceramic, glass, textile cutting, industrial prototyping, industrial marking, signmaking, medical part marking, aerospace, architectural modeling, specialty advertising, plastics fabricating, flexo, point of purchase, rubber stamps, picture framing, gift manufacturing, bar coding, engraving, gasket cutting, puzzles, cabinetry, awards & recognition, personalized pens, door pulls, cut scroll patterns, games & toys, finger joints, inlays & overlays, fraternity paddles, music boxes, light switch plates, jewelry boxes, parts marking, router templates, desk sets, scrap booking, photo albums, jewelry, crafts, Italian charms.

Applicable Industry:
Advertisement,arts and crafts, leather, toys, garments, model, building upholster, computerized embroidery and clipping,packaging and paper industry.


Main Features

80W CO2 LASER ENGRAVING MACHINE ENGRAVER
`Certification, ISO9001 Quality Certification.

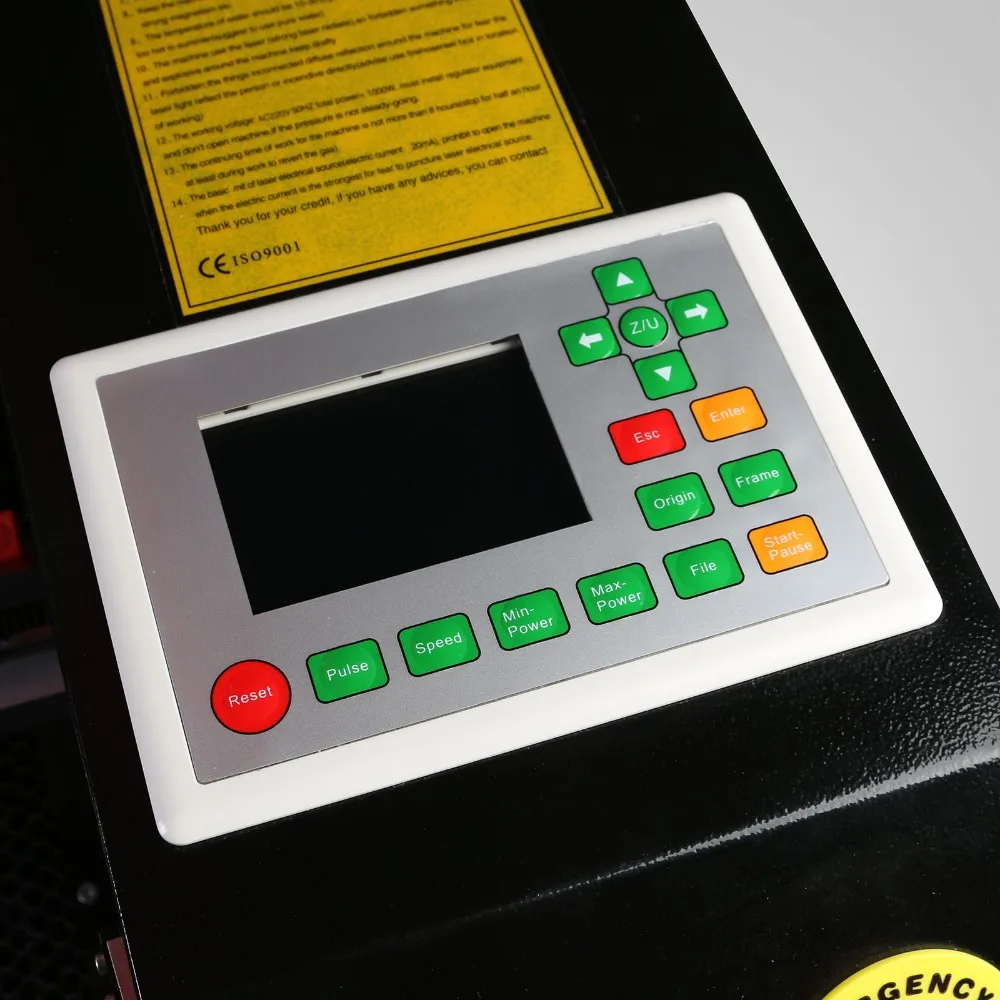

`More friendly control panel with Color Screen
`English, French and more languages updating
`256 colors makes different working mode to meet complicated design
`One key to install, more convenient. Output from Auto CAD directly
`Output from Corel DRAW directly
`The network connection with the IP address of machine.
`High quality 20mmMO Reflective Mirror
`80W Laser Engraving & Cutting Machine CE,USB Port.
`CO2 Laser Tube DSP Control system with Color Screen, Upgrade freely!


80W CO2 LASER ENGRAVING MACHINE ENGRAVER

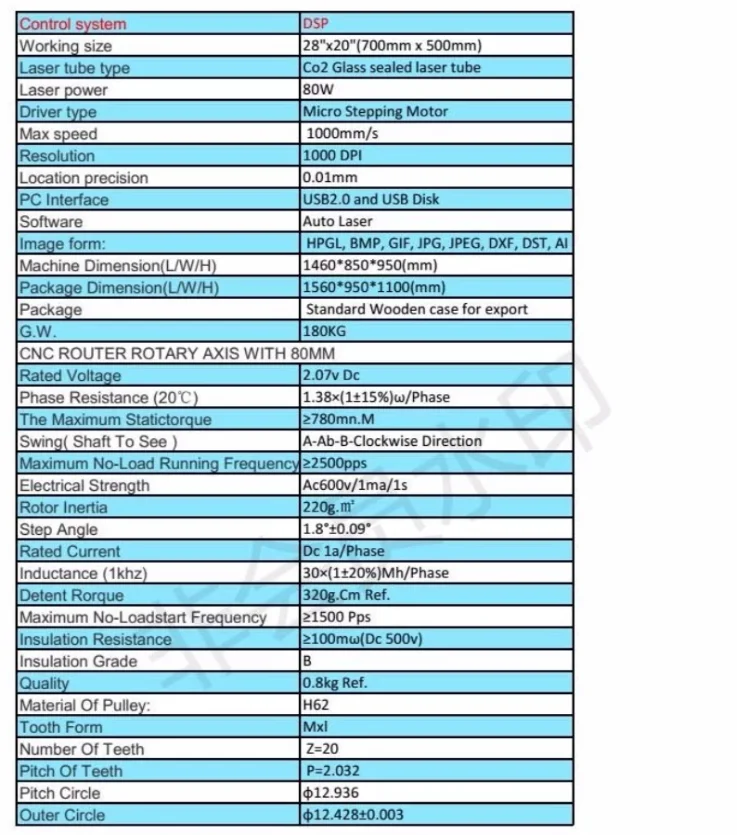

`Control system:DSP
`Working size: 28"x20"(700mm x 500mm) with unlimited length design
`Laser tube type: Co2 Glass sealed laser tube
`Laser power: 80W

`PC Interface: USB2.0 and USB Disk
`Software: Auto Laser
`Image form: HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI
`Machine Dimension(L/W/H):1460*850*950(mm)
`Package Dimension(L/W/H):1560*950*1100(mm)
`Package: Standard Wooden case for export

`Driver type: Micro Stepping Motor
`Max speed: 1000mm/s
`Resolution: 1000 DPI
`Location precision: 0.01mm
