Best raycus 1000W 1500W 2000W mini Jewelry 3d fiber Laser Cutting Machine sale for Gold Silver metal ring bracelet cut

Best raycus 1000W 1500W 2000W mini Jewelry 3d fiber Laser Cutting Machine sale for Gold Silver metal ring bracelet cut

Regular price ¥4,438.00 CNY
Regular price ¥4,438.00 CNY Sale price ¥4,438.00 CNY
Sale Sold out
Shipping calculated at checkout.
Material
Product Description

 Jewelry laser cutting machine can easily cut metal, gold and silver and other products with high power and stability.

Hot Selling Jewelry Laser Cutting Machine Price 1000W 1500W 2000W for Gold Silver

Jewelry designers and manufacturers are continually looking for reliable solutions for producing precision cutting of precious metals. Fiber laser cutting with high power levels, improved maintenance and better functionality is emerging as a top choice for jewelry cutting applications, particularly applications where superior edge quality, tight dimensional tolerances and high production is required.

Laser cutting systems can cut a wide variety of materials of varying thickness and are well suited for creating complex shapes. In addition, fiber lasers maximize precision, cut flexibility and throughput and offer a cost effective high accuracy cutting solution while at the same time providing jewelry designers freedom to create challenging shapes unconstrained by traditional cutting methods.

With a laser cutting system you can easily create complex cutting patterns for your jewelry designs.


Feature:



1.Cutting arbitrary shapes on metal materials.
2.With automatic power-off memory and automatic recovery function
3.High frequency, more stable
4.High processing accuracy
5.Laser power 1500W 2000W

Hot Selling Jewelry Laser Cutting Machine Price 1000W 1500W 2000W for Gold Silver

Hot Selling Jewelry Laser Cutting Machine Price 1000W 1500W 2000W for Gold Silver

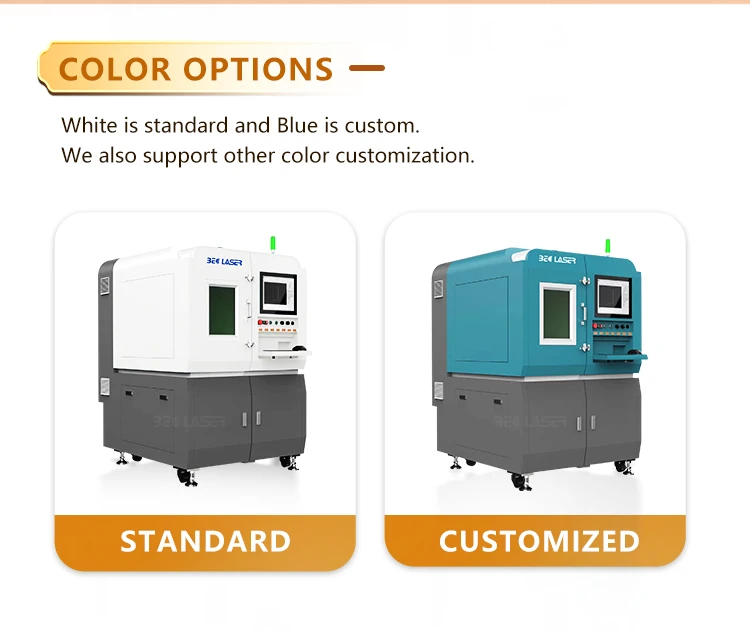

We are a manufacturer providing OEM/ODM service. Supporting customization like color, LOGO and structure design, which can be completed as early as in 3 days.

 Parameter

Hot Selling Jewelry Laser Cutting Machine Price 1000W 1500W 2000W for Gold Silver

Model FC1000 FC1500 FC2000
Machine Type Silver and Gold Fiber Laser Cutting Machine
Laser Power 1000W 1500W 2000W
Laser Wavelength 1064 nm
Control System CypCut
Laser Head Brand RAYTOOLS
Focus mode Intelligent Auto Focus
Cutting Area Standard 200*300mm
Drive mode XY Mode
Position Accuracy ±0.02mm ±0.01mm ±0.01mm
Repeat Accuracy ±0.004mm ±0.003mm ±0.002mm
Max Operating Speed 60m/min 80m/min 100m/min
Max Acceleration 1.0G 1.5G 1.8G
Cooling Method Water Cooling
Power Demand

380V  50Hz/60HZ 30A

Power Consumption ≤7KW ≤9KW ≤12KW

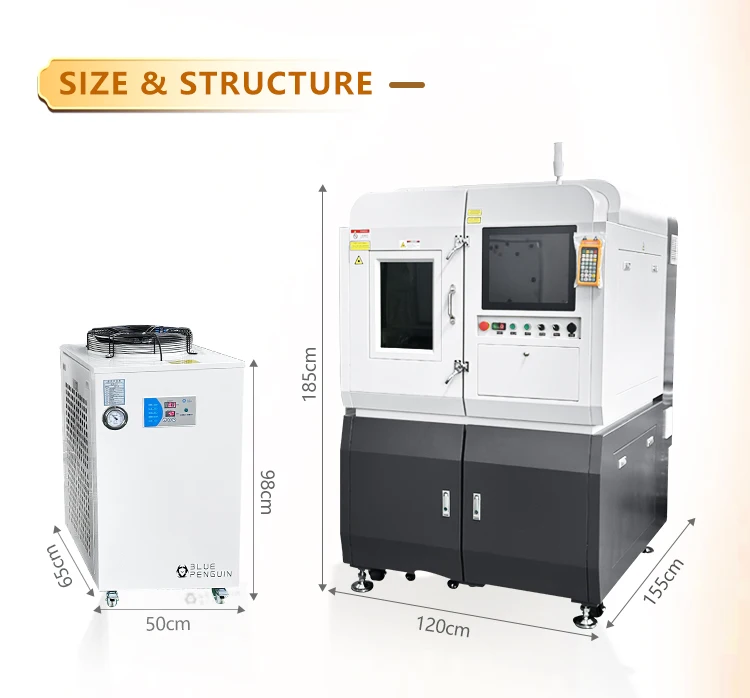

Package Size & Weight Machine: 170*134*205cm, 4.67CBM; Gross weight around 861KG
Chiller: 74*60*114cm, 0.51CBM; Gross weight around 93KG

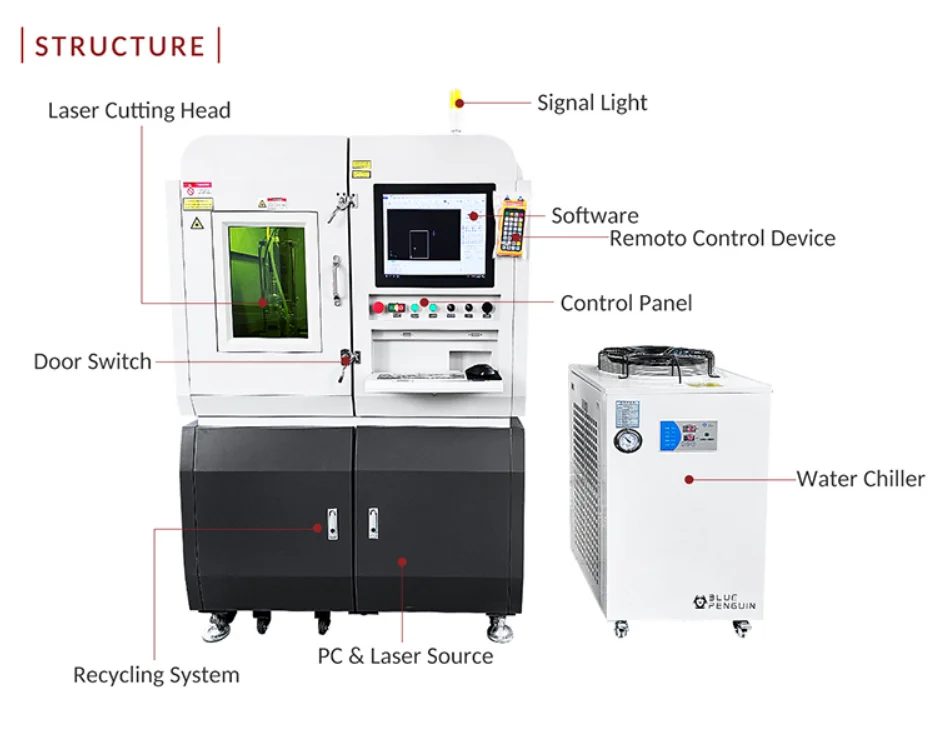

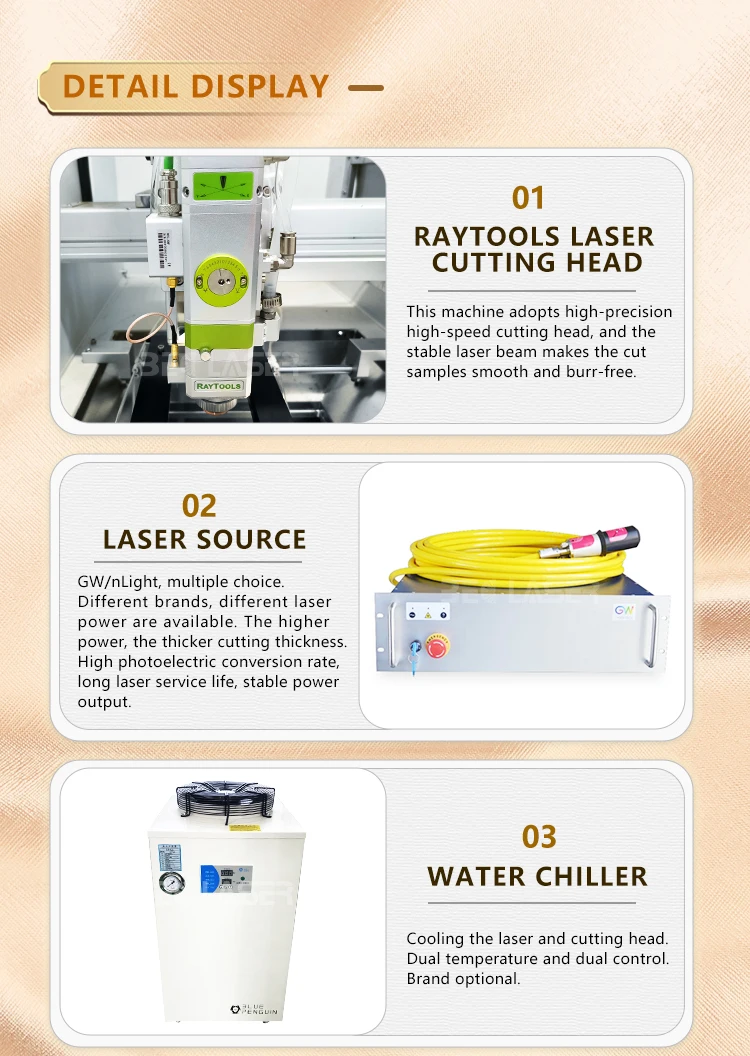

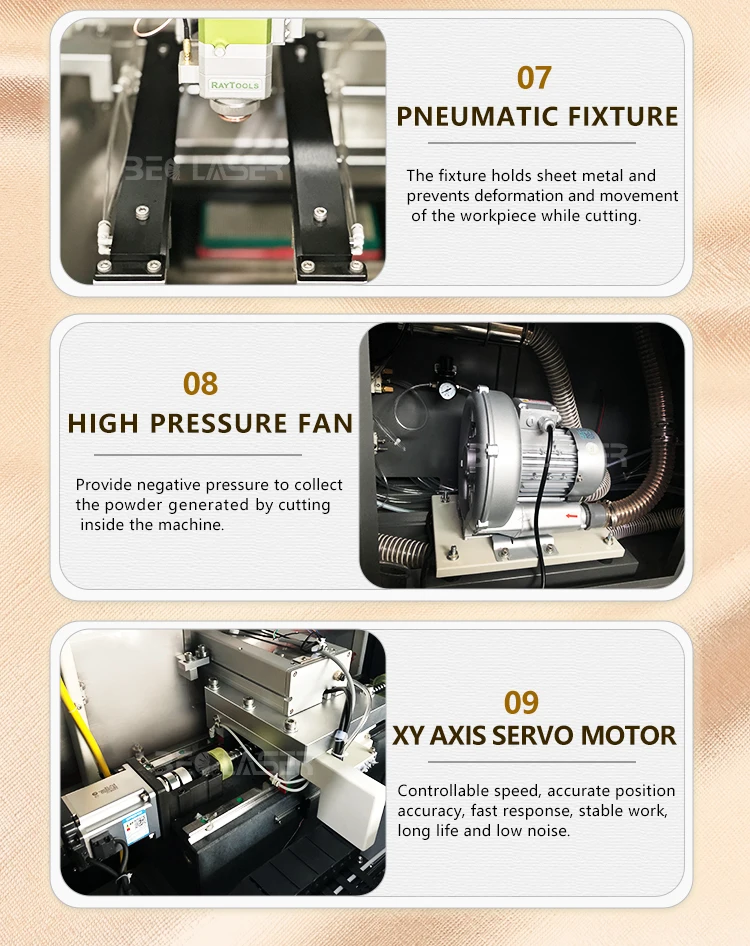

Detailed Images

 Hot Selling Jewelry Laser Cutting Machine Price 1000W 1500W 2000W for Gold Silver

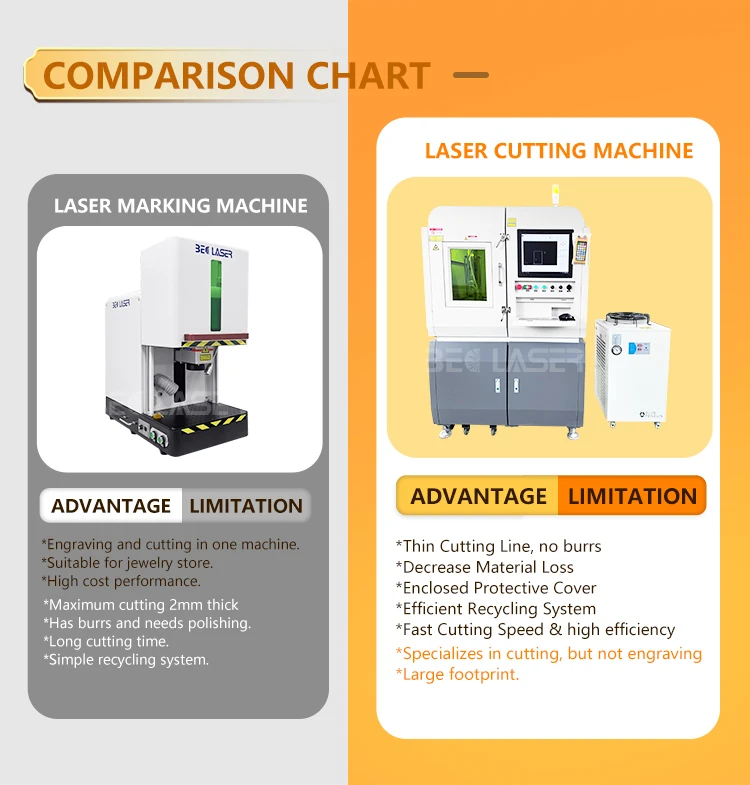

What is the difference between a laser marking machine and a laser cutting machine?

Hot Selling Jewelry Laser Cutting Machine Price 1000W 1500W 2000W for Gold Silver

1. The comparison between the gold and silver laser cutting effect of the laser marking machine and the gold and silver cutting machine

* The metal surface cut by the marking machine is not smooth enough, with burrs

* The metal surface cut by the marking machine will turn yellow when heated and needs to be polished.

* The gold and silver laser cutting machine cuts the metal surface smoother than the marking machine, retains the prototype of the cut object, has no burrs and does not require too much polishing.

2. Comparison of cutting thickness and time between laser marking machine and gold and silver laser cutting machine

* Laser marking machine 50W-60W can cut gold and silver with a thickness of 0-1mm, usually takes 10-15 minutes [specific needs depend on the cutting material and the thickness of the material, the scope of decision];

  80W can cut gold and silver with a thickness of 0-1.2mm; it usually takes 15-20 minutes [the specific needs depend on the cutting material and the thickness of the material, and the scope of the decision];

100W can cut gold and silver with a thickness of 0-2mm [the maximum thickness that the marking machine can cut] usually takes 15-30 minutes [the specific needs are determined according to the cutting material and the thickness of the material, and the range];

The cutting thickness and material of the marking machine are limited, and it cannot cut hard metals, and it is not recommended to cut stainless steel. The most commonly cut materials are brass, aluminum, gold and silver, etc.

* Gold and silver laser cutting machine 1500W cutting 1.8mm silver within 2 minutes

   2000W cutting 3mm silver within 5 minutes (cut twice)

   3000W will be better to cut, but it also needs to be cut twice.

  If it is used to cut 0-2mm silver jewelry, can use 1500W; if want to cut 3mm, it is recommended to use 3000W, 2000W is not cost-effective.

 Hot Selling Jewelry Laser Cutting Machine Price 1000W 1500W 2000W for Gold Silver

Samples

Application

All commonly used precious metal alloys and also many other metal materials such as brass, aluminum, stainless steel, titanium, silver, copper, gold, brass and so on can be cutted with high accuracy. Material thicknesses which can be processed range from thin foils up to 5 mm.

Name cut out pendants come in a variety of metals. Whether the customer chooses gold, silver, brass, copper, stainless steel or tungsten, laser cutting remains the most accurate method of creating the name. The range of options means this is a trend that isn’t exclusive to women; men typically prefer heavier metals and a bolder font, and jewelers generally try to accommodate all preferences. Stainless steel, for example, is popular with men because it has a slightly more casual feel about it, and laser cutting works better on the metal than any other fabrication method does.

why choose us

 * Professional Team
We are a professional industrial laser equipment supplier who is committed to integrating R & D, production and testing. Our team have over 15 years experience in laser equipment production field.

Hot Selling Jewelry Laser Cutting Machine Price 1000W 1500W 2000W for Gold Silver
* Free Technical Training
If you do not know how to use this machine, as long as you come to China, we will provide you the free training until you have a good command of using the machine. If you are busy, our engineers can go to your country. You only need to pay some fees, such as air tickets, hotels and meals.

Hot Selling Jewelry Laser Cutting Machine Price 1000W 1500W 2000W for Gold Silver
* Other services:
* 24 h on-line service;
* We have ourself factory;
* Free sample test & Free parts;
* Good package & Quick delivery time;
* Two years warranty and with lifetime service;
* Engineers available to service machinery overseas;
* Training how to install and use the machine and software.

    BEC Laser is a manufacturer with combined well-trained technicians of more than fifteen years experience in laser applications. We are specialists in industrial laser systems for a variety of applications with a focus in laser marking/engraving and laser welding machines. Main products as fiber laser marking machine, UV laser marking machine, CO2 laser marking machine, mould repairing laser welding machine, jewelry laser welding machine, automatic laser welding machine etc.

Hot Selling Jewelry Laser Cutting Machine Price 1000W 1500W 2000W for Gold Silver

    Our laser machines have been widely applied to jewelries, glasses, watches, electrical appliances, food packaging, piping, hardware, tools, mold, medical instruments, etc. We have maintained a good cooperative relationship with customers from more than 50 countries including the United States, Mexico, Germany, Spain, South Korea, Poland, Ireland, and Russia, etc.

Hot Selling Jewelry Laser Cutting Machine Price 1000W 1500W 2000W for Gold Silver

    The focus of our business is the customer, we take our work seriously and from the first contact to fully understand their needs, analyse their products and then recommend them suitable machines. All of our laser machines have two years warranty, moreover, we have an engineer team which can offer service anytime in English and available to serve machinery overseas. For the overall development of the company, Cohesion Laser & NJ laser, as BEC subsidiary, will responsible for the business of laser marking machines and laser welding machines in the United States.

Hot Selling Jewelry Laser Cutting Machine Price 1000W 1500W 2000W for Gold Silver

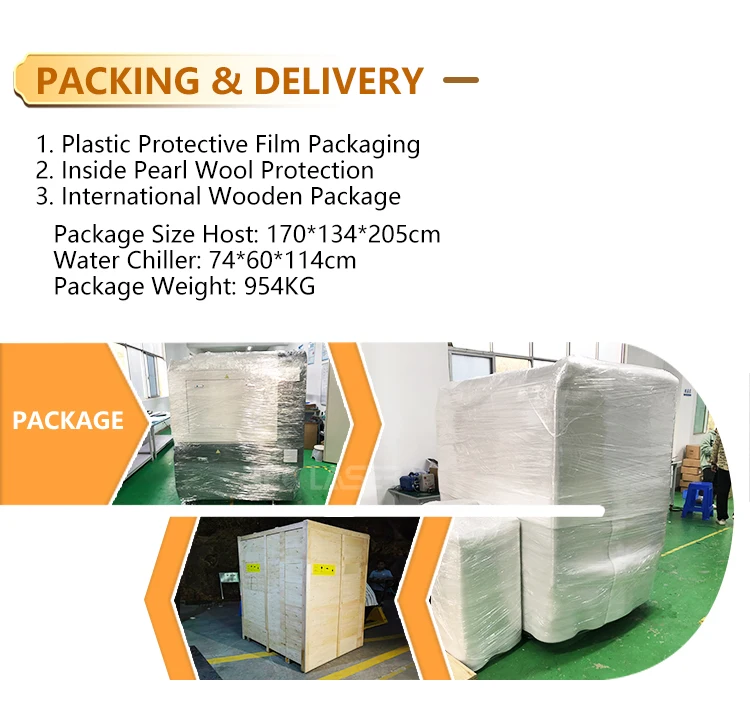

Packaging & Shipping

 Hot Selling Jewelry Laser Cutting Machine Price 1000W 1500W 2000W for Gold Silver

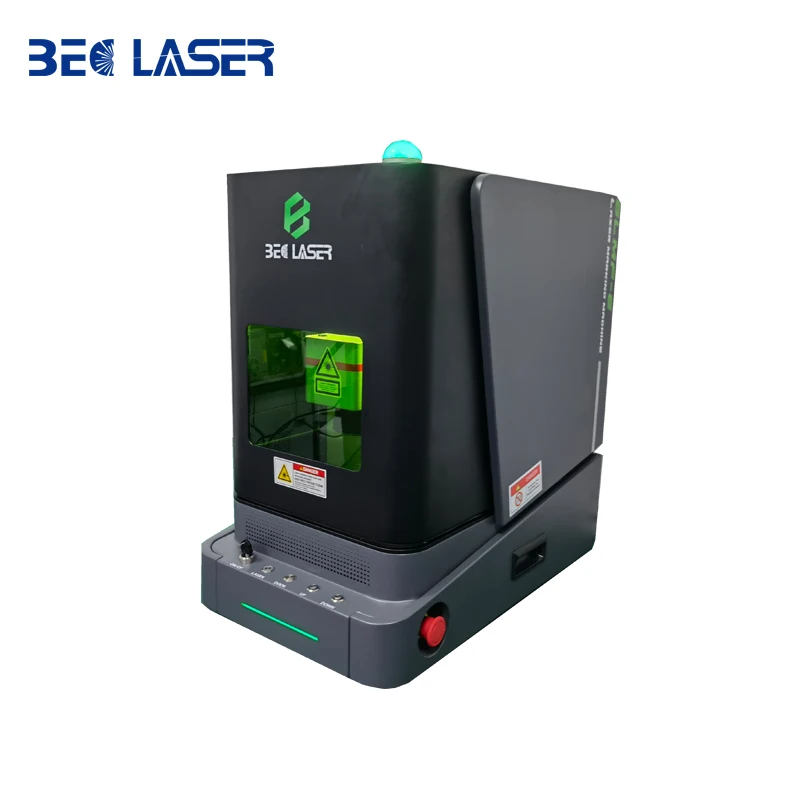

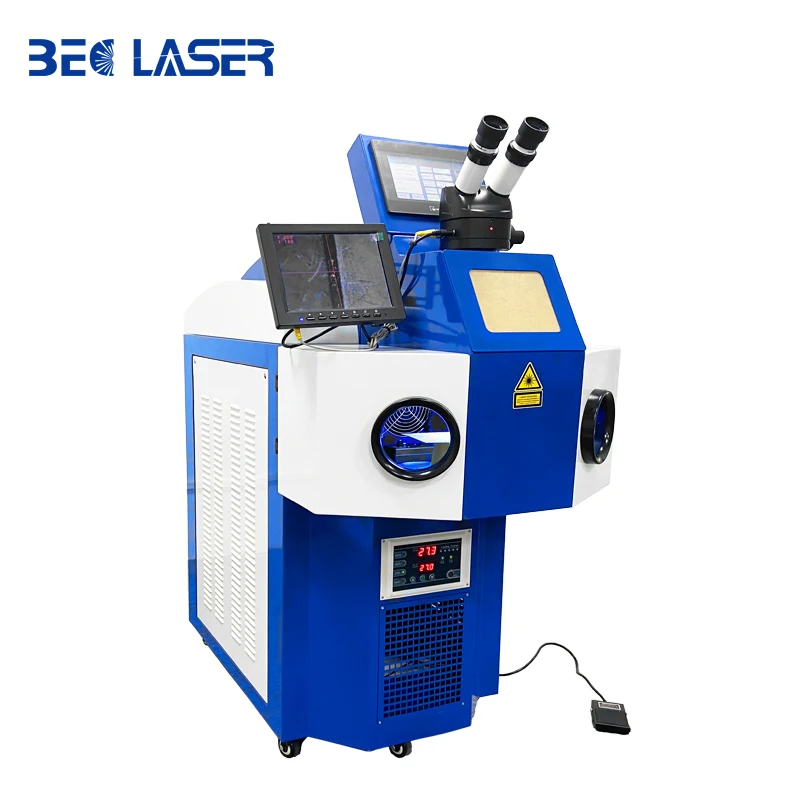

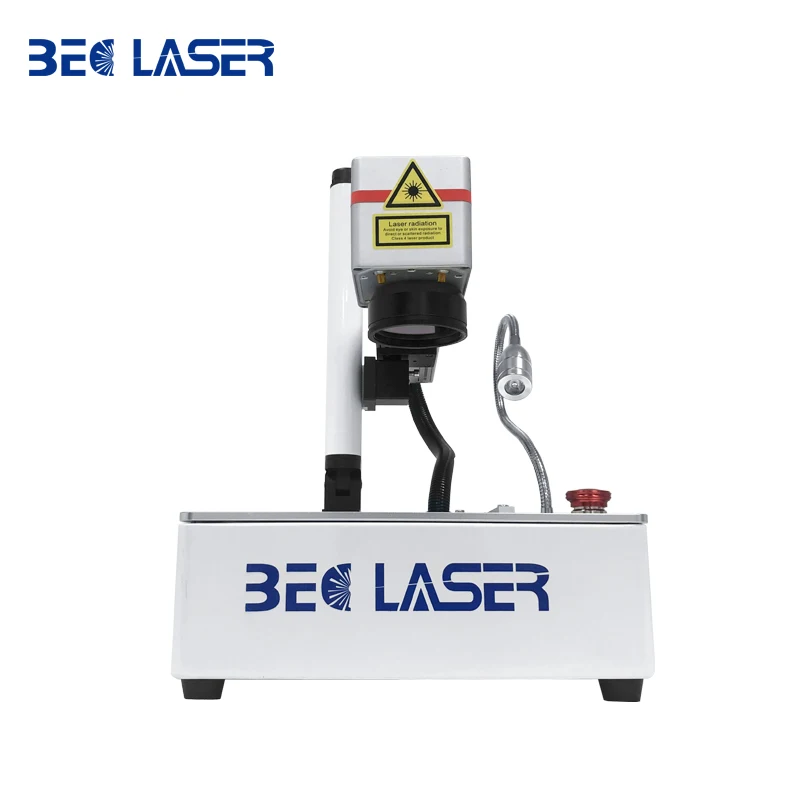

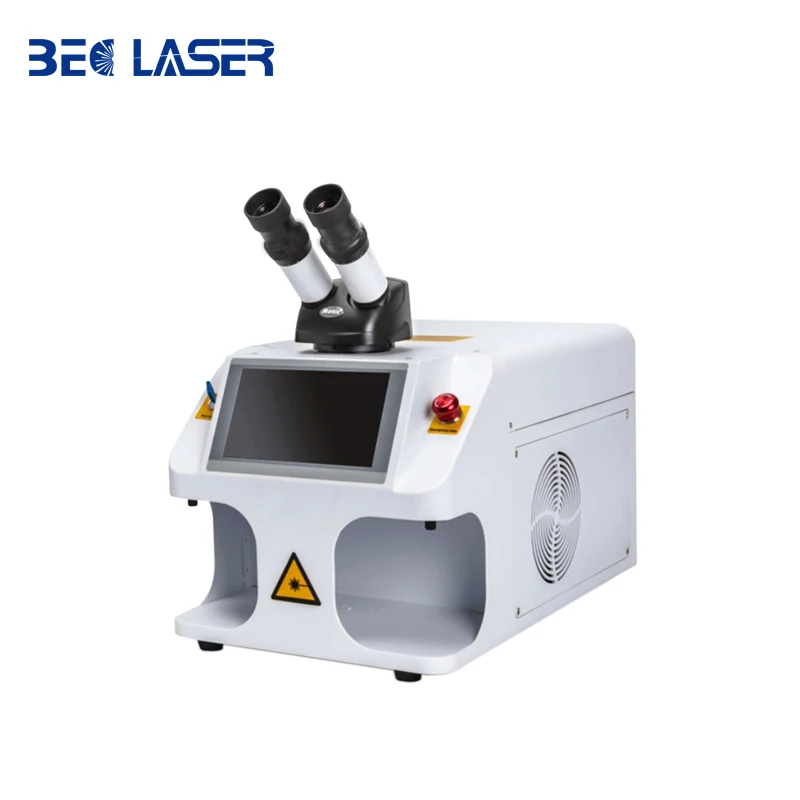

More Products



FAQ

Q1: How to choose the most suitable machine?

A1: Please tell us the details of your working materials by picture or video. Then we can recommend the best machine for you according to our experts.

 Hot Selling Jewelry Laser Cutting Machine Price 1000W 1500W 2000W for Gold Silver

Q2: How to get the method of using this machine?

A2: We will send you manual and guide video in English,which can teach you how to operate the machine. If you still can not learn how to use it, we also can help you online or by phone, email and other ways.

Hot Selling Jewelry Laser Cutting Machine Price 1000W 1500W 2000W for Gold Silver
Q3:
About machine damages.

A3: The machine has two years guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to your feedback. We could send free parts to you in warranty period if machines have any problem under "normal use".

  Hot Selling Jewelry Laser Cutting Machine Price 1000W 1500W 2000W for Gold Silver

Q4: How long is the delivery time?

A4: In order to ensure the quality of products, Our company has strict process of materials inspection, putting in storage, materials picking, machine production, quality inspection, warehouse-out inspection. For standard machines, it would be 10-12 working days; For non-standard machines and customized machines according to client's specific requirements, it would be 15 to 30 working days.



Q5: How's the payment?

A5: We accept Telegraphic Transfer(T/T). 30% in advance, pay the balance before delivery. You can make the payment on Alibaba Trade Assurance.
