    Bestseller 1000W 2000W Fiber Laser Welding Machine Stainless Steel Metal Laser Welding Machine

    Bestseller 1000W 2000W Fiber Laser Welding Machine Stainless Steel Metal Laser Welding Machine

    ¥731.00 CNY
    ¥731.00 CNY ¥731.00 CNY
    Sale Sold out
    Shipping calculated at checkout.
    Material
     More payment options
    Product Description

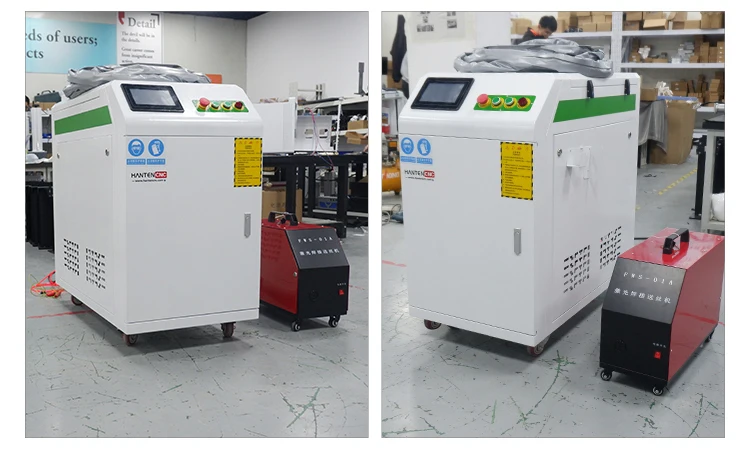

    HANTENCNC 3-in-1 machine is characterized by high speed, ease of use, versatility and high productivity, providing the function of three machines in one to improve efficiency and more excellent quality.

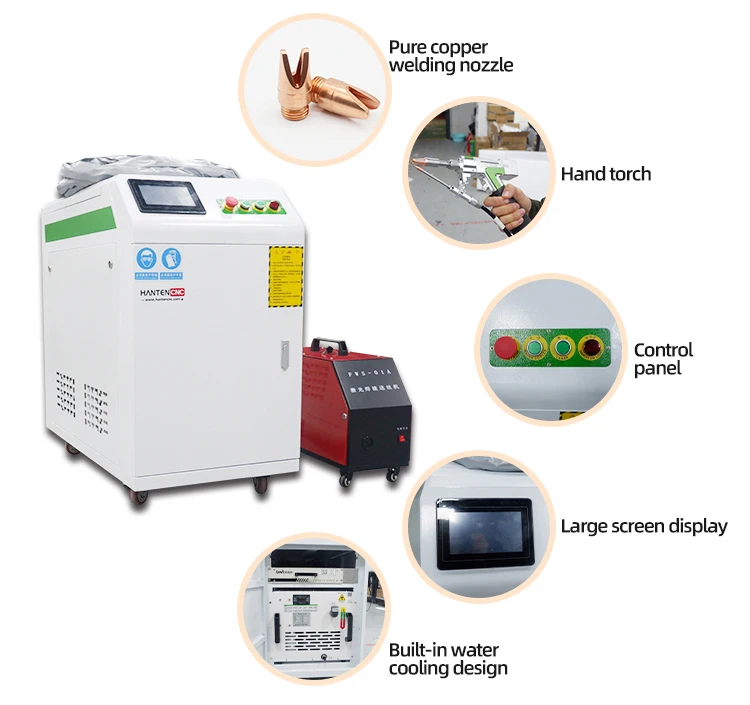

    Product Details
    Specification

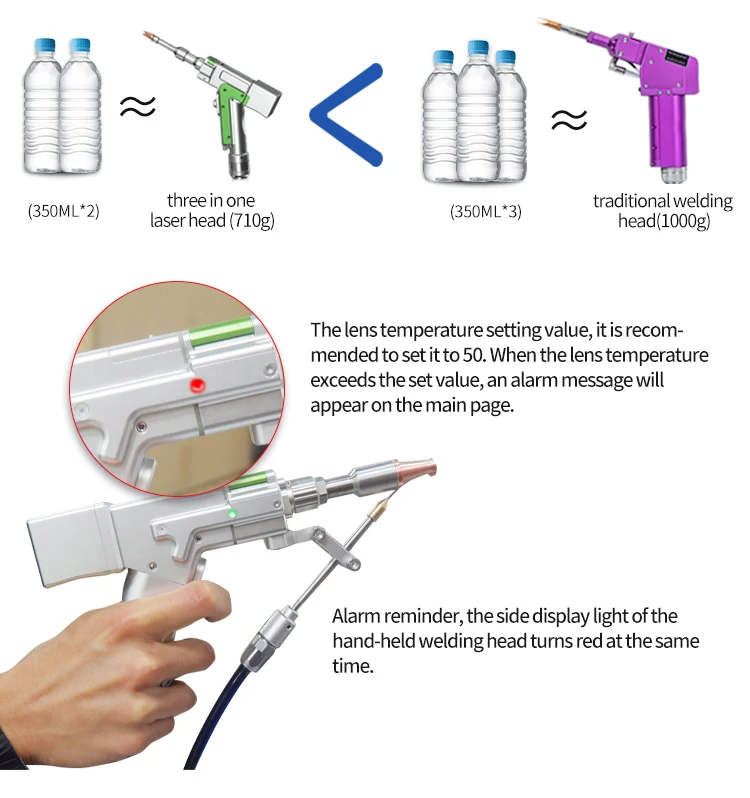

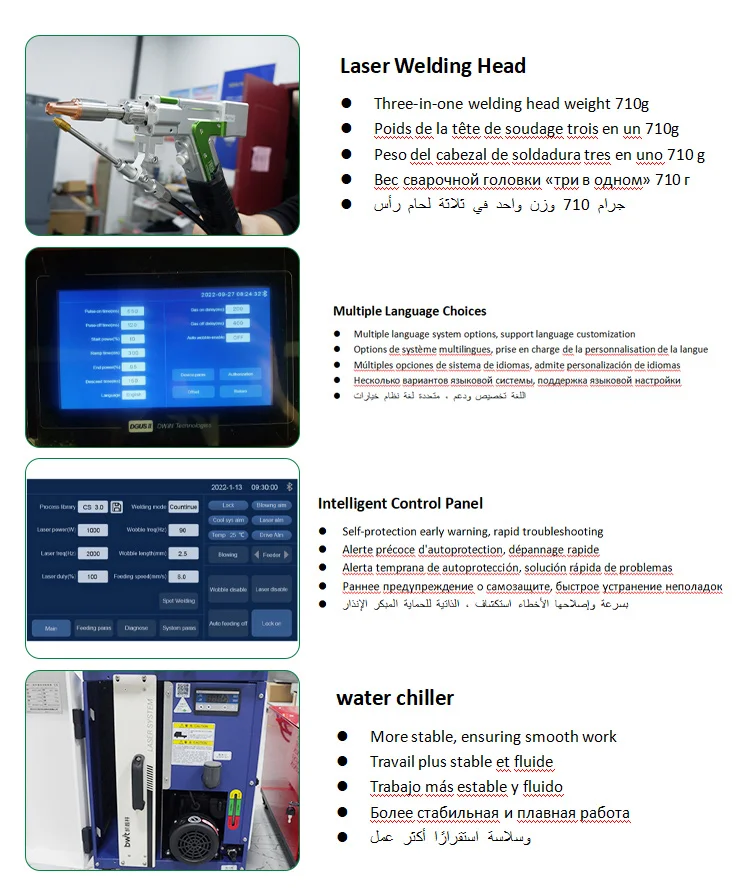

    Welding head model
    FWH20-S10A (three in one) and FWH20-S11A Smart pendulum handheld welding head
    Fiber interface
    QBH
    Laser wavelength
    1070±20nm
    Laser power
    ≤3000W
    Intelligent protection function
    Yes
    Collimated focal length
    50mm
    Focus focal length
    150mm
    Spot adjustable range
    0-5mm
    Effective clear aperture
    16mm
    Welding head weight
    0.71kg
    Cleaning head model
    FWH20-C11A
    Fiber interface
    QBH
    Laser wavelength
    1070±20nm
    Laser power
    Laser power
    Intelligent protection function
    Intelligent protection function
    Collimated focal length
    50mm
    Focus focal length
    400mm/600mm
    Scan range
    0-150mm
    Scan speed
    20000mm/s
    Effective clear aperture
    25mm
    Weight
    0.73kg
    Wire feeder model
    FWS-01A
    Wire weight
    max 25kg
    Wire core diameter
    MAX Ø3.0mm
    Maximum wire feed speed
    80mm/s
    Motor type
    57 Stepper Motor
    Reduction ratio
    1：5
    Gross weight
    16.2KG
    Working voltage
    220V(option)
    Dimensions
    560*240*472mm(L*W*H)

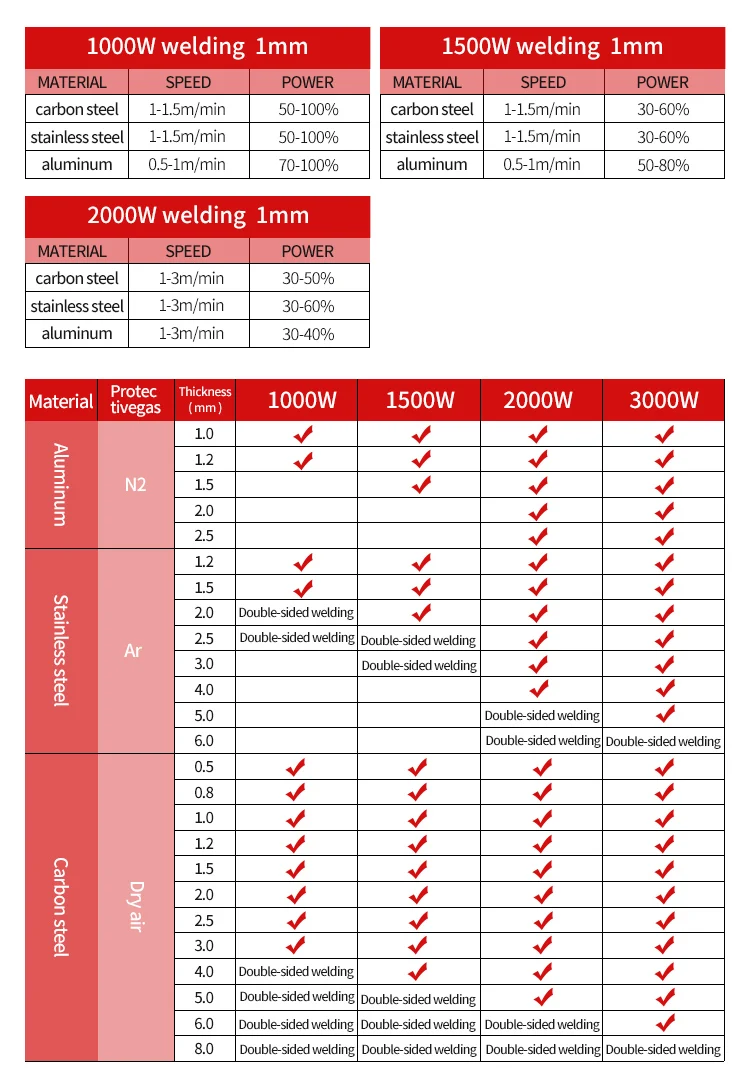

    If you want to weld aluminum, stainless steel, carbon steel, please refer to the following data. These are the results of our professional tests. For more technical details, please send me an inquiry, I will send more details at the first time.

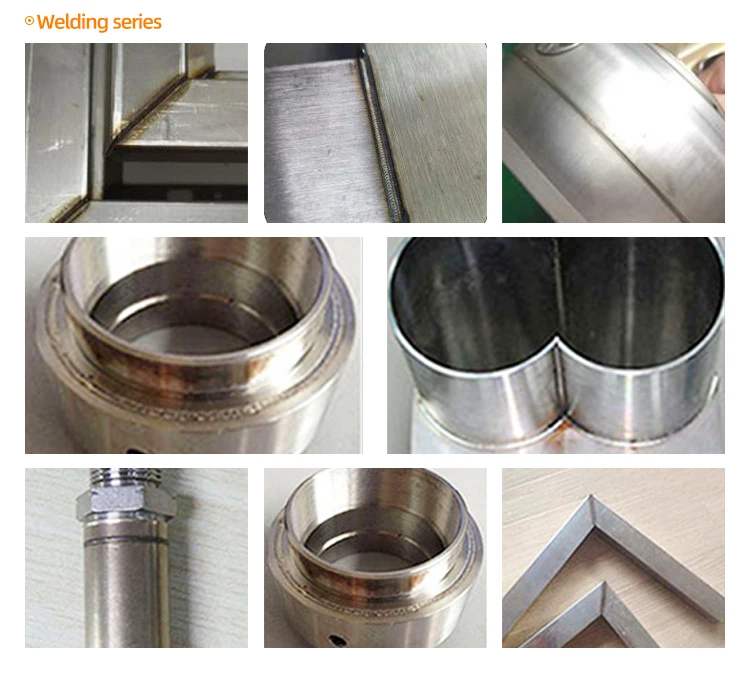

    Sample&Application

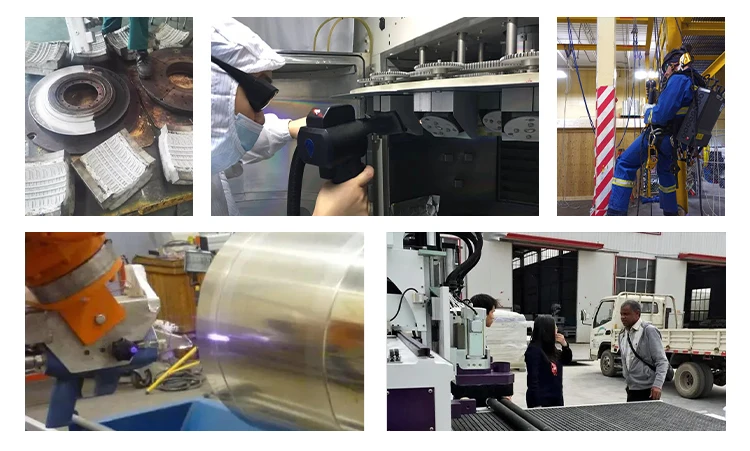

    HANTENCNC three-in-one machine is used in a wide range of industries, suitable for kitchenware industry, living utensils, food security, auto parts, electronic applications, hotel kitchen equipment, elevator equipment, advertising signs, automobile decoration, sheet metal production, lighting hardware, display equipment, parts , hardware products and other industries
    More Choose
    Packing & Delivery
    Company Profile
    Jinan Hanteng Laser Technology Co.,ltd is a professional automatic laser marking engraving and cutting machine manufacturer in China. Our products include the fiber laser marking machine, laser marking machine, laser welding machine, laser engraving and cutting machine and so on, which have passed CE certification. Our machines are widely used for the arts and crafts, the machine parts, hardware tools, advertising sign, shipbuilding industry, auto parts, rubber molds, high-end machine tool, tire mold, Environmental protection industry and so on. We have many customers from different countries around the world.
    Customer Visit Many customers visit our factory to learn how to use the machines. Our after-sales service manager goes to the customer's country to help debug the machine. Our machines are exported to USA, UK, Canada, Brazil, Mexico, Russia, Spain, Korea, Netherlands and other countries.
    Exhibition
    On-site After-sales Teaching
    Certificate

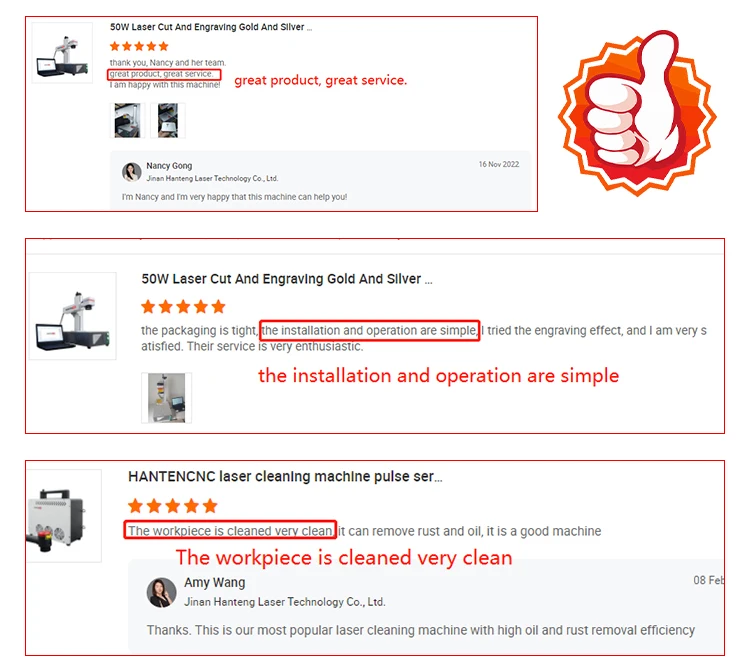

    Customer Reviews
    FAQ
    1. How can I get the best machine for me? You can tell us your working material, detail work by picture or video so that we can judge whether our machine can meet with your requirements or not. Then we can recommend you with the suitable model by our accumulated experiences.
    2. how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;

    3.what can you buy from us?
    Laser Marking Machine / Laser Cutting Machine / Laser Welding Machine / Laser Cleaning Machine / CO2 Engraving Machine / CNC Router / UV Printer

    4. why should you buy from us not from other suppliers?
    Hanser Laser is a branch company with engineers and research and development for 15 years. It is a professional manufacturer engaged in the research, development, production and service of cnc router & laser machine .

    5. How do you ensure that it's the right machine I need? You can send your materials to us by courier, we will mark you for free, and send you pictures and videos.
