BLUETIMES JPT UV Laser Engraving Machine high absorption rate allows UV lasers to perform "cold marking," ensuring that no extra heat stress is applied to materials, including those with high reflectances such as gold, silver, and copper. This minimizes soot and burrs caused by the typical marking process. In addition, the high absorption rate allows marking and processing to be performed on a variety of materials with minimal heat stress to the material.
007TECH
Big promotion factory direct supply 3w 5w 10w uv laser marking machine for plastic glass
Big promotion factory direct supply 3w 5w 10w uv laser marking machine for plastic glass
Regular price
¥4,385.00 CNY
Sale price
¥4,385.00 CNY
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Big promotion factory direct supply 3w 5w 10w uv laser marking machine for plastic glass
List of Our Laser Marking Machine
Product Description
Space Saver UV Laser Marking Machine
JPT Desktop Mini 3W 5W UV laser marking machine adopts 355nm JPT-355-3A/3S ultraviolet laser source and the third-order cavity frequency doubling technology. Compared with infrared laser, UV laser has smaller spot light and it can reduce the workpiece mechanical deformation during processing. It’s mainly used for ultra-fine marking or engraving. It is suitable for various industry packaging marking, micro hole marking, glass high-speed division and silicon wafer graphics cutting.
Discover how UV laser markers work, when you should use one, and why their wavelength is so special.
Compared with standard laser light (1064 nm) and green laser light (532 nm), UV laser light has a remarkably higher material
absorption rate. This means the power does not need to be increased to create highly visible marks.
UV lasers can mark highly reflective materials like gold, silver and copper with minimal heat damage thanks to the high absorption
rate of UV light. This minimizes soot and burrs, prevents surface damage and enables corrosion-resistant marking.
Electronic parts are becoming smaller and their sealing resins are becoming thinner. Typical laser markers risk transmitting
energy through sealing resins and damaging the internal components. However, UV laser markers have an incredibly high material
absorption rate and can mark sealing resins without affecting the internal components.
absorption rate. This means the power does not need to be increased to create highly visible marks.
UV lasers can mark highly reflective materials like gold, silver and copper with minimal heat damage thanks to the high absorption
rate of UV light. This minimizes soot and burrs, prevents surface damage and enables corrosion-resistant marking.
Electronic parts are becoming smaller and their sealing resins are becoming thinner. Typical laser markers risk transmitting
energy through sealing resins and damaging the internal components. However, UV laser markers have an incredibly high material
absorption rate and can mark sealing resins without affecting the internal components.

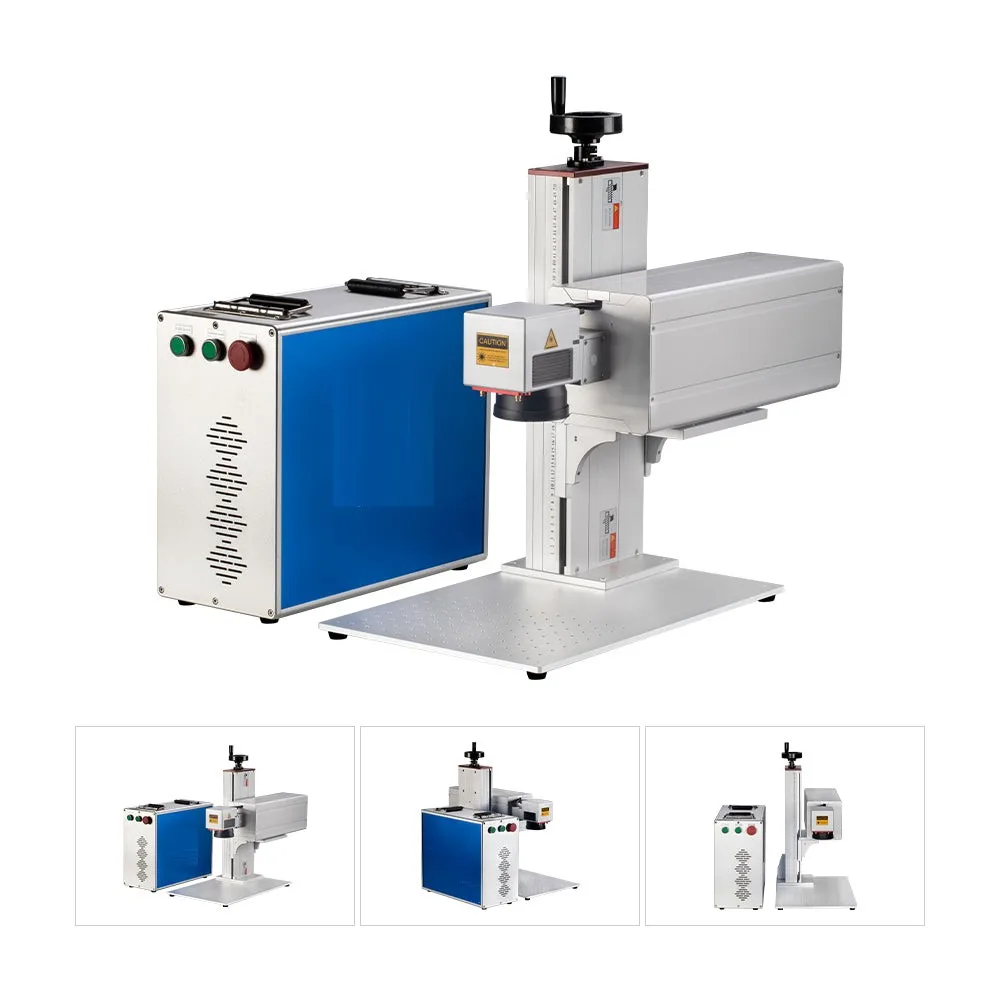

355 nm 3W 5W UV marking machine
YongLi UV Laser Marking Machine is quite popular in market for marking on Plastic , Polypropylene, Ceramic and everything that
cannot be marked with Fiber laser marker and Co2 laser marker can now be marked with UV laser Marking machine.
cannot be marked with Fiber laser marker and Co2 laser marker can now be marked with UV laser Marking machine.
UV Laser Marking Pioneering Company
YONGLI is one of the pioneering
company in CHINA dealing with the UV , CO2 and Fiber laser marking machine technology.
We recently installed a machine in one of the Virus Test Kit manufacturing unit for marking on the tubes used for testing of the Symptoms.
We recently installed a machine in one of the Virus Test Kit manufacturing unit for marking on the tubes used for testing of the Symptoms.
Product Paramenters
Model |
ULM-MW3/5-FT |
Power |
3W 5W |
UV laser source |
Maiman MQ-M |
Working area |
110*110/150*150/200*200/300*300(mm) |
Wavelength |
355nm |
Beam Quality |
M2<1.3 |
Marking Speed |
7000mm/second |
Repeated Precision |
±0.003mm |
Working voltage |
220V / or 110V (+-10%) |
Output Power |
10%-100KHz |
Output Frequency |
<±2%rm |
Power Stability(8h) |
<±3%rms |
Pulse to pulse instabilit |
TEMoo(M2<1.3) |
Spatial Mode |
<2mrad(full angle) |
Beam Divergence |
0.6±0.1mm |
Beam Diameter |
>90% |
Beam Roundess |
<50urad |
Pointing Stability |
H50rad |
Polarization Direction |
Horizontal |
Polarization Ratio |
100:1 |
Cooling |
Water-cooling (S&A MRUL-15 Water Chiller) |

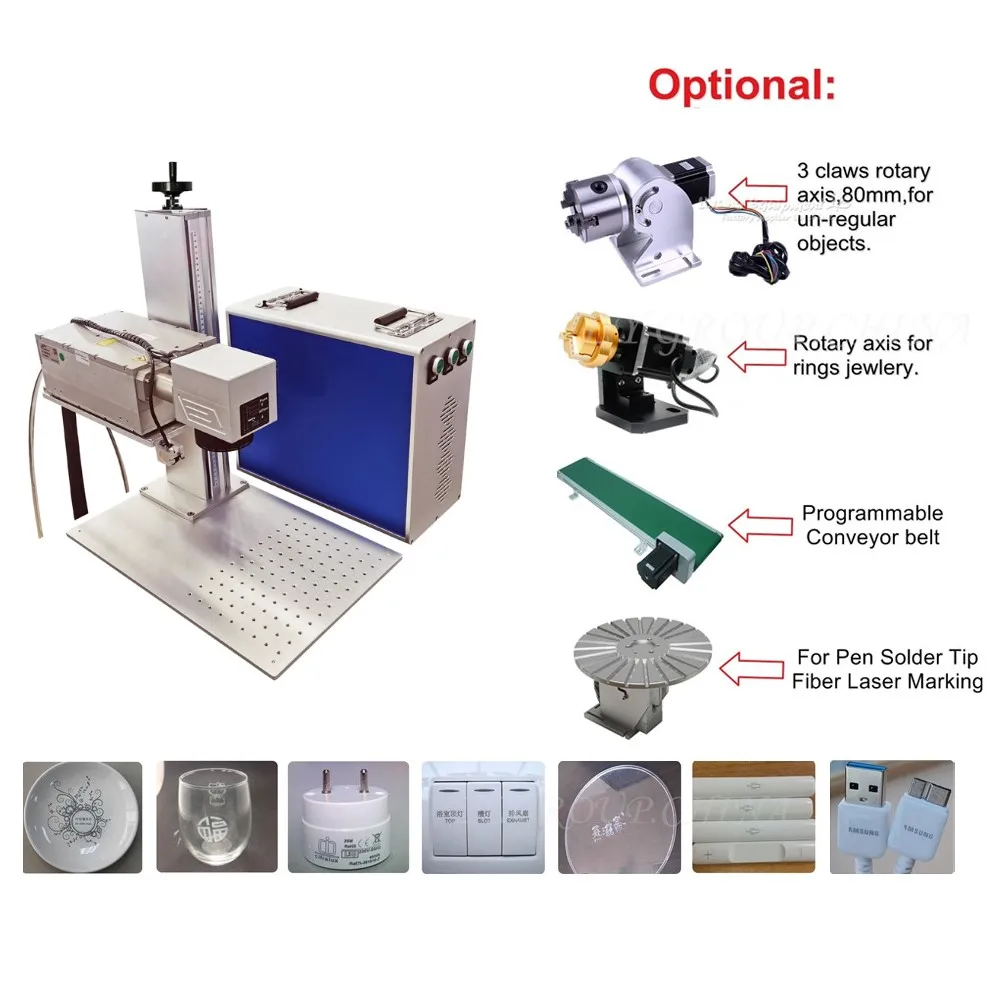

Optional parts |
Rotary Device, Lift platform, other customized Automation |
Ambient temperature |
10-35℃ |
Supported graphic formats |
AI，BMP，DST，DWG，DXF，DXP，LAS，PLT |
Application |
plastics,crystal, porcelain, PLA, PVC, PET, PE, PP, PS, PTFE, PMMA, glass, and others |
Rated power consumption |
500W |
Packing size |
88*42*80cm |
Net weight |
60 KG |
Product Details

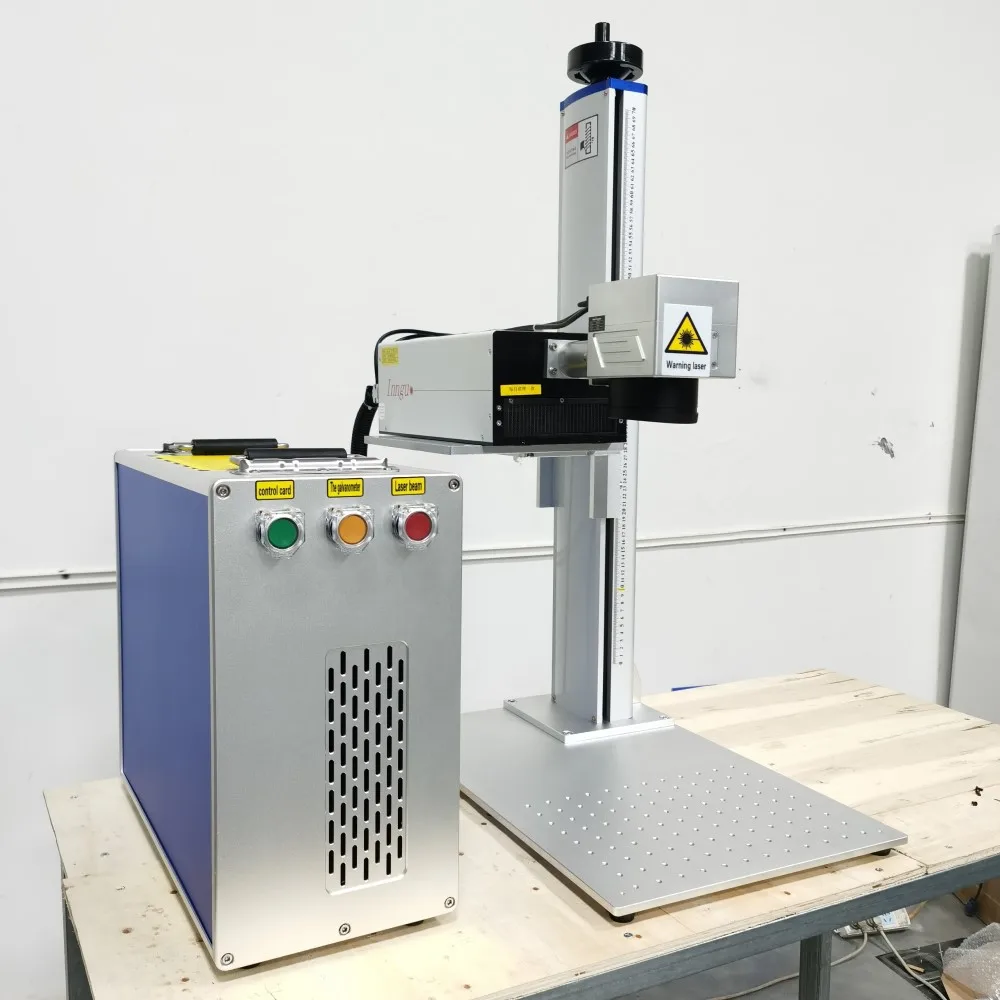

BEST WATER-COOLED UV LASER MARKING MACHINE
BLUETIMES JPT-355-3A/3S UV laser marker. The latest UV laser source design helps achieve high accuracy marking. The source not only extends the machine service life but reduces power instability to less than 3%.Short pulse width and a high peak power allow the laser to achieve flow line standards. Many manufacturing processes involve fast-moving production lines. To avoid additional cycle time and in order to maintain product flow rates without interruption for marking, parts must instead be marked while they are in motion.
Adopting JPT Air/Water Cooled 3W/5W UV laser source and SINO GLAVO Scanning Head, with ultra-high cost performance, can meet 7*24 hours manufacturing; Stone plus series, stronger performance, more adaptable to complex and harsh environments. SINO-GALVO specialize in optical galvanometer scanner and its control system’s R&D, production and sales, and have established the world-class high performance galvanometer scanner.
● The laser power 3/5W;
● Solve power attenuation and meet 7*24 hours of work;
● The service life exceeds 2-3 years, maintenance-free, no need for regular commissioning;
● All-in-one machine, directly installed with galvanometer, compatible with the rack of fiber laser marking machine;
● 3 layers of protection, protection grade IP65, more suitable for harsh working environment.
● Minimal maintenance required (change water in chiller needed every 30 days).
Adopting JPT Air/Water Cooled 3W/5W UV laser source and SINO GLAVO Scanning Head, with ultra-high cost performance, can meet 7*24 hours manufacturing; Stone plus series, stronger performance, more adaptable to complex and harsh environments. SINO-GALVO specialize in optical galvanometer scanner and its control system’s R&D, production and sales, and have established the world-class high performance galvanometer scanner.
● The laser power 3/5W;
● Solve power attenuation and meet 7*24 hours of work;
● The service life exceeds 2-3 years, maintenance-free, no need for regular commissioning;
● All-in-one machine, directly installed with galvanometer, compatible with the rack of fiber laser marking machine;
● 3 layers of protection, protection grade IP65, more suitable for harsh working environment.
● Minimal maintenance required (change water in chiller needed every 30 days).

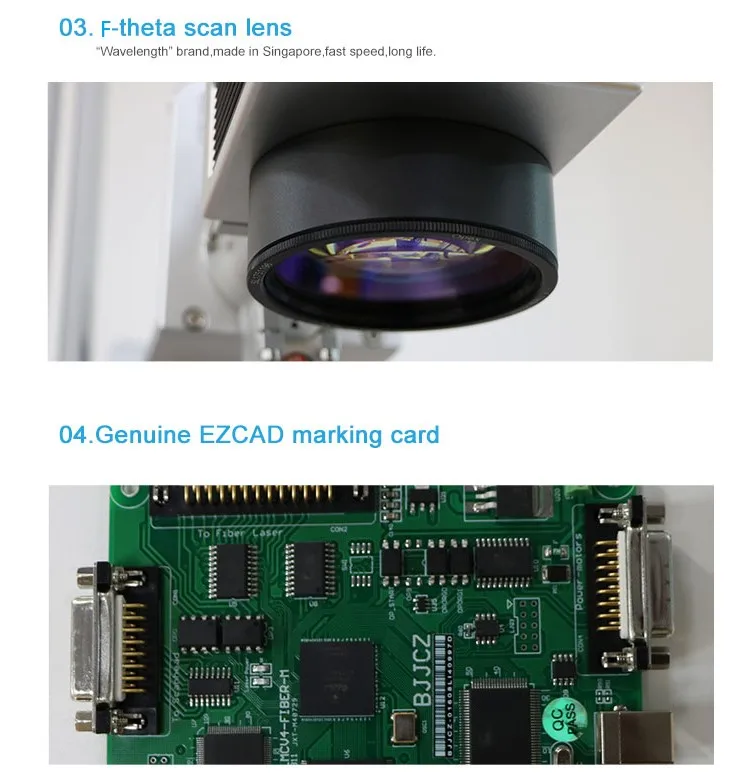

110*110mm-300*300mm working area f-theta lens
F-Theta lens is commonly used in galvanometer scanning systems for laser marking, engraving, and cutting; with the ability to deliver a focused spot to many points within a scanning field. Wavelength® F-Theta Scan Lens, commonly known as the F-Theta lens,is meticulously designed and crafted for a broad range of laser applications. With over a decade of expertise in optical grade and coating production, Ronar-Smith® F-Theta lens yield some of the world’s finest optical
performance in the market.
User Friendly Control System
Beijing JCZ board card and EZCAD2 software with stable performance and high reliability. The software and parameter are set in the usb driver before delivery.
User Friendly Control System
Beijing JCZ board card and EZCAD2 software with stable performance and high reliability. The software and parameter are set in the usb driver before delivery.
EZCAD2 is a well-known and most popular laser and galvo control software. It works with LMC series laser controller for laser processing like marking, engraving, etching. After 15 years of verification by the market, It is now adopted by more than 4000 laser equipment integrators, more than 100,000 laser machines are with EZCAD2 annually. Supported Graphic FormatsAI, BMP, DST,
DWG, DXF, DXP, LAS, PLT etc.
DWG, DXF, DXP, LAS, PLT etc.

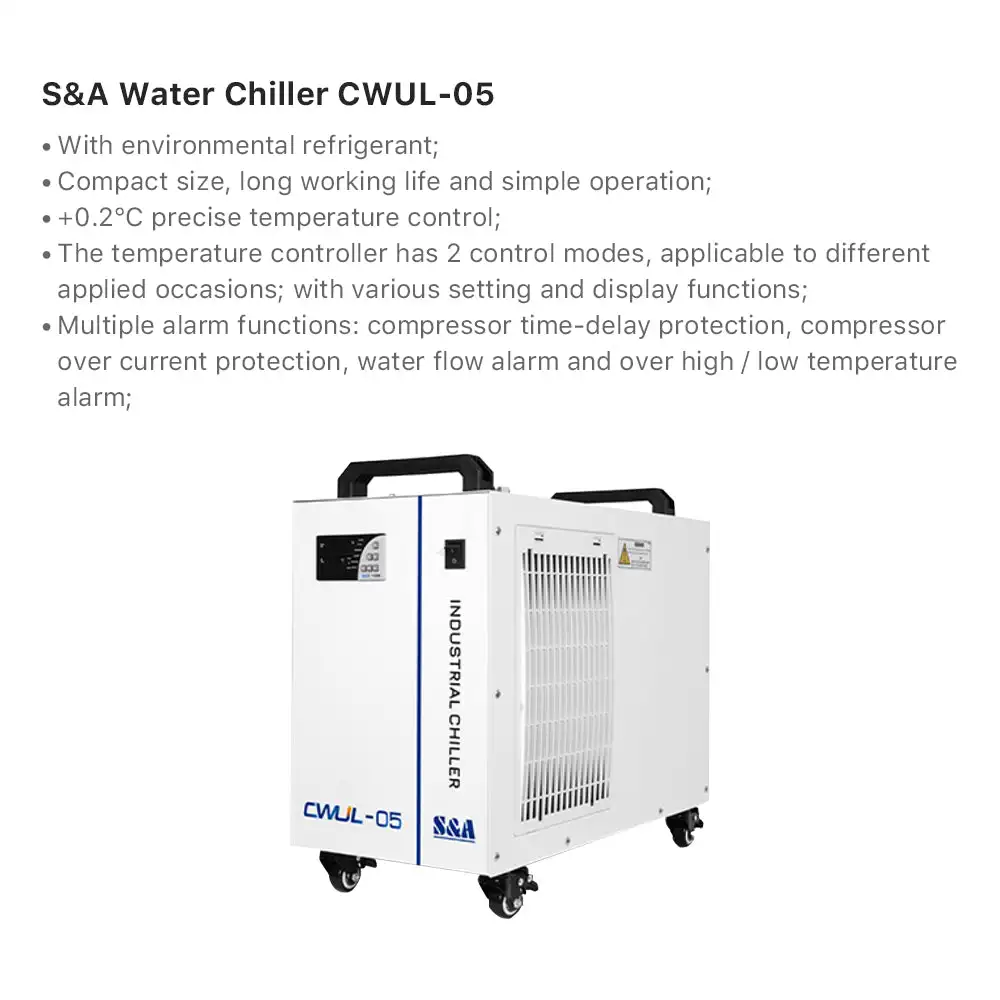

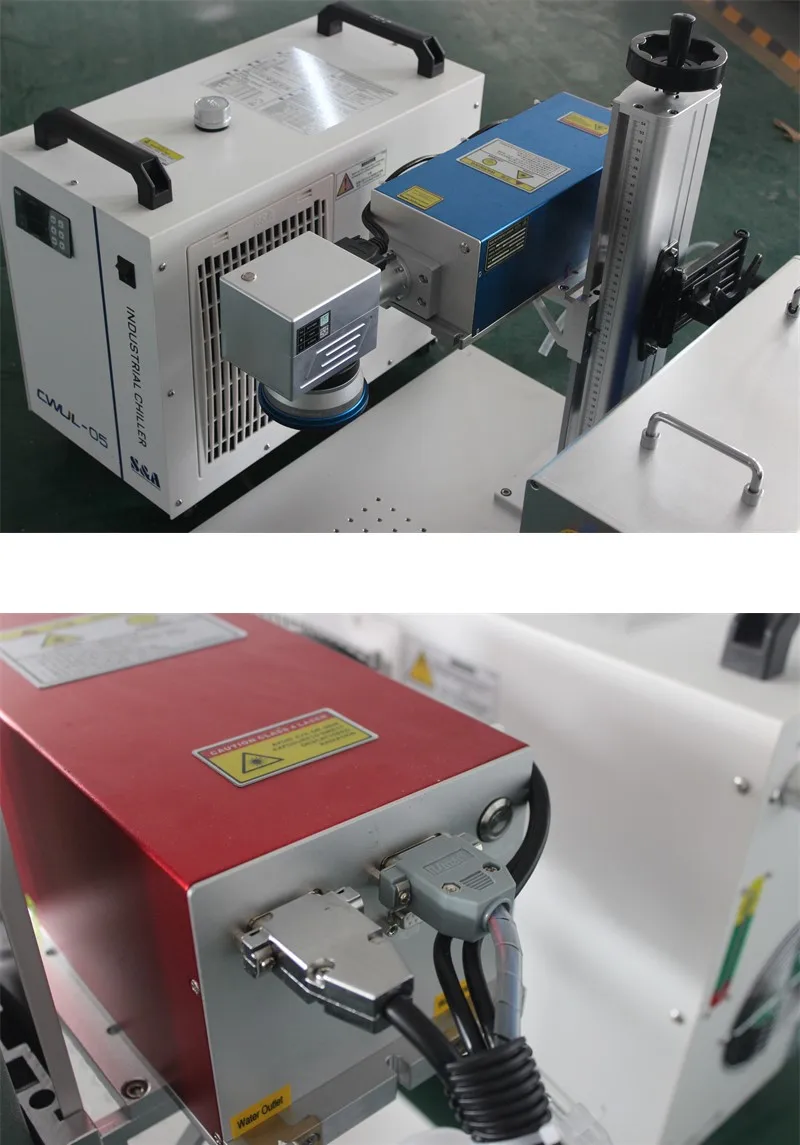

High precision UV laser water chillers CWUL-05
S&A CWUL-05 water chiller is applied for cooling 3W-5W UV laser.1. With environmental refrigerant;
2. Compact size, long working life and simple operation;
3. ±0.2℃ precise temperature control;
4. The temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
2. Compact size, long working life and simple operation;
3. ±0.2℃ precise temperature control;
4. The temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
5. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high/low temperature alarm;
7. Optional heater and water filter.
THE WARRANTY IS 2 YEARS AND THE PRODUCT IS UNDERWRITTEN BY INSURANCE COMPANY.
7. Optional heater and water filter.
THE WARRANTY IS 2 YEARS AND THE PRODUCT IS UNDERWRITTEN BY INSURANCE COMPANY.
Versatility: UV Laser marking can be used on many products in a variety of industries, including aerospace, automotive, defense DOD, and medical and electronic components.
Maintenance Free: With UV laser marking, there is no prolonged downtime associated with cleaning or fixing a printer, and the overall engraving process is extremely quick and simple.
Fast Processing: UV lasers are better absorbed than other wavelengths and marking techniques by virtually all materials, requiring less power to produce a clear mark in one application. This makes the process even simpler since UV laser marking ensures a high-quality, high-contrast mark.
Low Power Consumption: Compared with standard laser light (1064 nm) and green laser light (532 nm), UV laser light has a remarkably higher material absorption rate. This means the power does not need to be increased to create highly visible marks.
Damage-Free Marking: UV lasers can mark highly reflective materials like gold, silver, and copper with minimal heat damage thanks to the high absorption rate of UV light. This minimizes soot and burrs, prevents surface damage, and enables corrosion-resistant marking.
Quality: UV lasers create easy-to-read marks that are far superior to printed marks or labels. UV laser has smaller spot sizes,leading to crisp, clear marks. This ensures that parts can be clearly identified and their markings cannot be altered or tampered with.
Special Applications. During the laser marking process, the marking device does not come into direct contact with the product, allowing for clean operation with minimal contamination. This creates a product identification option for industries that require sterile products and ensures that outside materials will not cause future contamination of a product.
Maintenance Free: With UV laser marking, there is no prolonged downtime associated with cleaning or fixing a printer, and the overall engraving process is extremely quick and simple.
Fast Processing: UV lasers are better absorbed than other wavelengths and marking techniques by virtually all materials, requiring less power to produce a clear mark in one application. This makes the process even simpler since UV laser marking ensures a high-quality, high-contrast mark.
Low Power Consumption: Compared with standard laser light (1064 nm) and green laser light (532 nm), UV laser light has a remarkably higher material absorption rate. This means the power does not need to be increased to create highly visible marks.
Damage-Free Marking: UV lasers can mark highly reflective materials like gold, silver, and copper with minimal heat damage thanks to the high absorption rate of UV light. This minimizes soot and burrs, prevents surface damage, and enables corrosion-resistant marking.
Quality: UV lasers create easy-to-read marks that are far superior to printed marks or labels. UV laser has smaller spot sizes,leading to crisp, clear marks. This ensures that parts can be clearly identified and their markings cannot be altered or tampered with.
Special Applications. During the laser marking process, the marking device does not come into direct contact with the product, allowing for clean operation with minimal contamination. This creates a product identification option for industries that require sterile products and ensures that outside materials will not cause future contamination of a product.
Product Advantages
Product Warranty INCLUDED
YONGLI LASER warrants its products and parts against defects in materials or workmanship for Two (2) years from the original date of receipt.
YongLi Laser Technology Ltd. Laser marking machine manufacturer is committed to producing and supplying premium laser marking machines and offering specialized laser marking solutions.
YongLi laser marking machines are beyond all praise and have quickly taken over the market by virtue of their superior quality and advanced laser marking system. Our machines have exported to more than 60 countries of various industries and manufacturers worldwide, delivering the highest quality laser marking machines with unsurpassed care and customer service.
YongLi Laser Technology Ltd. Laser marking machine manufacturer is committed to producing and supplying premium laser marking machines and offering specialized laser marking solutions.
YongLi laser marking machines are beyond all praise and have quickly taken over the market by virtue of their superior quality and advanced laser marking system. Our machines have exported to more than 60 countries of various industries and manufacturers worldwide, delivering the highest quality laser marking machines with unsurpassed care and customer service.
Application
UV Laser Marking Machine can be applied to almost all of the materials,include plastics (PE,PP,PVC,PS,ABS,etc.), Metal, Paper,etc.
1. Applicable to the high-end market of ultra-fine processing, marking the surface of packaging bottles of cosmetics, videos and other polymer materials, with a fine effect;
2. Suitable for marking, micro-hole drilling, high-speed division of glass materials for food, and complex graphic cutting of silicon wafers, etc.
3. Flexible PCB marking and scribing;
4. Processing of silicon wafer micro-holes and blind holes;
5. LCD liquid crystal glass two-dimensional code marking, perforation of glass utensils, metal surface coating marking, plastic keys, electronic components, gifts, communication equipment, building materials, etc.
2. Suitable for marking, micro-hole drilling, high-speed division of glass materials for food, and complex graphic cutting of silicon wafers, etc.
3. Flexible PCB marking and scribing;
4. Processing of silicon wafer micro-holes and blind holes;
5. LCD liquid crystal glass two-dimensional code marking, perforation of glass utensils, metal surface coating marking, plastic keys, electronic components, gifts, communication equipment, building materials, etc.

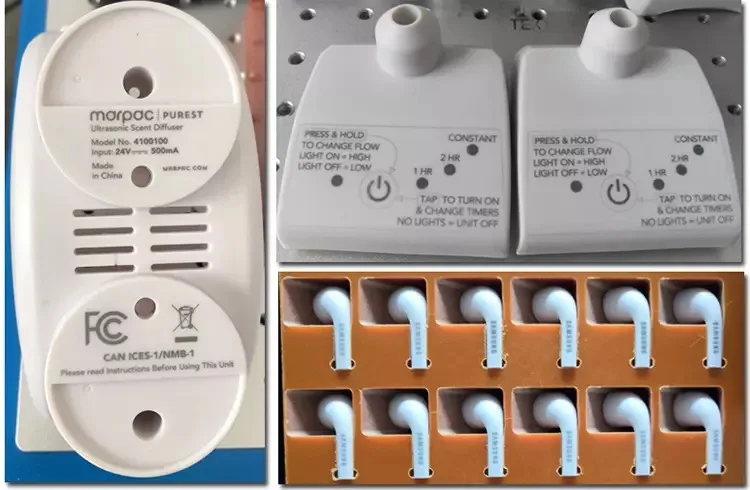

1) Plastic Materials
UV laser can apply to most universal plastic and some engineering plastics, such as PP, PE, PBT, PET, PA, ABS, POM, PS, PC, PUS,EVA, etc., and plastic alloy, like PC/ABS and other material. The marking is clear and bright, and can mark black and white color on natural color plastic, white plastic, colored plastic and black plastic. Successful commercialized application in the plastics include animal ear tag, light switch cover, cosmetic packaging material
2) Glass Material Processing
Since the focal spot of UV laser is very tiny and processing temperature is low, furthermore as a non-contact marking technology,UV laser is very suitable to mark glass material. Successful UV laser commercialized applications include wine bottle, flavour bottle, drinking bottle and other industries glass bottle package and glass tableware, glass crafts gifts, crystal marking, etc.
Besides marking glass directly, UV laser can also remove paint or coat on glass to form text or pattern, like logo, number or other patterns;
Besides marking glass directly, UV laser can also remove paint or coat on glass to form text or pattern, like logo, number or other patterns;
Packaging & Shipping

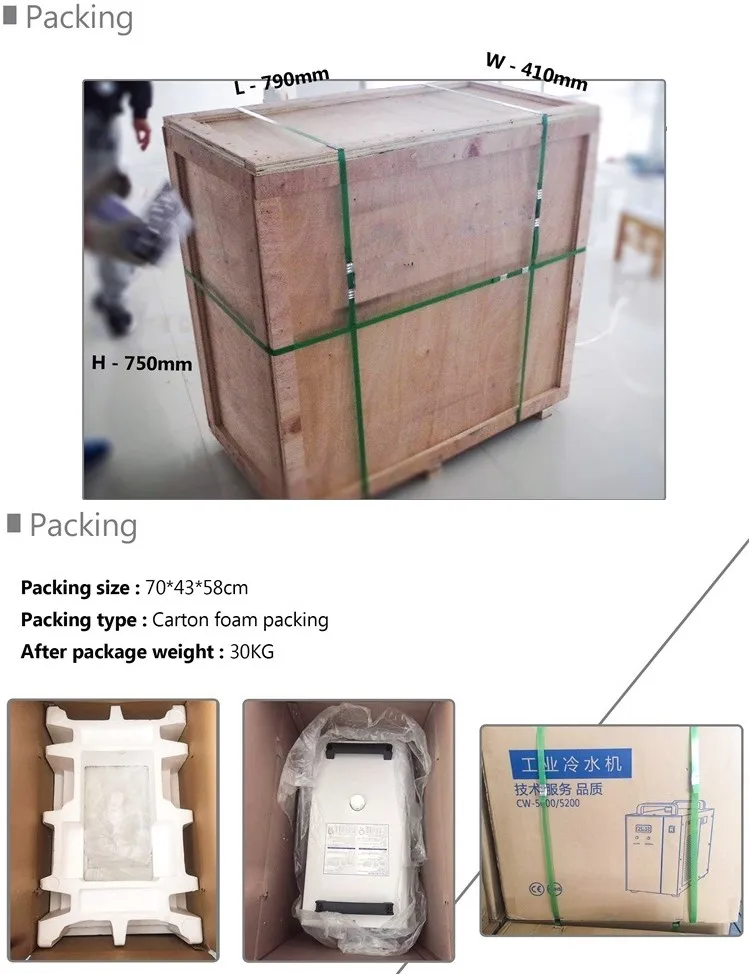

Product Package and Logistics
Standard export packing customized packing as your request We use hard boxes, your cargo will not be affected in any way
Every UV laser marking machine is packed with great care and tough material. It is packed with cling films first and then film bags.
At last, it is packed with a wooden case which is reinforced with an iron bar on the top and bottom. All our UV laser marking machines are protected well during the long trip by sea or by train. We can transport UV laser marking machine by sea/air freight or express by DHL EMS UPS etc. According to your requirement.
Important Note:
The Shipping fee shown on the product detail page is just a rough count by the system, The Shipping Fee can be very different depending on the shipping method and the location.
It does not represent the Precise Shipping Cost.
Please contact us to get the accurate shipping fee for this product.
FAQ
Delivery time
After the confirmation of your order and the down payment of the 40%, we start to build the machine, we take 2 to 3 working days to build it and 48 hours of continuous test to ensure the quality of the laser beam, once is finished we send the machine to costume and clearance for delivery with DHL, Ship or other delivery companies previously designated for the customer.
After the confirmation of your order and the down payment of the 40%, we start to build the machine, we take 2 to 3 working days to build it and 48 hours of continuous test to ensure the quality of the laser beam, once is finished we send the machine to costume and clearance for delivery with DHL, Ship or other delivery companies previously designated for the customer.
By that time the 100% of the value of the machine should be pay
Delivery to your country subject to DHL or shipping company schedules.
Total of production, quality test and delivery to DHL warehouse 5 to 7 working days.
How it works the warranty?
Our laser machines have a warranty of 2 years
if the machine parts have any problem we send freely a new spare part.
Which software use the machine and which operative system do I need to use?
The machine uses EZCad software and can operate in any Windows system.
Is it easy to use?
We send a video tutorial in English or Spanish with all the information for use the software, at the same our engineers can communicate directly with you by WhatsApp or Skype. All our costumers learn in 2 or 3 days the main use of the software.
Is the fiber laser optic able to engrave on plastics and non-metal materials?
Our UV laser can engrave on metals, all types of plastics, paper, paperboard, leather, crystals, fruits, dry seeds, wood, and others.
Delivery to your country subject to DHL or shipping company schedules.
Total of production, quality test and delivery to DHL warehouse 5 to 7 working days.
How it works the warranty?
Our laser machines have a warranty of 2 years
if the machine parts have any problem we send freely a new spare part.
Which software use the machine and which operative system do I need to use?
The machine uses EZCad software and can operate in any Windows system.
Is it easy to use?
We send a video tutorial in English or Spanish with all the information for use the software, at the same our engineers can communicate directly with you by WhatsApp or Skype. All our costumers learn in 2 or 3 days the main use of the software.
Is the fiber laser optic able to engrave on plastics and non-metal materials?
Our UV laser can engrave on metals, all types of plastics, paper, paperboard, leather, crystals, fruits, dry seeds, wood, and others.
Company Profile
SERVING THE LASER INDUSTRY
We garnered over 17 years of experience in the laser industry before launching BLUETIMES INTERNATIONAL Co.Ltd.out of YongLi Laser Technology Co.Ltd.
We believe in global customer service and technical support, so our skilled laser technicians and 30-year industry veterans are here to solve customer problems efficiently and effectively.
BLUETIMES brand has grown into the largest online seller of laser equipment on Alibaba.
Our mission:
To make quality laser machines and spare parts accessible to all. we are committed to the development and manufacture of the Co2 Laser Machine Part (laser tube, laser power supply, laser optic lens, laser power meter, laser chiller machine and control system), Fiber Laser Machine Part (laser source, laser cutting head, laser nozzles, and ceramic holder, laser protective windows, laser chiller machine, and control system), and CNC laser machines (laser marking machines, laser engraving machines, laser cleaning machines, and laser welding machines). We are always providing customers with high-quality products, competitive prices, and excellent services.
No.1 Laser Supplier based on No1 Manufacture Factory
All BlueTimes International Laser Products Are Designed and Produced On-site Ensuring Transparency and Quality Control Throughout the Manufacturing Process. with In-house CNC Machining Capabilities and a Roster of Highly Skilled Engineers, Our Facility is Equipped to Produce Equipment of Remarkable Performance and Quality.
BlueTimes Laser Technology Has the Knowledge and Experience to Provide Expert Advice on Any Laser Application. Combined with Comprehensive After-sales Support BlueTimes Can Provide an Unrivaled Solution to Your Needs.
Solving the Most Difficult Manufacturing Challenges with Thought Leadership and Innovative Laser Systems Solutions. Our Experts Engage Customers on over 2,500 Projects Per Year.
Solving the Most Difficult Manufacturing Challenges with Thought Leadership and Innovative Laser Systems Solutions. Our Experts Engage Customers on over 2,500 Projects Per Year.
Certification is commitment to quality and safety
Product certification acts as an indicator of that product’s safety, reliability, and quality, Product certification is one of our best tools to tell the quality from the questionable, or reliable from the risky.
BLUETIMES International has obtained 50 patents, 6 software copyrights, and has successfully passed European CE certification, RoHS certification, FCC certification, REACH certification, MSDS certification, US Food and Drug Administration Certification, TUV Rheinland certification, Swiss SGS testing certification, and ISO9001 quality management system certification.
BLUETIMES International is a member of Alibaba Group’s TrustPass VIP member and Golden & Assessed Supplier. The business covers more than 70 cities in China, as well as nearly 80 countries and regions such as Southeast Asia, Europe, America, Oceania and Africa, and is highly recognized by domestic and global customers.
Pre-sales support. Build customers value with trustworthy
All laser products with comprehensive pre-sales support services that enable you an easy and resourceful journey with BLUETIMES Laser. All we want is to give you a delightful experience.Extensive coverage of 30+ domestic offices and institutions to create a 2-hour service arrival. Combination of online live chat and other social media video chat to meet customer needs in multiple directions and at multiple levels. Multi-batch customer return visits, timely discovery of problems to solve and improve.
Customer Need Focus
Tell us about your business needs or any questions about CNC laser machines. We strive to put 100% effort into helping you find the most suitable metal laser solution.
Free Consultation
Free consultation and laser market analysis are provided to help you commence and get returns with our high quality lasers.
Customized Solutions
Customized metal laser solutions will be designed to meet diverse needs, together with free drawings and free trial running. Lifetime technical support is offered for all BLUETIMES Laser laser products.
Showroom Visit
You are always welcomed to visit our factory and office in China, or visit our online 3D VR showroom and experience a fast and efficient way to connect with us.
Customer Need Focus
Tell us about your business needs or any questions about CNC laser machines. We strive to put 100% effort into helping you find the most suitable metal laser solution.
Free Consultation
Free consultation and laser market analysis are provided to help you commence and get returns with our high quality lasers.
Customized Solutions
Customized metal laser solutions will be designed to meet diverse needs, together with free drawings and free trial running. Lifetime technical support is offered for all BLUETIMES Laser laser products.
Showroom Visit
You are always welcomed to visit our factory and office in China, or visit our online 3D VR showroom and experience a fast and efficient way to connect with us.
We guarantee the most professional after-sales service
Less than 5 MINS QUICK RESPONSE.
Within 24 HOURS SOLUTION PROVIDED.
Proud to be No.1 in customer satisfaction for our guaranteed after-sales service.
We guarantee the profitability of our laser products. The laser equipment we designed is highly efficient and durable, which can bring benefits and is easy to oversell.
We guarantee the profitability of our laser products. The laser equipment we designed is highly efficient and durable, which can bring benefits and is easy to oversell.
You can always contact our company's specialized after-sales service staff. Our team will professionally answer all questions about the equipment at any time. No need to worry about anything, we are always by your side.
BLUETIMES International Tranding Co.,Ltd had attended over Hundreds Of exhibitions & Laser Industry EXPO, As a Global Trading Company and Laser equipment industry leading company, our products has been exported to 88 countries all over the world and the trademark has been registered in 50 countries.And we have 43 distributors worldwide including Canada, USA, Korea, India, Brazil and Mexico.
2015-Serigrafia Sign Futuretextil , Sao Paulo, Brasil
2016-EXPO PUBLICITAS, Mexico City, Mexico
2017-LASER PHOTONICS, Munich, Germany
2017-Sign Africa Expo Durban, Cape Town, South Africa
2018-Digi Sign,Cairo Egypt
2018-Media Expo, Mumbai, India
2018-Print & Signage Expo, Berlin, Germany
2019-Media Expo Mumbai, India
2019-FESPA , Sao Paulo, Brasil
2019-ITMA , Bienvenido, Spain
2022-LASER World of PHOTONICS, Messe München, Germany
2016-EXPO PUBLICITAS, Mexico City, Mexico
2017-LASER PHOTONICS, Munich, Germany
2017-Sign Africa Expo Durban, Cape Town, South Africa
2018-Digi Sign,Cairo Egypt
2018-Media Expo, Mumbai, India
2018-Print & Signage Expo, Berlin, Germany
2019-Media Expo Mumbai, India
2019-FESPA , Sao Paulo, Brasil
2019-ITMA , Bienvenido, Spain
2022-LASER World of PHOTONICS, Messe München, Germany
