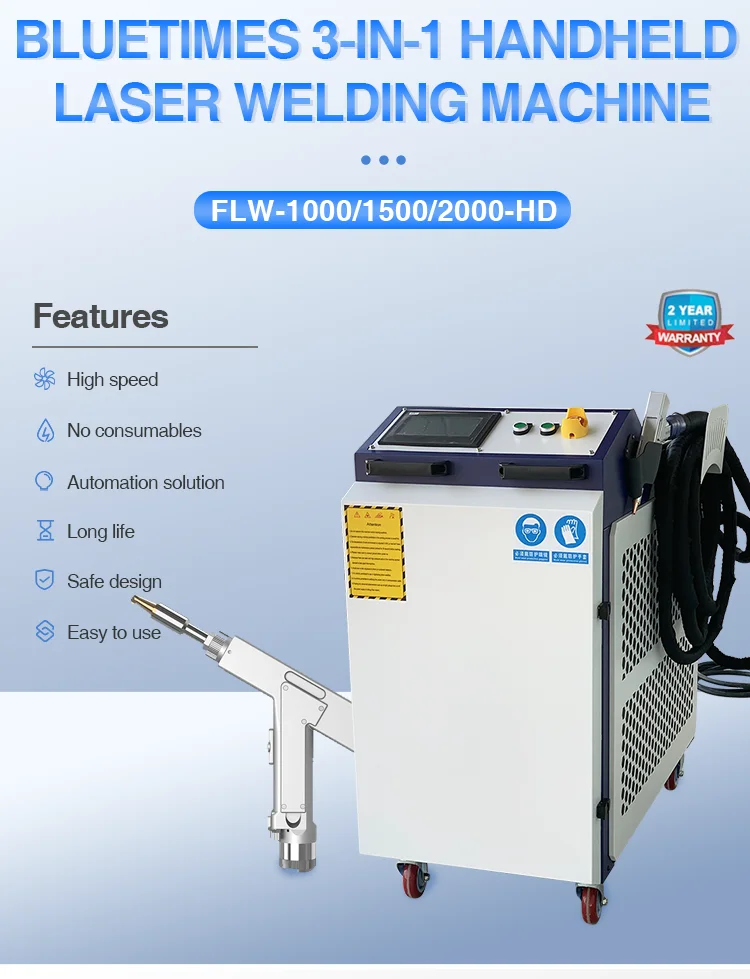

BLUETIMES high quality best price 3-in-1 handheld fiber laser welding machine for metal welding cleaning cutting
BLUETIMES high quality best price 3-in-1 handheld fiber laser welding machine for metal welding cleaning cutting
Regular price
¥4,444.00 CNY
Sale price
¥4,444.00 CNY
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

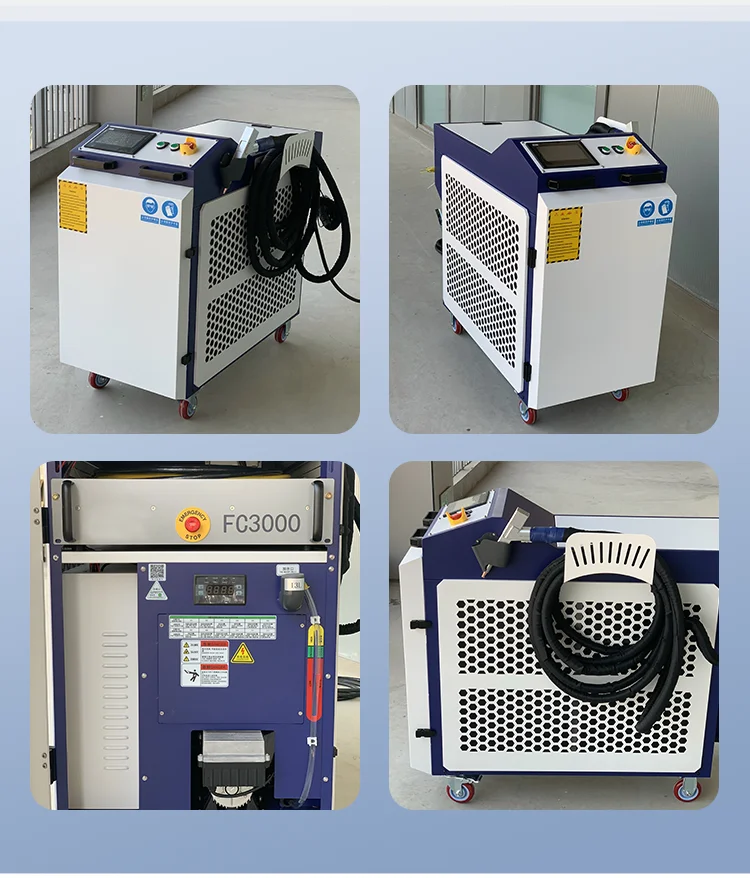

BLUETIMES high quality best price 3-in-1 handheld fiber laser welding machine for metal welding cleaning cutting
Product details



Product Paramenters
Model |
FLW-R1000-YT |
FLW-R1500-YT |
FLW-R2000-YT |
FLW-R3000-YT |
|||
Laser Source |
1000W |
1500W |
2000W |
3000W |
|||
Shielding Gas |
Argon,Nitrogen,Air |
Argon,Nitrogen,Air |
Argon,Nitrogen,Air |
Argon,Nitrogen,Air |
|||
Input Power |
6KW |
7KW |
9.5KW |
12KW |
|||
Water Chiller |
16L 3000W |
16L 3000W |
19L 4000w |
21L 5000W |
|||
Mains Supply |
AC220V 1PH |
AC220V 1PH |
AC380V 3PH |
AC380V 3PH |
|||

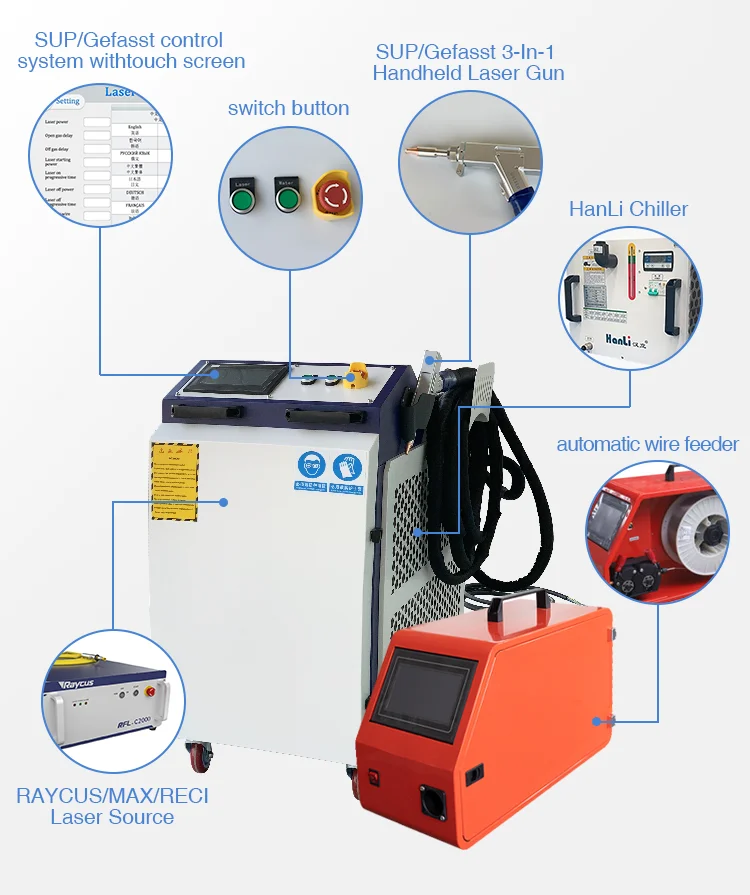

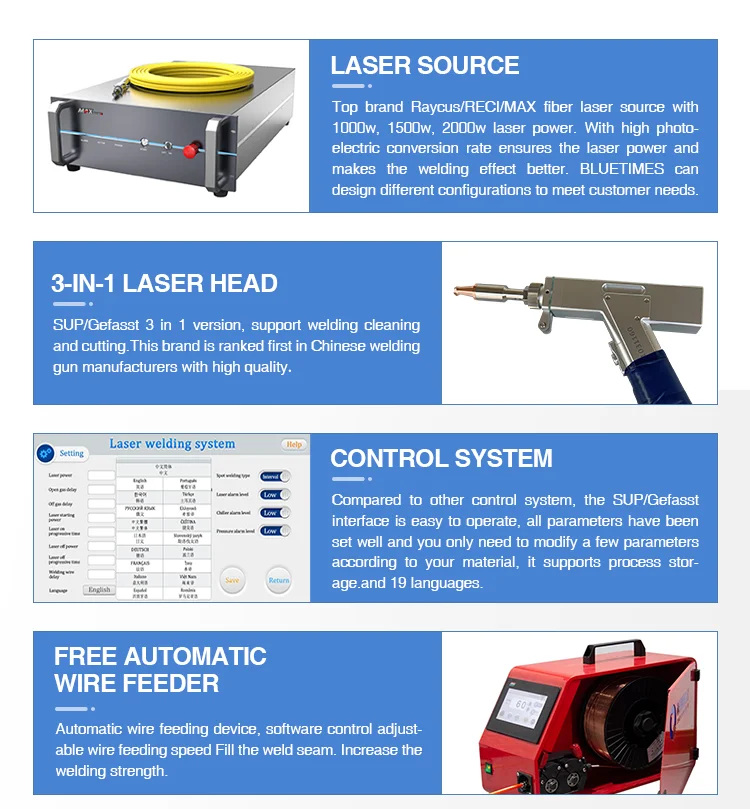

Laser Source |
Fiber Laser Manufactured by Raycus / Max / RECI |
||||||
Laser Head |
SUP |
||||||
Laser Wavelength |
1060±3nm |
||||||
Fiber Length |
10m |
||||||
Focal Length |
150nm |
||||||
Cooling mode |
HanLi water chiller |
||||||

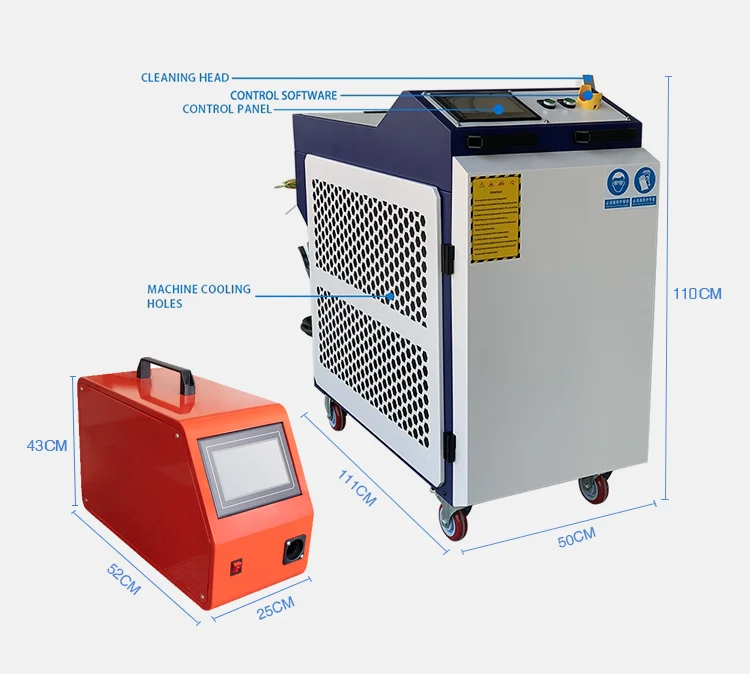

Overrall Dimension |
1290*580*1210mm |
||||||
Total Weight |
190kg |
||||||
Material/Model |
FLW-R1000-YT |
FLW-R1500-YT |
FLW-R2000-YT |
FLW-R3000-YT |
|||
Stainless Steel |
up to 3.5 mm |
up to 5 mm |
up to 6.5 mm |
up to 9 mm |
|||
Galvanized Steel |
up to 3.5 mm |
up to 5 mm |
up to 6.5 mm |
up to 9 mm |
|||
Mild Steel |
up to 3mm |
up to 4mm |
up to 6 mm |
up to 9 mm |
|||
Aluminum |
up to 3 mm |
up to 4 mm |
up to 5 mm |
up to 6 mm |
|||
Product Description









Packaging & Shipping

FAQ

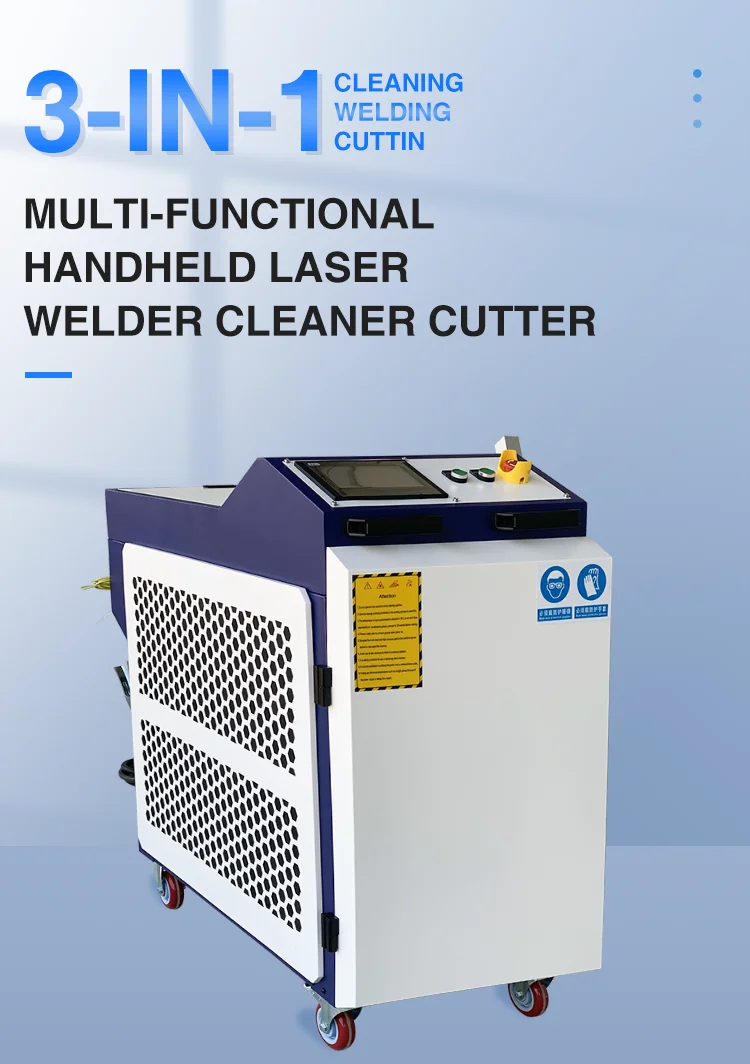

Q1: What is a 3-in-1 handheld fiber laser welding, cleaning, and cutting machine?
A1: BLUETIMES 3-in-1 handheld fiber laser welding, cleaning, and cutting machine is a versatile tool that combines three functions in a single device. It utilizes fiber laser technology to perform welding, surface cleaning, and cutting operations on various materials.
Q2: How does a handheld fiber laser welding, cleaning, and cutting machine work?
Q2: How does a handheld fiber laser welding, cleaning, and cutting machine work?
A2: The machine generates a high-intensity laser beam using a fiber laser source. This laser beam is then focused onto the workpiece using a lens, allowing precise welding, cleaning, or cutting actions. The handheld design enables operators to maneuver the machine easily and perform tasks in different
locations.

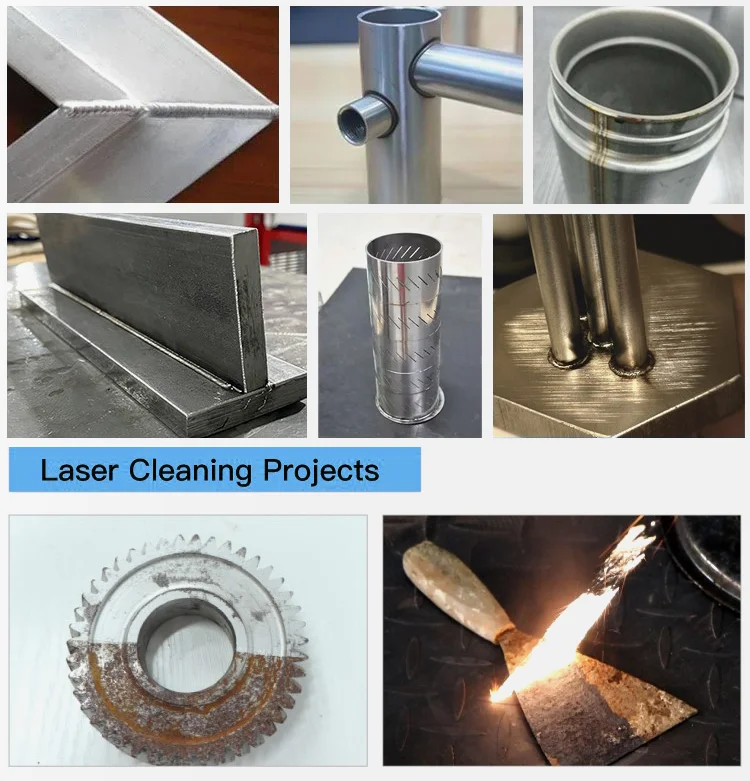

Q3: What materials can be processed with a 3-in-1 handheld fiber laser machine?
locations.
Q3: What materials can be processed with a 3-in-1 handheld fiber laser machine?
A3: These machines are suitable for processing a wide range of materials, including metals such as steel, aluminum, copper, titanium, and their alloys. They can also work on certain non-metallic materials like plastics or composites, depending on the laser wavelength and power.
Q4: What are the advantages of using a handheld fiber laser machine?
Q4: What are the advantages of using a handheld fiber laser machine?
A4: Handheld fiber laser machines offer several advantages, such as:
* Portability: Operators can move the machine to different workpieces or locations.
* Flexibility: The 3-in-1 functionality allows welding, cleaning, and cutting operations with a single device.
* Precision: Fiber laser technology provides high accuracy and control for fine-tuned operations.
* Speed: The laser process is generally faster than traditional methods, increasing productivity.
* Non-contact: Laser processing is non-contact, reducing the risk of damage or contamination to the workpiece.
* Minimal heat affected zone: The concentrated laser beam minimizes heat transfer to the surrounding area, reducing distortion or material damage.
Q5: Are there any limitations or considerations for using a handheld fiber laser machine?
* Portability: Operators can move the machine to different workpieces or locations.
* Flexibility: The 3-in-1 functionality allows welding, cleaning, and cutting operations with a single device.
* Precision: Fiber laser technology provides high accuracy and control for fine-tuned operations.
* Speed: The laser process is generally faster than traditional methods, increasing productivity.
* Non-contact: Laser processing is non-contact, reducing the risk of damage or contamination to the workpiece.
* Minimal heat affected zone: The concentrated laser beam minimizes heat transfer to the surrounding area, reducing distortion or material damage.
Q5: Are there any limitations or considerations for using a handheld fiber laser machine?
A5: Yes, a few factors to consider include:
* Power requirements: Ensure the availability of suitable power supply and connections.
* Safety precautions: Laser machines require proper training, safety gear, and adherence to guidelines to prevent accidents.
* Material thickness: The maximum material thickness that can be processed effectively may vary depending on the laser power and specific machine model.
* Material compatibility: Certain materials or coatings may not be suitable for laser processing due to their optical properties or safety concerns. Conduct tests or consult with experts for specific applications.
Q6: Can a 3-in-1 handheld fiber laser machine be used for industrial applications?
* Power requirements: Ensure the availability of suitable power supply and connections.
* Safety precautions: Laser machines require proper training, safety gear, and adherence to guidelines to prevent accidents.
* Material thickness: The maximum material thickness that can be processed effectively may vary depending on the laser power and specific machine model.
* Material compatibility: Certain materials or coatings may not be suitable for laser processing due to their optical properties or safety concerns. Conduct tests or consult with experts for specific applications.
Q6: Can a 3-in-1 handheld fiber laser machine be used for industrial applications?

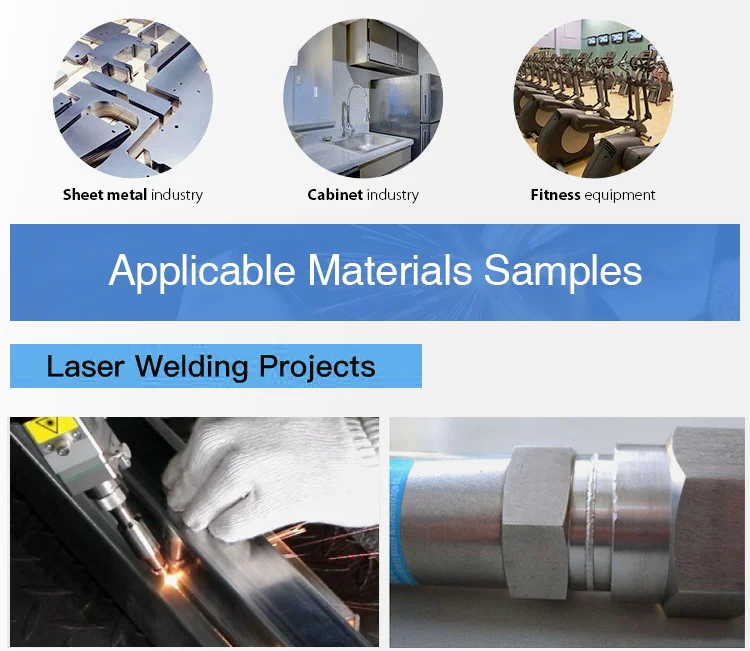

A6: Yes, handheld fiber laser machines are commonly used in various industrial applications, including manufacturing, automotive, aerospace, electronics, jewelry, and more. BLUETIMES 3-in-1 handheld fiber laser welding, cleaning, and cutting machine offers the flexibility to perform on-site repairs, maintenance, or fabrication tasks efficiently.
Traditional Welding Methods |
BLUETIMES Laser Welding & Cleaning |
|
Speed |
Average |
Up to 4X Faster than TIG |
Quality |
Depends on user experience |
Consistent high-quality results |
Learning Curve |
Steep |
Quick and easy |
Material Flexibility |
Limited with consumables changes |
Wide range with no set up |
Distortion & Deformation |
High |
Very Low |
Heat Affected Zone |
Large |
Small |
Wobble Welding |
No |
Yes - up to 5 mm additional weld width |
Pre- and Post Weld Cleaning |
No |
Yes - up to 15 mm cleaning path |
