    Brand New Original PLC Inverter In Stock Discount Promotion 4000w 1325 2000w 1500w Sheet And Tube Fiber Laser Cutting Machine

    Brand New Original PLC Inverter In Stock Discount Promotion 4000w 1325 2000w 1500w Sheet And Tube Fiber Laser Cutting Machine

    ¥741.00 CNY
    ¥741.00 CNY ¥741.00 CNY
    Sale Sold out
    Shipping calculated at checkout.
    Material
    Product name

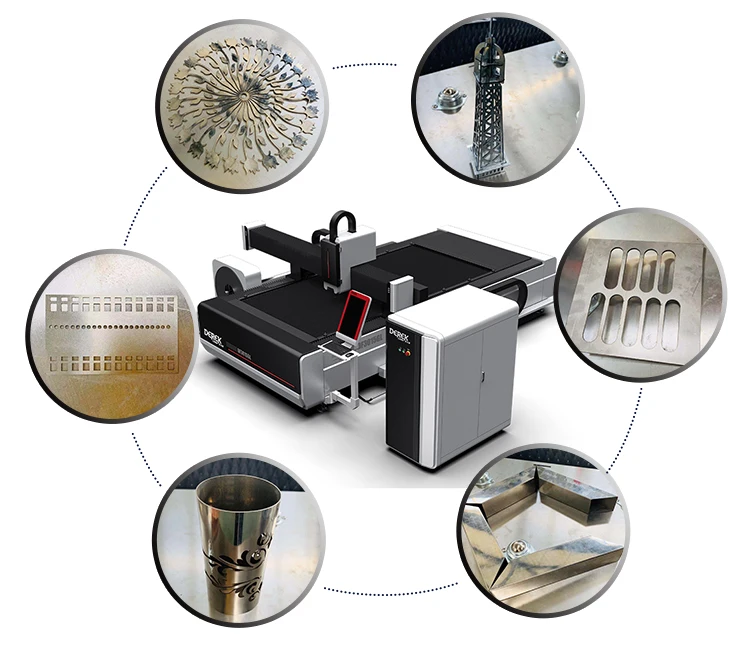

    Fiber Laser Cutting Machine
    Model
    DF3015GL metal pipe fiber laser cutting machine
    Cutting Tube maximum diameter
    220mm
    Rotary Attachment
    For both sheet and tube cutting
    Control System
    Cypcut 3000S
    Laser Power
    1000w/1500w/2000w/3000w/4000w/6000W/8000W/10000W Raycus /MAX
    Position Type
    Red dot
    Working Area
    3000*1500mm
    Power Consumption
    ≤16KW
    Laser Wave Length
    1080nm
    Working Voltage
    380V/50Hz
    Working Table
    Sawtooth
    Auxiliary Gas
    Oxygen,Nitrogen,Air
    Maximum Idle Running Speed
    1400mm/s
    Working life of fiber module
    More than 100000 hours
    Fiber laser cutting head
    Worthing / Raytools
    Liner guider system
    PMI/HIWIN made in Taiwan , (Option THK made in Japan)
    Transmit system
    Dual Rack & Pinion type
    X/Y axis position accuracy
    ±0.03mm
    X/Y axis reposition accuracy
    ±0.02mm
    Gross weight
    4000kg
    Driver system
    Janpan Yaskawa servo motor
    Machine dimension
    4350*3200*1740mm
    Aviation aluminum gantry
    Compared with some other metal beams, the aluminum alloy bracket is lighter in weight because of the lower density of aluminum. It
    is used on large-format laser cutting machine to ensure the laser head’s running speed and high-speed running stability.
    Auto focus laser head
    1.The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness.
    The speed of automatically adjusting focus lens is ten times of the manual adjusting.
    2.Bigger adjustment range
    3.Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.
    4.Long service life
    5.Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve
    the life of the cutting head.
    The Segmented Rectangular Tube Welded Bed
    The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes.
    Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the
    resistance and stability of the guide rail so as to effectively avoid the deformation of the bed. High strength, stability, and
    tensile strength, ensuring 20 years of use without distortion; laser cutting machine. The thickness of the rectangular pipe wall
    is 6mm and weighs 3000 kg.
    IPAD-Designing-Screen
    The IPAD is designed with a vertical display that is fast in response, high in contrast, wide in the field of view, low in power
    consumption, and high in resolution, unlike traditional horizontal displays. In addition, it features high brightness levels and
    low reflectivity as well as a rugged solid glass panel.
    Dust-proof & Automatic Thermostat
    Dust-proof: All electrical components and laser sources are built-in into the independent control cabinet with a dust-proof design
    to prolong the lifespan of the electrical components. Automatic Thermostat: The control cabinet is equipped with an air
    conditioner for automatic constant temperature. This can prevent excessive temperature damage to components in summer.

    Material
    Thickness
    1000w
    1500w
    2000w
    3000w
    4000w
    6000w
    Unit
    mm
    m/min
    m/min
    m/min
    m/min
    m/min
    m/min


    CS
    (Q235A)
    1
    8.0-10
    15-26
    24-30
    30-40
    33-42
    35-42
    2
    4.0-6.5
    4.5-7.0
    4.7-7.5
    4.8-7.5
    5.2-8.0
    6.0-8.0
    3
    2.4-3.0
    2.6-4.0
    3.0-4.8
    3.3-5.0
    3.5-5.5
    3.8-6.5
    4
    2.0-2.4
    2.5-3.0
    2.5-3.5
    3.0-4.2
    3.1-4.8
    3.5-5.0
    5
    1.5-2.0
    2.0-2.5
    2.2-3.0
    2.6-3.5
    2.7-3.6
    3.3-4.2
    6
    1.4-1.6
    1.6-2.2
    1.8-2.6
    2.3-3.2
    2.5-3.4
    2.8-4.0
    8
    0.8-1.2
    1.0-1.4
    1.2-1.8
    1.8-2.6
    2.0-3.0
    2.2-3.2
    10
    0.6-1.0
    0.8-1.1
    1.1-1.3
    1.2-2.0
    1.5-2.0
    1.8-2.5
    12
    0.5-0.8
    0.7-1.0
    0.9-1.2
    1.0-1.6
    1.2-1.8
    1.2-2.0
    14

    0.5-0.7
    0.7-0.8
    0.9-1.4
    0.9-1.2
    1.5-1.8
    16


    0.6-0.7
    0.7-1.0
    0.8-1.0
    0.8-1.5
    18


    0.4-0.6
    0.6-0.8
    0.65-0.9
    0.65-0.9
    20



    0.5-0.8
    0.6-0.9
    0.6-0.9
    22



    0.4-0.5
    0.5-0.8
    0.5-0.8
    25




    0.3-0.5
    0.3-0.7


    SS
    -201
    1
    18-25
    20-27
    24-30
    30-35
    32-40
    45-55
    2
    7.0-12
    8.0-13
    9.0-14
    13-21
    16-28
    20-35
    3
    1.8-2.5
    3.0-5.0
    4.0-6.5
    6.0-10
    7.0-15
    15-24
    4
    1.2-1.3
    1.5-2.4
    3.0-4.5
    4.0-6.0
    5.0-8.0
    10-16.0
    5
    0.6-0.7
    0.7-1.3
    1.8-2.5
    3.0-5.0
    4.0-5.5
    8.0-12
    6

    0.7-1.0
    1.2-2.0
    2.0-4.0
    2.5-4.5
    6.0-9.0
    8


    0.7-1.0
    1.5-2.0
    1.6-3.0
    4.0-5.0
    10



    0.6-0.8
    0.8-1.2
    1.8-2.5
    12



    0.4-0.6
    0.5-0.8
    1.2-1.8
    14




    0.4-0.6
    0.6-0.8
    20





    0.4-0.6


    Aluminum
    1
    6.0-10
    10-20
    15-25
    25-38
    35-40
    45-55
    2
    2.8-3.6
    5.0-7.0
    7.0-10
    10-18
    13-25
    20-30
    3
    0.7-1.5
    2.0-4.0
    4.0-6.0
    6.5-8.0
    7.0-13
    13-18
    4

    1.0-1.5
    2.0-3.0
    3.5-5.0
    4.0-5.5
    10-12.0
    5

    0.7-1.0
    1.2-1.8
    2.5-3.5
    3.0-4.5
    5.0-8.0
    6


    0.7-1.0
    1.5-2.5
    2.0-3.5
    4.0-6.0
    8


    0.6-0.8
    0.7-1.0
    0.9-1.6
    2.0-3.0
    10



    0.4-0.7
    0.6-1.5
    1.0-2.0
    12



    0.3-0.45
    0.4-0.6
    0.8-1.4
    16




    0.3-0.4
    0.6-0.8
    20





    0.5-0.7


    Brass
    1
    6.0-10
    8.0-13
    10-16.0
    20-35
    25-30
    45-55
    2
    2.8-3.6
    3.0-4.5
    4.5-7.5
    6.0-10
    8.0-12
    25-30
    3
    0.5-1.0
    1.5-2.5
    2.5-4.0
    4.0-6.0
    5.0-6.5
    12-18.0
    4

    1.0-1.6
    1.5-2.0
    3.0-5.0
    3.2-5.5
    8.0-10
    5

    0.5-0.7
    0.9-1.2
    1.5-2.0
    2.0-3.0
    4.5-6.0
    6


    0.4-0.7
    1.0-1.8
    1.4-2.0
    3.0-4.5
    8



    0.5-0.7
    0.7-10
    1.6-2.2
    10




    0.2-0.4
    0.8-1.2
    12





    0.2-0.4

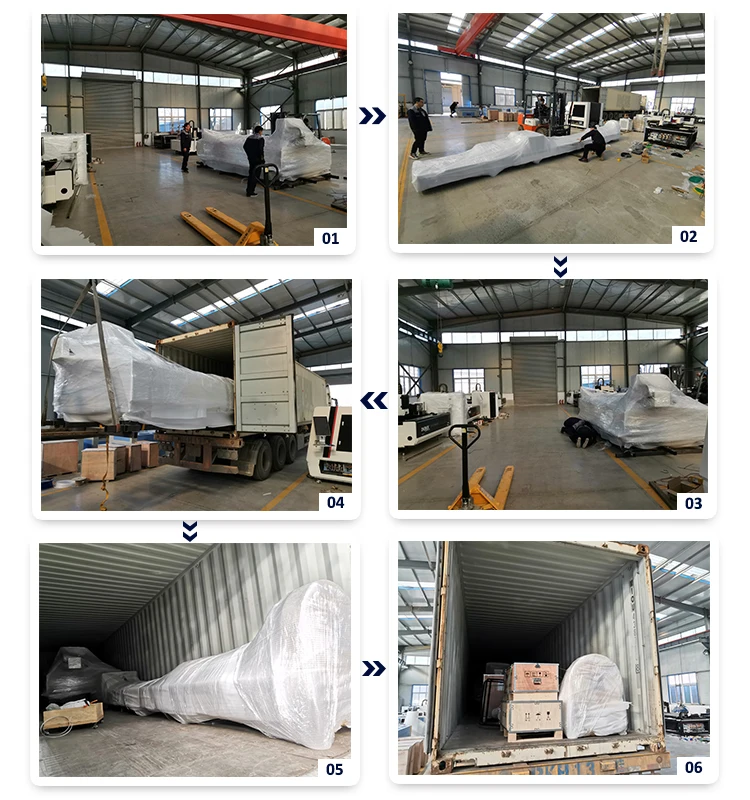

    PRODUCT PACKAGING
    FAQ 1.who are we? We are based in Shandong, China, start from 2014,sell to North America(15.00%),South America(15.00%),Western
    Europe(10.00%),Southern Europe(10.00%),Northern Europe(10.00%),Eastern Europe(10.00%),South Asia(5.00%),Eastern
    Asia(5.00%),Africa(5.00%),Mid East(5.00%),Southeast Asia(5.00%). There are total about 11-50 people in our office.

    2. how can weguarantee quality?
    Always a pre-production sample before mass production; Always final Inspection before shipment;

    3.what can youbuy from us?
    Fiber Laser Cutting Machine, CO2 Laser Cutting Machine, Fiber Laser Marking Machine, Fiber Laser Welding Machine,
    Fiber Laser Cleaning Machine

    4. why should you buy from us not from other suppliers?
    We have 10 years experience of product
    design. High quality products with internationals approvals. 24 hours service center
    European and African Customers'good comments

    5. what services can we provide?
    Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU;
    Accepted PaymentCurrency:USD,EUR,CAD,AUD,HKD,GBP,CNY,CHF;
    Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash,Escrow;
    LanguageSpoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
