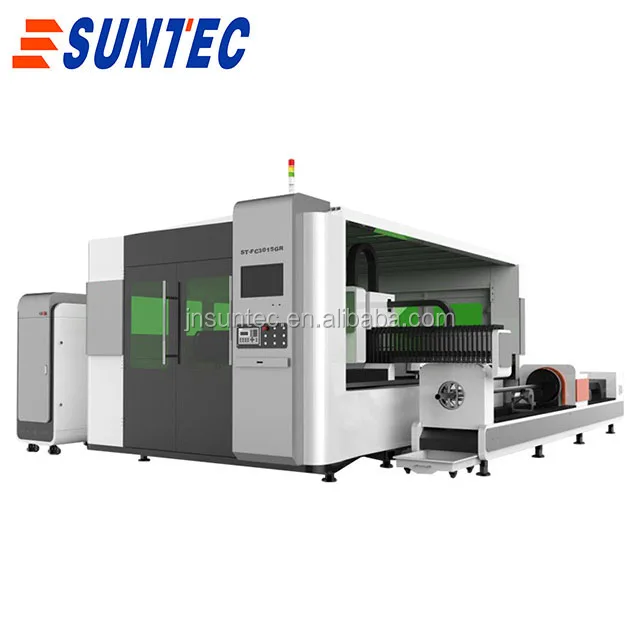

china factory price fiber laser cutting machine with exchange table whole cover rotary for metal cutting

china factory price  fiber laser cutting machine with exchange table whole cover rotary  for metal  cutting

Main parameter

Cypcut operation system

Switzerland Raytools laser head

France Motovario motor reducer

Japan YASKAWA servo motor 850w

Taiwan APEX gear rack

Japan SMC/Airtac pneumatic parts

French Schneider electronic parts

Automatic lubrication system.

Integrated cast aluminum beam

Taiwan HIWIN square rail

Laser head automatically adjust system.

Smoke purify system

Water cooling machine



1. The machine adopts gantry type single-side double-drive structure, imported high-precision reducer, gear rack and linear guide, smooth transmission, fast acceleration, Bit precision.

2. Both the bed and the moving beam adopt the whole welded structure. After annealing, rough machining and vibration aging, the welding process can be completely eliminated. Processing of stress, rigidity, high precision, can be maintained for a long time without deformation.

3. X, Y axis with high-precision servo motors, bed movement performance greatly improved, acceleration up to 1.5G, to ensure that the whole machine has high speed and high acceleration performance.

4. Using the Windows operating system based CypCut Fiber laser cutting machine dedicated CNC system, integrated a lot of laser cutting control dedicated functions Module, powerful, simple operation.

5. Switzerland RAYTOOLS Laser Head is capable of automatic height adjustment to maintain constant focal length and stable cutting quality.

6. Germany imported high-precision electronic proportional valve, precise control of cutting auxiliary gas pressure, in order to achieve the best cutting results.





Machine model	ST1530 fiber laser cutting machine
Laser source	3000W ipg fiber laser source
Control system	Shanghai Cypcut system
Working size	X,Y 1500x3000mm
Cutting head	Swiss Raytools (optional Worthing )
Driver and motor for Y	Y axis double  Yaskawa servo driver and motor
Driver and motor for X	X axis  Yaskawa motor and driver
Driver and motor for Z	Z axisPanasonic driver and motor
Reducer	France MOTOVARIO
Reducer ratio	5:1

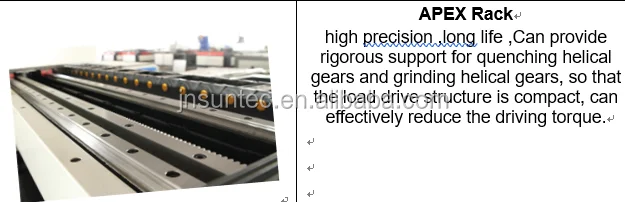

Rack and pinion	Taiwan APEX
X,Y,Z guide rail	Taiwan Hiwin guide rail
Water cooling system	TONGFEI water chiller (double temperature control)
Electricals	Schneider
Support software	DXF , PLT ,AI , LXD , Gerber ,NC , G. code
Repeat positioning accuracy	±0.02mm
Maximum speed	120m/min
Maximum Acceleration	1.5G
Focus lens	125mm
Power supply	380V 50HZ /60HZ 3PH
Total power	20.1kw

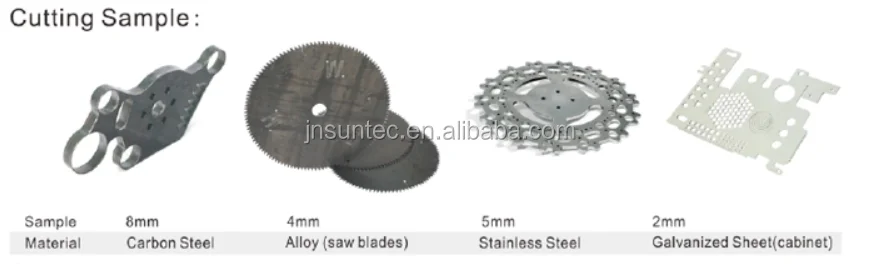

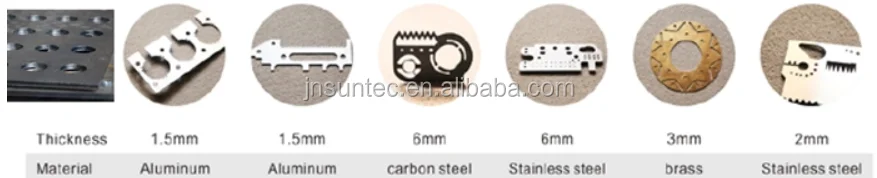

Application material	Stainless steel , carbon steel ,galvanized sheet ,brass ,aluminum , silver ,mild steel , silicon steel , titanium alloy etc .
Warranty	3 years

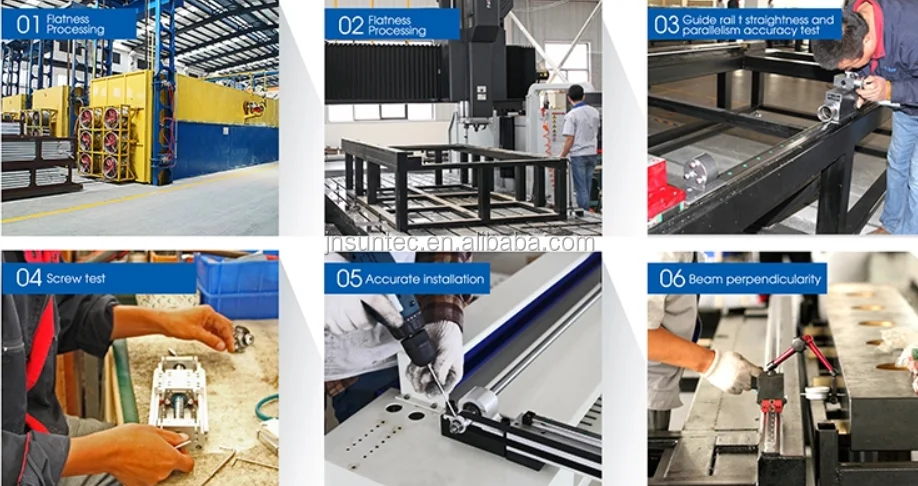

Production details

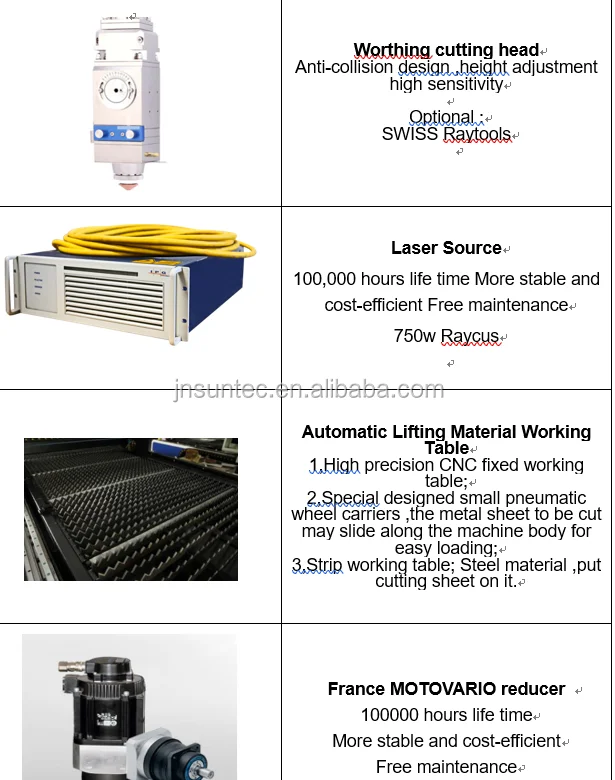

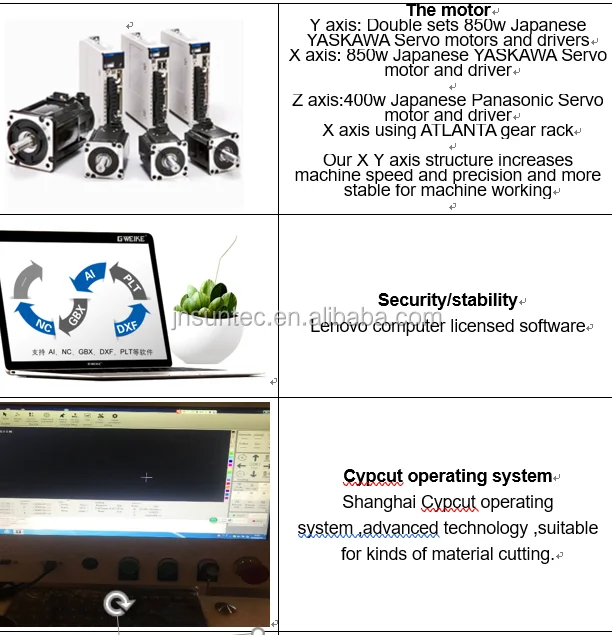

Main parts







Rotary for you  optional



PACKING





 AFTER-SALE SERVICE

A. For free sample making/testing, please send your samples or products CAD Graphics to our company in China. Try before you buy.

B.Progressing Solution Design, according to customer’s product processing requirement, we can design the unique solution that supports higher manufacturing efficiency and better processing quality for customer.

2.After-sales service: fiber laser cutting machine  fiber laser cutting machine

A. We will supply the machine with training video and user's manual in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by e-mail, fax, telephone/MSN/ICQ and so on, when you meet some problems of installation, using or adjusting.

B. You can come to our factory for training. We will offer professional guide. Direct and effective face-to-face training. Here we have assembled equipments, all sorts of tools and testing facility,we will also provide accomadation during training period.Training Time: 1-10 working days.

Company



FAQ





Pre-Sale Service for Fiber Laser Cutter:

 1. Free sample cutting service:For free sample cutting/testing, please send us your CAD file (.plt or .ai), we will do cutting in our factory and make video to show you the cutting process and result, or send samples to you to check the cutting quality.

2. Progressing Solution Design:According to customer’s product processing requirement, we can design the unique solution that supports higher manufacturing efficiency and better processing quality for customer.

 3. Customized machine design:According to customer's application, we may revise our machine according to customer's convenience and high production efficiency.





1. Do you need to cut metal sheets/plates, metal pipes/tubes only or both?

2. If need to cut tubes, What is your tube length, diameter and max thickness?

3. For cutting metal sheet, what is the max working area required?

4. After processed, what the materials will be used for? (Applications)

5. Which seaport is the nearest to you?

6. Do you have any experience in the fiber Laser cutting machine?

7. What is your online chat way? Such as Skype, Whatsapp, etc.

8. Are you an end user or reseller?



00w fiber laser cutting machine   500w fiber laser cutting

Q: This is the first time I use this kind of  fiber laser cutting machine, is it easy to operate?

A: A manual is already included in our product packaging,we also provide 24 hours telephone support to our customers and offer a life time warranty.we have free installation for optical fiber laser machine in addition to the operating instructions door-to-door free installation services we also provide professional engineers, to provide you for free door-to-door training instruction, so please be assured use;
