china liaocheng uv laser marking machine for wood glass leather paper
Applicable materials:
The materials with high heat radiation reaction, some special materials, most metal and non- metal materials, mainly the higher marking precision such as mobile phone buttons, plastic translucent keys, electronic components, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.
Applicable Industry
It is applied in ultra-fine laser marking in high-end market. It can mark and engrave on toys wood. UV lasr marking machine adopts UV laser generator. The ultra-small focusing spot of 355nm UV light doesn’t break the surface of glass. There is no heating effect when marking, so it would not deform the lenses and upper. The machine can mark, cut and engrave for special materials.
Technical parameters
|
Model |
SH-UV 3W/5W/10W |
|
Laser type |
UV laser |
|
Wavelength |
355nm |
|
Laser pulse frequency |
2-1000KHz |
|
Beam quality |
1.2-1.8MOO |
|
Laser power |
3W/5W/10W |
|
Marking speed |
Less than 15000mm/s |
|
Marking depth |
less than 0.15mm |
|
Repetition precision |
0.01mm |
|
Cooling way |
Water cooling |
|
Power source |
220V/110V |
|
Marking area |
70*70mm/110*110mm/200*200mm |
|
Support format |
PLT, BMP, DXF, JPG, TIF, AI etc. |
|
Temperature |
0-35 centigrade |
|
Humidity |
less than 70% |
|
Total power |
500W |
|
Laser source life span |
less than80000 hours |
|
Scan head |
SM1064-10 |
|
F-θlens |
F-theta 160 |
|
Control software |
EzCAD (English) 64/32 bits |
|
Control case |
High sealed mini mould case for fiber |
|
Net/gross weight |
130kg/160kg |
|
Package size |
153*62*110cm |

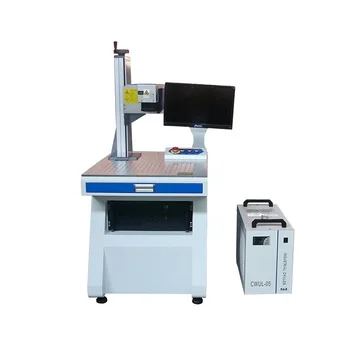

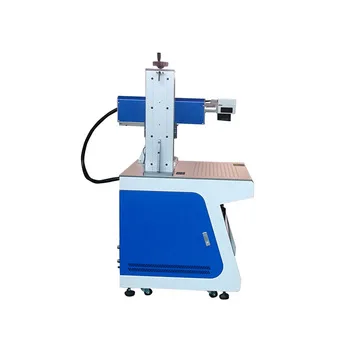

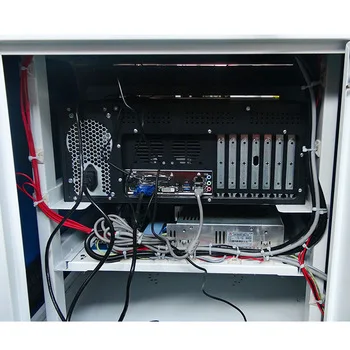

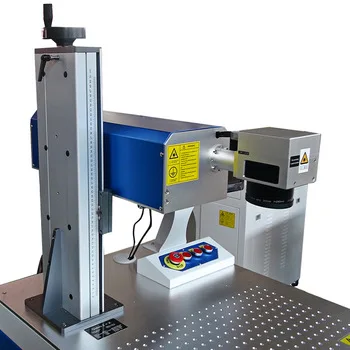

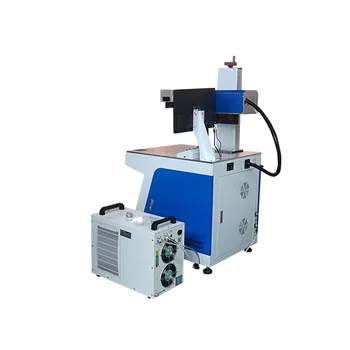

Machine pictures

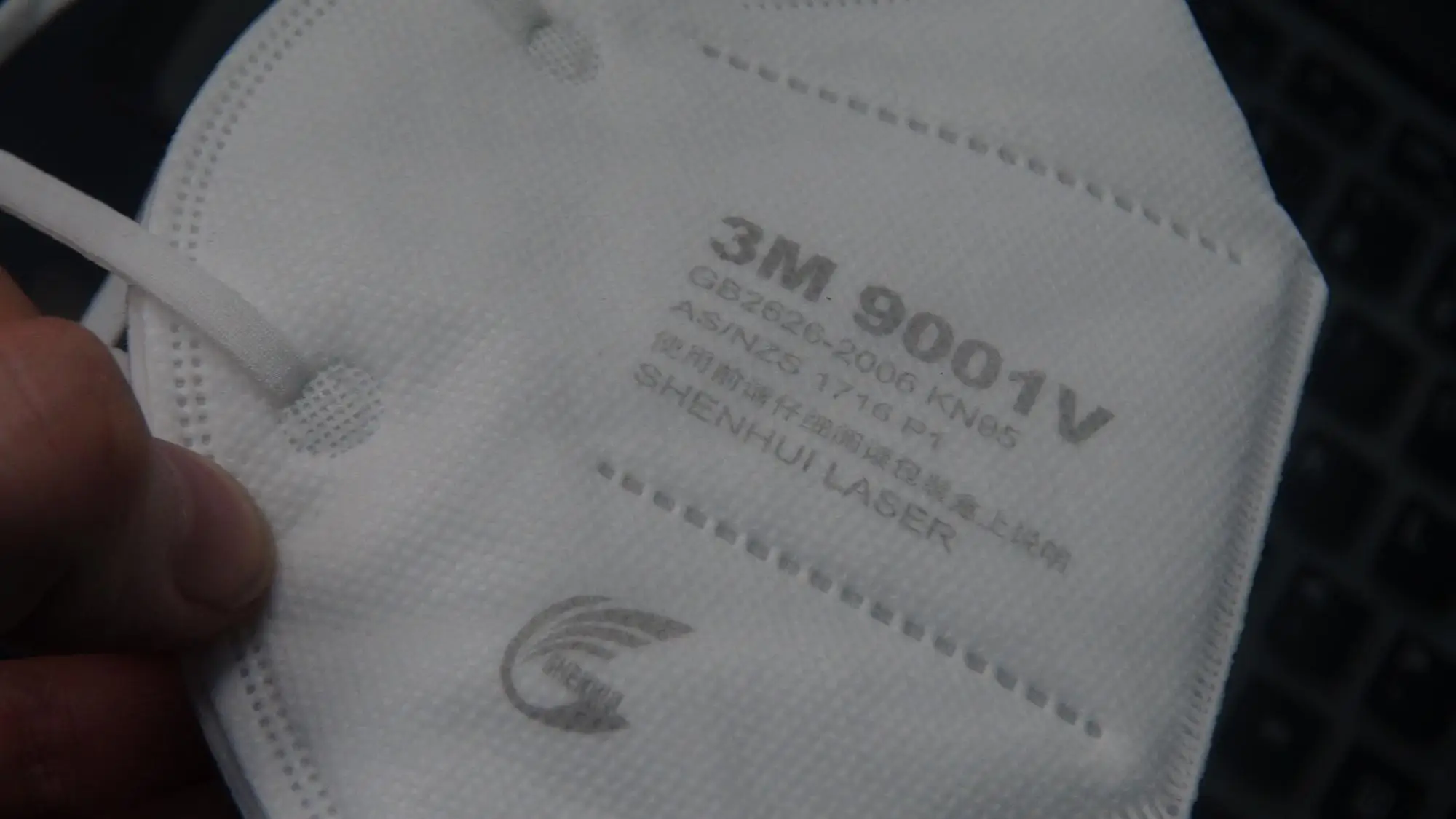

Samples made by UV laser marking machine:
Working video: plastic/glass/pvc/steel
https://youtu.be/IpJmJejISvc
https://youtu.be/ECfLbOewuvU
https://youtu.be/OxT1eH0ysZs
https://youtu.be/2EptOVVQTQ8
Liaocheng Shenhui Laser Equipment Co.,Ltd. is a professional large-scale laser equipment R&D manufacturer. Established in 1997, our factory covers an area of 33000 square meters,with 257 employees,including 37 researchers,16 doctors & postgraduates and 3 professors. We have ISO9001 and CE certificates. We also have established long-term and good cooperative relationships with Beijing University of Technology,Shangdong Laser Graduate School,Shangdong University Graduate School and Hebei Light Graduate School.
With high-grade assembly line,advanced checking instruments and precise laboratory,as well as experienced technicians,talented R&D and management employees,our company is proud of our high quality equipment and research ability. The Products of our company strictly abibe by professional design techniques,so that our products have excellent performance with precision and nice appearance.
Our team:
Pre-Sales Service
Whether you are a dealer or an end user, as long as you are interested in our laser machines and related products, once you contact us, we will arrange a particular professional at your service to help you have a deep understanding of SHENHUI LASER on our products or answer your questions on laser products and laser applications. In order to keep open and convenient communication with you, SHENHUI LASER integrates sales and service as one and the same responsible person is in charge of your sales and service.
On-Time Delivery
After you confirm the order, we will figure out the delivery date according to the model and production schedule. For general models, we will arrange production in 7 days or so and we will notify you of the exact phase of production process.
Production Process:
Machine Case---Mechanical Parts Installation---Electrical Parts Installation---Machine Commissioning--- Aging Test for at Least 24 Hours --- Nameplate, Logo and Packaging---Shipping
After-Sales Service
We guarantee all of our laser machines have one-year warranty (quick-wear parts not included).
Numerous feedbacks from our clients have proven that our laser machines are stable in performance with rare malfunction. However, we would like to handle it as follows once malfunction occurs:
1.We guarantee we will give you a clear reply within 24 hours.
2. Customer service staff will assist and guide you to analyze the malfunction in order to locate the cause.
3. If the malfunction is caused by improper operation on software and other soft faults, we will help solve the problem on line.
4. If it is proved that a certain part is damaged, we will deliver a replacement part to you as soon as possible, so you can replace it by yourself, reducing unnecessary time cost.
Note
It is a usual practice for other manufacturers that they will not deliver the replacement parts until you return the damaged ones. However, we can ship replacement parts to you first. As for the core parts like main board, laser power supply, etc. you can return the damaged ones after the machine comes back to normal. As for small parts like belt, pulley, timing pulley, etc., you are not required to return the damaged ones so as to save the delivery fee.

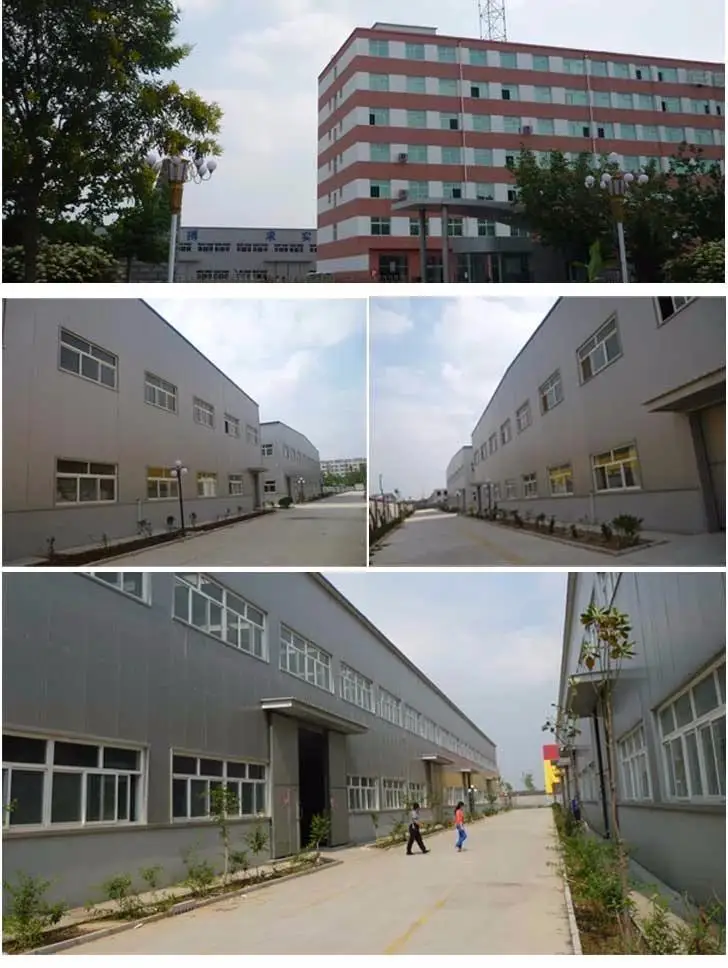

Company buildings:
