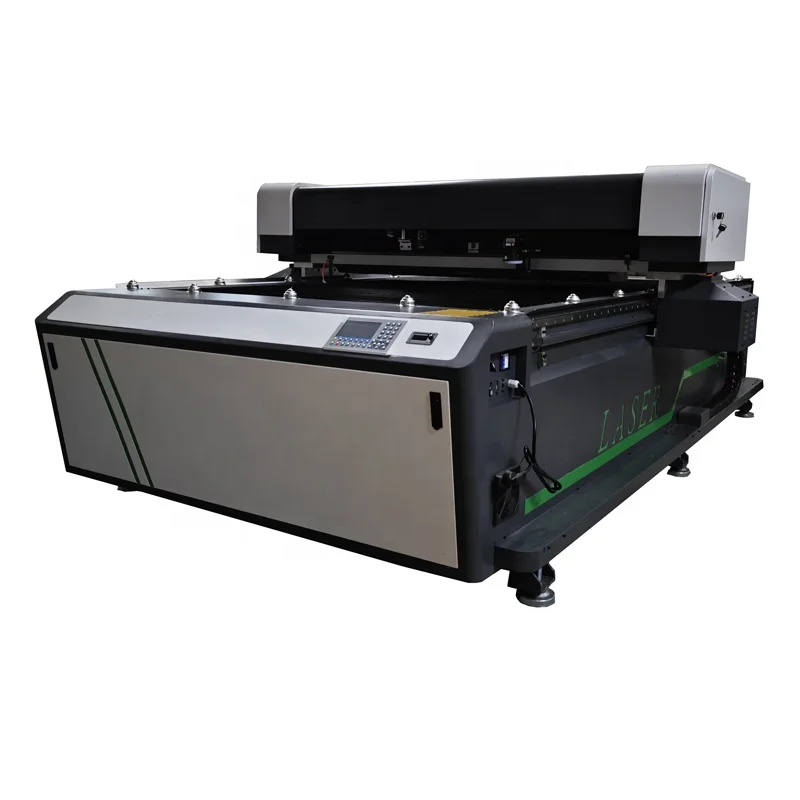

CM-1325 Large Format High Power Non-metal CO2 Laser Cutting Machine For Die Board MDF Acrylic Plastic

CM-1325 Large Format High Power Non-metal CO2 Laser Cutting Machine For Die Board MDF Acrylic Plastic

¥4,379.00 CNY
¥35,756.00 CNY ¥4,379.00 CNY
Sale Sold out
Shipping calculated at checkout.
Model Number
Power
Technical Parameters
Product Name
CM-1325 Large Format High Power Non-metal CO2 Laser Cutting Machine For Die Board MDF Acrylic Plastic
Model
CM-1325
Laser Power
60W/80W/100W/150W/180W
Laser Type
CO2 Sealed Glass Laser Tube, Water Cooling, 10.6μm
Working Area
1300X2500mm
Control System
Ruida
Cooling Type
Water-cooled and Protection System
Engraving Speed
0~240m/min
Cutting Speed
0~80m/min
Laser Output Control
1~100% Software Setting
Minimum Letter Size
Chinese:2.0X2.0mm,English: 1.0X1.0mm
Highest Scanning Precision
2500DPI
Driving System
Stepper Motor
Transmission Type
Taiwan Linear Square Guide Rails And Belt
Worktable
Blade Worktable(Updown worktable,Honeycomb worktable are optional)
Operating Temperature
0℃~45℃
Operating Humidity
5%~95%
Location Precision
≤±0.01mm
Supported File Format
DST,PLT,BMP,DXF,AI,DWG,LAS
Compatible Software
Coreldraw,Autocad,Photoshop,etc.
Slope Engraving
360° Slope Can Be Designed Easily
Working Voltage
AC220V/50Hz,Single Phase(110V/60Hz,Single Phase is optional)
Package Dimension
355X206X134cm
Net Weight
1200KGS
Gross Weight
1300KGS

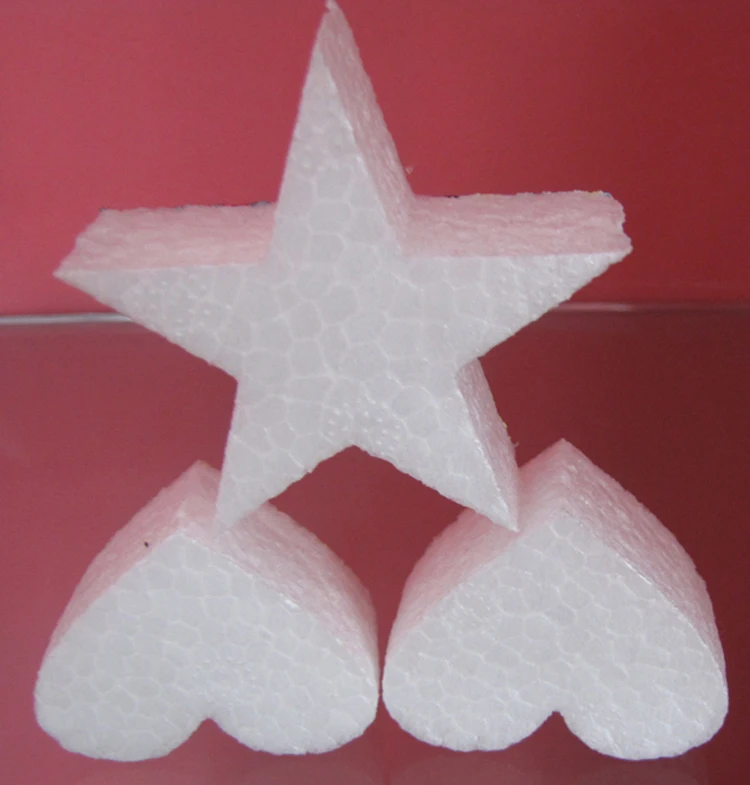

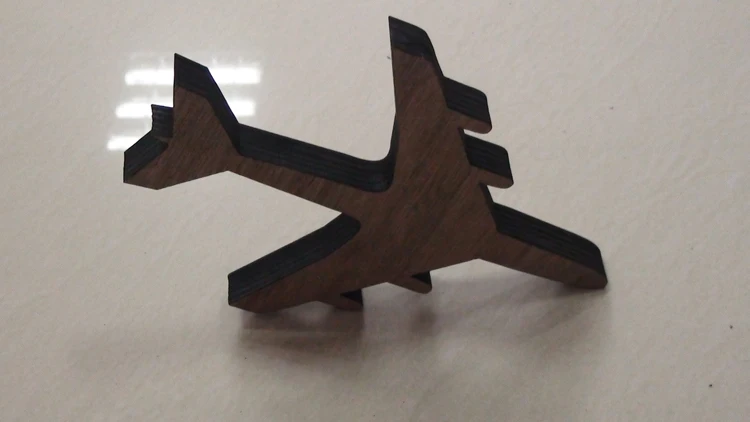

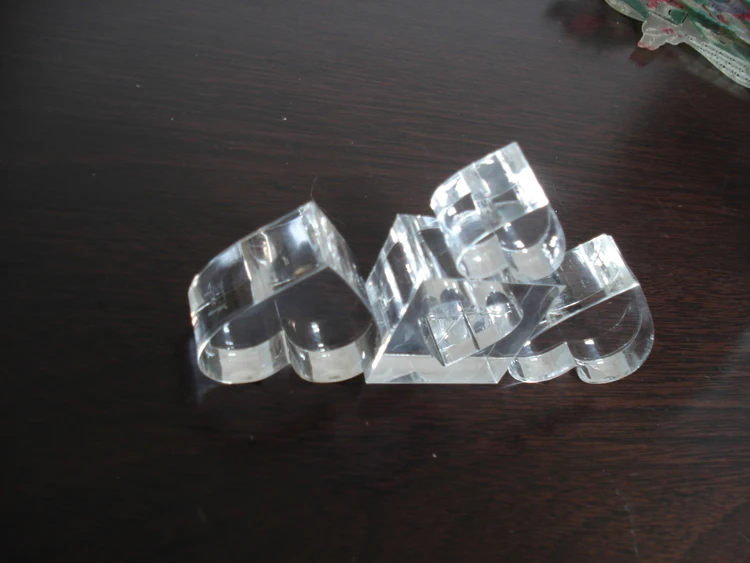

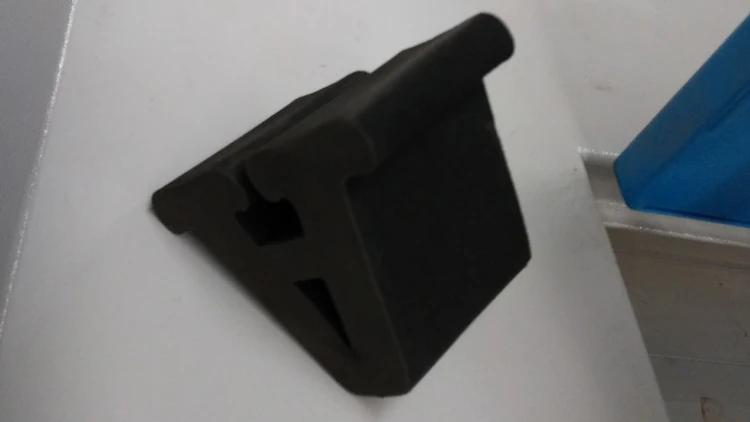

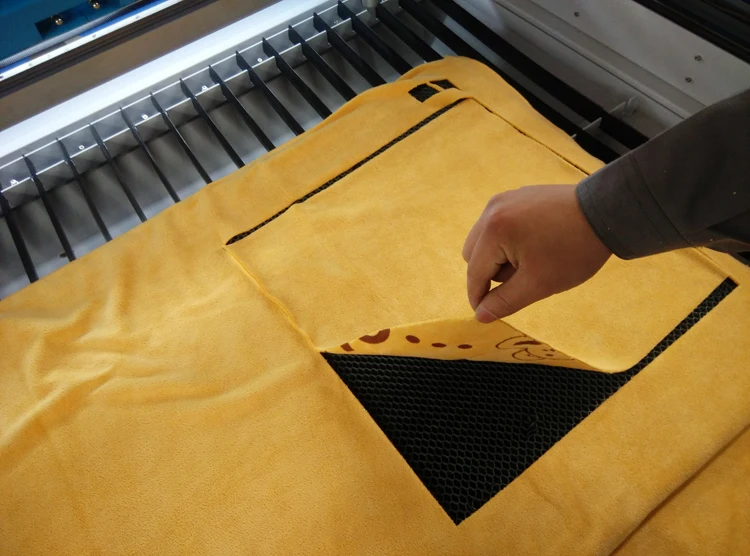

Samples
CM-1325 Large Format High Power Non-metal CO2 Laser Cutting Machine For Die Board MDF Acrylic Plastic
Recommend Products
Product packaging
CM-1325 Large Format High Power Non-metal CO2 Laser Cutting Machine For Die Board MDF Acrylic Plastic

Packaging
Whole film packaging machine; anti-collision package edge; fumigation-free plywood wooden box and pallets with iron binding belt.

Shipping
We cooperate with SINOTRANS company whose experience in the ocean transportation will guarantee your machine safety. We also
provide train transport, especially to Russia, Ukraine and other inland countries.



Warranty and Service
1.Guarantee for 5 years.
2. Maintenance free of charge for 3 years .
3.We will provide the consumable parts at an agency price.
4.24 hours online service, free technical support.
5.Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me.
6.We have manual instruction and CD (Guiding Videos) for software Installation, operation and machine's using and maintenance.
Payment
We support T/T, L/C, VISA, Mastercard payment terms with Alibaba Trade Assurance
Company Profile
Jinan Chaomeng CNC Machinery Co.,Ltd.was established in 2012,weprofessionally manufacture metal CNC cutting machines in China such asCNC fiber laser cutting machines,CNC plasma cutting machines and otherCNC machines.Our company has been a professional metal industrial CNCmachines maker with independent developing capacity. Our factory is located in Jinan City, Shandong Province,China, owning11,000square meters modern plant. There are more than 120 workers and15 technicians.Our metal CNC cutting machines have been exported tomore than 60 countries and regious, such as USA, Europe, Middle East.Russia.India,etc. We pursue perfect quality and service for ever. We adopt famous brandparts for our machines, such as, Yaskawa servo system,IPG fiber laserdevice ,Raycus fiber laser device, Max laser device,Hypertherm plasmapower source,Hiwin linear square quide rails, Schneider electricequipments and so on. They can work well together with our CNCmachines.
Certifications
FAQ
CM-1325 Large Format High Power Non-metal CO2 Laser Cutting Machine For Die Board MDF Acrylic Plastic

Q: How to install and run the machine? A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves. Q: How can I do if the machine goes wrong? A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you. Q: I don’t know which one is suitable for me ? A :just tell us below information 1) Max work size:choose most suitable model. 2) Materials and Cutting thickness:Power of laser generator. 3) Business industries:We sell a lot and give advice on this business line. Q: What's your MOQ? A: We don't have MOQ. No matter 1set order or 100sets order, we will give you support with our heart and soul. Q: How do your factory do regarding quality control? A: Quality is priority. Each laser machine will be tested by 24 items. After all the 24 items passed, then our QC do 48~72 hours reliability test. Our laser machines has gained CE.
