cnc 1000w 2000w 3000w fiber laser cutting machine 3015 Laser metal Cutting Machine for steel metal
cnc 1000w 2000w 3000w fiber laser cutting machine 3015 Laser metal Cutting Machine for steel metal
Regular price
¥732.00 CNY
Regular price
¥732.00 CNY
Sale price
¥732.00 CNY
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

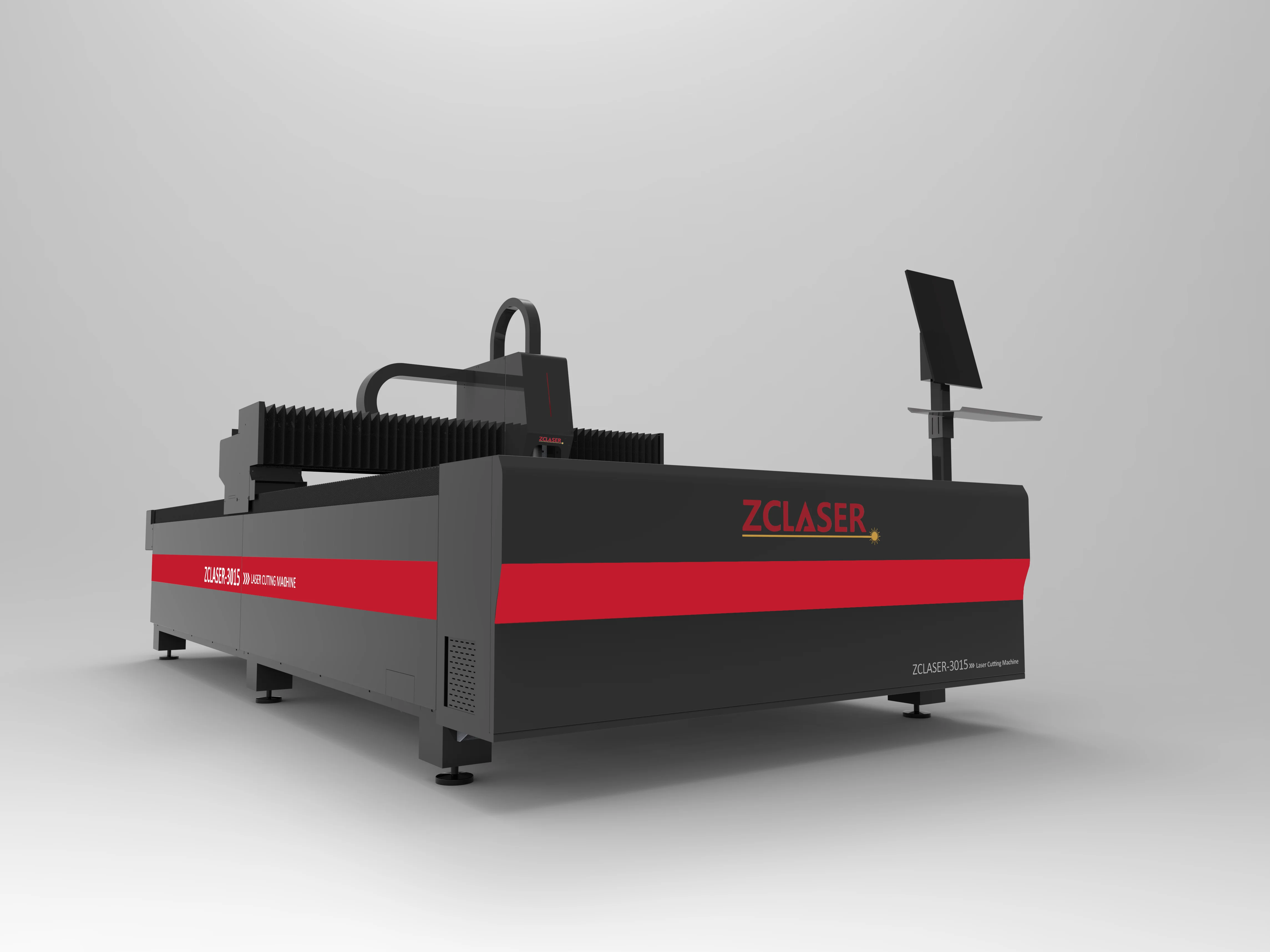

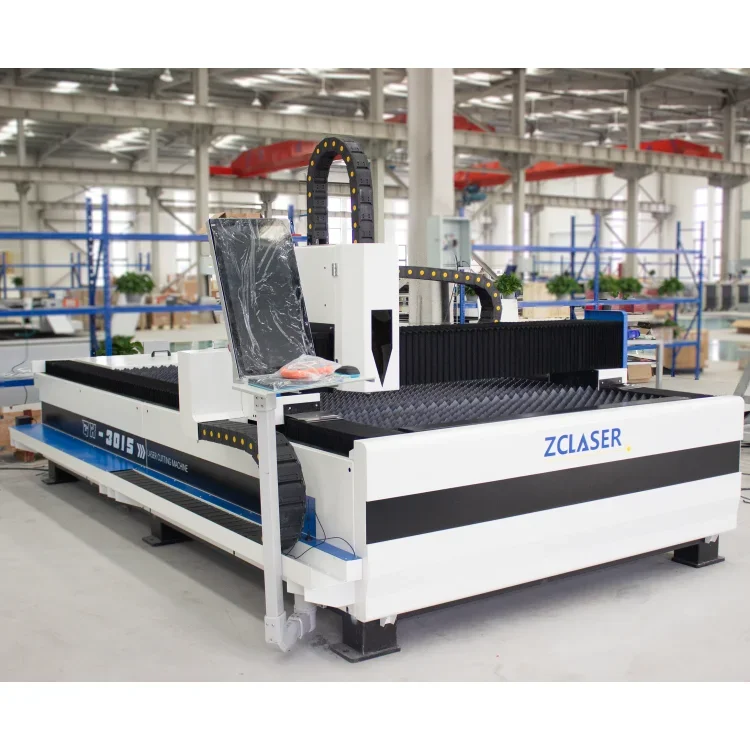

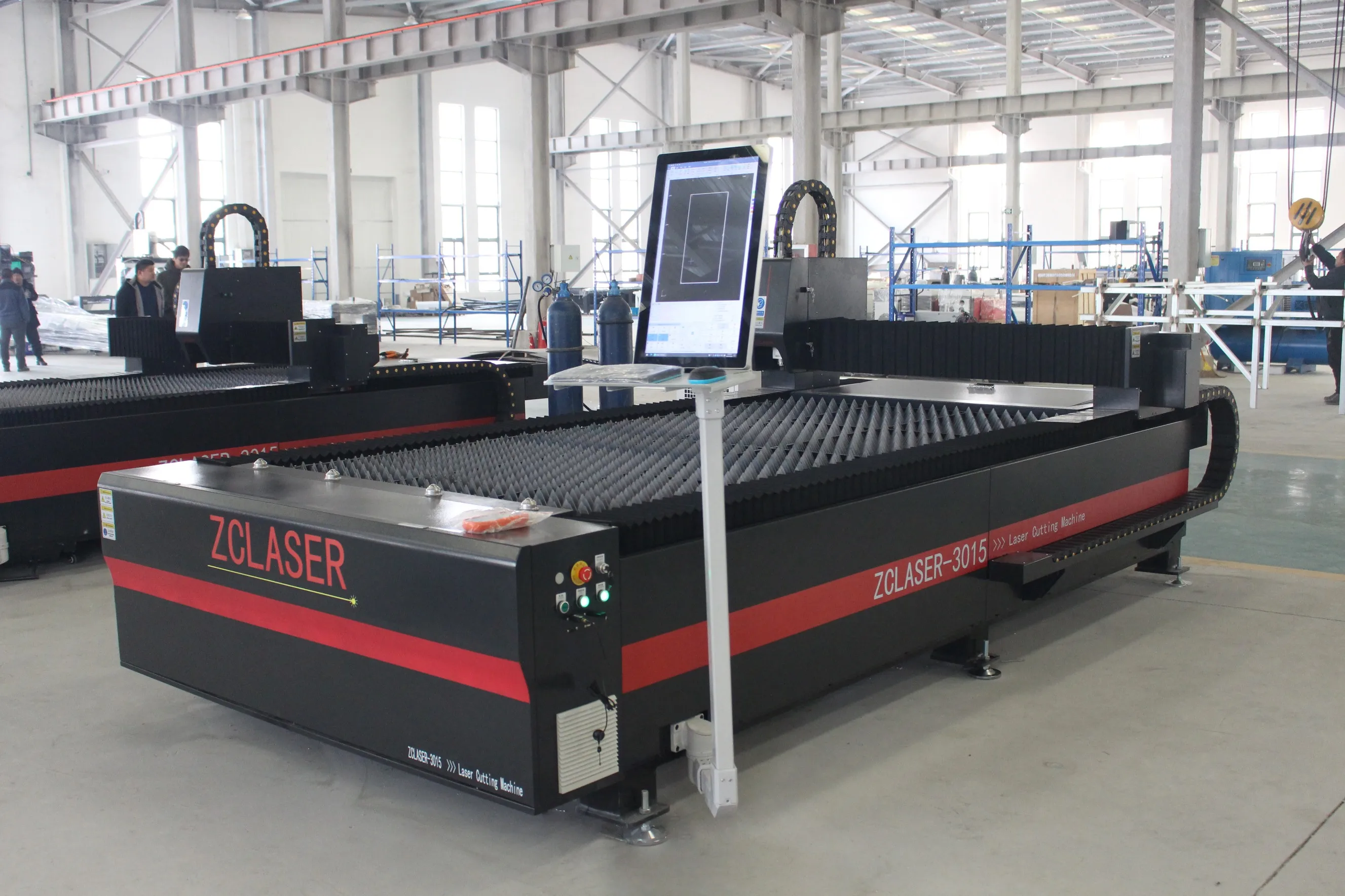

ZCGX-3015/4015/6015A 1500w 2000w 3000w CNC Fiber Laser Cutting Machines for Steel Metal Sheet Fiber Laser cutter
Product Description
The ZCGX-A series linear rail-type ultra-large format fiber laser cutting machine has a floating gantry beam structure, a zero-clearance ground rail spliced body, and a BOCI non-contact capacitive sensing head, which can enable unattended mode. Application: carbon steel laser cutting, stainless steel laser cutting, and other metal processing industries
Specification
Product advantages
1. The cutting area is designed with zoning dust removal, large air volume dust removal and filtration system, strong suction, deep cleaning, blowing and suction dust removal devices and smoke purification equipment are equipped on both sides of the cutting area to completely exhaust smoke, and equipped with flame-retardant structures to ensure safe production.
2. Non-contact capacitive sensing head, which can automatically find edges, automatically adjust focus and position, has strong protection function, and is suitable for fast cutting of uneven workpieces.
3. The processing list can be set once to complete the processing of different plates, different formats, and different workpieces, and the unattended processing mode can be turned on.
4. Cold drawn extruded aluminum beams, light weight, good rigidity, high precision, good dynamic characteristics, stable structure and not easy to deform
5. The bus control operation speed is high, the response speed is fast, and the expansion performance is strong
6. Zero-clearance ground rail spliced fuselage, the distance between both sides is constant, and there is no jitter during high-speed operation. The bed is annealed twice to eliminate internal stress, and it does not deform during long-term operation.
7. Gantry beam floating structure, one end of the beam is fixed and the other end is floating, which specifically solves the problem of parallelism of the guide rails on both sides of the large-width beam and improves the service life of the transmission components.
A variety of machine colors, support appearance customization, LOGO customization
Blue, black, red, gray, etc.
To learn more styles, please ask customer service staff
Details Images
Item |
Value |
Application |
LASER CUTTING |
Applicable Material |
Metal |
Laser Type |
Fiber Laser |
Cutting Area |
13000mm*2500mm |
CNC or Not |
Yes |
Cooling Mode |
WATER COOLING |
Laser Source Brand |
RAYCUS/MAX |
Laser Head Brand |
Raytools/BOCI |
Servo Motor Brand |
FUJI |
Warranty |
3 years |
Warranty of core components |
1 Year |
Power |
3000W 6000W 12000W 20000W |
After-sales Service Provided |
Online Video Technical Support |
Cutting thickness |
Carbon steel (iron) |
aluminum |
Stainless steel |
copper |
1500w |
12mm |
4mm |
6mm |
4mm |
2000w |
14mm |
4mm |
6mm |
4mm |
3000w |
18mm |
4mm |
8mm |
4mm |

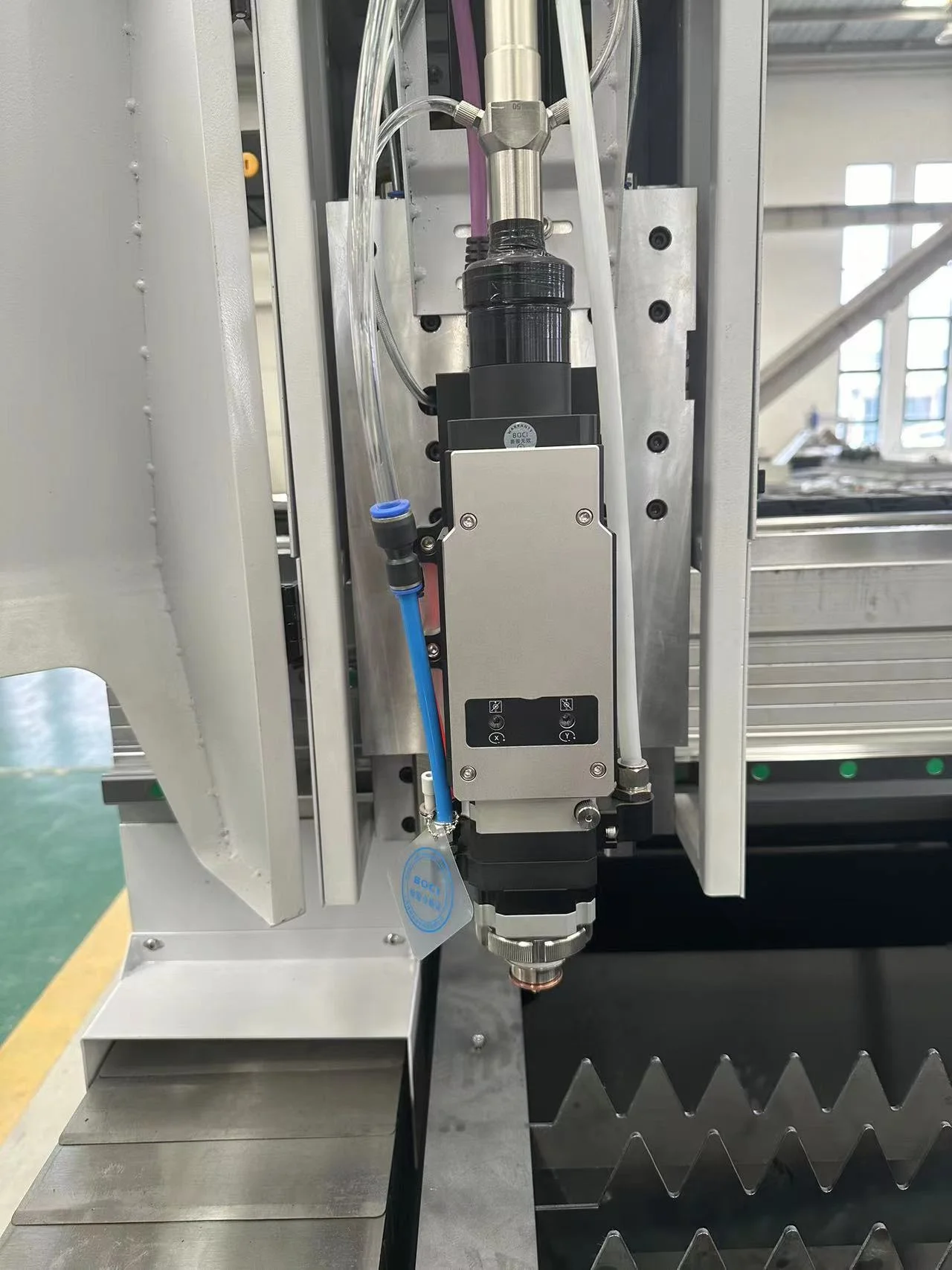

Raytools/BOCI Autofocus Cutting Head
Auto-focus laser head-no manual operation is required, and the vertical height is automatically controlled, so as to realize the
cutting operation of different sheet thicknesses.
cutting operation of different sheet thicknesses.

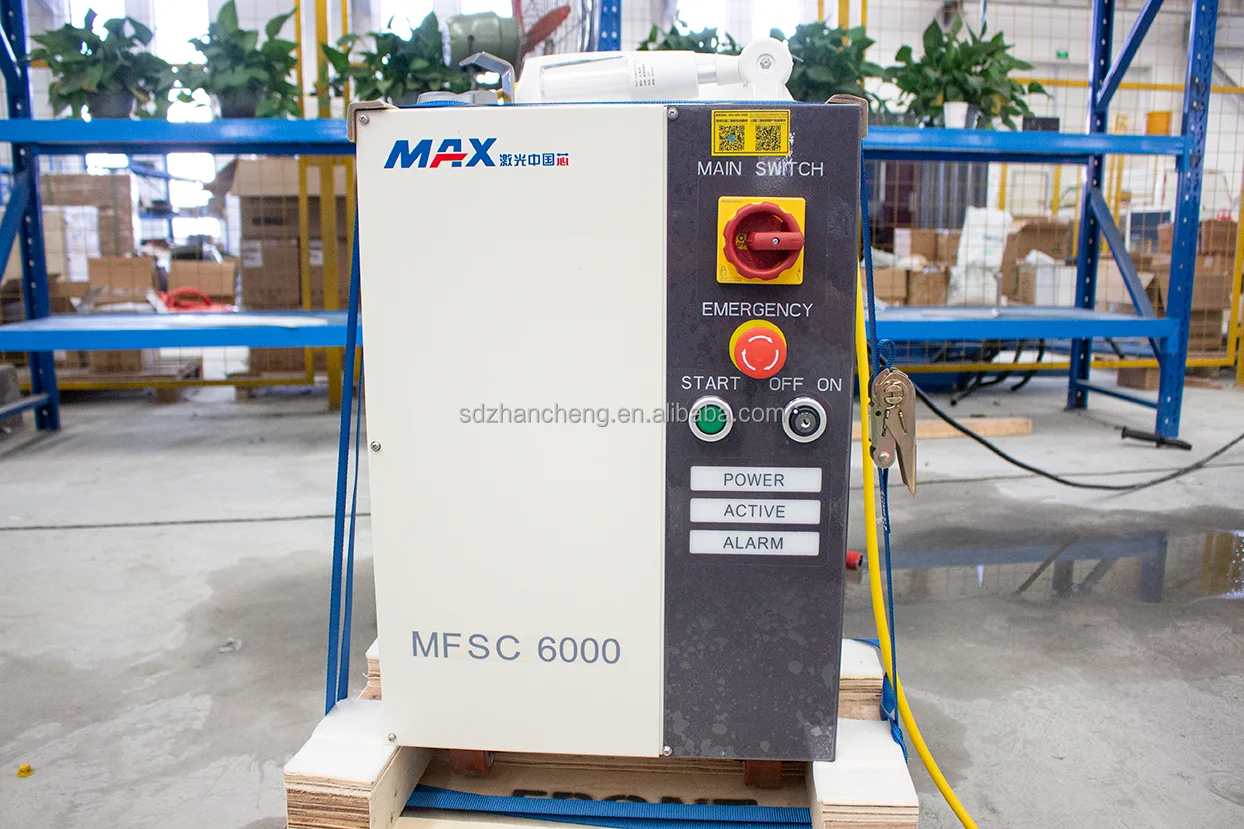

Raycus/MAX Laser Generator
It has higher photoelectric conversion efficiency, better and more stable beam quality, and stronger anti-high-reflection ability.
It introduces an optimized optical fiber transmission system.
It introduces an optimized optical fiber transmission system.

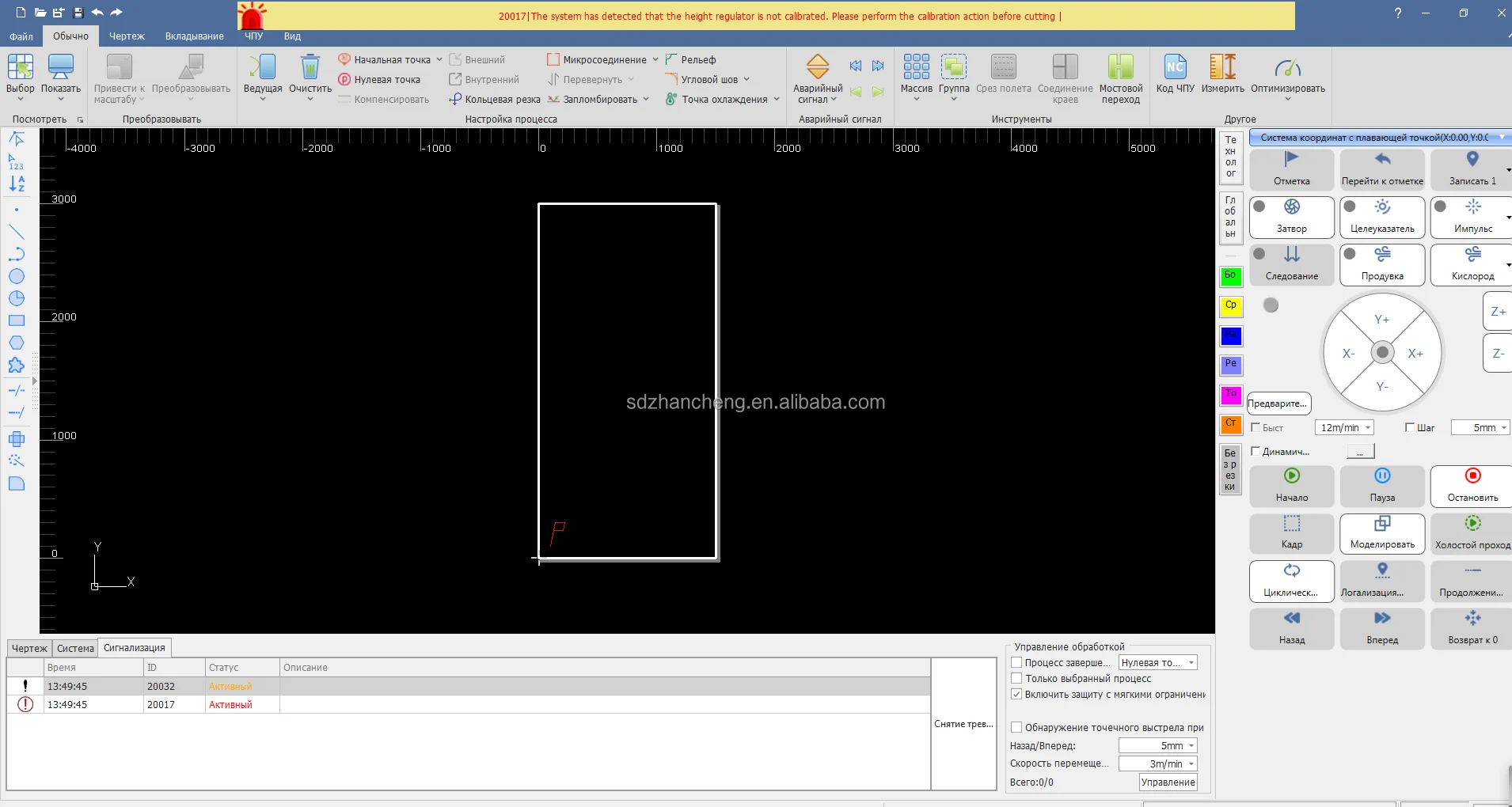

Bus controlCypone Control System
Cypcut/Raytools Cypone Control System
The display operation unit provides good man-machine interface to display various operation information, and the operationpanelwith function keys for machine operation.

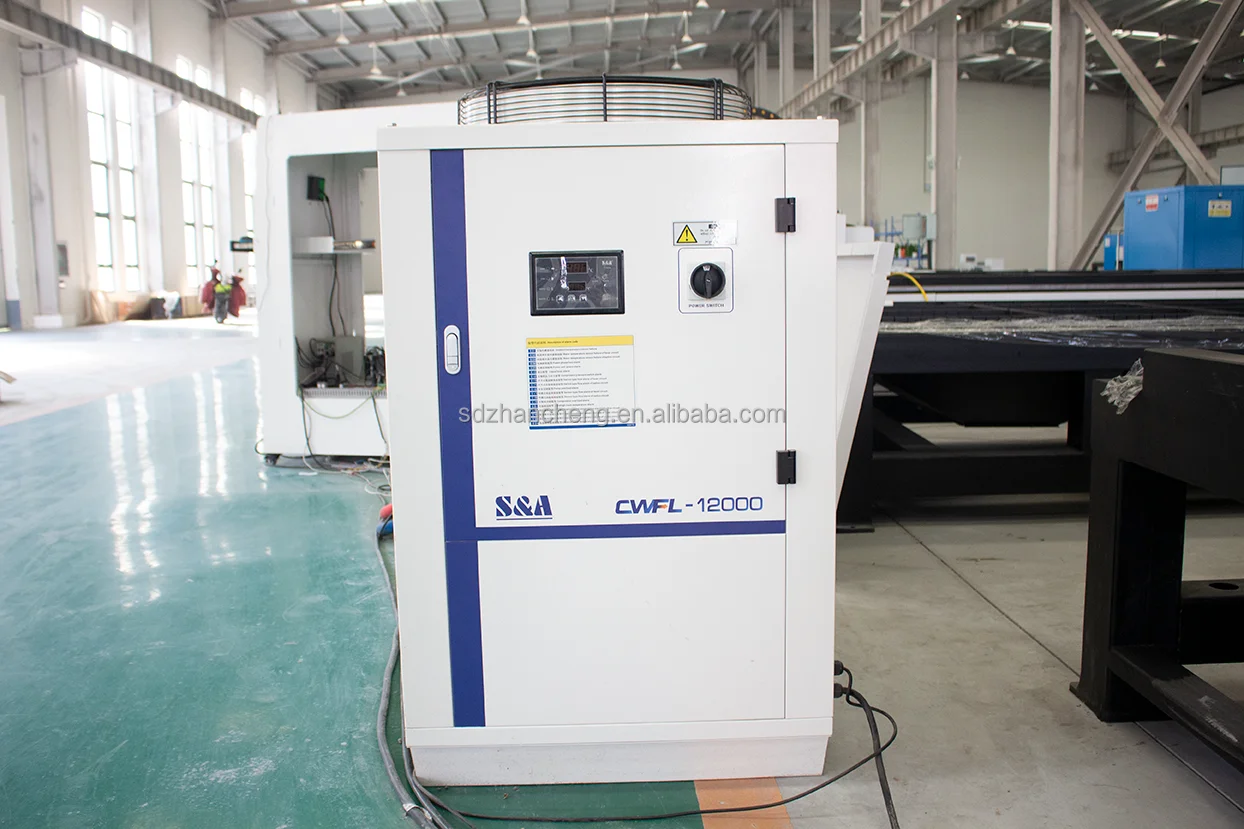

S&A /HALI Water Cooler
1. The temperature control accuracy can reach ±0.5℃.2. It has two temperature control modes, which are suitable for different use
occasions; it has a variety of settings and fault display functions.
occasions; it has a variety of settings and fault display functions.

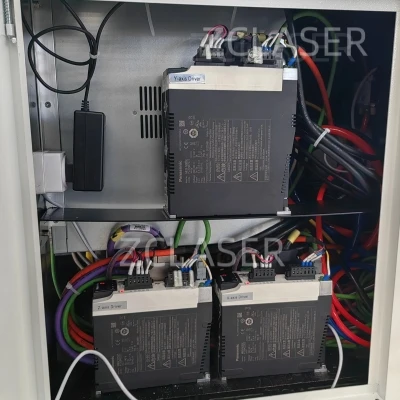

Panasonic Servo Driver
Japan Panasonic servo drive system guarantees
the working stability and accuracy. It ensures the accuracy of the machine working
for a long time
for a long time

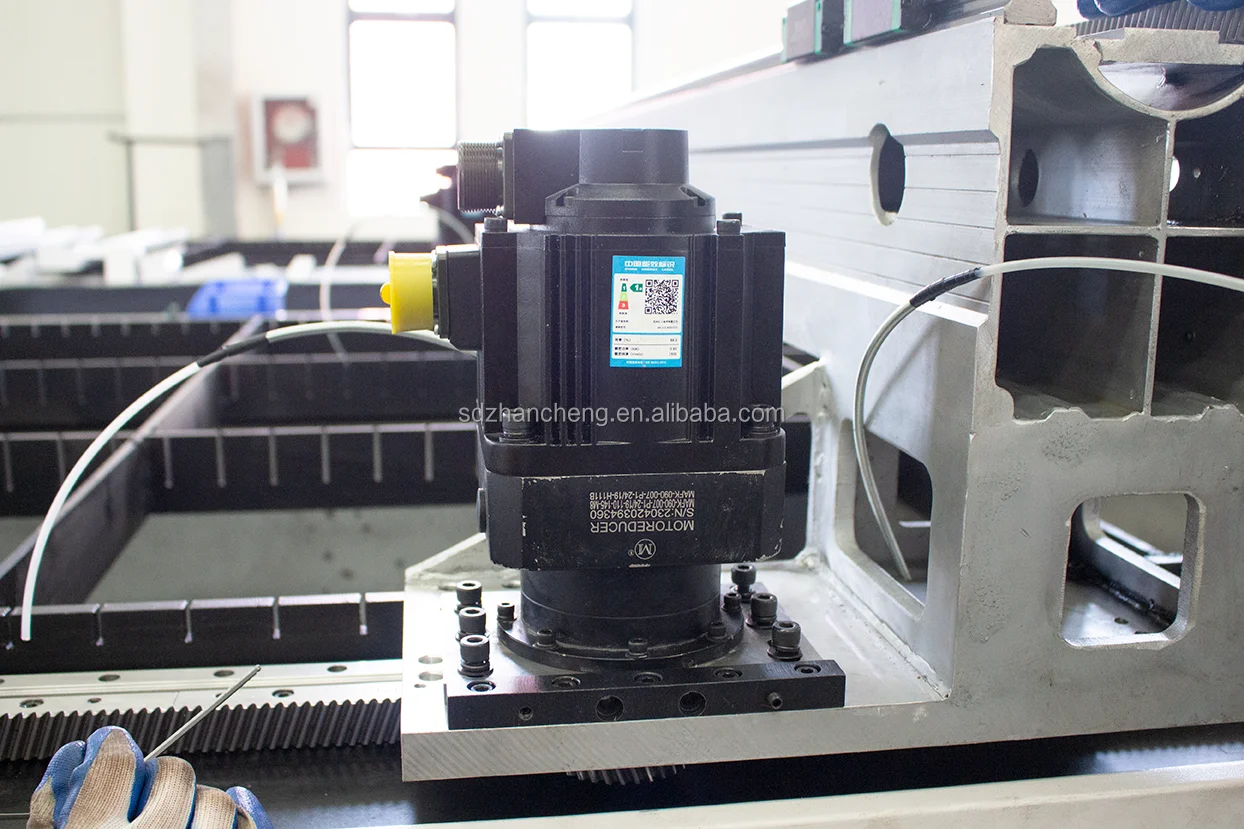

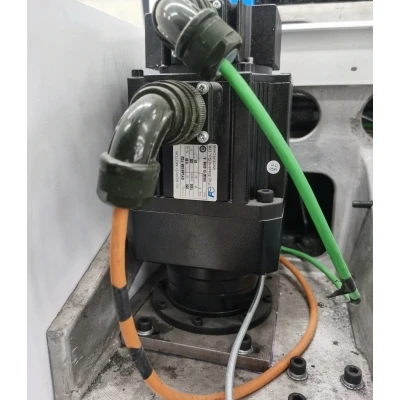

Servo Motor
By adding and improving vibration suppression function, it can improve the following performance and shorten the setting time.

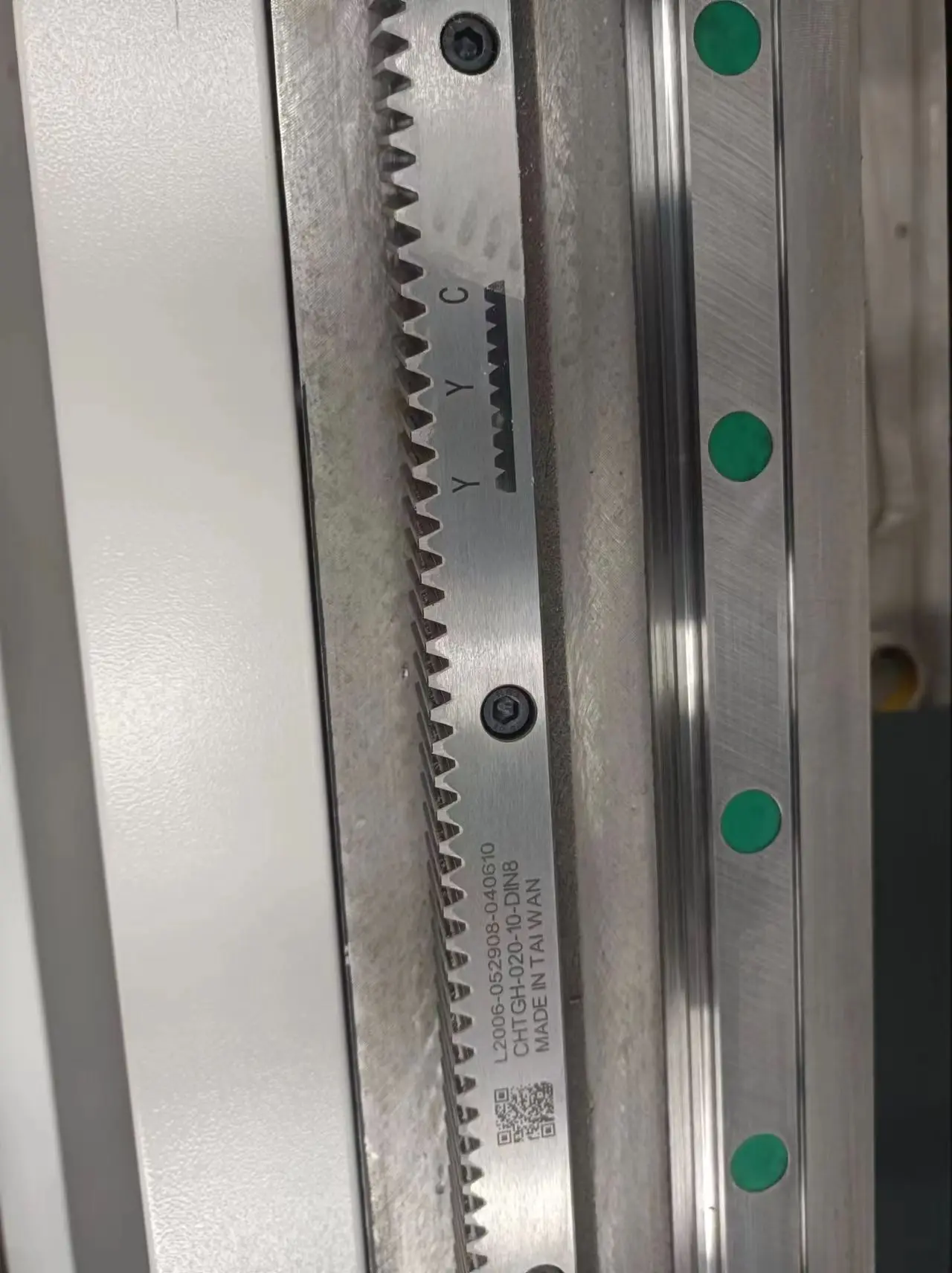

High precision guide rail rack

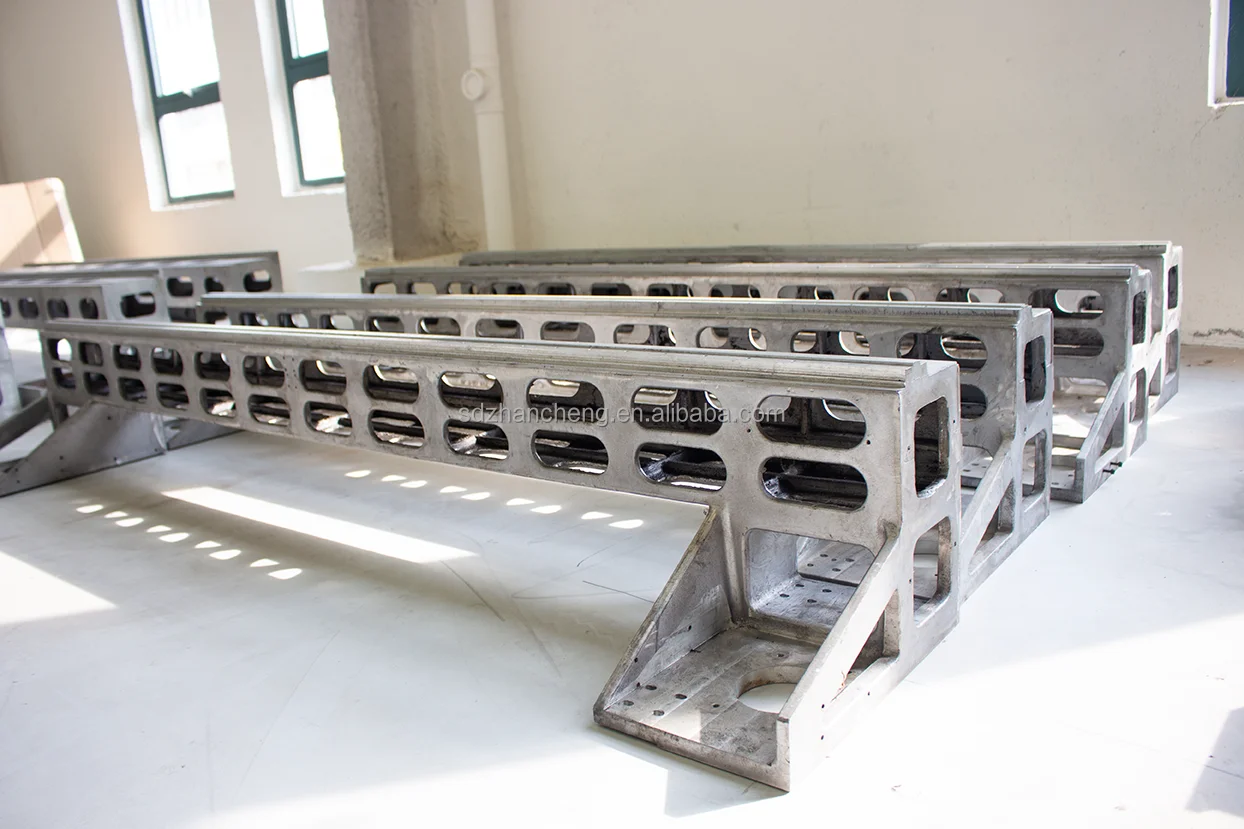

Aluminum profile beams
【1】After fine processing through extrusion molding process and quenching thermal aging process, the overall rigidity and surface quality of the beam are very excellent, and it also has good toughness and ductility.
【2】The beam structure optimized by finite element analysis is based on the metal properties of aluminum alloy. It is corrosion-resistant, lightweight and highly rigid, ensuring high-speed movement during laser processing.
【3】Aviation industry aluminum profile beams allow equipment to have efficient dynamic performance, greatly improving processing efficiency while ensuring processing quality.
Positioning accuracy (mm/m) |
±0.1m/m |
Repeat positioning accuracy (mm/m) |
±0.05mm/m |
Maximum linkage speed (m/min) |
80m/min |
1.01.0Maximum positioning acceleration (G) |
0.6G |
Power supply: |
three-phase 380V50/60Hz |
Working environment: |
temperature 0-45°C, humidity ≤80%, no condensation |
It is recommended for cutting metal materials in ships, bridges, engineering machinery, wind power, aerospace and military industry, automobile industry, steel structure, port machinery and other industries.
Manufacturing time
laser cutter:
1 unit: 15-20 days
10 units: 30-45 days
Laser welding machine:
1 unit: less than 7 working days
10 units: 20 working days
After-sales service
We provide online after-sales service and offline service
1. Provide video machine guidance through remote video service
2. Buy spare parts at a more favorable price
3. Regular machine return visits to provide the latest cutting technical parameters
Company Profile
Shandong Zhancheng intelligent manufacturing Co., LTD 5000+ laser marking machine products have been sold!!!
500+ laser welding machine have been sold!!!
300+ customers have cooperated!!!
is a professional research and development, production and sales of laser equipment enterprises. Companies and many large
well-known enterprises at home and abroad to establish long-term stability of the interactive relations of cooperation, for most
users to provide perfect laser processing solutions and the corresponding supporting facilities, widely used in auto parts,
instruments, measuring tool cutting tools, electronic communications, aerospace, petrochemical, military products, medicine, food
packaging, etc.
* All of our machines have obtained CE and other certificates and have been professionally recognized.
* What we present is all formal, no concealment, no deception is the working attitude of all members of our ZCLASER.
* Consider the problem from the perspective of the customer and make the best effect.

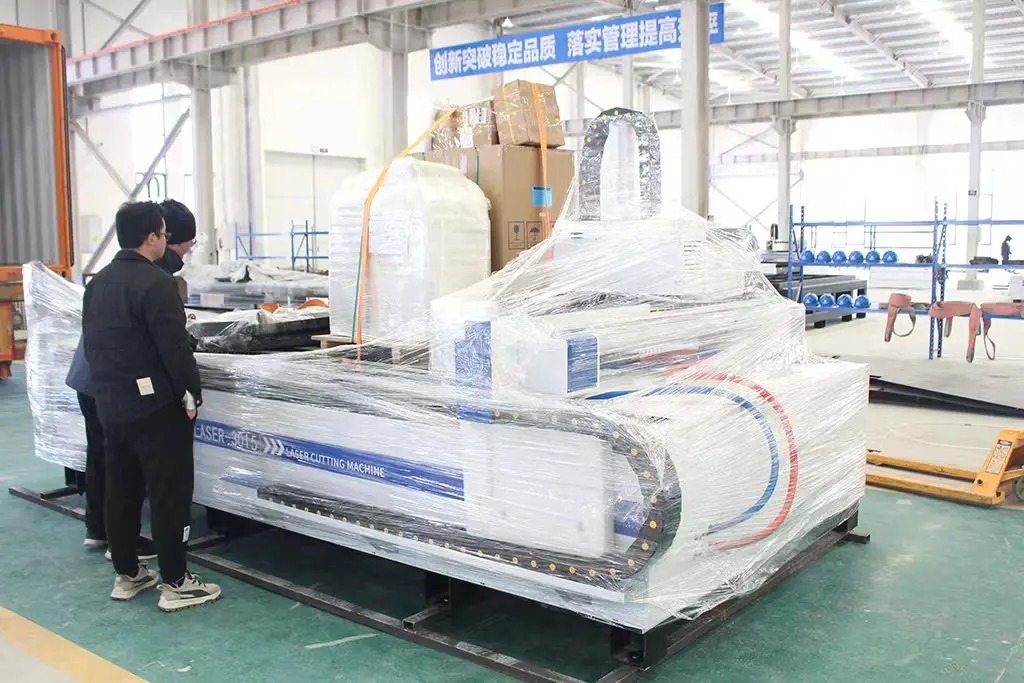

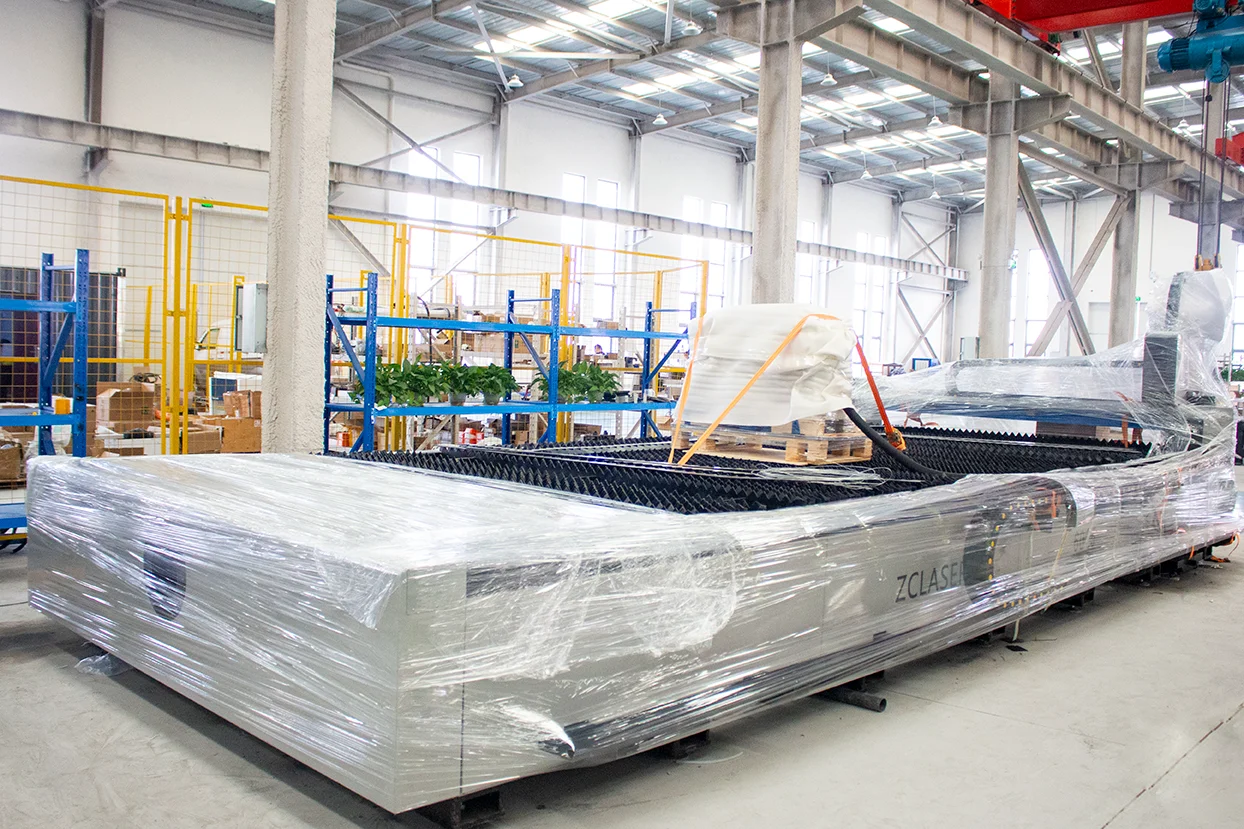

Packing & Delivery
FAQ
1. Hou do I choose the machine?
You can tell us you material, detail of marking so that we can judge which one suits you.
2. How long its life time?
Our machine can be used for five years, if you take care of it.
3. How long is the delivery time?
For standard machines, it would be 5-10days; For non-standard machines and customized machines according to client’s specific requirements, it
would be 15 to 30 days.
4. How can we guarantee quality?
Always a pre-production sample before mass production; Always final
Inspection before shipment;
Inspection before shipment;
5.I don’t know how to use after i receive Or I have problem during use,how to do?
1) We have detailed
user manual with pictures and video,you can learn step by step.
2) If have any problem during use,you need our technician to judge the problem elsewhere will be solved by us. We can provide team
viewer/WhatsApp/Email/Phone/Skype with cam till all of your problems finished.
2) If have any problem during use,you need our technician to judge the problem elsewhere will be solved by us. We can provide team
viewer/WhatsApp/Email/Phone/Skype with cam till all of your problems finished.
6. why should you buy from us not from other suppliers?
Our company has a number of patent certificates. The product has beautiful
appearance, high stability and independent research and development ability. We can produce customized non-standard models
according to customer requirements.
according to customer requirements.
7. what services can we provide?
Accepted Delivery Terms: null； Accepted Payment
Currency:USD,EUR,JPY,AUD,GBP,CNY; Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash; Language
Spoken:English,Chinese,Spanish,Japanese
Currency:USD,EUR,JPY,AUD,GBP,CNY; Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash; Language
Spoken:English,Chinese,Spanish,Japanese
