CNC automatic hot air welding machine for welding of mechanical welding tools and equipments tip fibre laser
CNC automatic hot air welding machine for welding of mechanical welding tools and equipments tip fibre laser
Regular price
¥741.00 CNY
Regular price
¥741.00 CNY
Sale price
¥741.00 CNY
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Products Description
Features:
1.Portable and flexible, easy and simple operation, meet the welding of multiple angles and positions;
2.Equipped with 5m/10m imported optical fiber, flexible and convenient for outdoor welding;
3.Infrared positioning is used to verify the welding head position and verify the position during welding. The welding position is more accurate to ensure a more beautiful weld;
4.Not easy to deform, easy to polish and polish. Solved the problems of welding penetration, welding nugget, welding quality and other problems that occurred when using argon arc welding;
5.The laser welding depth is large and the welding seam is firm. It is suitable for spot welding of various complicated welding seams and various devices.
1.Portable and flexible, easy and simple operation, meet the welding of multiple angles and positions;
2.Equipped with 5m/10m imported optical fiber, flexible and convenient for outdoor welding;
3.Infrared positioning is used to verify the welding head position and verify the position during welding. The welding position is more accurate to ensure a more beautiful weld;
4.Not easy to deform, easy to polish and polish. Solved the problems of welding penetration, welding nugget, welding quality and other problems that occurred when using argon arc welding;
5.The laser welding depth is large and the welding seam is firm. It is suitable for spot welding of various complicated welding seams and various devices.

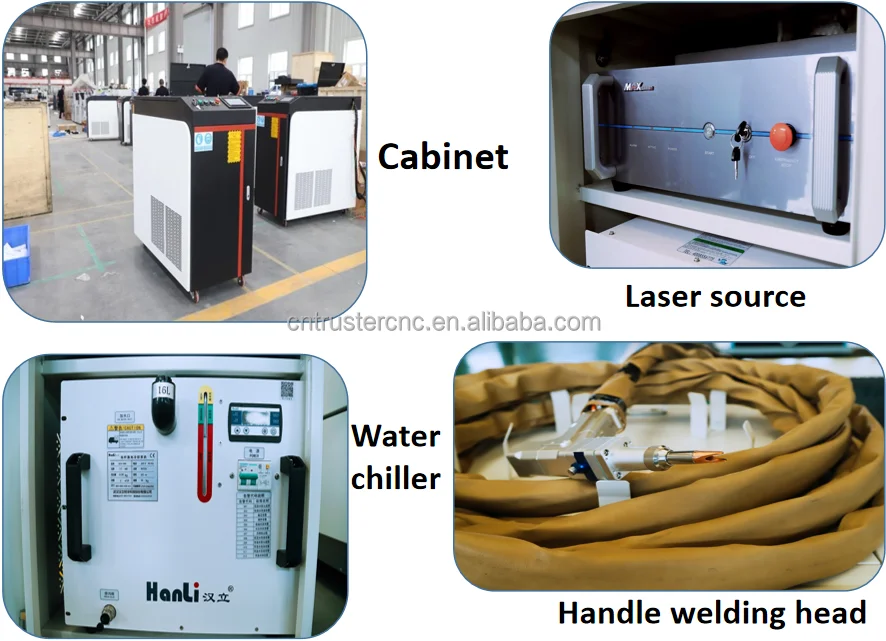

Machine Details
Machine power |
1000W/1500W/2000W |
Laser Type |
fiber |
Center wavelength |
1080nm ±5 |
Max Output Energy |
1kw |
Modulation frequency |
1-20,000HZ |
Red light indicates output power |
0.5~1 |
Fiber Cable length |
10m |
Fiber Core Diameter |
50μm |
Total Power Consumption |
7.5KW |
Rated Power |
220±20% V AC、50/60Hz/ 380±20% V AC、50/60Hz |
Cooling Method |
Raffreddamento ad acqua |
Net Weight |
250kg |
Machine Dimension (L*W*H) |
1190*620*1756mm |

Sample show









Optional

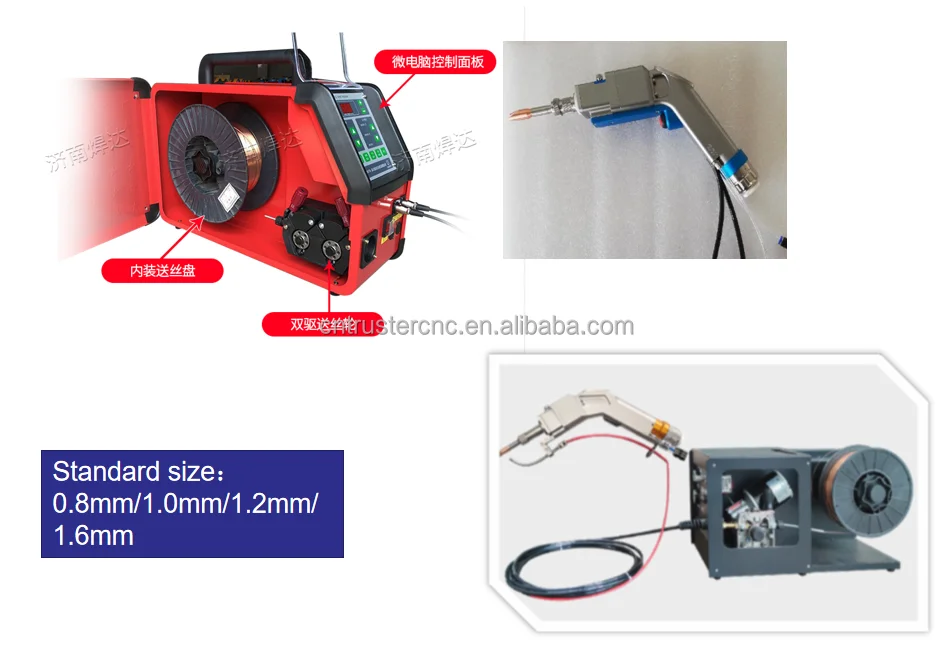

Automatic wire feeder

Product packaging
1. Outside package: Standard marine export plywood case.
2. Inner package: Three layers in total; EPE pearl cotton film+PE
stretchy film. Improved package, much more strong and environmental protection.
stretchy film. Improved package, much more strong and environmental protection.
We can also make package according to your requests.


Our Service
Technical support:
1. Technical support by phone, email or WhatsApp/Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas.
1. Technical support by phone, email or WhatsApp/Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas.

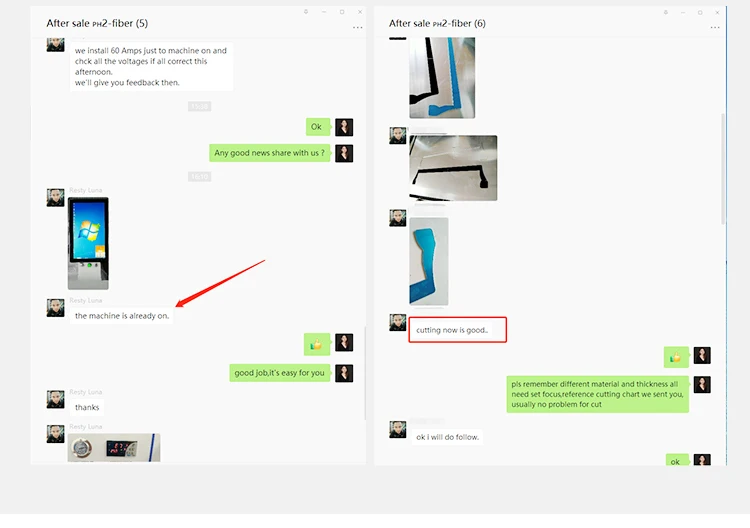

After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.
Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email WhatsApp/tel etc.
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.
Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email WhatsApp/tel etc.
