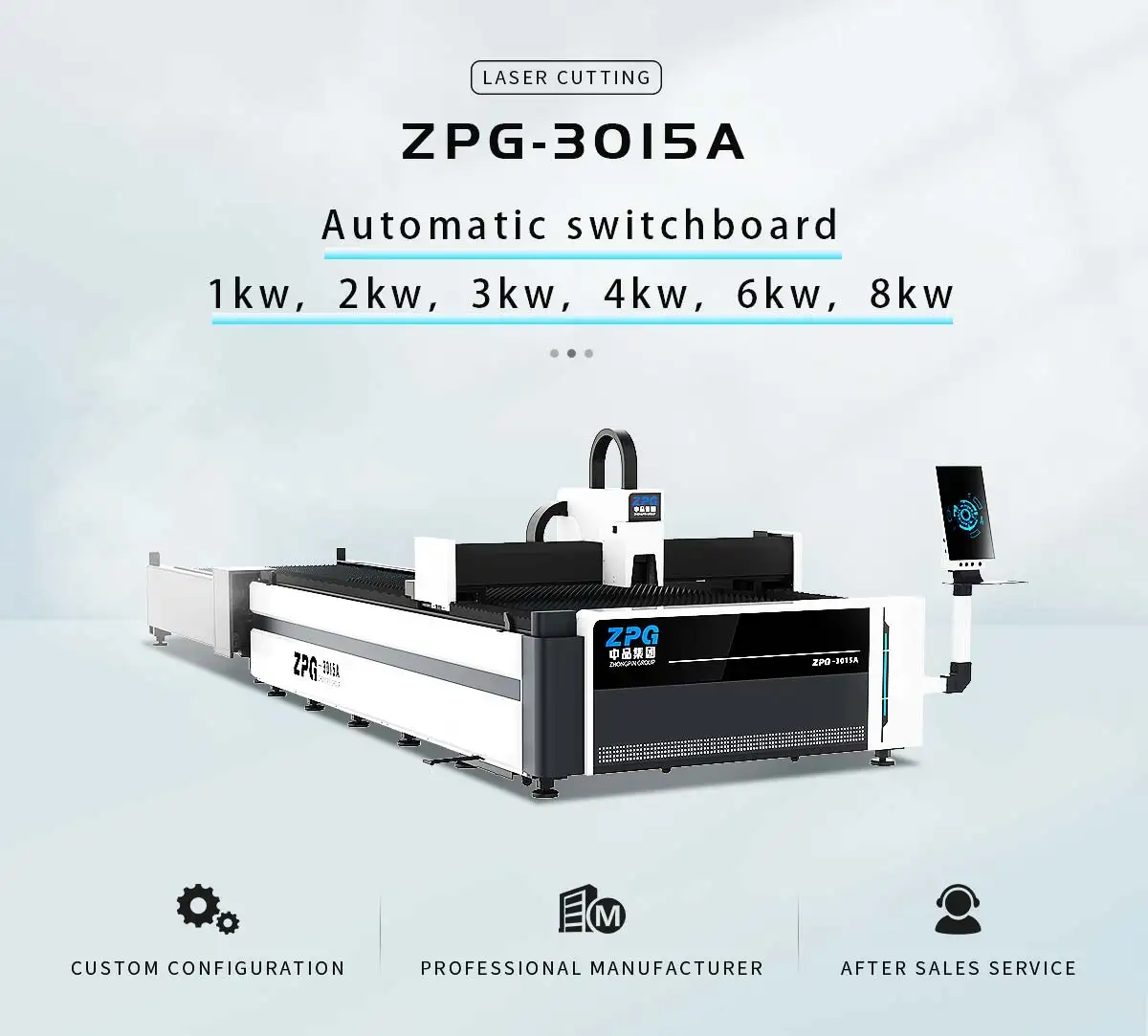

Cnc Fiber Laser Cutting Machine 1000w 2000w 3000w with Switching Platform
Cnc Fiber Laser Cutting Machine 1000w 2000w 3000w with Switching Platform
Regular price
¥4,447.00 CNY
Sale price
¥4,447.00 CNY
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description



3015A 3000w 6000w High Precision Laser Cutter Machine Steel Cnc Fiber Laser Cutting Machine With Exchange Platform

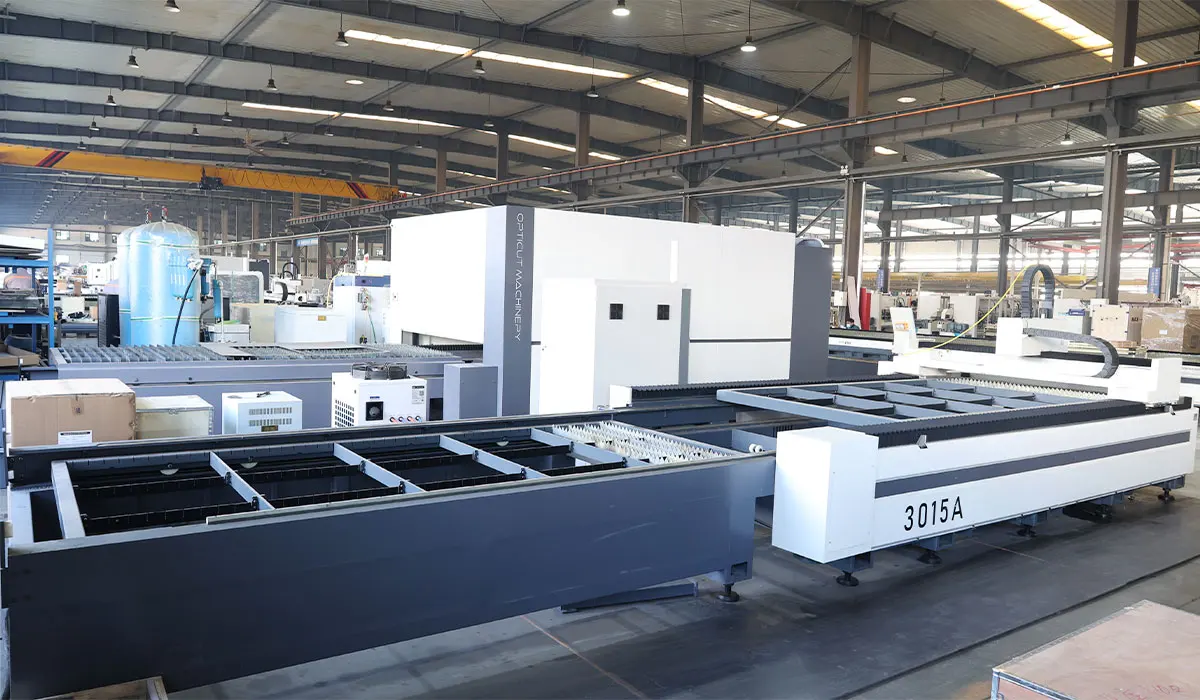

1, 3015A sheet metal fiber laser cutting machine 1000w 3000w 6000w laser cutter
2, Can customize the power and cutting area according to your requirements.

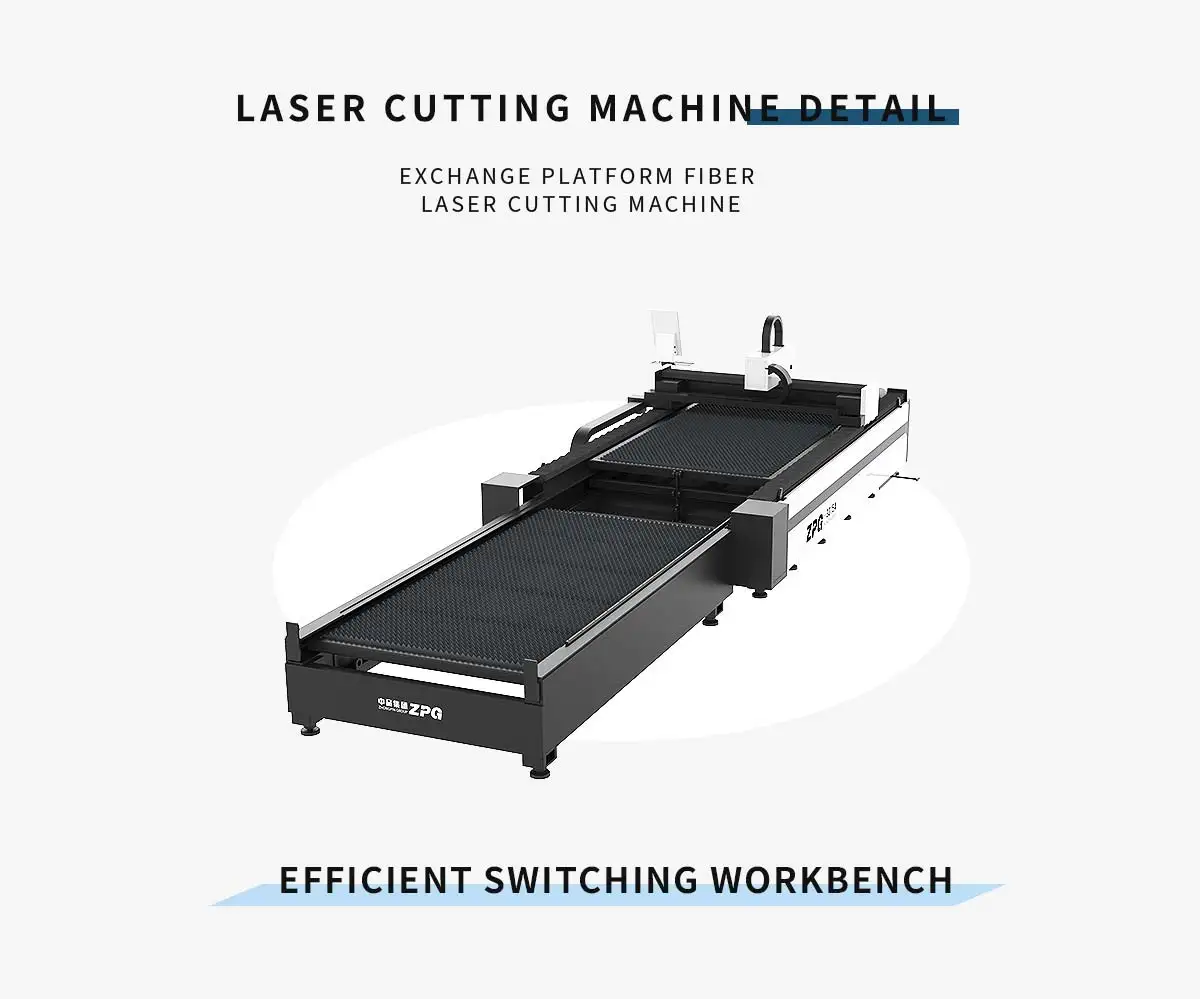

3, Automatic exchange table, the latest design, save space, reduce labor costs and improve work efficiency.
Specification
A series laser cutter |
ZPG-3015A |
ZPG-4015A |
ZPG-4020A |
ZPG-6020A |
ZPG-6025A |
||||||
Processing format(mm) |
x |
1530 |
1530 |
2030 |
2030 |
2530 |
|||||
y |
3050 |
4050 |
4050 |
6050 |
6050 |
||||||
Table bearing(KG) |
800 |
1200 |
1500 |
2100 |
2700 |
||||||
Maximum linkage speed(m/min) |
130 |
130 |
130 |
130 |
130 |
||||||
Maximum acceleration |
1.2G |
1.2G |
1.4G |
1.2G |
1.2G |
||||||
Platform maximum exchange time(s) |
15 |
20 |
20 |
30 |
30 |
||||||
Positioning accuracy(mm/m) |
0.03 |
0.03 |
0.03 |
0.03 |
0.03 |
||||||
Repeat positioning accuracy(mm) |
±0.02 |
±0.02 |
±0.02 |
±0.02 |
±0.02 |
||||||
Optional laser power(w) |
1000w 1500w 2000w 3000w 4000w 6000w 12000w 15000w 20000w 30000w 50000w |
||||||||||
Machine weight(kg) |
4600 |
5850 |
5850 |
8200 |
8950 |
||||||
Overall dimension(mm) |
8350×2550×1800 |
9450×2550×1800 |
9450×3090×1800 |
11650×3090×1800 |
11650×3630×1800 |

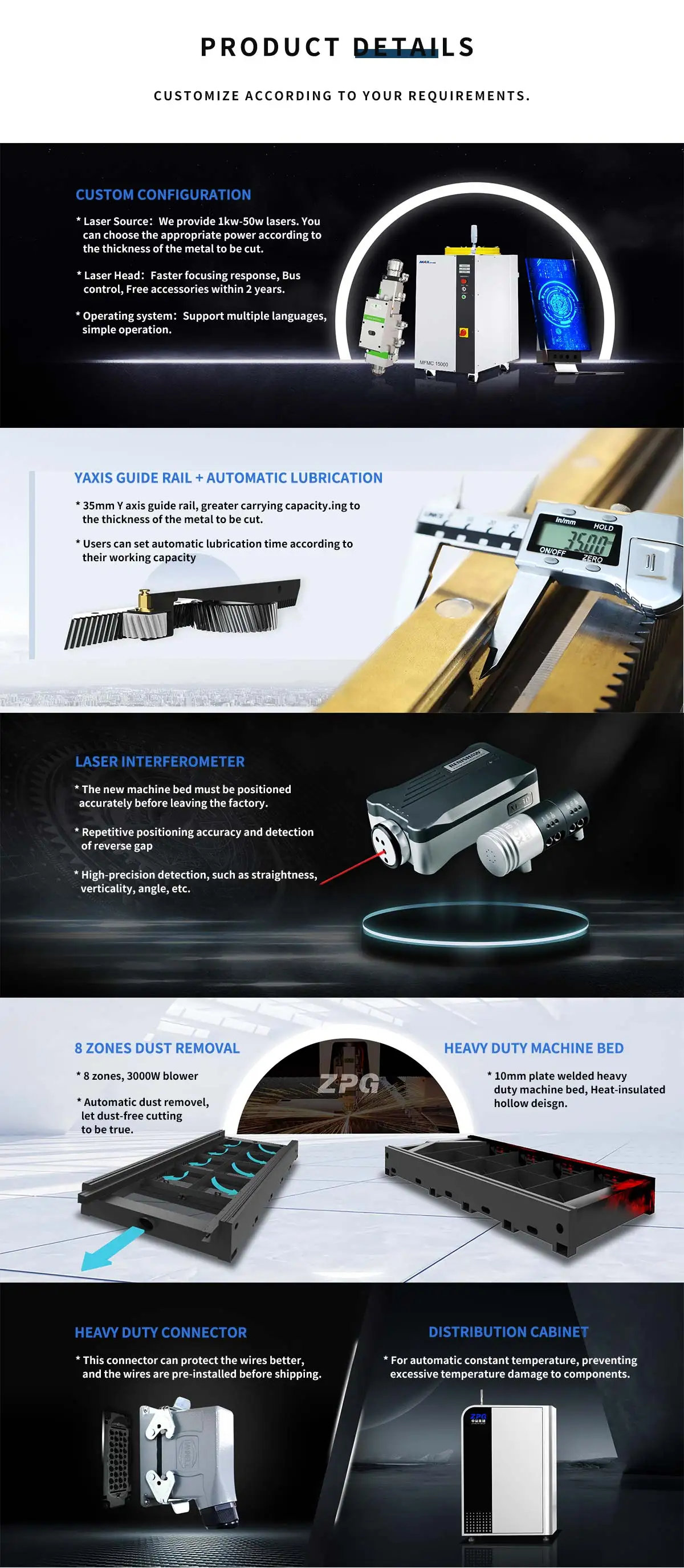

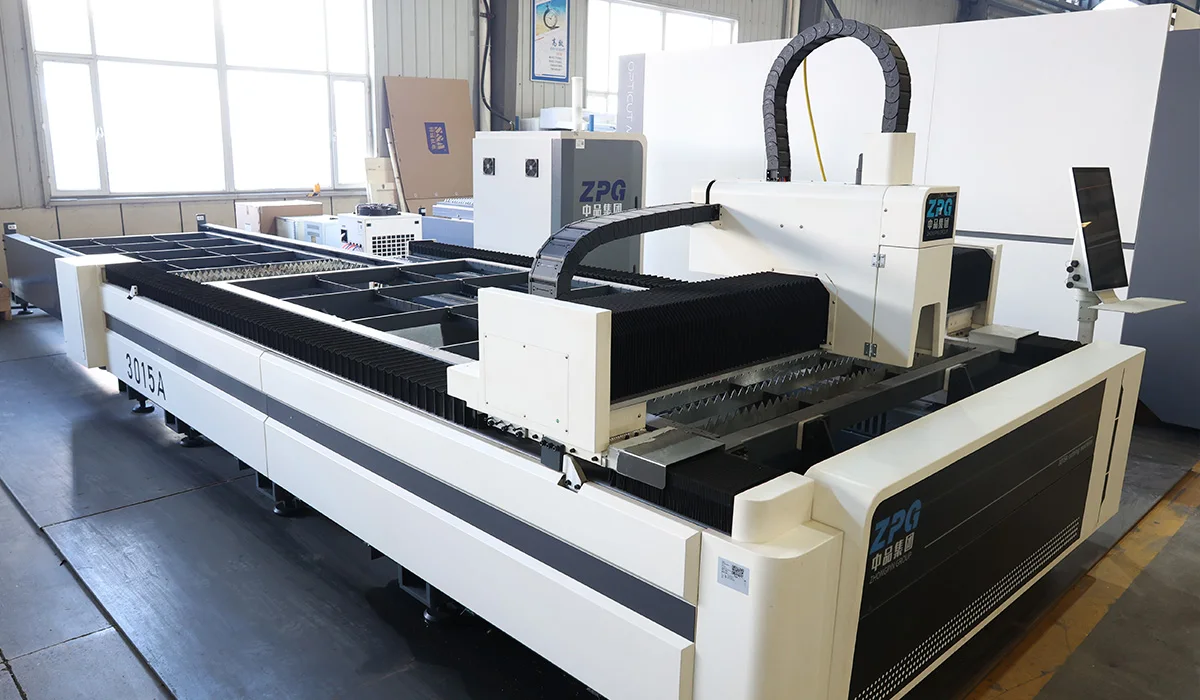

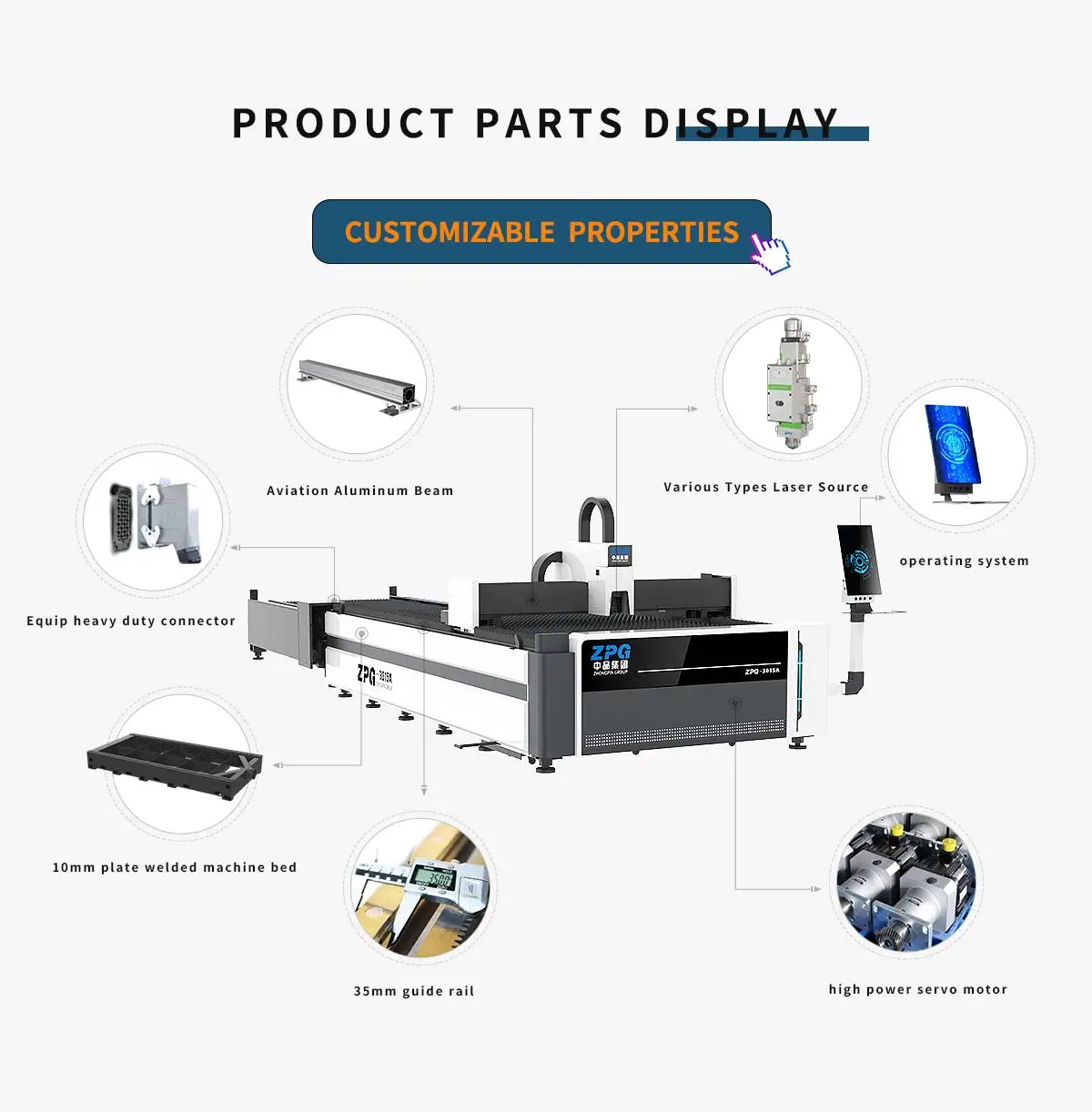

Details Images

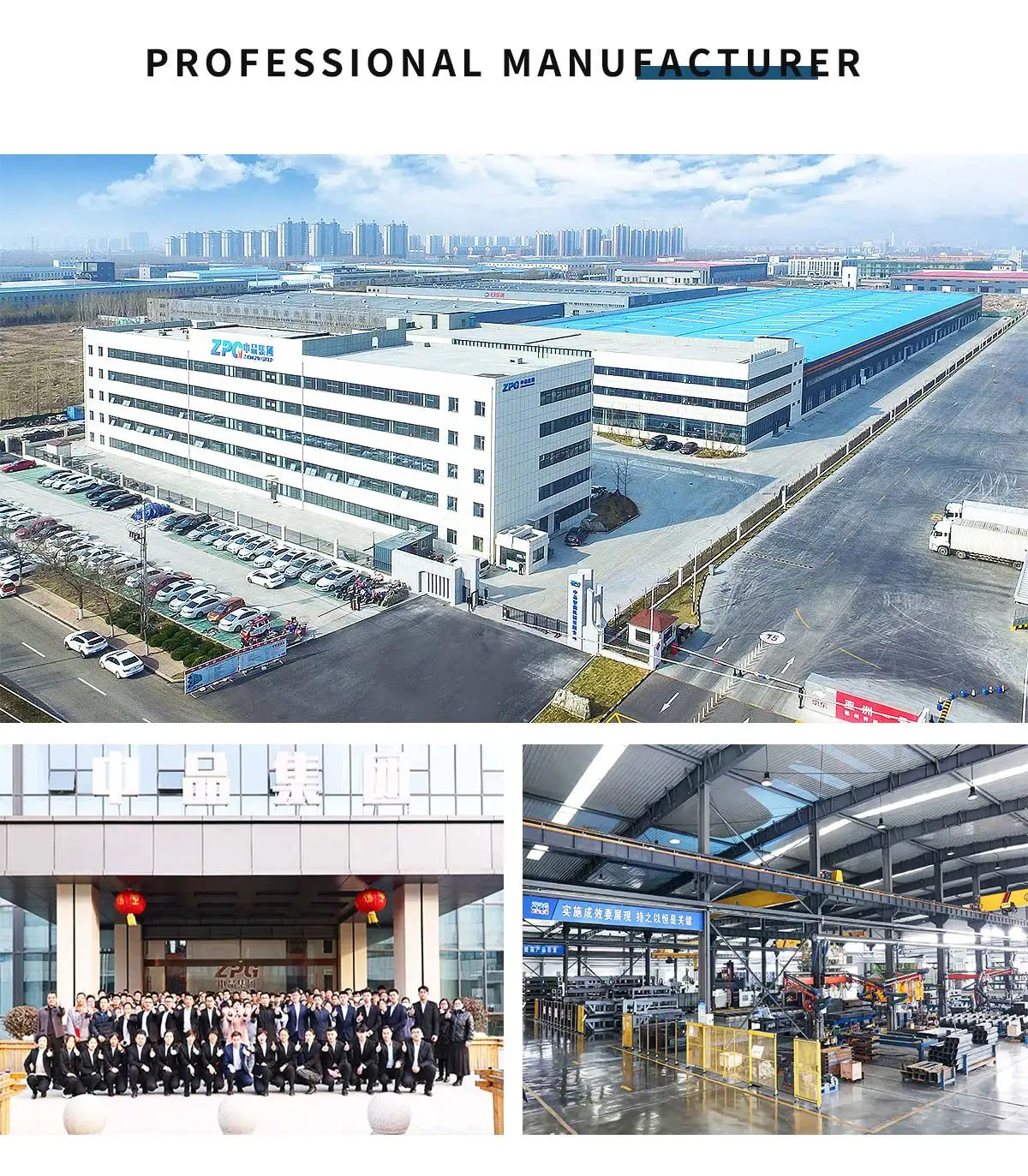

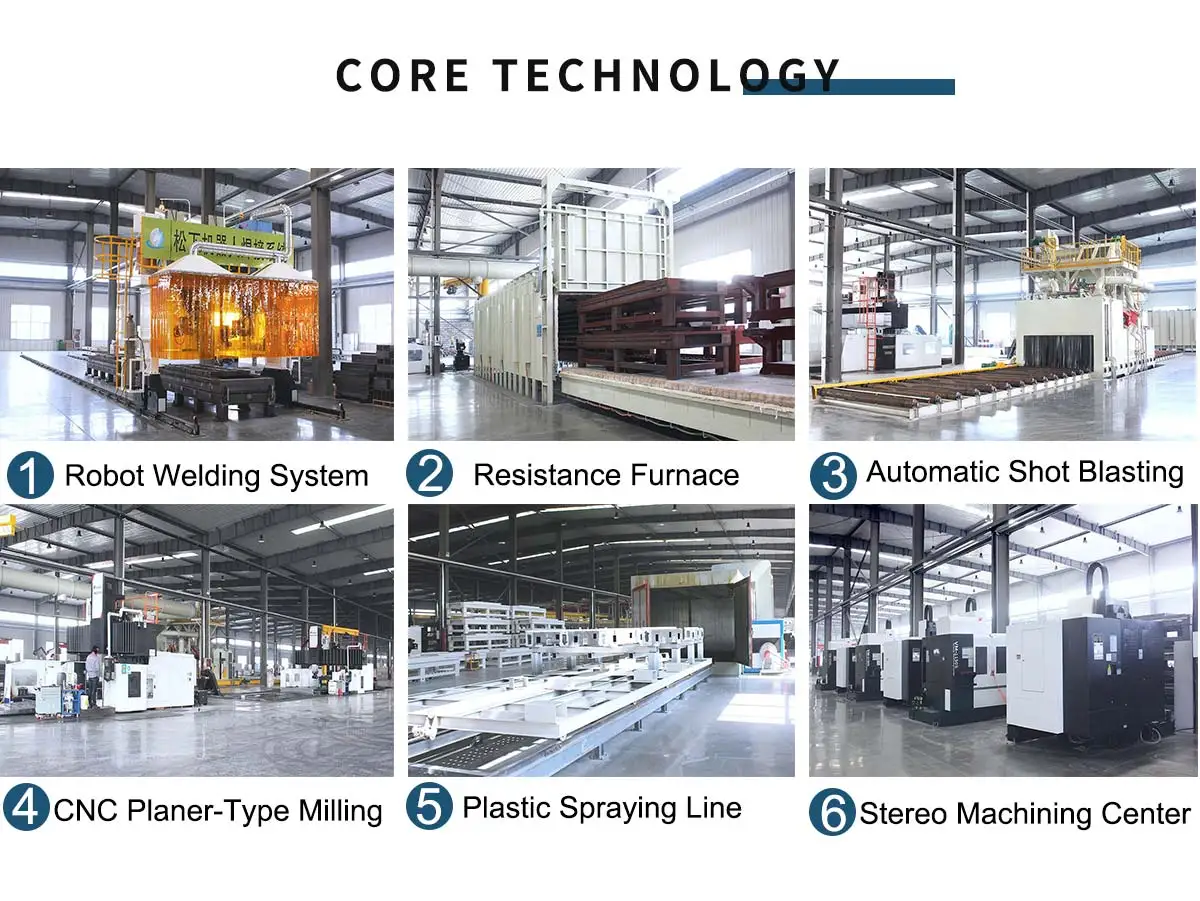

Company Profile




Exhibition

FAQ
1,I need a laser cutting machine, can you give me some suggestions?
A,Sure,we will give suggestions of the most suitable machine,Before that,we need to know some information,such as effective processing area,materials,etc.,to getermine the main parameters. in addition,Our machines can be customized according to buyers’ request.

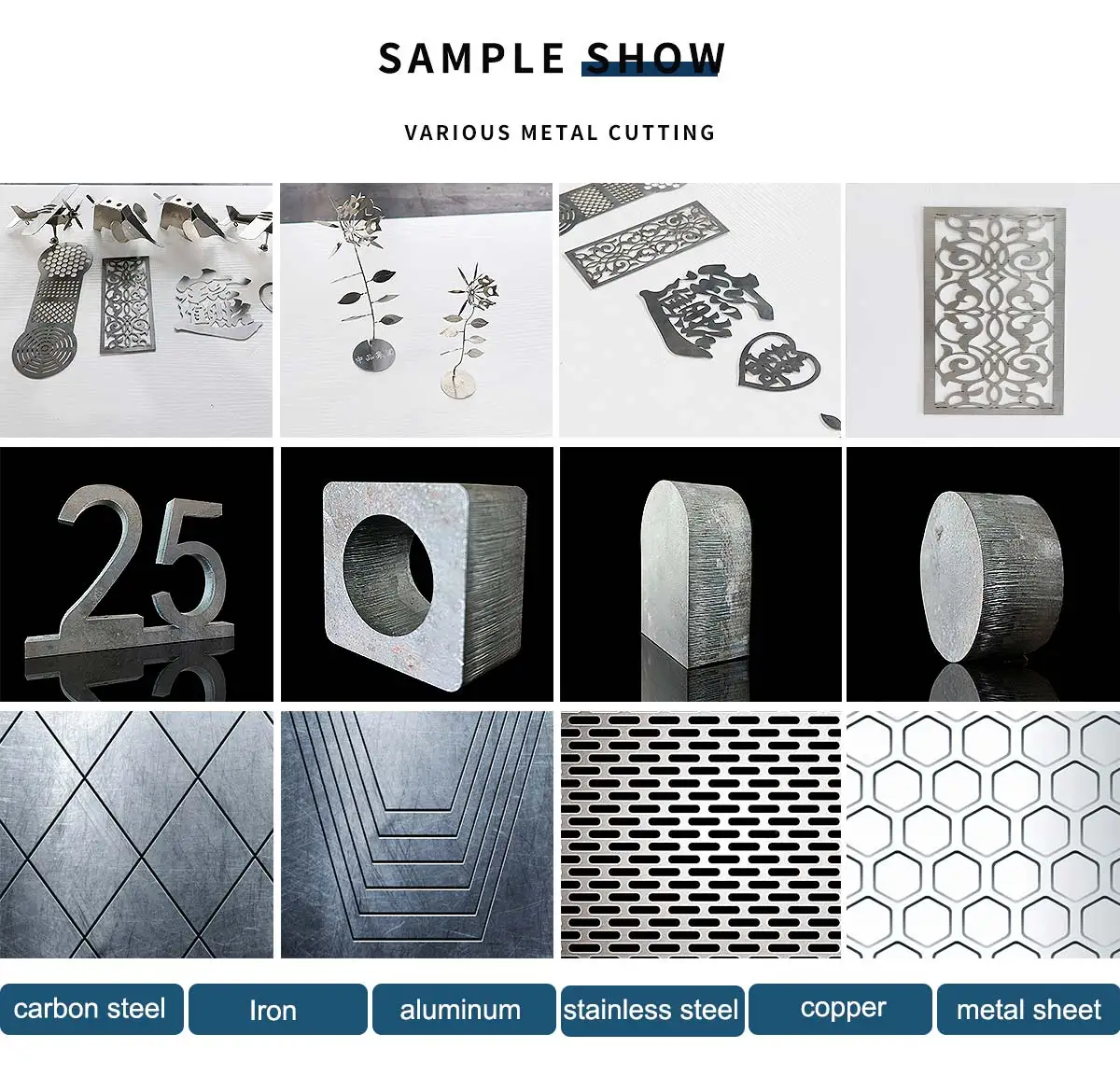

2,Which kind of materials can be processed on this machine?
A:Iron, aluminum, carbon steel, stainless steel, copper, hardware and another metal sheet materials.We have free training online. If there is big trouble with your machine in the warranty time, we can repair it.
3,Are you a factory or trading company?
A:We are the manufacturer and we have 10 years factory experience.As only the machine made by ourself,the quality can be tursted,and the most important thing is that we can do better after-sales service.We know how to fix the problem of every part easliy,so welcome to visit to our factory.
4,How should i pay for my order?
A:You need to pay 30% as prepayment at first,then we will start to make production.When the machine is completed,we will send pictures or videos to you,and then you need to pay the balance.We will ship the machine to you after we receive your full payment.
5,How long is the delivery time?
A:For standard machines,it will be 1-3 days;For non-standard machines and customized machines according to client' specific requirements,it will be 10 to 15 days.
