co2 laser cutting machine for metal and non-metal silver laser cutting machine
co2 laser cutting machine for metal and non-metal silver laser cutting machine
Couldn't load pickup availability

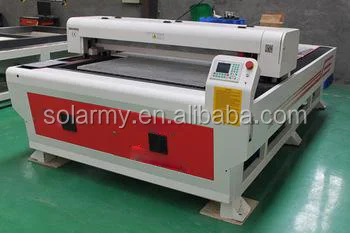

co2 laser cutting machine for metal and non-metal silver laser cutting machine
Applicable industry:Mainly used for advertising industry(stainless steel and acrylic),sheet metal industry(carbon steel),packaging industry(die board) and so on.
Applicable materials: acrylic,stainless steel,carbon steel,MDF,die board.

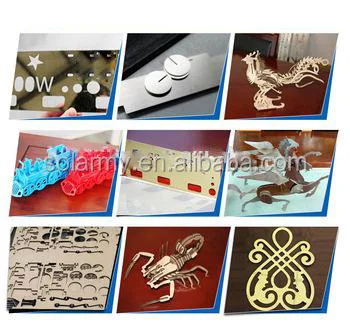

Typical case:metal spctacle frame,furniture plate cutting,MDF photo frame cutting,building model cutting,metal character for advertising.
Technical Parameters
Model |
1325GL |
Working area |
1300*2500mm |
Laser type |
Sealed CO2 laser tube |
Laser power |
150W LASER TUBE |
Working table |
Blade working table |
Cooling model |
water cooling and protect system |
cutting speed |
0-400mm/s |
Resolution rate |
±0.05mm |
Graphic format supported |
BMP PLT DST AI DXF,etc |
Controlling software |
DSP control system |
Compatible software |
CorelDraw,AutoCAD,photoshop |
Working voltage |
AC220V±10%,50-60Hz,10Amax |
Working temperature |
0-45°C |
Operating humidity |
5%-95% |
Machine configuration:
1, Beijing RECI / Jilin Wynn laser tube (laser power)
2, S&A chiller Or / Shanghai with the fly automatic water cooling system
3, Taiwan silver / Japan THK high-precision linear guide
4, high-precision pressure belt loop belt / Italy imported belt
5, the United States mainland optical lenses
6, high-precision heat treatment thick bed
7, the whole year warranty,standard with a set of automatic exhaust fan
Product Features :
1, the machine's ability to mix cutting: for stainless steel, carbon steel, acrylic, and wood can be cut.
2, the machine's high precision: X / Y Leashine simple servo, with high-precision belt transmission, greatly improving the device response speed and cutting accuracy, extending product life.
3, good stability: optimization of CNC system control, to meet the precision machining parts, and dynamic performance and stability, long-term sustainable work.
4, the cutting section of good quality: the use of mechanical follow-up cutting head system, the cutting head with the plate level follow-up, cutting point position remains unchanged, the kerf smooth, smooth, no post-processing section to adapt to the plane or curved sheet cutting .
5. This laser machine is sealed off CO2 laser, using the main consumables for electrical energy, cooling water, auxiliary gas and laser light.
6. The laser structure is simple, easy to operate, the laser operation is stable, low maintenance costs
