007TECH

co2 laser cutting machines laser engraving machine 100w with CCD camera 1325

co2 laser cutting machines laser engraving machine 100w with CCD camera 1325

Regular price ¥4,445.00 CNY
Regular price ¥29,629.00 CNY Sale price ¥4,445.00 CNY
Sale Sold out
Shipping calculated at checkout.
Model Number
Power

co2 laser cutting machines laser engraving machine 100w with CCD camera 1325





Product Description





 Parameter

Model JC-L1325
Laser medium CO2
Working area 1300*2500mm
Working table honeycomb table
Laser power 100W
Power Supply 220V/50Hz, 110V/60Hz
Min line width ≤0.15mm
Positon accuracy 0.01mm
Repetition accuracy 0.02mm
Cutting speed 150mm/s(According to the materails)
Guide rail Taiwan Hiwin
Transmission method Shanghai Fulong Belt Transmission
Drive system Leadshine driving system and stepper motor
Cooling system Water-cooling: water chiller(cw 5000)
Control system Ruida control system off-line
Control software Coreldraw, Photoshop, AutoCAD, Tajima
Graphic format support PLT,DXF,BMP,JPG,AI,etc
Working environment 0-45℃,
Operating Humidity 5-95%
Optional Rotary,up-down table,auto focus,honeycomb table

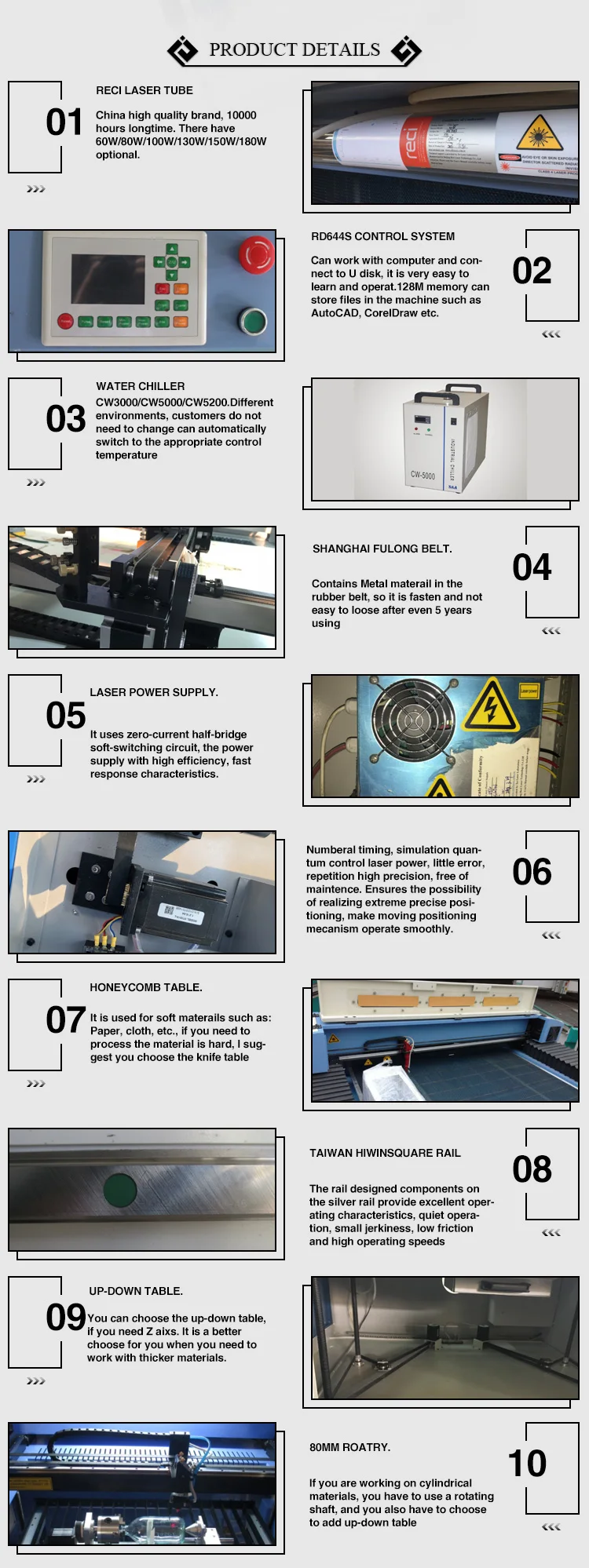

Configuration

1.Working area: 1300x2500mm

2.80W/100W/130W/150W reci laser tube (best in China)

3.RD-6442S Control system

4.Singapore lens and mirror

5.Leadshine drive system

6.Shanghai Fulong belt

7.Exhaust fan,air pump,water chiller

Advantages

1. Adopt CO2 Laser as its working lamp-sources, high technical product composed by proprietary software of laser engraving.
2. Automatic control system and precisely controlled working table
3. With simple operation, agile and convenient edition, compatible of various software: AutoCAD, CorelDraw, etc

4. Revolutionary structural design, end the old seal machine deformation.

5. Low noise, steady and reliable, maintenance free



Related Products



Advantage
1.Loading and unloading, engraving machine generally do not have the loading and unloading. Feeding machine will be the most basic feeding.
2.Positioning, engraving machine does not require flap, so do not need positioning. Boring machine in the opening punch required when the need for secondary positioning need positioning.
3.Processing speed, engraving machine does not require a wide range of cutting, feeding machine requires a wide range of cutting. Engraving machine need to do with lace knife shape. Boring machine is expected to open and punch.

Product display



This type machine is a kind of laser engraving machine system equipped with Co2 laser tube,it is used to engrave on acrylic, PVC, rubber sheet, plastic, , wood, bamboo, oxhorn, figuline,marble, leather, cloth, double-color board, etc. nonmetal materials .

Company Information



Packaging & Shipping



1. Packing wooden case is after fumigation treatment. Needn’t timber inspection,saving shipping time.
2.All the spare parts of the machine were covered by some soft materials,mainly
   Avoiding all damages that could happen in the delivery process.Then we’ll covered plastic wrap out

   it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3.The outmost is wooden case with fixed formwork.
4.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.

FAQ



List some questions below we think you may want to know, if you have more doubts,

 we are right here to help you.

1. Can we visit your factory?

We do welcome our new and regular friends come here to have a visit. Besides,

Wecan pick you up at the airport or the train station

2.If we donot know how to use the machine,can you teach us?

Yes,we will ,if you come to China,we will offer you free training until you can use

machine freely.

3.How about your after-sales service?

   We offer you 24 hours service phone,skype or MSN.

4.How about your guarantee period?

   One year and during the time,if you have  any questions ,we will solve it for free.

5.How to maintenance the CNC Router?

   a. First cut the power when maintain the machine. When check work must open the power,

       need the professional electrician to do this check work.

   b. Repair and replacement the parts, please first confirm the specifications of the technical.

   c. Regular clean the cooling system.

   d. Should always monitor the voltage and electricity grid of the CNC Router.

   e. Prevent the dust into the machine.

6. What's your payment term?

    30% advance payment and the balance payment should be paid before delivery but after inspection.
