    Customized 3015 1kw 1.5kw Fiber Laser Cutting Machine Metal 6kw 3000w Cnc Laser Machine for Stainless Steel Silver Gold Plate

    Customized 3015 1kw 1.5kw Fiber Laser Cutting Machine Metal 6kw 3000w Cnc Laser Machine for Stainless Steel Silver Gold Plate

    ¥4,387.00 CNY
    ¥101,984.00 CNY ¥4,387.00 CNY
    Sale Sold out
    Shipping calculated at checkout.
    Model Number
    Power
     More payment options
    Production Process

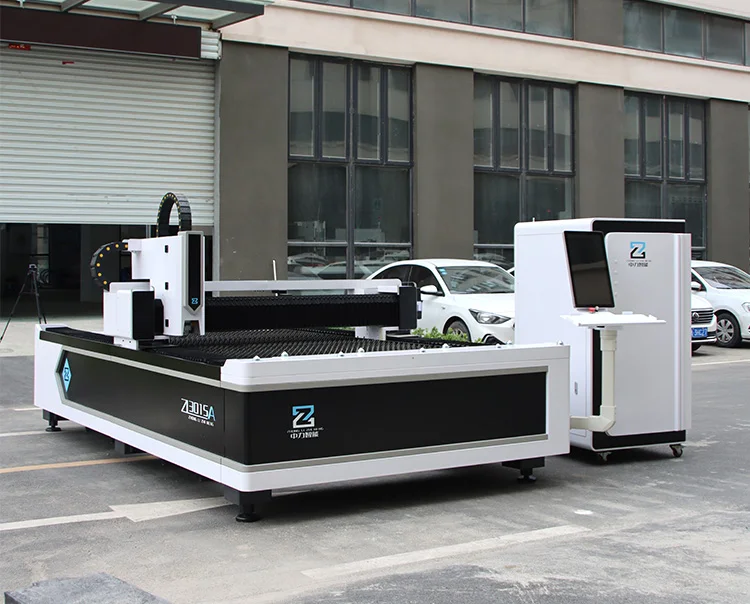

    About machine:
    Fiber laser cutter is a new type of metal laser cutting machine.

    Compared with ordinary Co2 laser cutting machines, fiber laser cutting machine saves space and gas consumption, and its photoelectric conversion rate is higher.


    Machine Parts

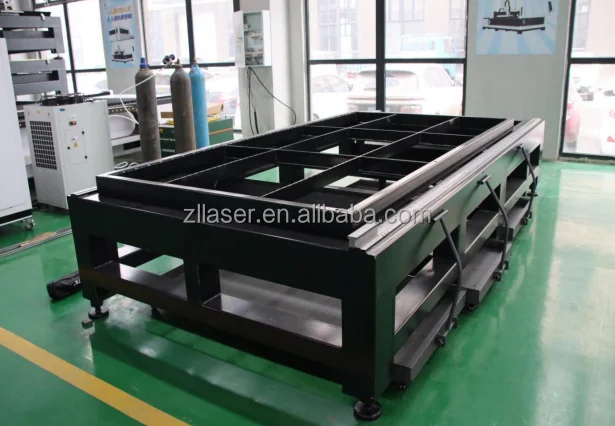

    Strong and Stable Structure
    - The bed is welded with big thickness square tubes, which can guarantee a good stability and ensure good accuracy. - With high temperature annealing and natural aging, the welding stress is eliminated, which can prevent the deformation of the bed , reduce vibration and guarantee a good cutting accuracy.
    Automatic Focus Cutting Head
    - Laser head with automatic focus function, which can adjust the focus automatically, no need to adjust it by hand.
    - Full-circle water cooling around the focusing component, which can realize no heat, no fog with high power cutting, small volume cutting and long term cutting, the lifetime of the cutting head is improved greatly.
    Aviation Cast Aluminum Beam
    - Machine adopts aviation cast aluminum beam, which is manufactured according to the aerospace standards. - The beam is processed by T6 heat treatment which can make the beam obtain the highest strength and strong deformation resistance.

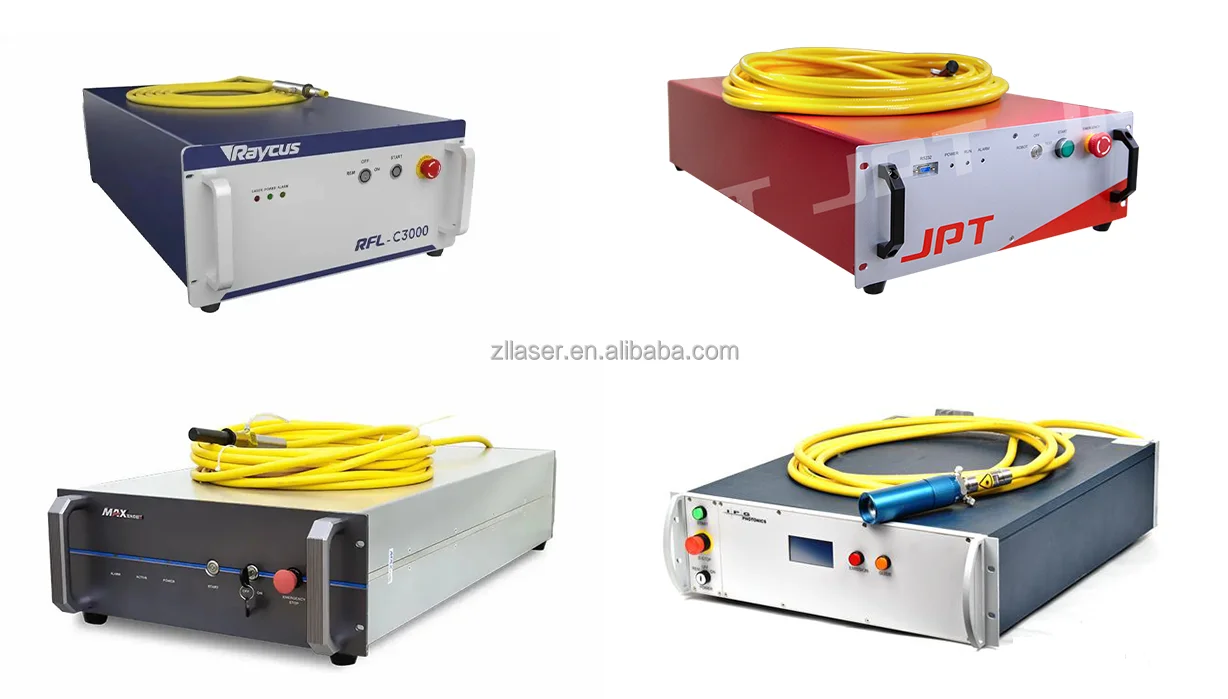

    Laser Source
    - Long life and maintenance-free operation - High electro-optical conversion efficiency - Good beam quality, high energy density - Remote networking diagnosis system - Wide modulation frequency - Strong reliability

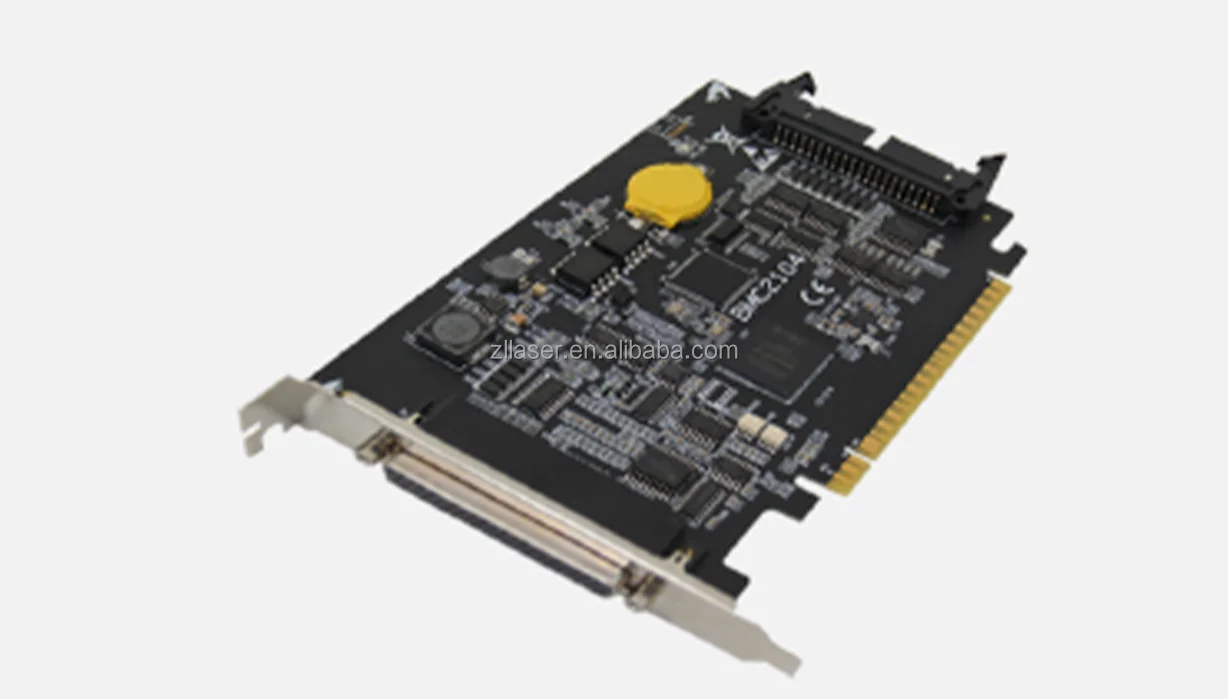

    FUSCUT Controller
    - FSCUT medium power laser cutting system is a full-solution open-loop control system specially designed for sheet metal fabrication industry, with features of easy to install and adjust, excellent performance and fully integrated solutions.
    Taiwan Hiwin guide rail ( Y axis 30mm)
    - High positioning accuracy - Low wear and long-term accuracy - Strong resistance to shock loads - Easy to assemble and interchangeable

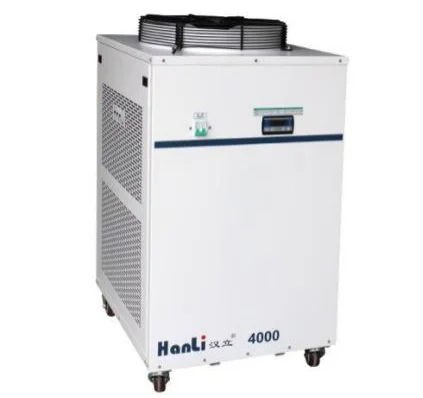

    Dual-temperature cooling system

    - Real time display current water temperature - Dual temperature dual control mode - Energy saving, electricity saving and environmental protection - Stable and reliable performance

    Electrical parts

    - Flame retardant shell, environmental protection. - 3C certification. - Quick close function. - Stable, it’s not affected by seasonal temperature easily.

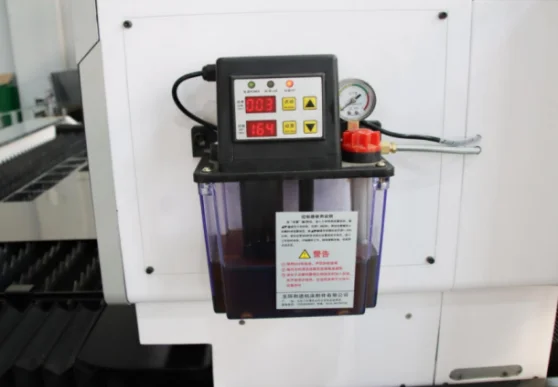

    Automatic oil lubrication device

    - We can control the lubrication time and frequency through central control system. - It can lubricate sliders, rails, racks, etc, also it can gather the used lubricating oil automatically. - With lubrication abnormality alarm and low liquid level alarm functions to help maintain the fiber laser cutter.

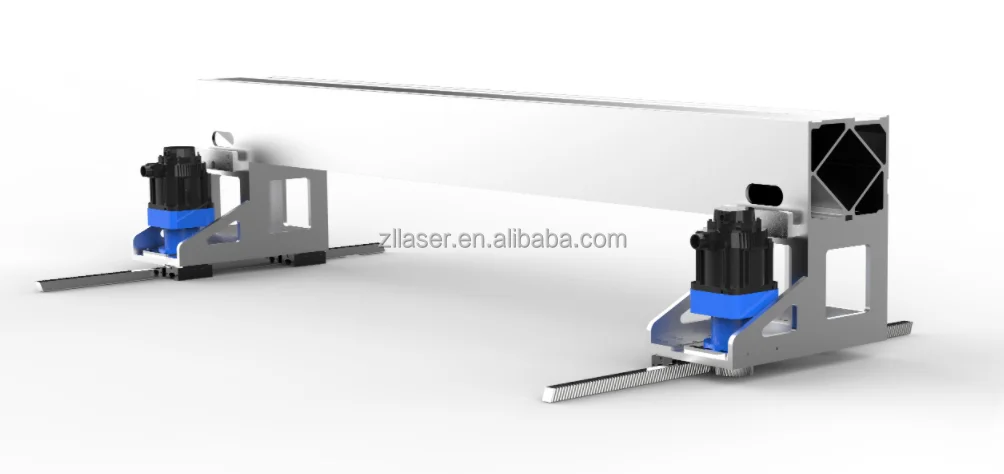

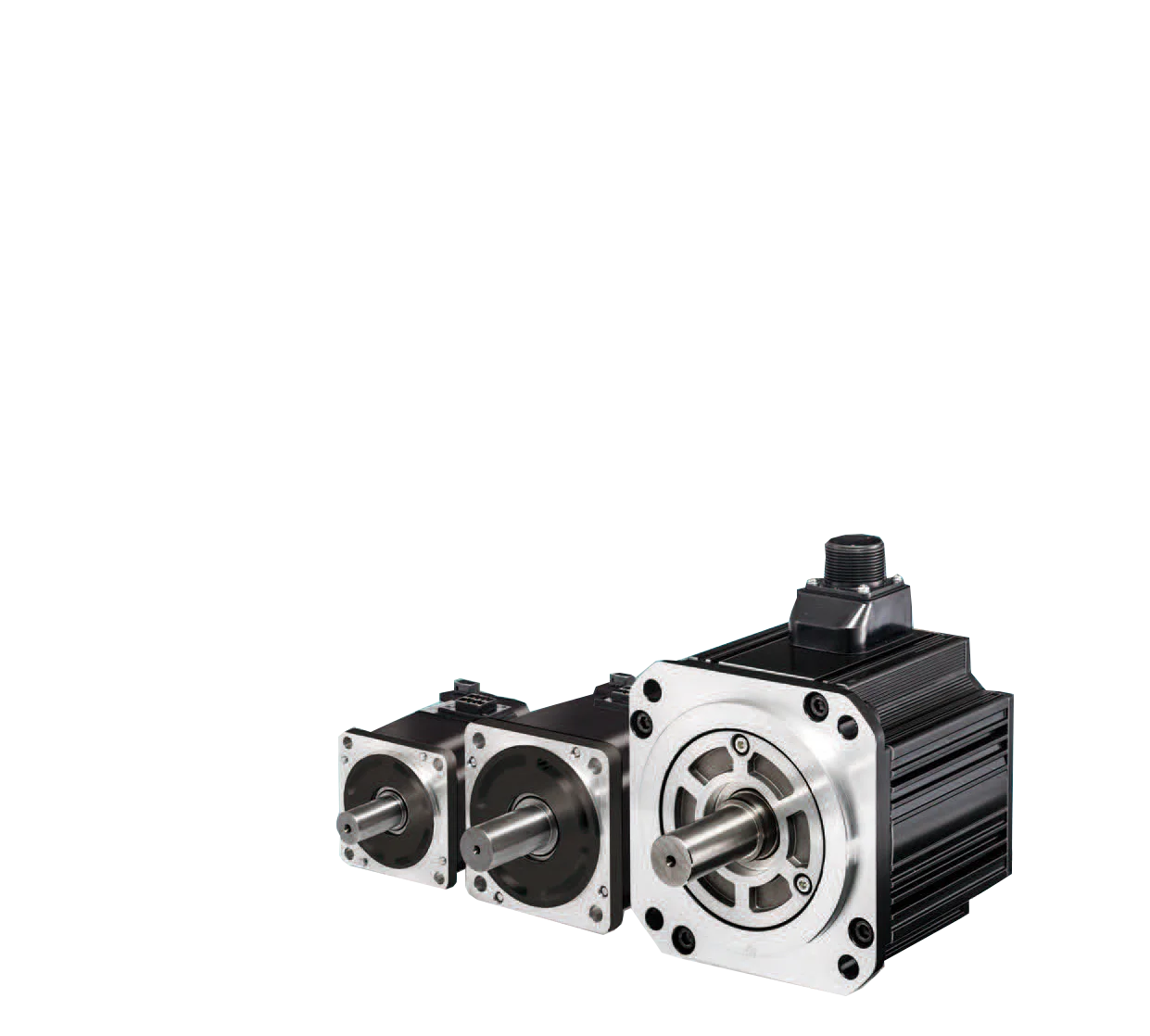

    Japan Fuji Servo motor and drivers

    - Closed-loop control, no lost steps, high precision. - Good high-speed performance, rated speed can reach 3000 rpm generally. - Running smoothly even at low speed. - Fast response time, high reliability.

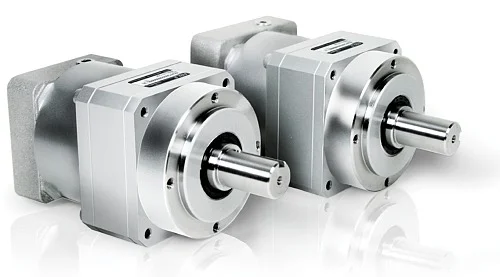

    Japan Shimpo reducer

    -High output torque with small rotation clearance -PCS-2 standard configuration, efficiency up to 98% -High gear meshing accuracy

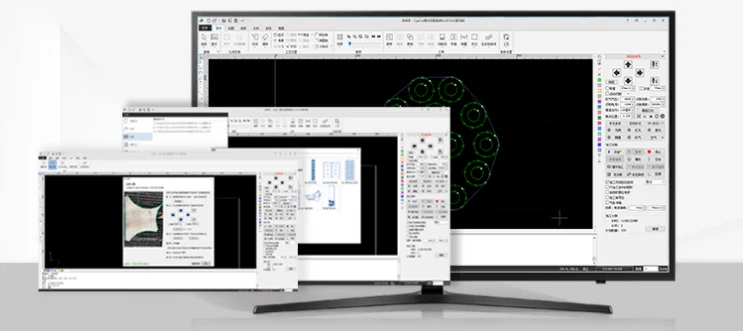

    Intelligent operation software

    - Cypcut is one professional software for fiber laser cutting, easy operation and its is suitable for many different processing occasions - With rich functions, the date viewing is more intuitive and efficient, helping users manage production tasks intelligently.

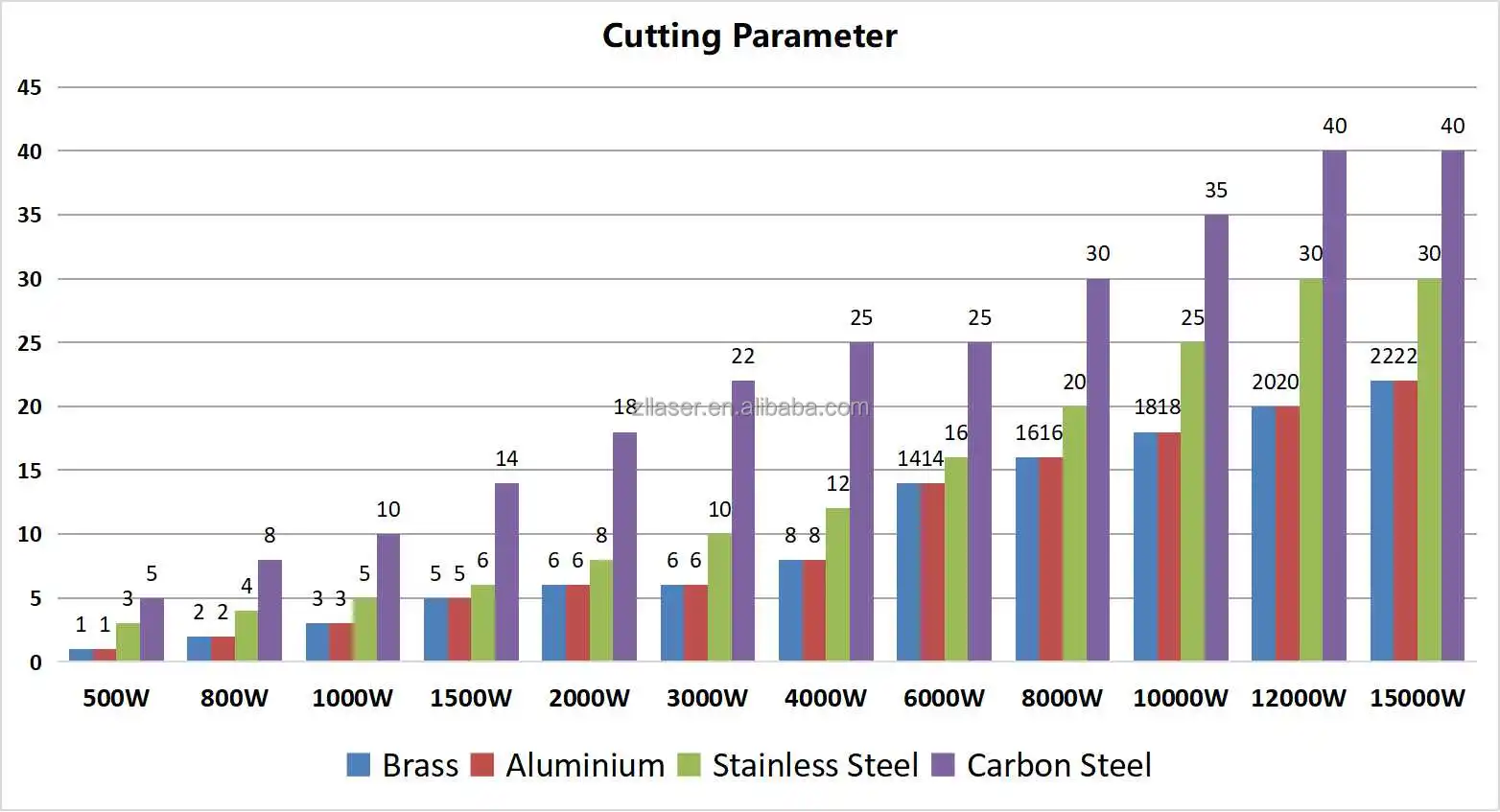

    Different laser generators can help us to cut different thicknesses.
    Please tell us your materials, size and thickness, then we will recommend you suitable model and power.
    Specification
    Machine Model
    ZL1313A/1390A
    ZL-3015A
    ZL-4015A/4020A
    Customize
    Fiber Laser Power
    1000W / 1500W / 2000W / 3000W / 4000W / 6000W / 8000W / 12000W / 20000W
    Acceleration
    0.6G/0.8G/1.0G/1.5G/2.0G
    Moving speed
    50m/min
    Max Cutting speed
    120m/min
    Laser Wavelength
    1,070-1,080nm
    Position Accuracy
    ±0.02mm
    Repeatability Accuracy
    ±0.02mm
    Motor and Drivers
    Japan Fuji; Japan Yaskawa ; Taiwan Delta
    Transmit system
    Dual Rack & Pinion type
    Control System
    FSCUT / Au3Tech / Raytools / Weihong
    Cutting Head
    Raytools / Au3tech / FSCUT / Ospri / WSX / PRECITEC
    Reducer
    Japan Shimpo / France MOTOVARIO / Germany Lead-motion
    Liner Guider System
    Taiwan Hiwin / Taiwan PMI / Italy PEK
    Gear Rack
    Taiwan YYC / Germany HERION
    Electrical components
    Schneider made in France
    Water Chiller
    Guangzhou S&W / Wuhan Hanli / DVT
    Optional
    Rotary; Exchanging Table ; Protective Cover
    Power supply requirement
    3 phase 380v 50HZ / 60HZ (customized)
    Processing material
    Stainless Steel / Carbon Steel/ Galvanized steel / Aluminum / Copper/ Iron, etc

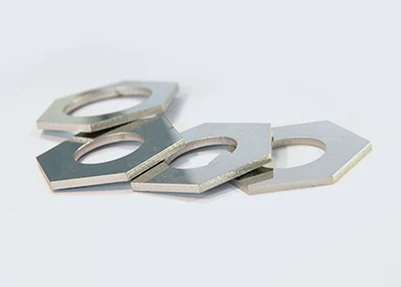

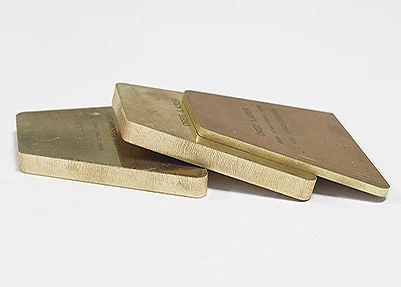

    Sample Display
    Fiber Laser Cutting machine can cut many metal materials, such as stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized plate, aluminized zinc plate, pickling plate, copper, silver, gold, titanium, and other metal plates and pipes.
    Company Profile

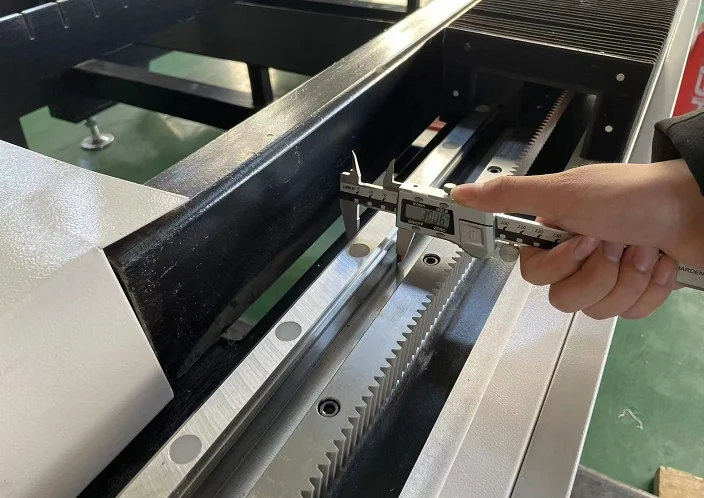

    ZLTECH Laser is a professional manufacturer of fiber laser cutting machine. We have strict and systematic quality control for each process, from material, production to delivery. We use high-tech precision instruments to measure the accuracy and transmission speed of the machine. The main tests include track transmission accuracy level test, cutting head vertical test, bed parallel and vertical test, etc. In order to ensure high precision, each equipment has undergone fine milling and high temperature aging treatment, and the structure will not be deformed after long-term use. To provide customers with tailor-made services to meet different work needs, ZLTECH has established an independent R&D department with 12 professional engineers. ZLTECH will update and innovate regularly.
    FAQ
    Q1. Are you a factory or a foreign trade company?
    We have our own factory, also we have OEM and QC team to guarantee every process is good.

    Q2. Do you offer after-sales service?
    Yes sure. Our warranty is 3 years, if any parts broken during warranty, we will send you parts free of charge. Also our engineers will provide you support online or on site.

    Q3. Which model should I choose?
    Please tell us your materials, thickness, size and the cutting objects (plates, tubes, etc) then we will provide you professional suggestions.

    Q4. How about the shipping cost?
    Sea transportation, we choose 20-foot container or 40-foot container according to the size you buy. We have a shipping company that has cooperated for many years, which can help you save costs.

    Q5. How about the price?Can you make it cheaper?
    The price depends on your needs (function, size, quantity) We will quote you the best discount after receiving your inquiry.

    Q6. Do I need the gas for my fiber laser cutting machine?
    Yes. The compressed air, O2 or N2 are necessary for one fiber laser cutter. For different materials, it will require different gas. Please talk with our sales to get professional suggestion.
