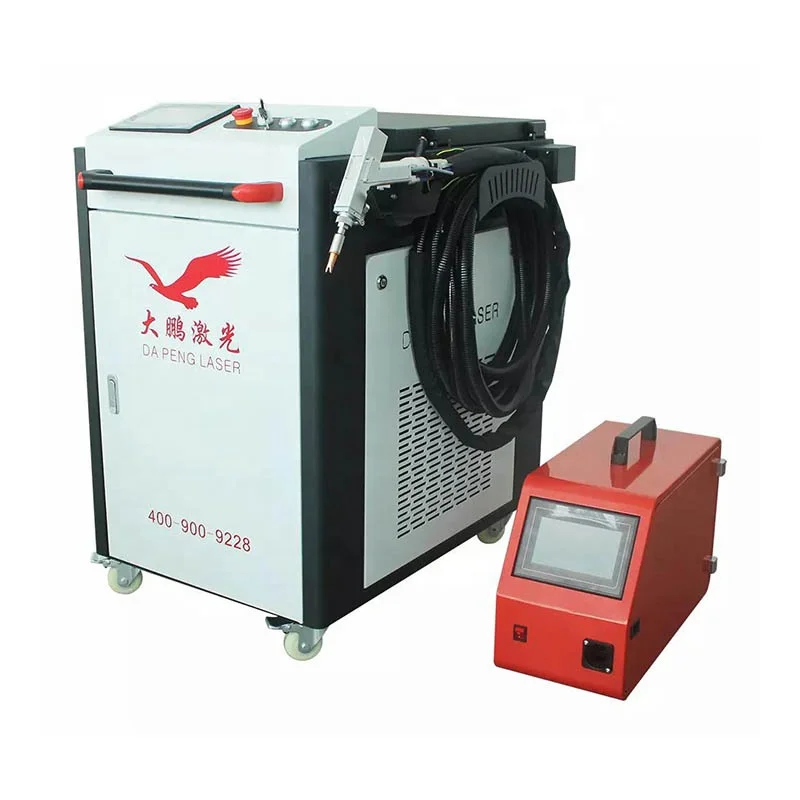

Dapeng Laser Fiber Laser Welding Machine with Raycus Laser Source for Brass and Aluminium

Dapeng Laser Fiber Laser Welding Machine with Raycus Laser Source for Brass and Aluminium

Regular price ¥741.00 CNY
Regular price ¥741.00 CNY Sale price ¥741.00 CNY
Sale Sold out
Shipping calculated at checkout.
Material

Dapeng Laser Fiber Laser Welding Machine with Raycus Laser Source for Brass and Aluminium

Product Description

Model features:
High energy density, low heat input, small amount of thermal deformation, and narrow melting depth in the heat and heat affected zone of the melting zone.

The cooling rate is high, so that the weld structure can be fine and the joint performance is good.

Compared with contact welding, laser welding eliminates the need for electrodes, reducing daily maintenance costs and greatly improving work efficiency.

The weld is fine, the penetration is large, the taper is small, the precision is high, the appearance is smooth, flat and beautiful.

No consumables, small size, flexible processing, low operating and maintenance costs

The laser is transmitted through the optical fiber and can work with the assembly line or the robot.

The touch switch is equipped with a safety clip, and the laser beam can only be emitted when the welding nozzle touches the metal.

Red light positioning is used to verify the position during welding.

The laser welding machine adopts 1000-2000 watt fiber laser source, which has high photoelectric conversion efficiency and long life of 100,000 hours. The energy provided by electric energy is 25%-30% converted into laser energy, and the photoelectric conversion rate is many times that of YAG laser.


Model

DPH-1000

DPH-1500

DPH-2000

DPH-3000

Laser Out Power

Fiber source

Fiber source

Fiber source

Fiber source

Laser Source Type

1000W

1500W

2000W

3000W

Laser Wavelength

1070nm

1070nm

1070nm

1070nm

Laser Source

Raycus/Max/IPG

Raycus/Max/IPG

Raycus/Max/IPG

Raycus/Max/IPG

Focal Spot Diameter

0.5-2mm

0.5-3mm

0.5-4mm

0.5-5mm

Laser Frequency

1-50Hz

1-50Hz

1-50Hz

1-50Hz

Repeatability

±0.01mm

±0.01mm

±0.01mm

±0.01mm

Machine Operating Temperature

0~40℃

0~40℃

0~40℃

0~40℃

Electricity Demand

220V/380v

220V/380v

220V/380v

220V/380v

Cooling Method

Water chiller

Water chiller

Water chiller

Water chiller

Continuous Operating Time

24 hours

24 hours

24 hours

24 hours

Weight

150kg

150kg

150kg

150kg

Dimensions

120*60*104cm

120*60*104cm

120*60*104cm

120*60*104cm

Laser Control System

Dapeng Touch screen

Dapeng Touch screen

Dapeng Touch screen

Dapeng Touch screen

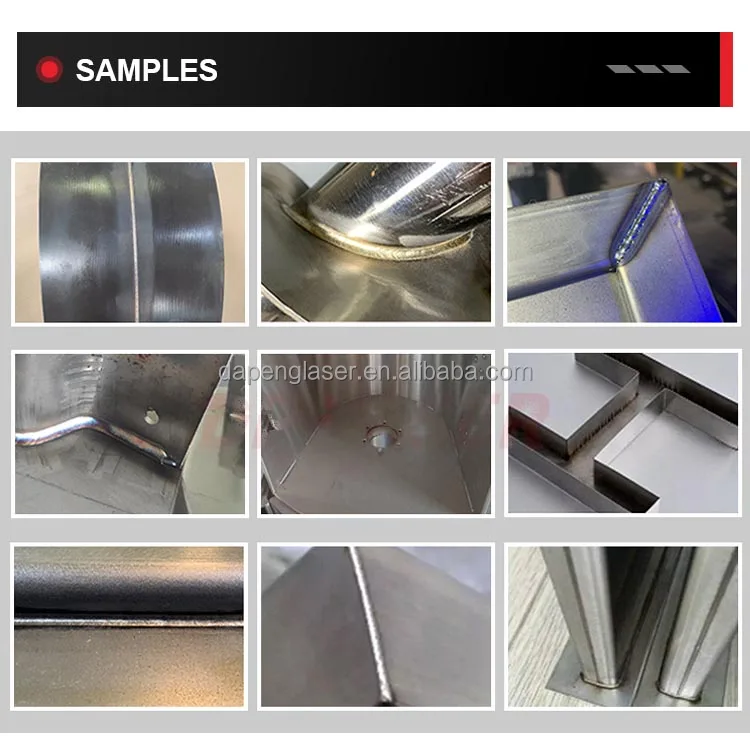

Sample

Used for welding all kinds of stainless steel mirror words, stainless steel brushed words, stainless steel spherical characters, stainless steel paint characters, stainless steel spray words, stainless steel solid words, stainless steel plating words, stainless steel gold foil words, precision stainless steel characters, titanium flat words, titanium spherical surface word, seiko titanium, flat cooper, spherical copper, copper;



copper antique, seiko aluminum, Iron paint (stainless steel, iron, low carbon steel), metal word welding, lighting and mould industry, optoelectronic communication devices, medical, electronics, copper parts, aluminum parts and small welding processing industry.



Company Information

Company Profile
Shenzhen Dapeng Laser Technology Co, Ltd. was established in 2011. It is a laser equipment high-tech enterprise that integrates R&D, manufacturing, sales and service. It is dedicated to laser process R&D, laser equipment design R&D, production, technical support, service and consulting.

Our company's main products include: laser cutting machine, laser welding machine, laser marking machine, industry-specific and automated laser equipment, etc, applied to electronics, IC chips, electrical appliances, lighting fixtures, jewelry, hardware tools, sanitary ware, instruments Instrumentation, automobile and motorcycle accessories, mobile phone communications components, molds, precision machinery, medical equipment, IT digital, metal housing, military aviation components, garment leather, craft gifts, advertising decoration, models, cookware, kitchen utensils and other industries.

Dapeng laser product quality are stable and reliable, with a professional R & D team, while pursuing excellent quality, Dapeng laser also provides customers with timely, comfortable pre-sale, sales, after-sales service and excellent cost-effective products. Dapeng Laser has won the trust and praise of customers by implementing the business philosophy of "helping customers succeed, creating value models, and building industrial laser equipment industry to serve high-end brands". Customers are located throughout the country and overseas. In 2016, sold more than 5,000 laser equipment.

Our company has established a complete production and sales and after-sales service system, has production bases in Shenzhen, Wenzhou,Kunshan and Xiamen, has a large-scale laser cutting machine production base in Dongguan, and has offices in major domestic industrial cities and regions. There are equipment demonstrations, process proofing, sales and after-sales services, and resident technical service personnel, to provide customers with timely, comfortable pre-sales, sales, after-sales support and services.

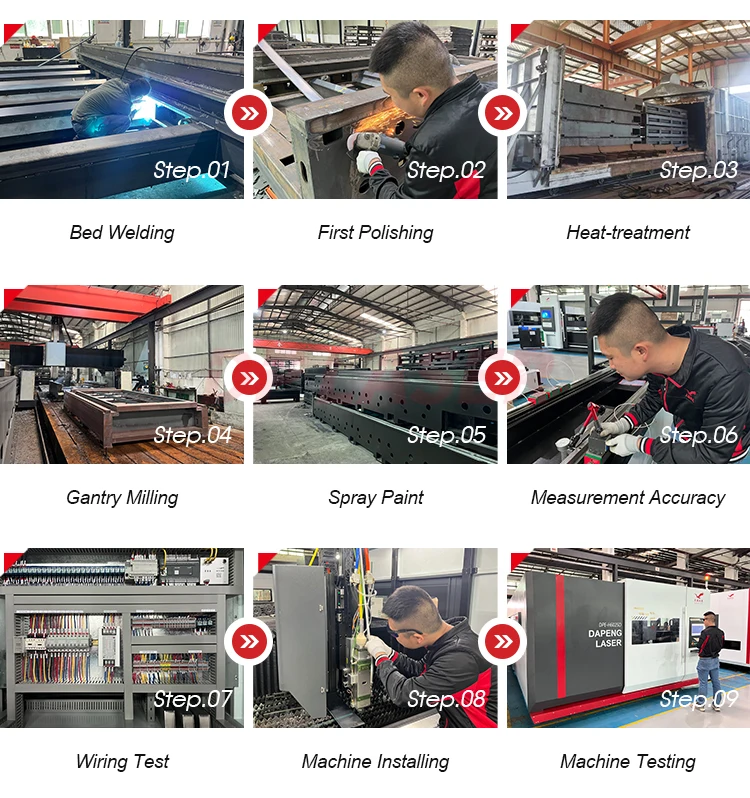

Our Workshop






Why Choose Us
Why Choose US
Dapeng Laser has established a complete production and sales and after-sales service system, has production bases in Shenzhen, Wenzhou,Kunshan and Xiamen, has a large-scale laser cutting machine production base in Dongguan, and has offices in major domestic industrial cities and regions. There are equipment demonstrations, process proofing, sales and after-sales services, and resident technical service personnel, to provide customers with timely, comfortable pre-sales, sales, after-sales support and services.

Dapeng people know that quality and service are fundamental to the survival of the company. Innovation is the foundation for the long-tem development of the company. It helps customers create value and strives to build a well-known brand in the laser equipment industry.





Laser Welding Machine Team           Laser Cutting Machine Team           Oversea Marketing Team

Our Exhibition
Our Exhibition




Our Certificates

Our Certificates







Packing & Delivery

Packing & Delivery



FAQ
FAQ:
Q1: I know nothing about this machine, what kind of machine should I choose?
Don't worry, you just need to tell us below simple info, then we will give you professional suggestion and quote you price very soon.
1. What do you want to cut? Sheet, pipe or both?
2. Material of the metal
3. Max thickness
Q2: When I get this machine, but I don't know how to use it. What should I do?
We will send teaching video of both installation and operation, as well as the English manual. If you have further questions, we have engineers who can speak English can serve you on-line directly.
Q3: If the machine have problems or borken in the future, what can you do for me?
We guarantee machine quality for 13 months, during this period, if spare parts of the machine were not man-made damaged, we can send the component to the customer by DHL, UPS freely. Besides guarantee period, we still provide you free online services for life. If parts broken, you can order replacement parts from us.
