desk top ipg raycus max jpt fiber laser marking machine 20w 30w 50w for plastic steel aluminum
desk top ipg raycus max jpt fiber laser marking machine 20w 30w 50w for plastic steel aluminum
Regular price
¥4,375.00 CNY
Regular price
¥21,874.00 CNY
Sale price
¥4,375.00 CNY
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
fiber laser marking machine

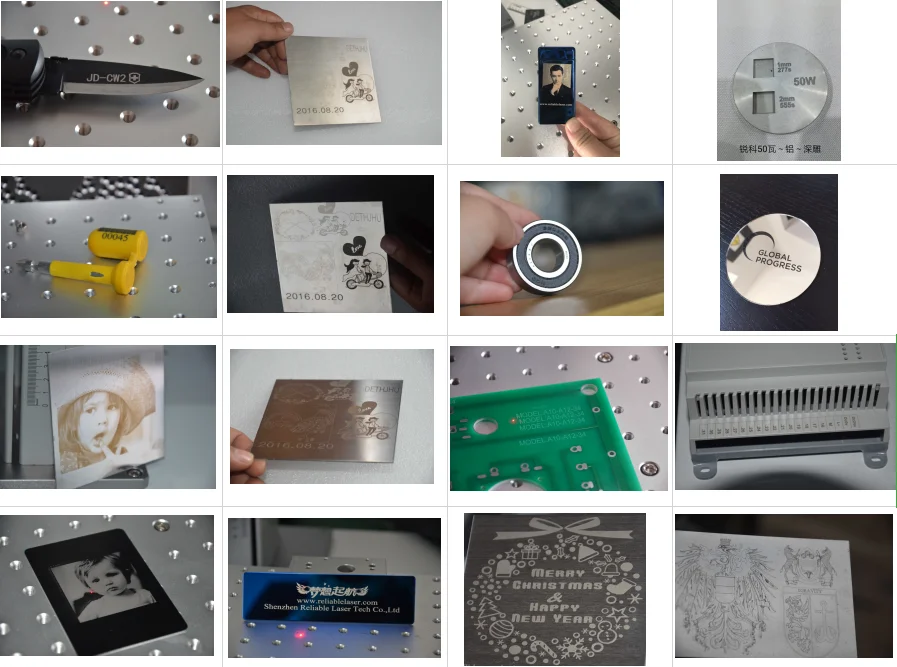

application:
mobile phone keypads, nonopaque plastic keypads
electronic components,integrated circuits,electrical appliances
communication products, sanitar wares,tool accessories, cutters
watches, glasses, jewelry,auto parts,boxes, bags,clasps,cookers,
stainless steel products,etc
parameters
| marking size |
70*70mm 110*110mm 150*150mm 175*175mm 200*200mm 250*250mm 300*300mm |
| fiber laser power | 20w 30w 50w 60w 100w |
| laser brand | raycus, max, ipg , jpt |
| fiber laser wave length | 1064nm |
| laser repetition frequency | 20khz-100khz |
| laser source | fiber module |
| laser head | sino gulvo scanning head |
|
the minimum focus facula diameter |
20um |
| minimal character | 0.01mm |
| marking speed | below 7000mm/s |
| repeated accuracy | 0.0025mm |
| cooling ways | force air cooling |
| power supply | 220v 50hz 2kva |
| support format | PLT,BMP DXF, JPG TIF,AI |

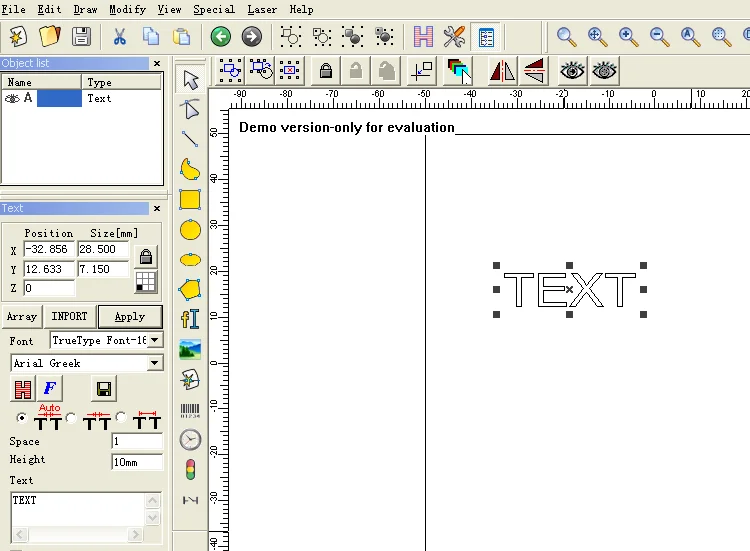

| controller | ez cad jcz |
| f theta lens | opex |
| packing information | 89*58*83cm 82kg |
| optional | rotary, feeding belt, auto focus |
| appliable material | metal, plastic,coated aluminum |
