    Easy use CNC Laser engraver cutter and Co2 Laser cutting machines manufacturer 1390 100W/130W/150W for Non-metal wood plywood

    Easy use CNC Laser engraver cutter and Co2 Laser cutting machines manufacturer 1390 100W/130W/150W for Non-metal wood plywood

    ¥4,387.00 CNY
    ¥26,320.00 CNY ¥4,387.00 CNY
    Sale Sold out
    Shipping calculated at checkout.
    Power
    Model Number
     More payment options
    Product Description
    Specification
    Product
    CO2 Acrylic Laser Cutting Engraving Machine
    Model
    DH-1390
    Working Size
    1300mm*900mm(42.5'*29.5')
    Laser Type
    CO2 Laser
    Laser Brand
    Reci, Yongli, EFR On Optional
    Laser Power
    80W, 100W, 130W, 150W On Optional
    Cooling System
    Water Cooler CW5000
    Engrave Speed
    0-800mm/s
    Cut Speed
    0-400mm/s
    Control And Drive
    High Speed Offline DSP Control
    Voltage
    220V±10%, 50-60HZ
    Power
    ≤2000W
    Working Table
    Blade or Honey Comb Table On Optional
    Machine Size/Weight
    2000*1620*1280mm/450KGS
    787.4*637.8*503.9'/992.08lb
    Packing Size/Weight
    2060*1640*1320MM/480KGS
    811.02*648.67*519.9/1058.22lb
    Standard Accessories
    Air Pipe, Hose Clamp, User Manual, Power Cable, Network Cable, Focusing Plate, Key, Inner Hexagon Wrench, Air Exhaust Fan, Air
    Pump.
    Machine Application
    Acrylic Product Cutting

    Wooden Product Cutting

    Cloth Material Cutting

    Other Materials Cutting And Engraving

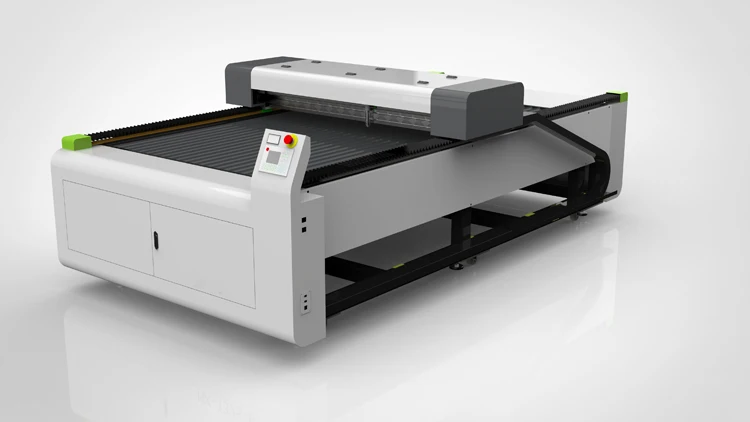

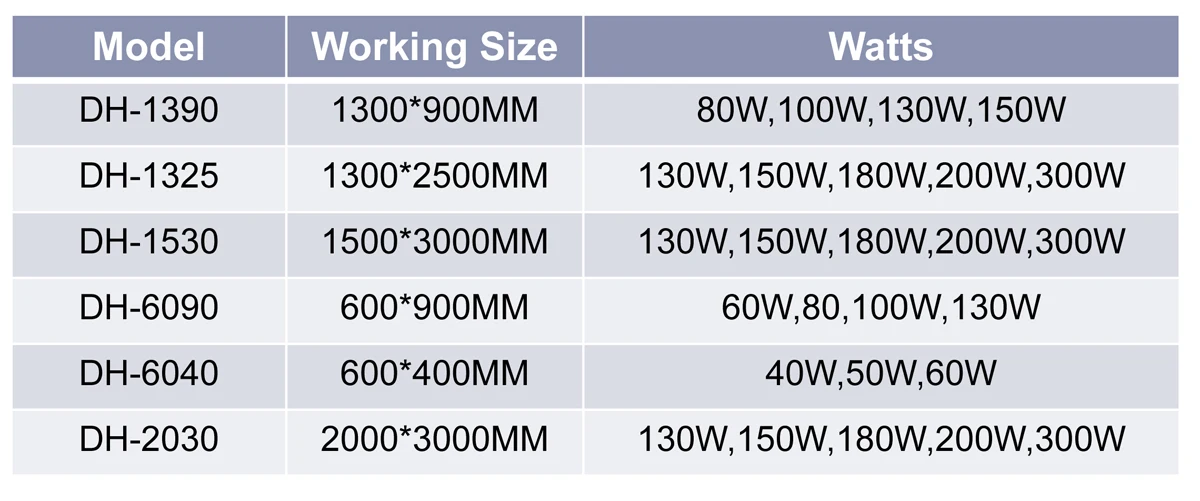

    Other Model On Option
    More Model On Your Option
    Different Models on your choose to meet customer' request. OEM and custom-made machine color and design accepted.
    Machine Main Parts

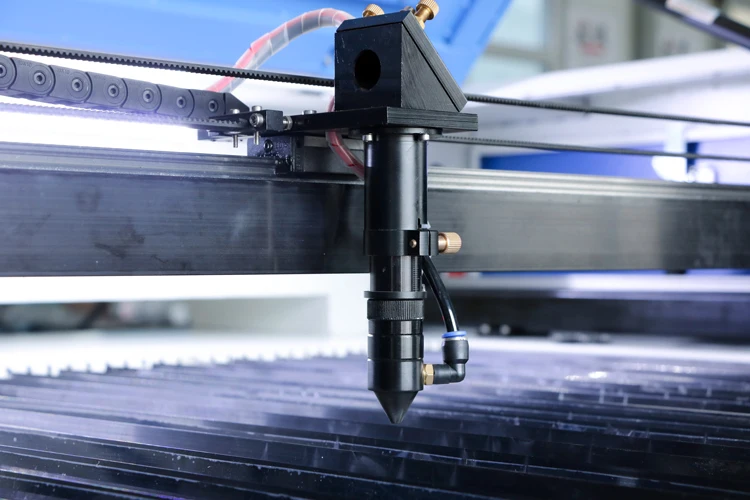

    Cutting Head


    Industrial Grade Laser Cutting Head
    Long-Span Life Time
    High Speed Cutting And Engraving
    High Cutting Precision

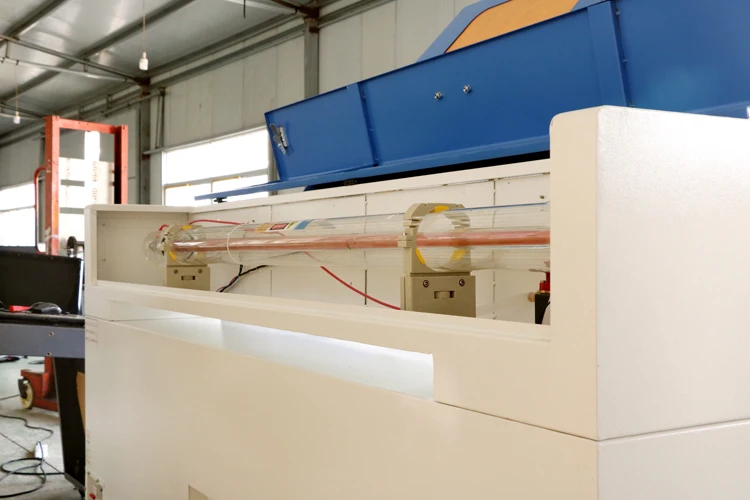

    Laser Tube


    Reci, Yongli, EFR On Option

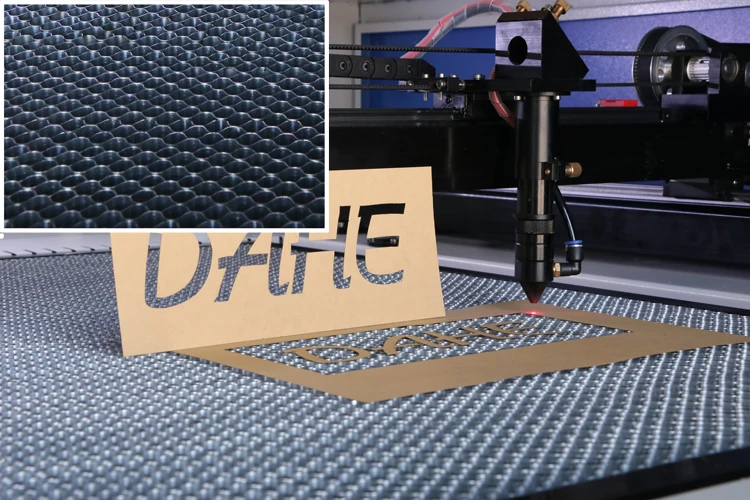

    Honey Comb Table


    Honey Comb Table Good for Cloth Materials.
    Choose Suitable working table before purchase

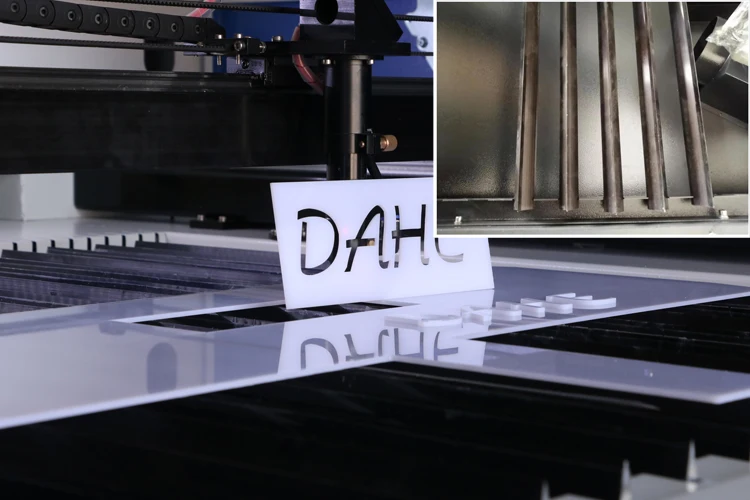

    Blade Table


    Blade Table good for hard material like Acrylic. MDF, ETC
    Choose Suitable working table before purchase
    Recommed To Buy Together

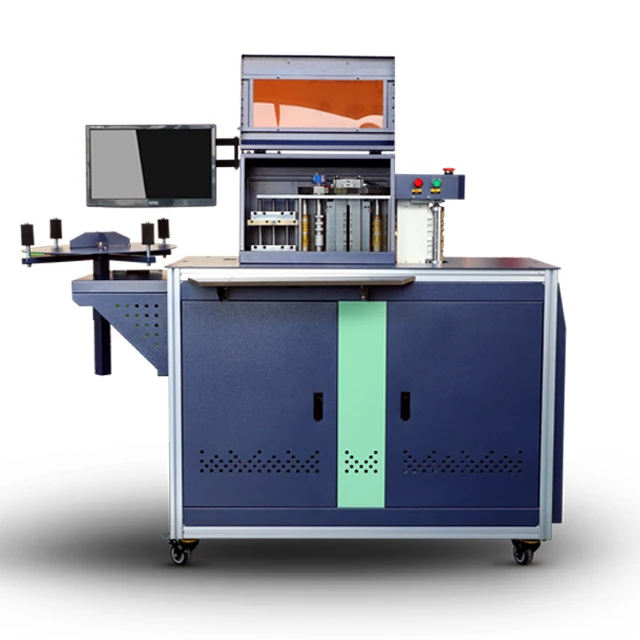

    5150 Aluminum Channel Letter Bender

    5150 Aluminum Channel Letter Bender to Bending Sign Letter Return/Outskin

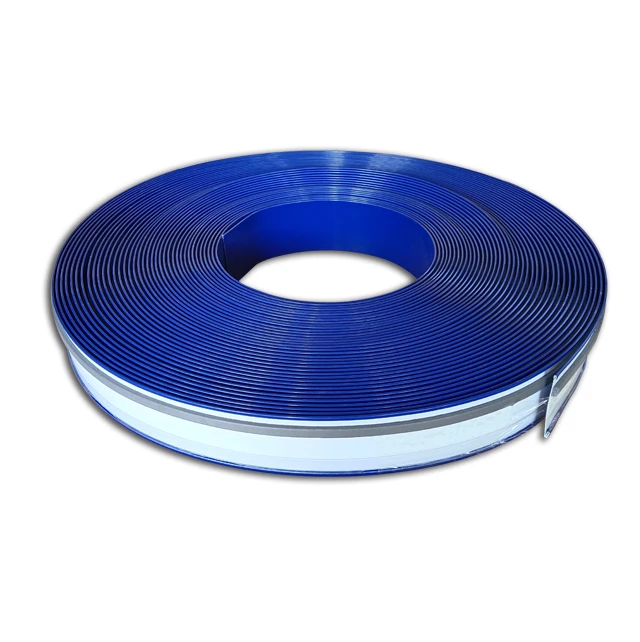

    DF Auminum Coil

    Single Edge Aluminum Material To make standard channel letter

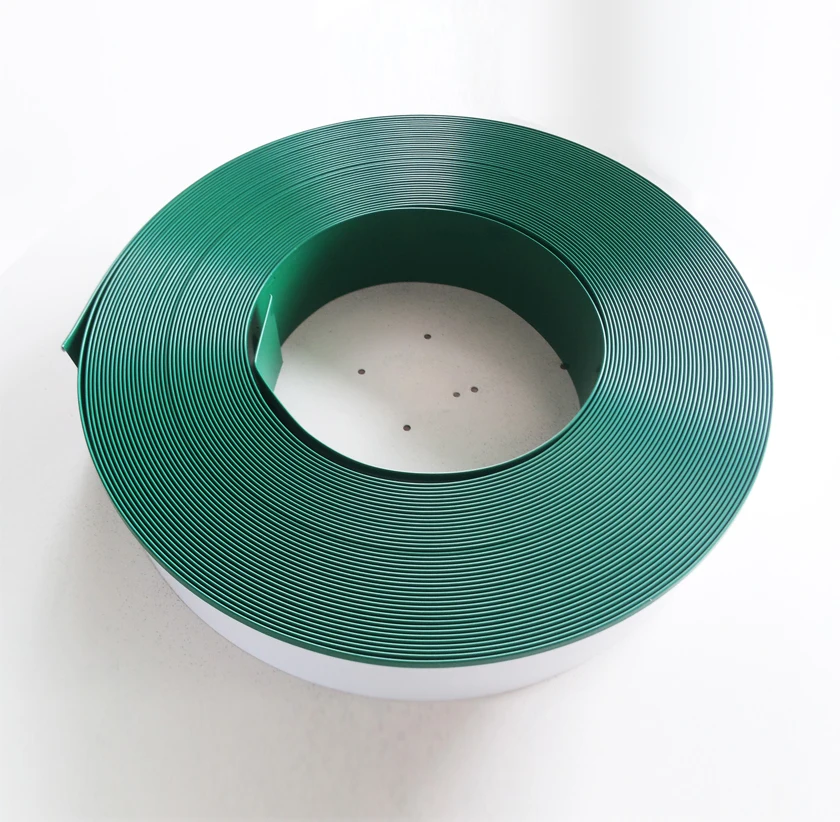

    Flat Aluminum Coil

    Flat Aluminum Coil to make trimless channel letters

    Channelume

    Channelume also is kind of popular material
