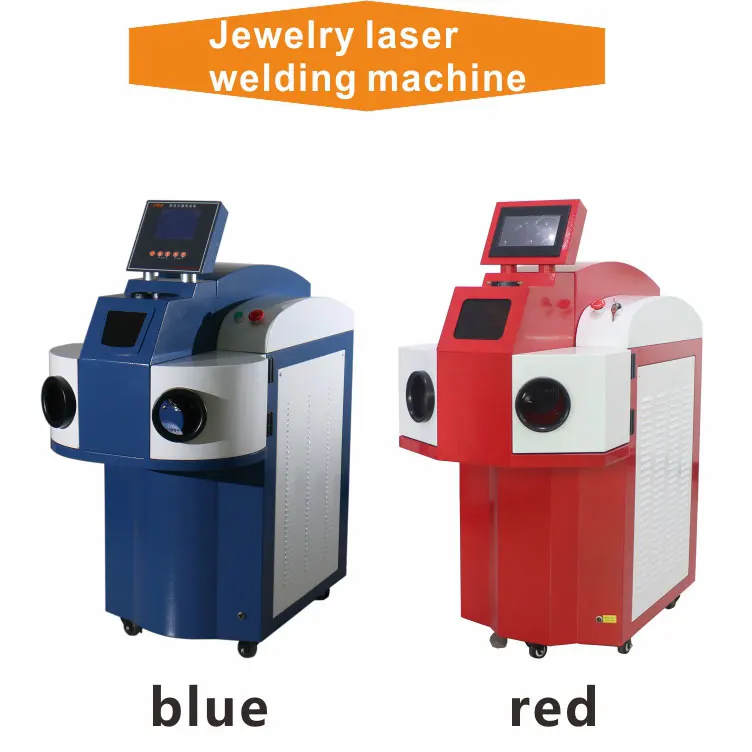

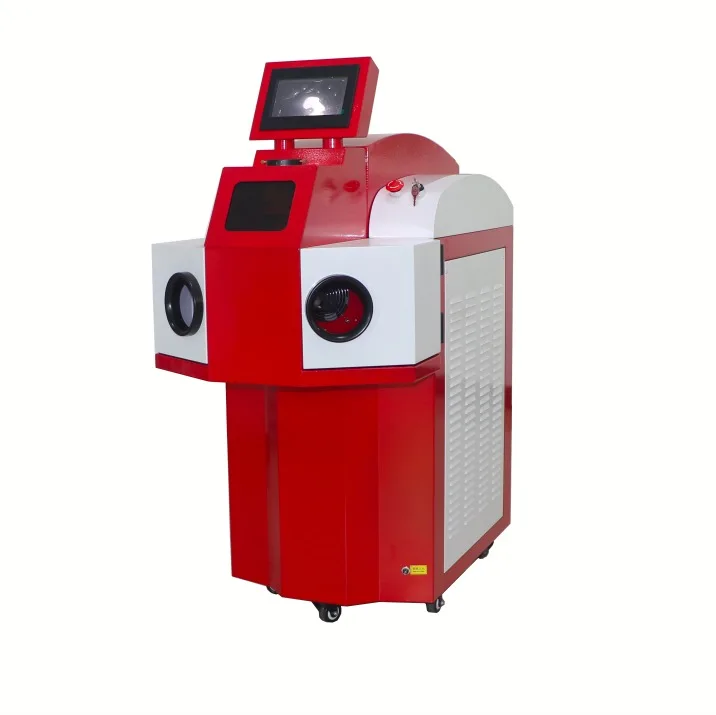

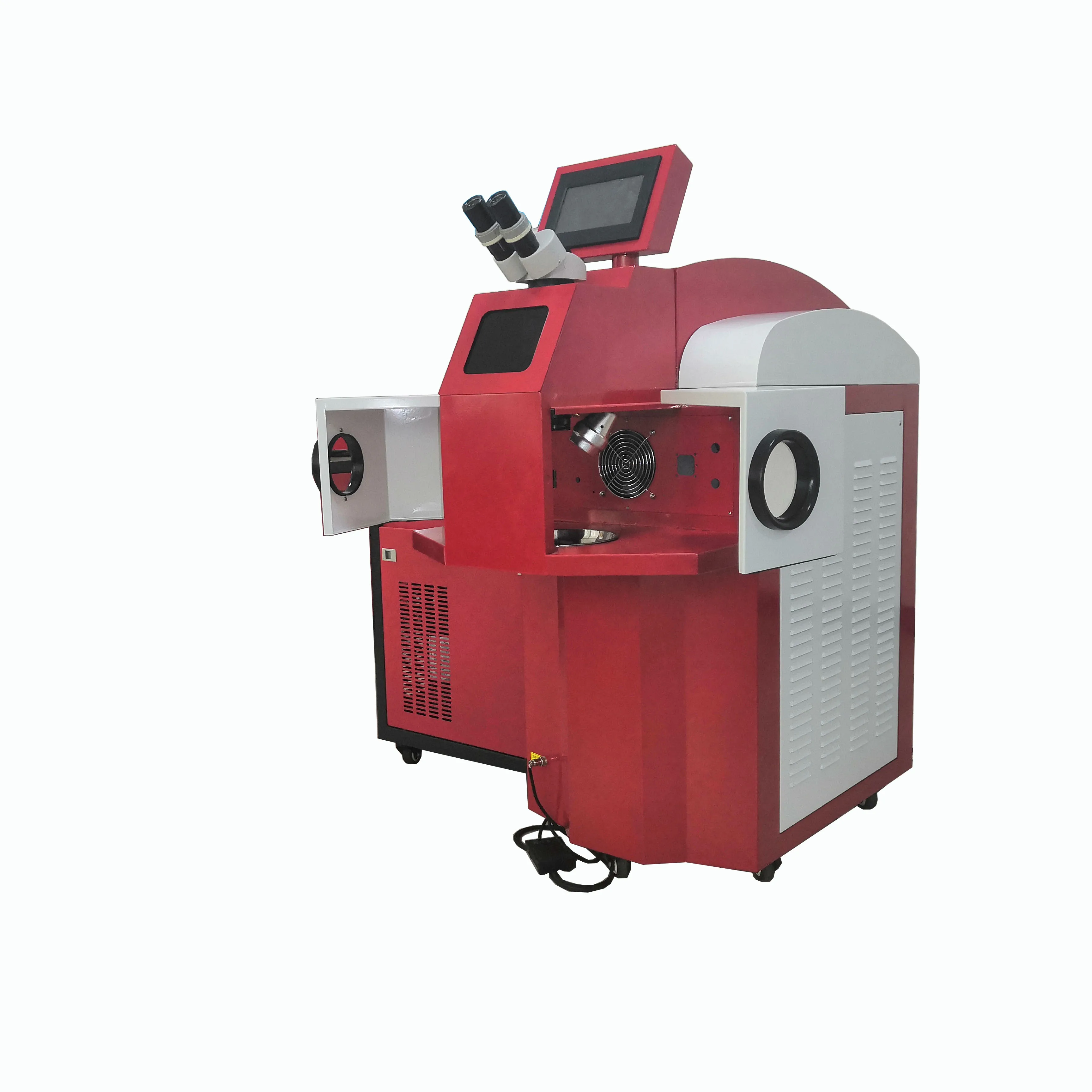

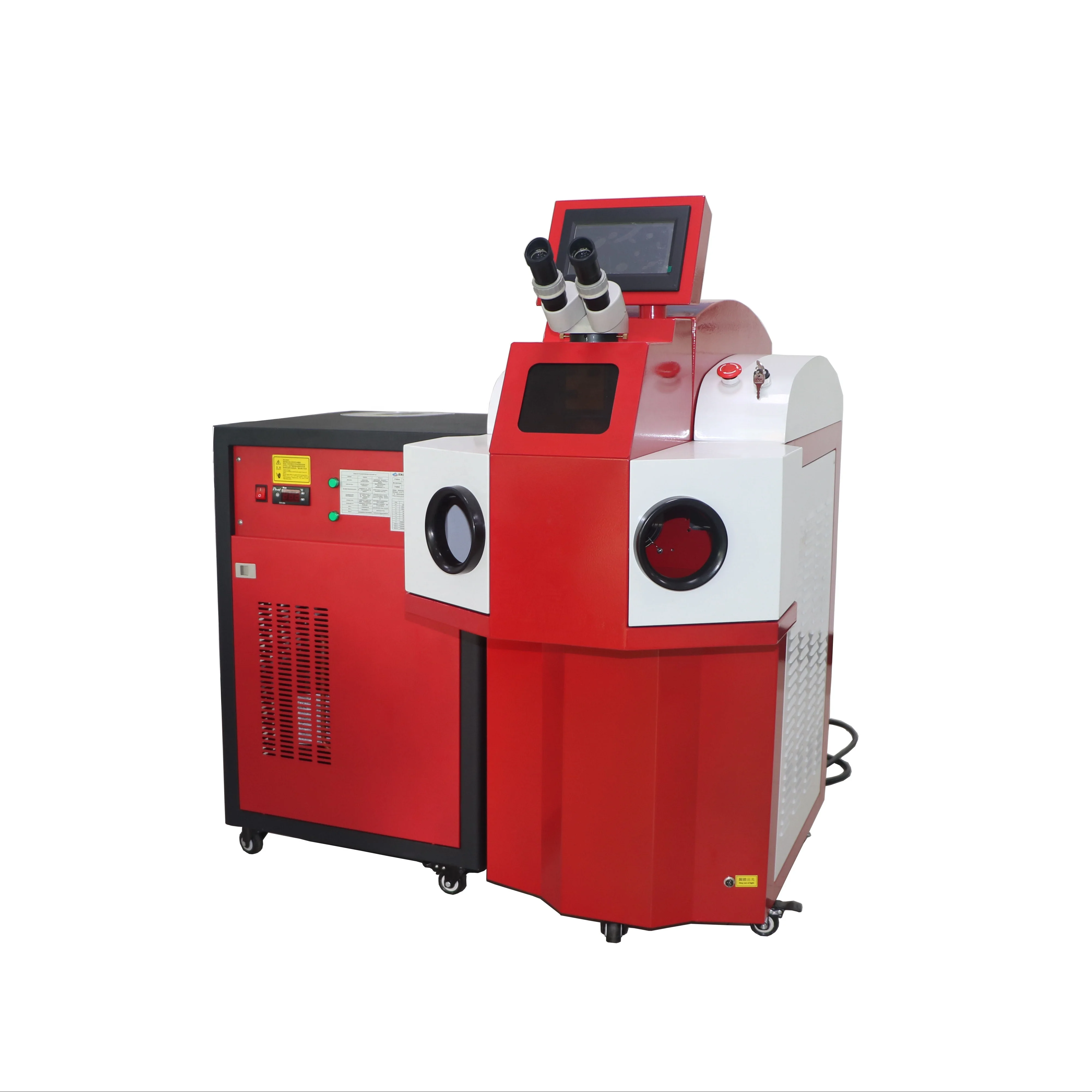

Electric Spot Welding Machine Cheap Price New Jewelry Laser Welding Machine
Electric Spot Welding Machine Cheap Price New Jewelry Laser Welding Machine
Regular price
¥742.00 CNY
Regular price
¥742.00 CNY
Sale price
¥742.00 CNY
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

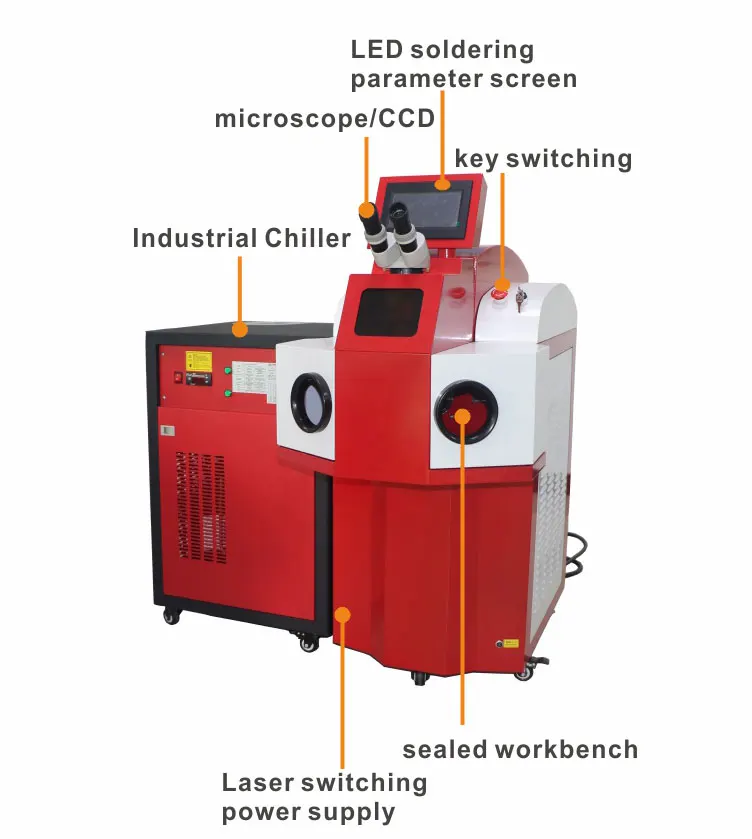

Products Description

Product description
1、Adopt imported ceramic concentrating cavity, high reflectivity, strong energy, high temperature resistance, corrosion resistance and long service life;
2、The whole machine is with ergonomic design, more suitable for the jewelry industry, the product is fine, beautiful, with stable performance, suitable for long-term continuous work needs;
3、The internal space is large, which is convenient for the placement of laser spot welding tools and fixtures; the welding debris recovery box is installed to facilitate cleaning and gold welding residue recovery;
4、LED ring type shadowless lamp, observe the workpiece without shadow, with high-definition parallel light path microscope, laser welding position observation is more clear;
5、 High-magnification beam expansion system, to obtain a more precise spot, to meet the needs of fine laser spot welding.

Application range

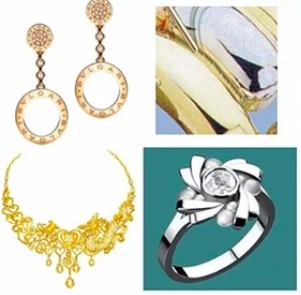

Widely used in various metal materials: gold, silver, platinum, copper, stainless steel and other metal materials. Including: rings, earrings, bracelets, necklaces, tie clips, cuffs and other accessories, metal jewelry hole filling, spot welding trachoma, patch joints, inlay parts and laser welding claws.

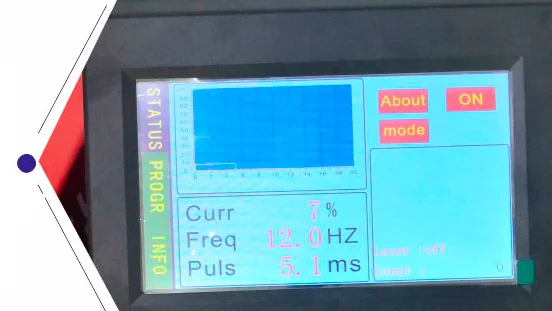

Autonomous Welding system
Direct opration,convenient,can understand the production situation more clearly

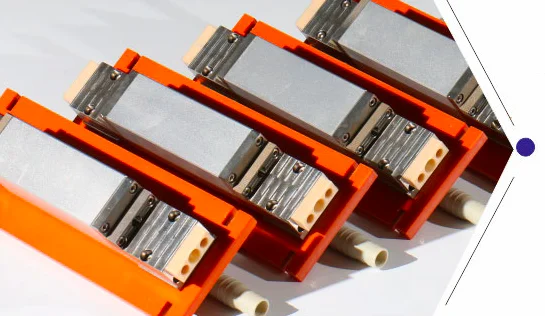

Ceramic condenser cavity
Ceramic condenser cavity, with high energy, high temperature resistance, corrosion resistance, long service life.

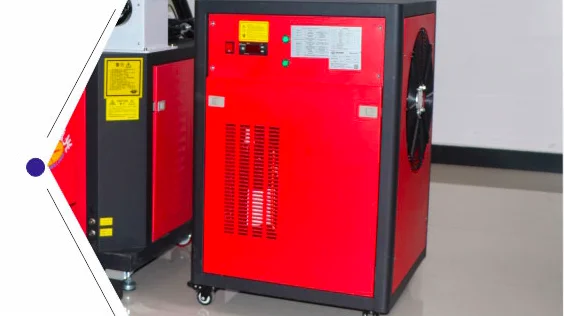

Water chiller
200w equipped with with 1P, it can meet the requirements for a long time. High power welding is more stable.

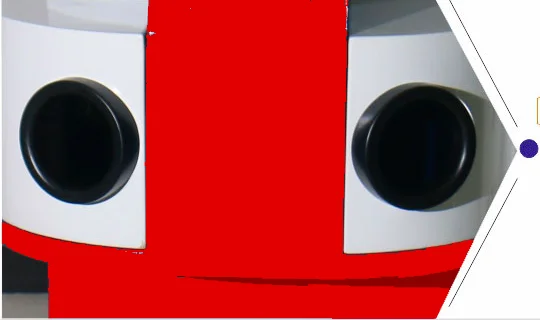

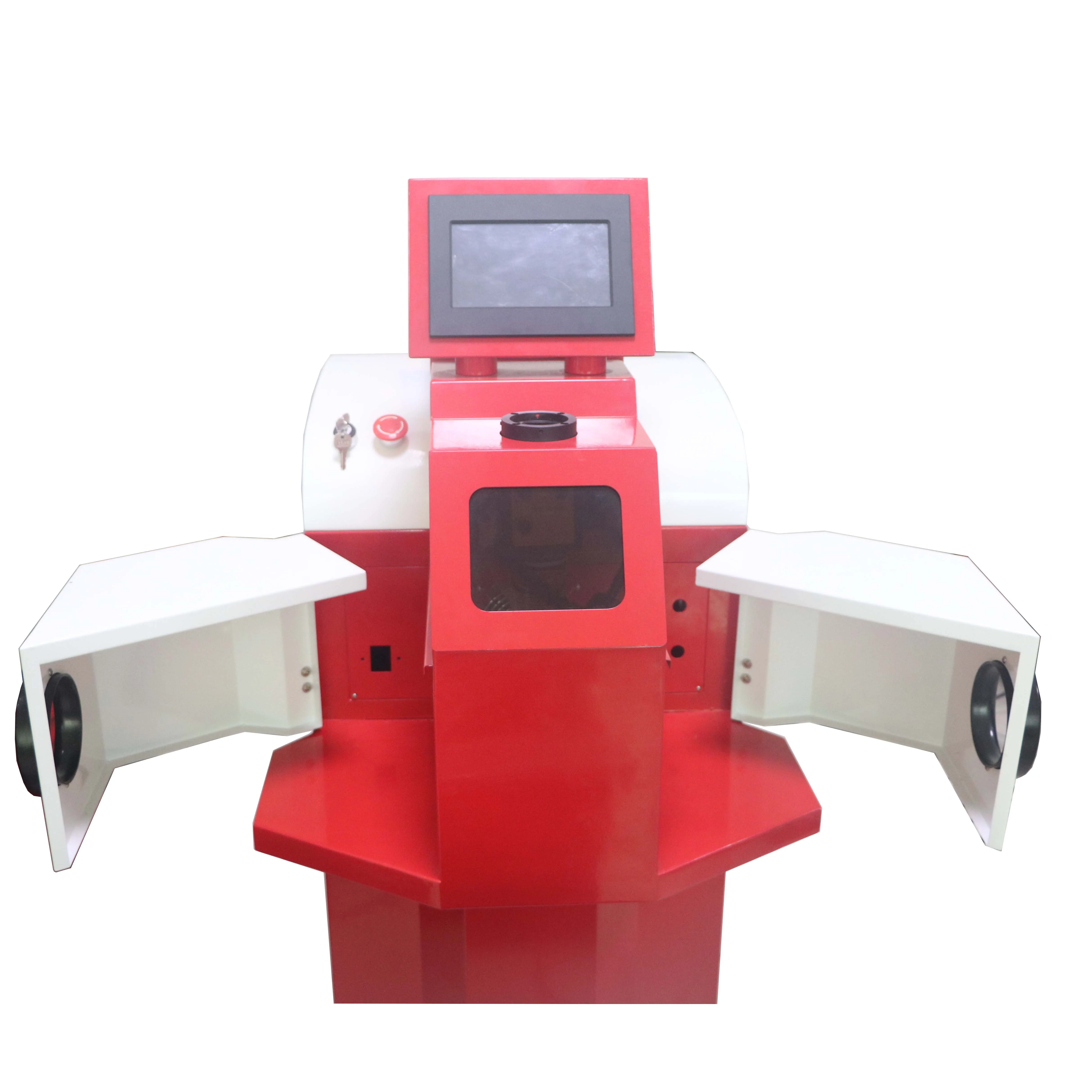

Closed table
Large internal Space,convenient for laser spot welding tools,jig placement,The welding chip recovery box is installed to facilitate cleaning and gold welding slag recovery.



Device parameters |
||||
Machine No |
YME-FBS |
|||
Maximum laser power |
200W |
|||
The laser wavelength |
1064nm |
|||
Laser frequency |
1-20Hz |
|||
Pulse width |
0.1-10Ms |
|||
Light spot adjustment range |
0.1-1.5mm |
|||
Aiming and positioning |
Microscope and red light (optional camera system) |
|||
Cooling power of chiller |
1P |
|||
Total power |
8KW |
|||
Demand for electricity |
380V±5V 50Hz/60A /220V±5V 50Hz/40A |
|||
External dimensions/net weight |
Host machine:1100×600×1300mm |
108kg |
||
Chiller:500×550×750mm |
65kg |

Device Configuration
1、One set of YAG laser;
2、One set of laser power supply;
3、One set of optical system;
4、One set of liquid crystal display system;
5、One set of refrigeration and water temperature detection and protection system;
6、One microscope;
7、One 1P chiller;
8、One set of main engine cabinet.

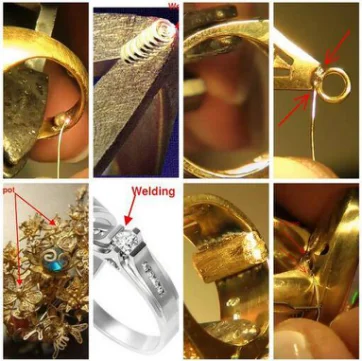

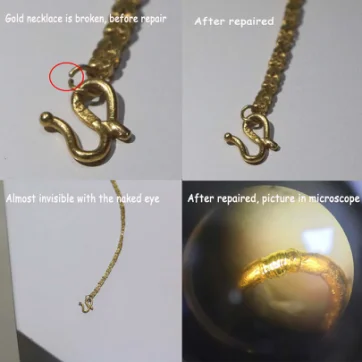

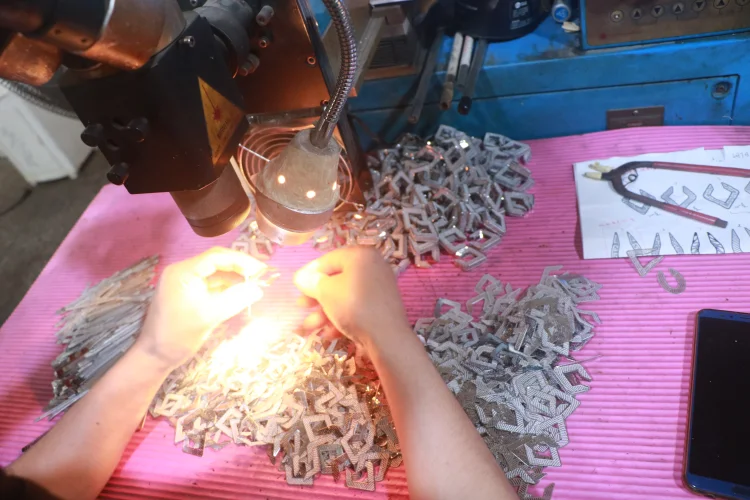

Product Sample Display
