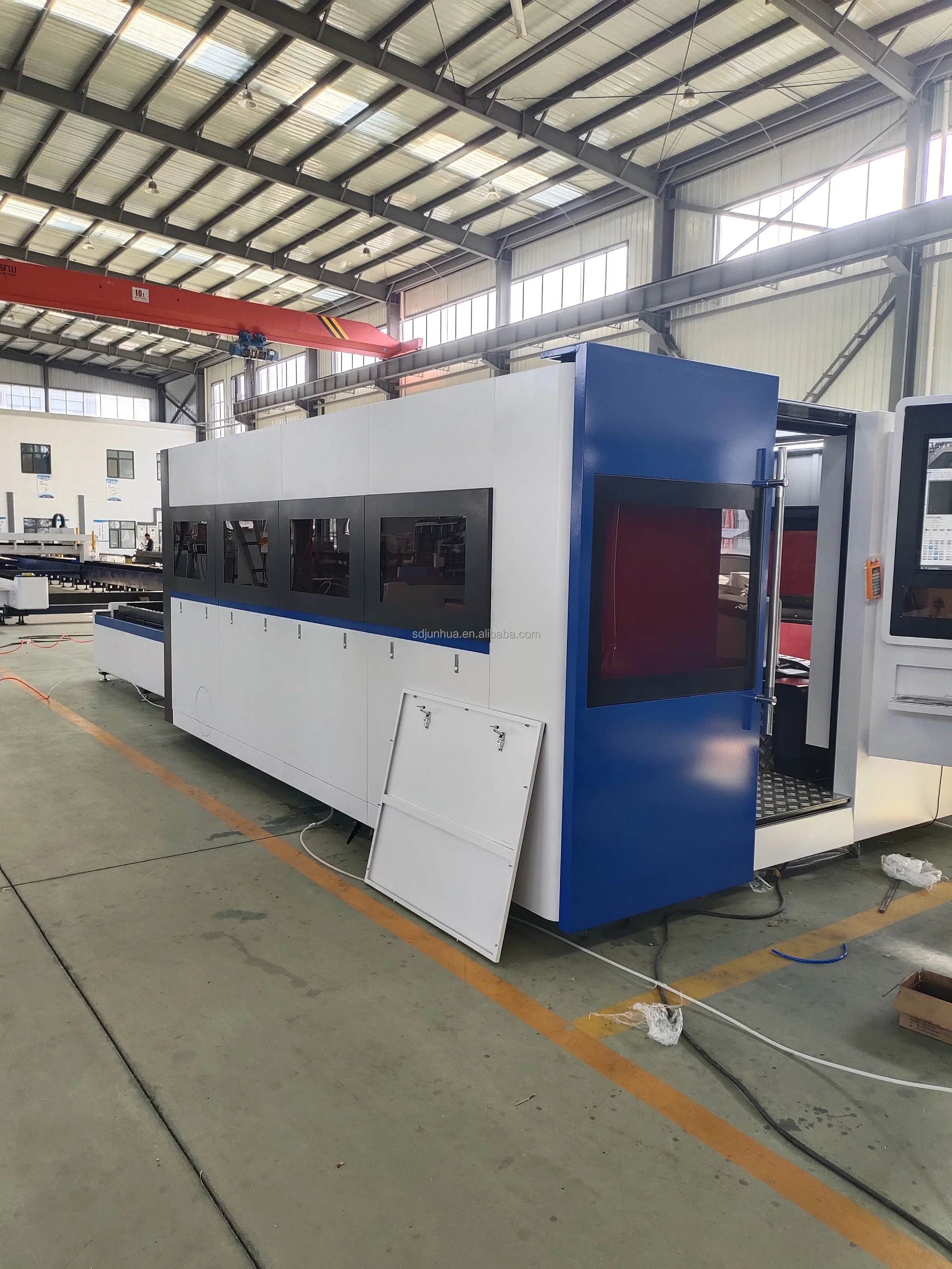

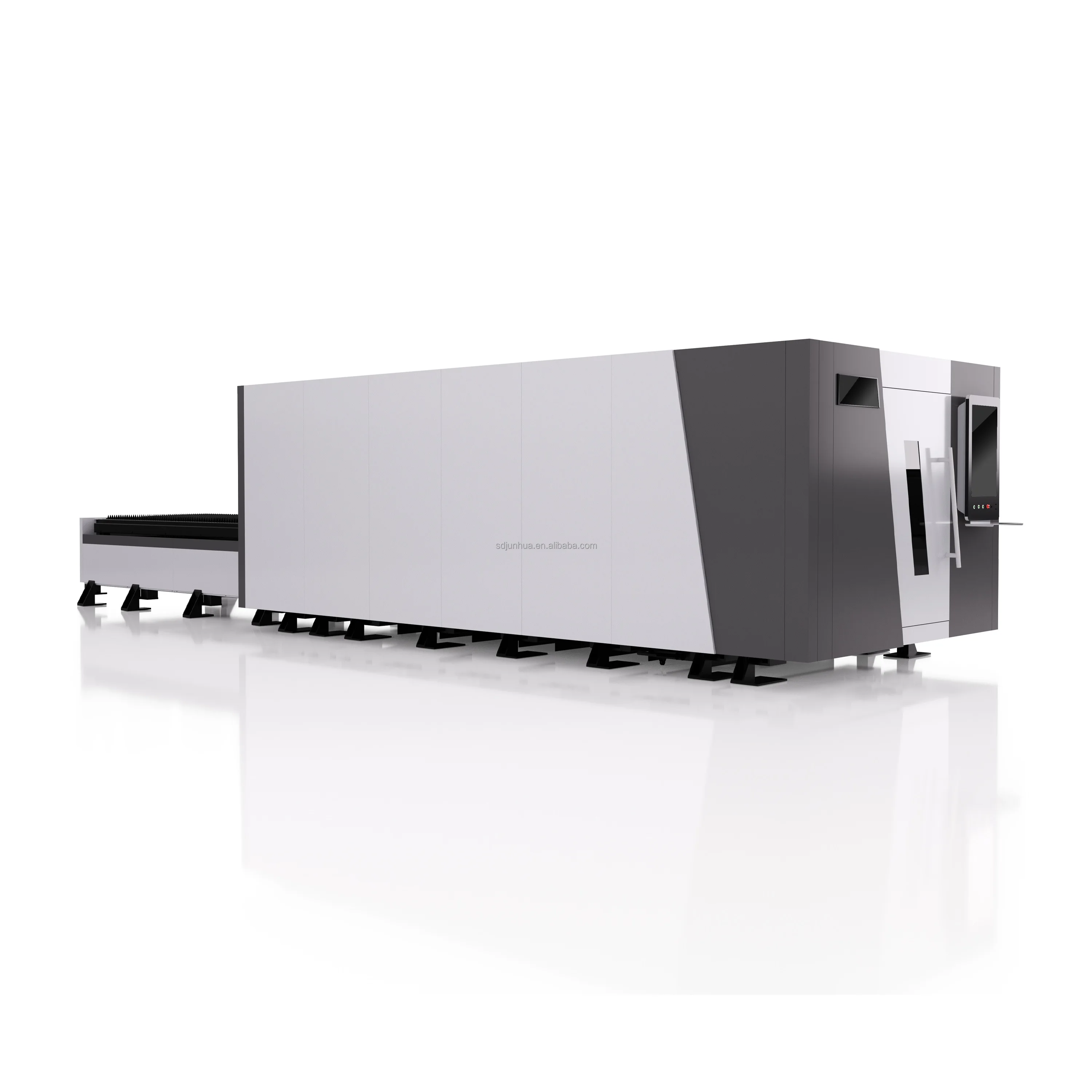

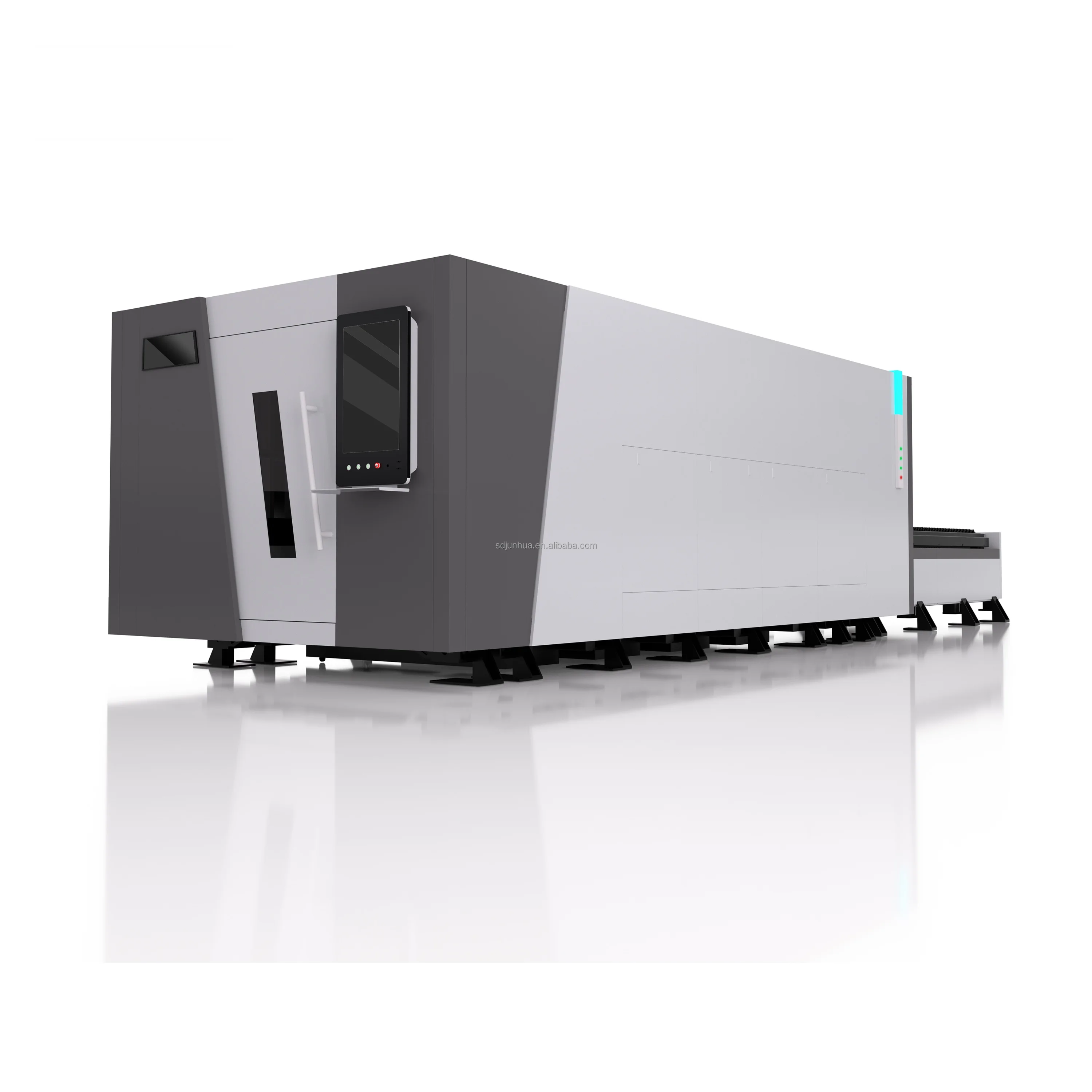

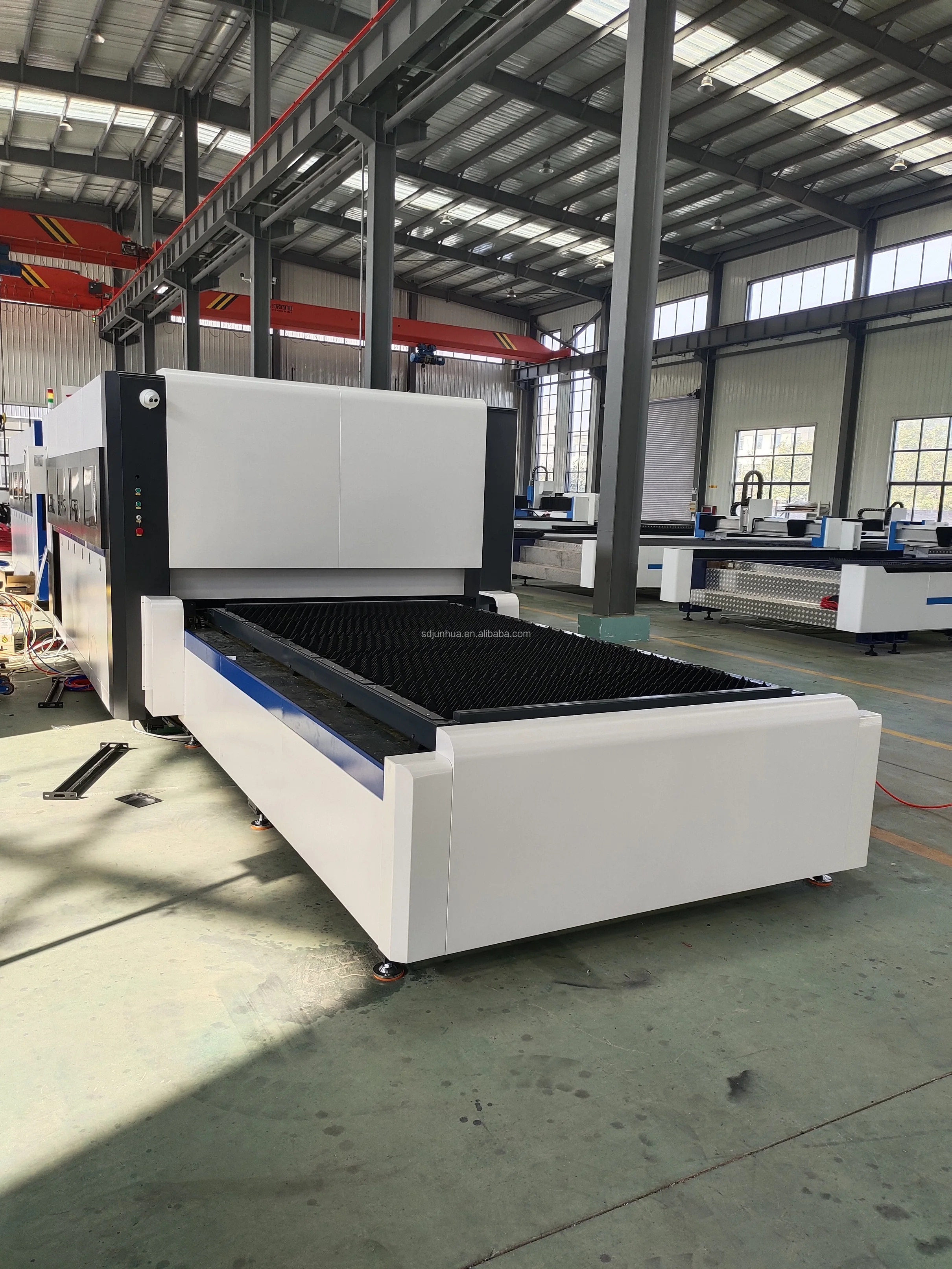

    Enclosed CNC Fiber Laser cutting machine for sheet metal

    Enclosed CNC Fiber Laser cutting machine for sheet metal

    ¥732.00 CNY
    ¥732.00 CNY ¥732.00 CNY
    Sale Sold out
    Shipping calculated at checkout.
    Material
     More payment options
    Product Description

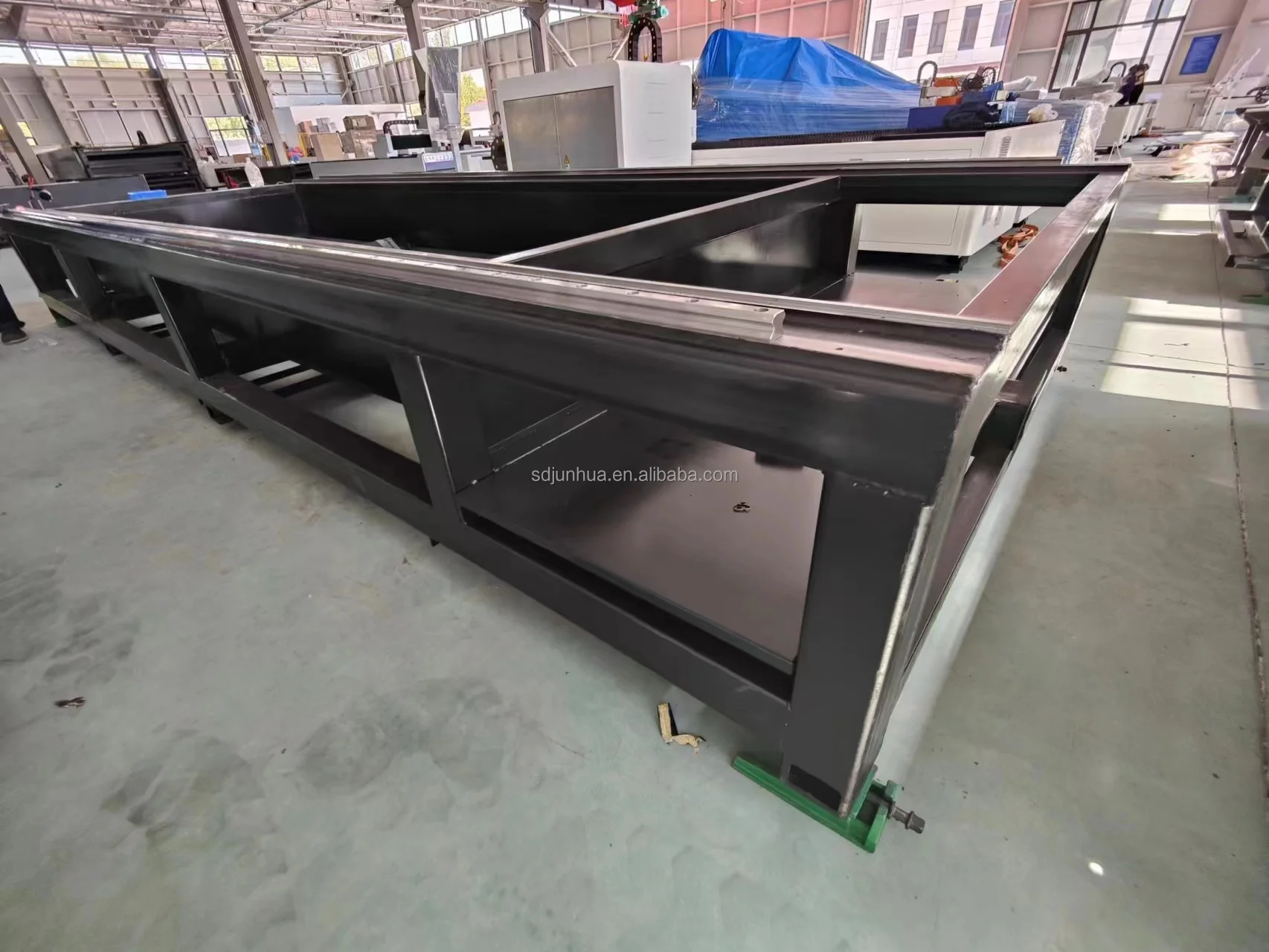

    ￭ Metal Tube welding. ￭ Italian COLGAR machine milling boring. ￭ Machine weight 8 tons. ￭ Machine error accuracy 0.02mm. ￭ With 24 hours quenching process. ￭ Support max moving speed 80m/min.
    Specification
    Machine model
    JH-3015
    Laser Source
    1000W to 300000W
    Controller

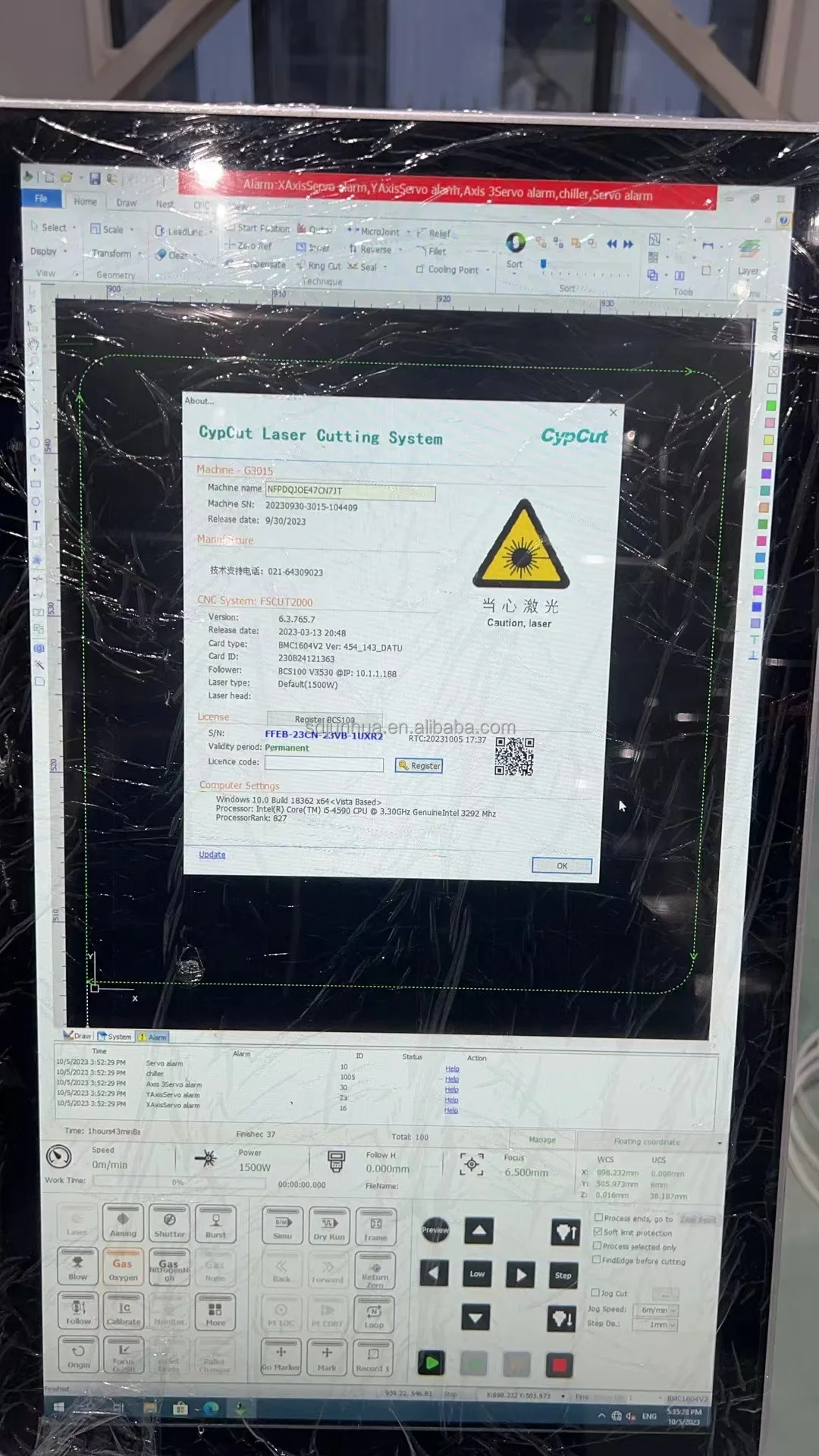

    Cypcut, Raytools or Ncstudio
    Working Area（Board processing）
    1500*3000 mm
    X-axis length
    1515mm
    Y-axis length
    3030mm
    Z-axis length
    100mm
    X-axis motor power
    750W
    Y-axis motor power
    750W
    Z-axis motor power
    400W
    Positioning accuracy of X / Y axis
    ±0.05mm
    Repeated positioning precision of X / Y axis
    ±0.02mm
    Water cooler Power
    1.5KW
    Guide
    Taiwan HIWIN
    Rack
    Taiwan HIWIN
    Servo Motor
    Leadshine, FUJI, DELTA Servo motor
    Reducer
    Planetary speed reducer
    Minimum cutting width
    0.08-0.1MM
    Maximum cutting thickness
    Depends on power of laser sources
    Maximum moving speed
    80m/min
    Electricity requirements
    380V/50/60HZ
    Graphic Format Supported
    PRO/E.UG, Solidworks
    Acceleration
    1.0G
    Presser of N2/O2/AIR
    15-20/6-8/15-30 bar
    Total Weight
    2.5T
    Work per day
    16H
    Oil Box
    Auto Oil Injection System
    Fiber laser cutting machine is used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway parts, automobiles, grain machinery, textile machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising, metal external processing, kitchenware processing and other manufacturing and processing industries.
    Cutting samples
    Electrical power cost
    Equipment components
    Power consumption (KW)
    Total
    Laser source
    4.5

    11.5 KW/H
    Machine bed
    4.0
    Water chiller system
    3
    Auxiliary gas cost
    Gas type
    Air cost
    Life time
    Total consume
    Cutting effect
    Note
    Oxygen
    $2 /Bottle
    80 minutes
    2.5 $/H
    Black edge
    Take 1mm carbon steel as example
    Nitrogen
    $4/Bottle
    40 minutes
    2.6$/H
    White edge
    Take 1mm stainless steel as example
    Note: The number above is Chinese cost. Just for your reference. By the way, if you use nitrogen a lot, you can consider it in can. So it just cost quarter of the total. Also, you could save the time to change bottles
    Machine main parts
