    Factory direct sales Wide format bevel fiber laser cutting machine for metal

    Factory direct sales Wide format bevel fiber laser cutting machine for metal

    ¥732.00 CNY
    ¥732.00 CNY ¥732.00 CNY
    Sale Sold out
    Shipping calculated at checkout.
    Material
     More payment options
    Product Description
    Product Paramenters
    Working Area

    Plane Working range(L*W)
    12000mm*2500mm
    Bevel Working range (L*W)
    11000mm*1800mm
    X axis move range
    2500mm
    Y axis move range
    12000mm
    Mechanical accuracy

    X/Y Axis positioning accuracy
    ±0.05mm/m
    X/Y Axis repeat positioning accuracy
    ±0.05mm
    Speed

    X/Y Axis positioning speed
    X:80m/min
    Y:80m/min
    X/Y Axis acceleration
    X:1.0G Y:0.75
    Power supply

    Phase
    3
    Rated Voltage
    380V
    Frequency
    50Hz
    Protection level
    IP54
    Details Images

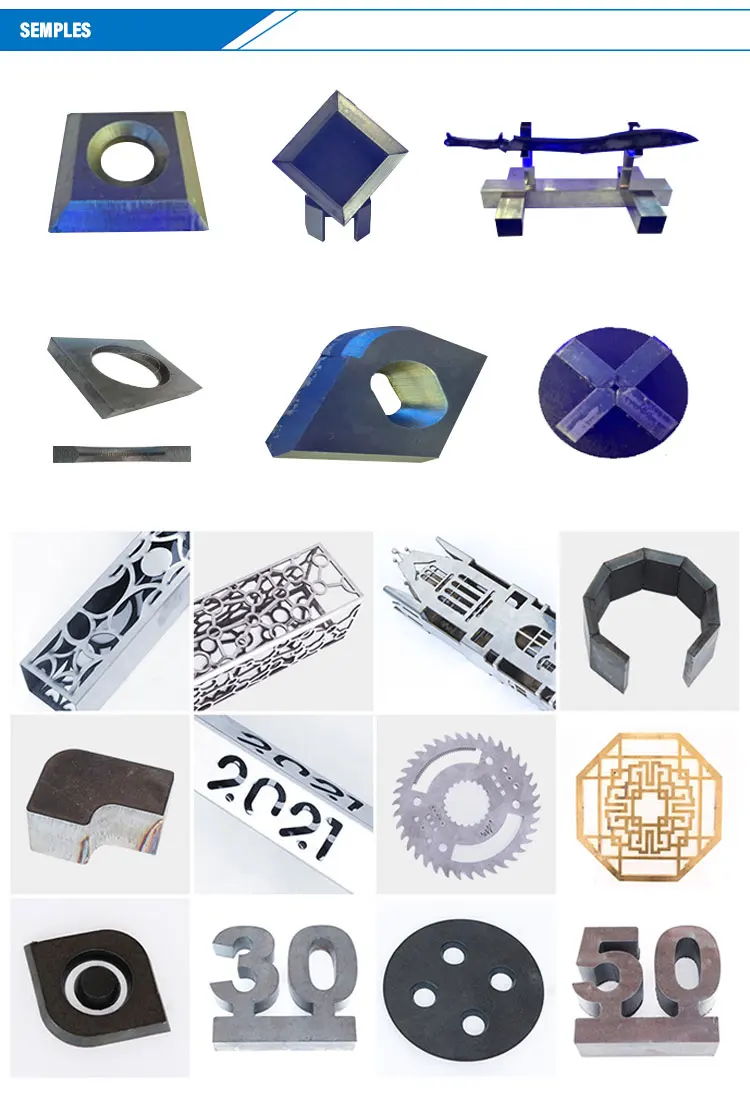

    Sample

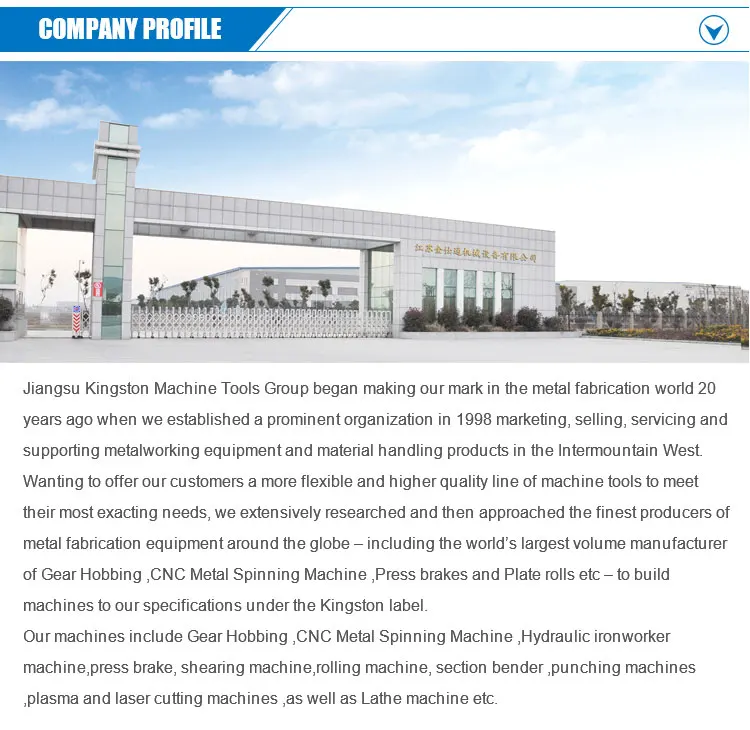

    Company Profile
    Product packaging
    Certifications
    Payment & Delivery
