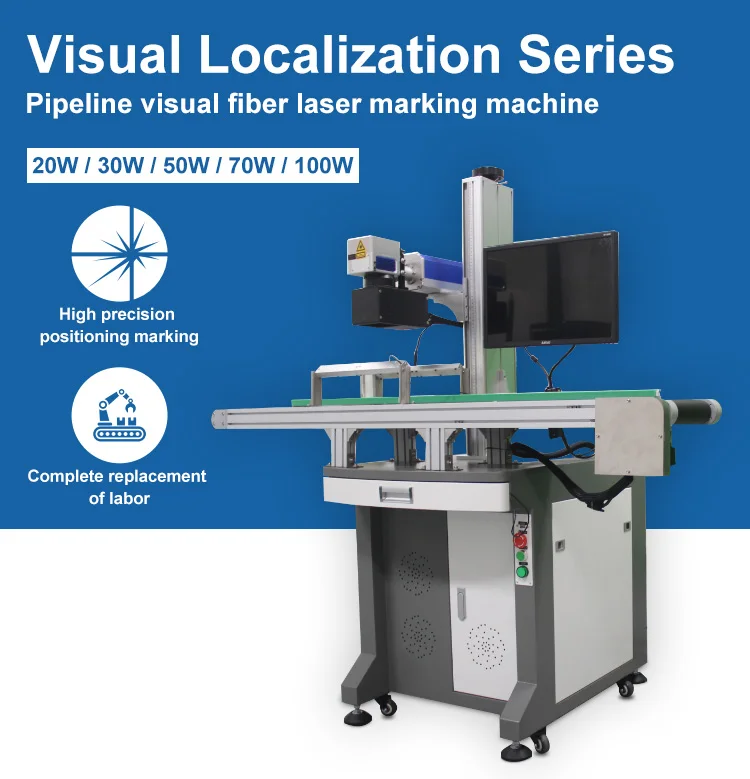

Factory Supplier High Speed Visual Laser Marking Machine 20w 30w 50w Fiber Laser Marking Machine
Factory Supplier High Speed Visual Laser Marking Machine 20w 30w 50w Fiber Laser Marking Machine
Regular price
¥741.00 CNY
Regular price
¥741.00 CNY
Sale price
¥741.00 CNY
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Parameters
Output Power |
20W / 30W / 50W / 70W / 100W |
Laser wavelength |
1064nm |
Beam quality M2 |
1.4 |
Pulse repetition frequency |
20-80 kHz |
Output power stability |
5% |
Design life |
About 100,000 working hours (not service life) |
Directive projection |
Red light 655nm output 2.0mW |
Marking range |
200*200 mm |
Recognition angle |
360° |
Engraving depth |
≤1mm (depending on power and time) |
Engraving speed |
≤10000mm/s |
Repeatability |
±0.002 |
Minimum marker line width |
0. 1mm |
Minimum character height |
0.15mm |

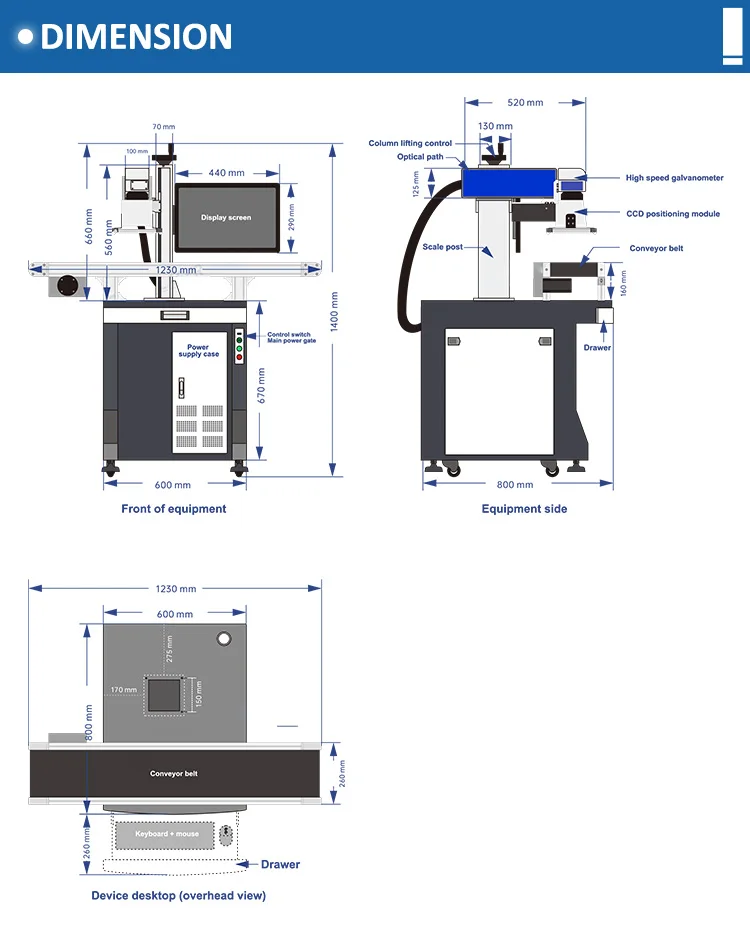

Dimensions |
Marking machine: 600X800X1400mm
Conveyor belt: 1230X260X160 mm
|
Total Weight |
About 85KG |











1.How long is the warranty period?
Whole machine warranty period is 1 year, laser source 2 years. If there is any problem during the period, we will solve it as soon as possible.
2.How long is the cable?
Different laser source have different option. For example, the normal cable length of raycus and max is about 9 meters.
3.How thick can 1500w-3000W be welded
1-8mm thick metal materials.
4.Is there a wire feeder?
We have a wire feeder to choose from. If you are interested, you can contact us and provide your email address.We will send more detailed pictures to your email.
5.Can aluminum and galvanized steel be welded?
Yes, it can.
6.Packaging
All our machines are packed in wooden boxes.
7.Language interface
Supports language customization, etc. You can also translate and insert to software.
