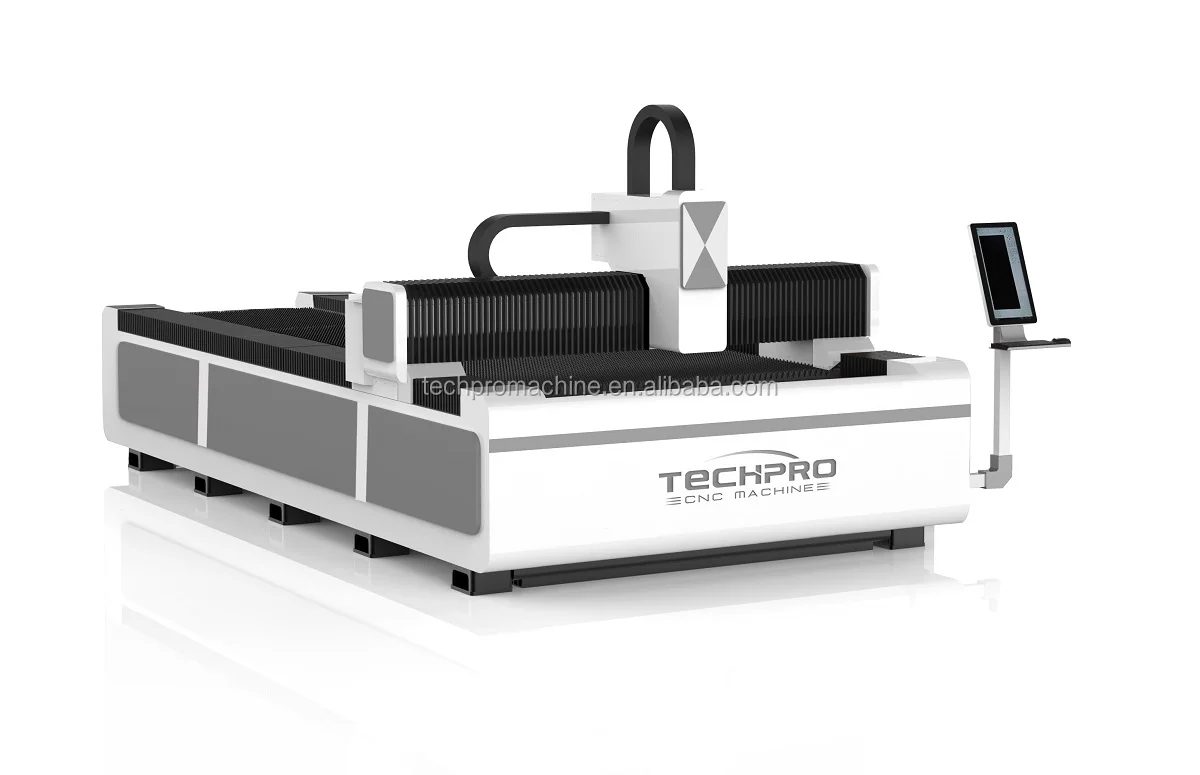

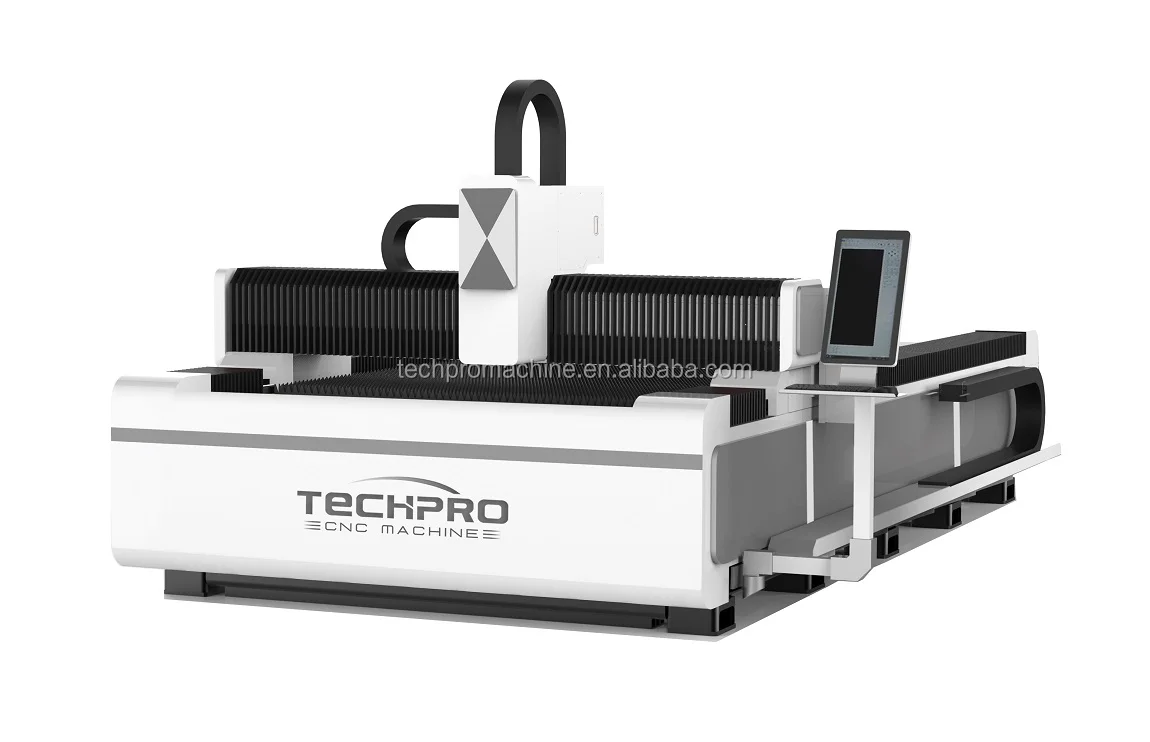

Factory supply affordable metal laser cutting machine TPF3015 fiber laser cutting machine for sale
Factory supply affordable metal laser cutting machine TPF3015 fiber laser cutting machine for sale
Regular price
¥741.00 CNY
Regular price
¥741.00 CNY
Sale price
¥741.00 CNY
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description
Features of fiber metal cutting machine:
1. The machine bed with high rigidity and high wear resistance ,adopts high-temperature annealing process to ensure that the bed will not be deformed for a long time; 2. Aviation-graded ultra-high pressure aluminum profile gantry, unique internal cavity design with high stability, high strength; 3. Adopt precision gear rack transmission mode to ensure highly dynamic performance; 4. Multiple intelligent sensor modules greatly improve personnel safety and effect of equipment protection 5. Integrated design is better for delivery, easy to operate, greatly shorten the testing time 6. Equip large-size, multi-functional display to make operation more convenient


Applicable Industries:

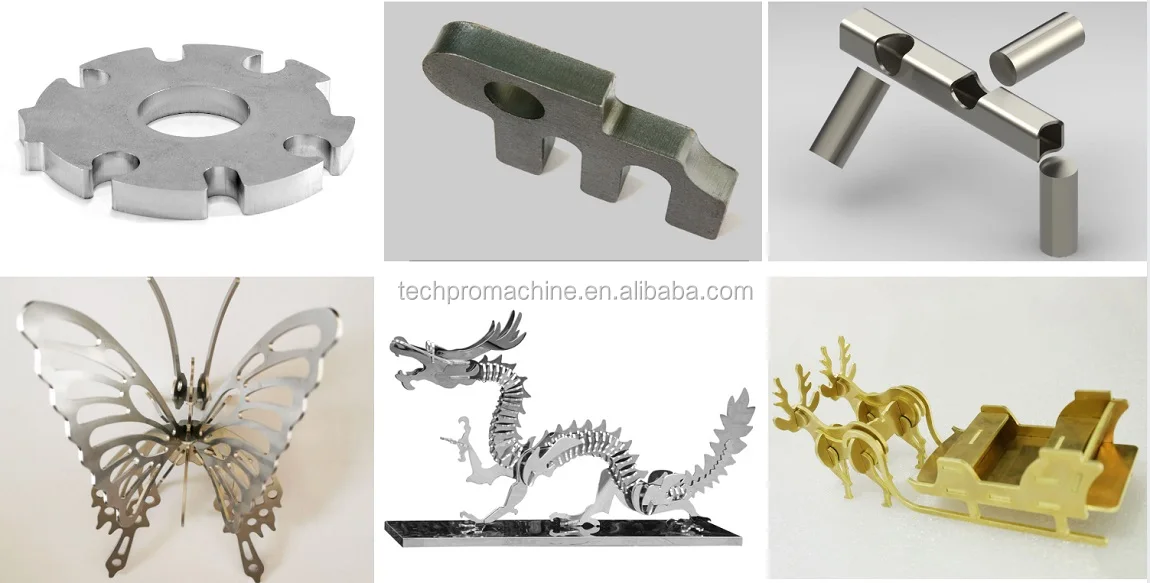

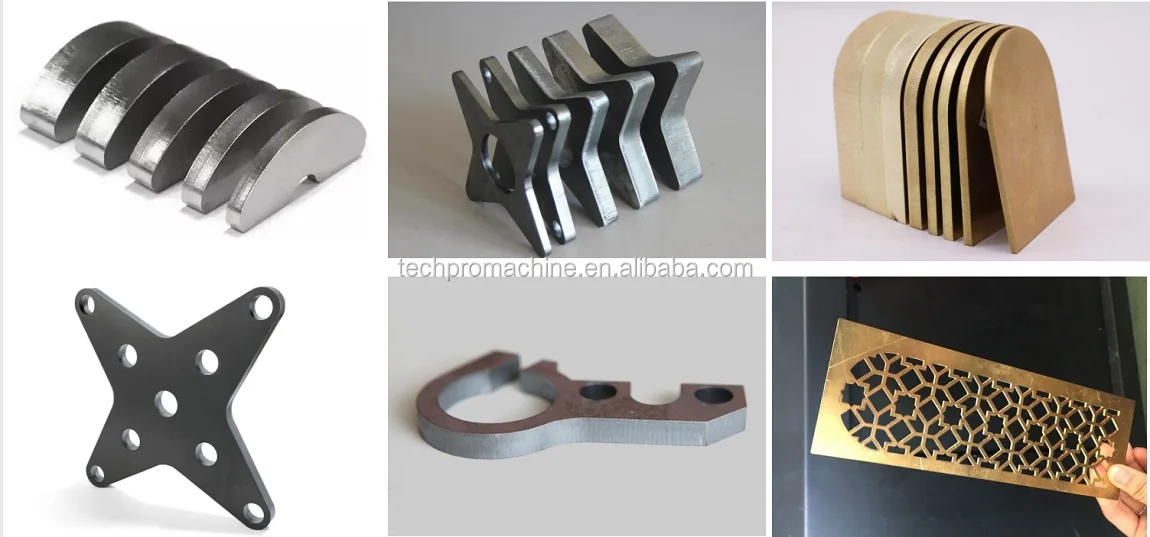

The fiber laser machine is mainly used for cutting stainless steel, carbon steel, electrical steel, galvanized steel, aluminum zinc plate, aluminum, aluminum alloy, titanium alloy, copper, brass, iron and other metal materials.
The fiber laser machine is mainly used for cutting stainless steel, carbon steel, electrical steel, galvanized steel, aluminum zinc plate, aluminum, aluminum alloy, titanium alloy, copper, brass, iron and other metal materials.
Applicable Industries:
The fiber laser machine is applied in sheet metal cutting, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts, arts and crafts, tool processing, adornment, advertising, metal foreign processing, various metal cutting industries.
The fiber laser machine is applied in sheet metal cutting, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts, arts and crafts, tool processing, adornment, advertising, metal foreign processing, various metal cutting industries.


Product Detail
Model |
TPF3015 |
Working Area |
1500mm*3000mm |
Laser Power |
1000W(500W-6000W) |
Laser Scource |
Raycus(Optional: IPG) |
Laser Type |
Fiber laser |
Laser Head |
Swiss Raytools(Optional:German Precitec, American II-VI,) |
Control System |
Cypcut |
Motor and Driver |
Japan Yaskawa Servo Motor and Driver |

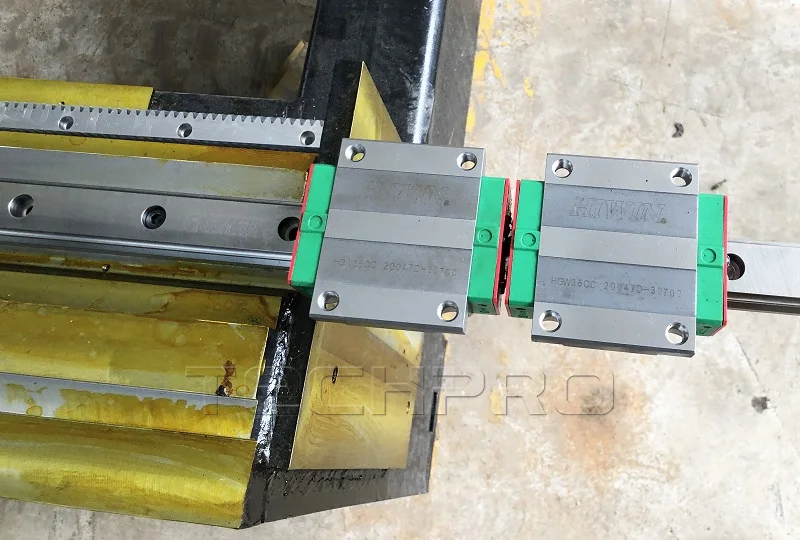

Guide Rail |
Taiwan HIWIN 35mm Guide Rail |
Positioning Accuracy |
0.01mm |
Repeatability Accuracy |
0.01mm |
Power Supply |
380V,50Hz |

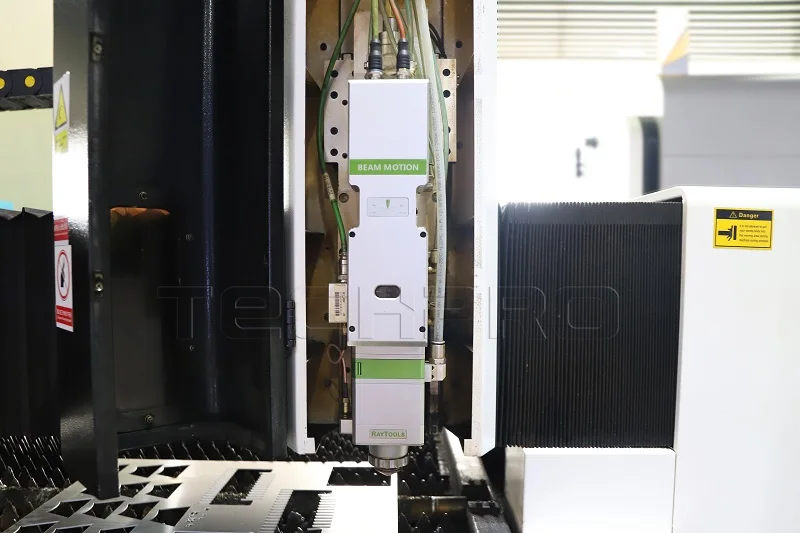

Swiss Raytools Auto focus Laser Head
Auto focus function and almost zero fault.
Anti-collision design, height adjustment high sensitivity

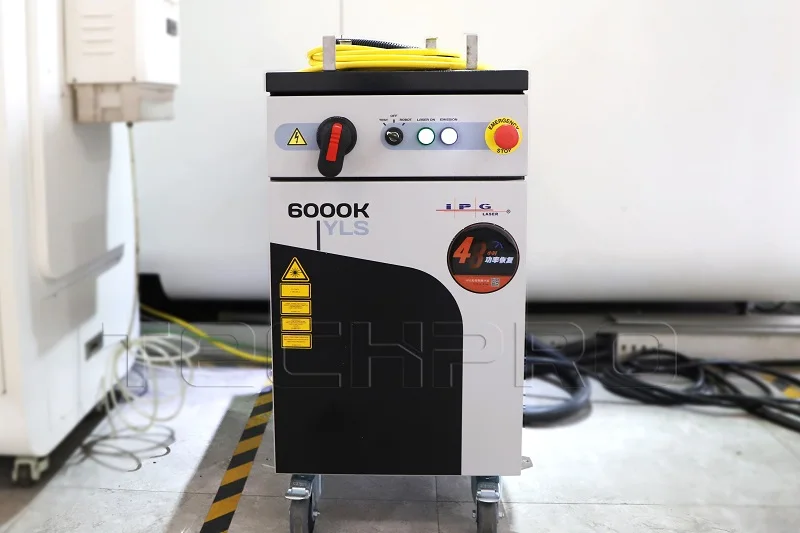

Laser Source 6600W IPG
One best China brand. 100,000 hours life time, more stable, cost-efficient, free maintenance.


Cypcut Control System
1.Auto edge seeking function, flying cutting function and nesting function.
2.Support AI, BMP, DST, DWG, DXF, DXP, LAS, PLT,NC,GBX etc...
3. More flexible to operate---after finishing making design by drawing software such as Solidworks, CAD, Then operator can put the design into CYPCUT control system for cutting directly and no need any programming, and transfer to code.

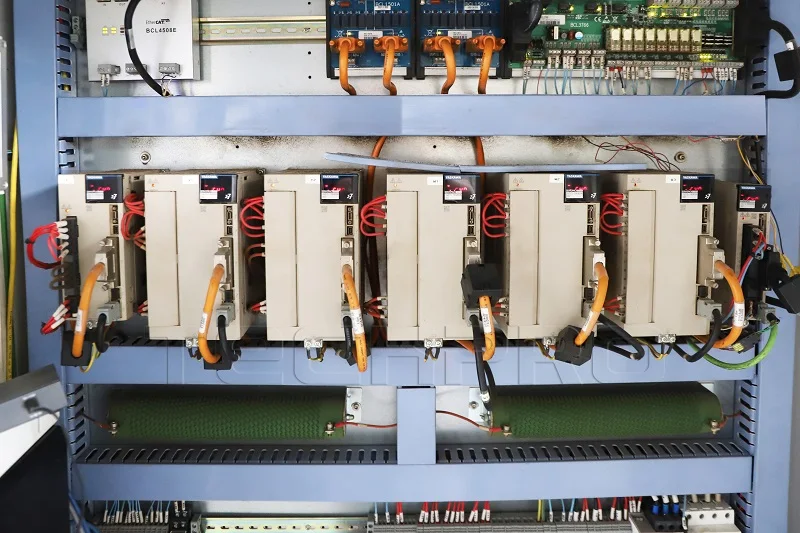

Japan YASKAWA Servo Motor
1. Y axis: two sets 1.8kw Japan YASKAWA servo motor and driver.
2. X axis: one set850w Japan YASKAWA servo motor and driver.
3. Z axis: one set 750w Japan PANASONIC servo motor and driver.
Higher power of motor and drive makes higher moving speed for laser head.


Water Cooling System
Dual cooling function:
Hot water for laser head and cool water for laser source to keep them around a certain temperature and guarantee their normally work.

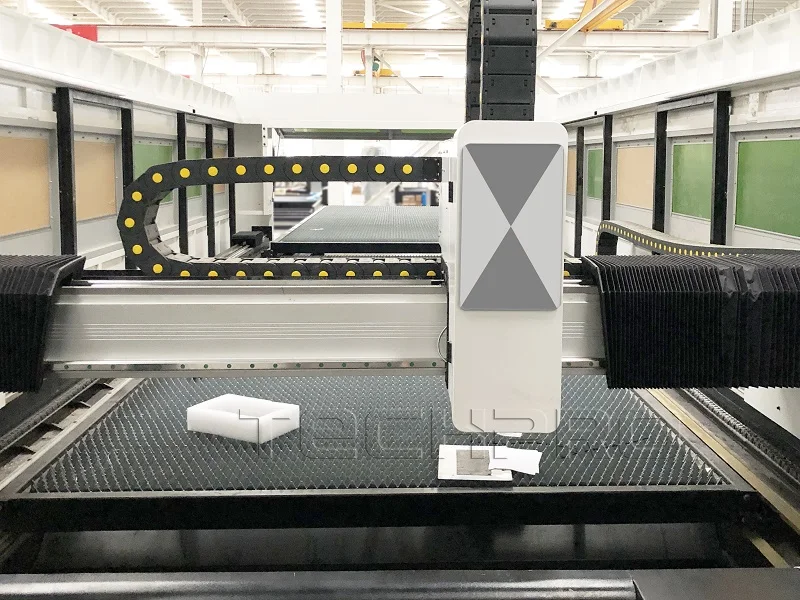

The Third Generation Aviation Aluminum Gantry
1. Manufactured with aerospace standards and formed by 4300 tons Press extrusion molding. After aging treatment, its hardness can reach 6061 T6, which is the strongest hardness of all beams. Aviation aluminum has many advantages, such as good toughness, light weight, stronger corrosion resistance, anti-oxidation, low density to increase the moving speed of laser head.

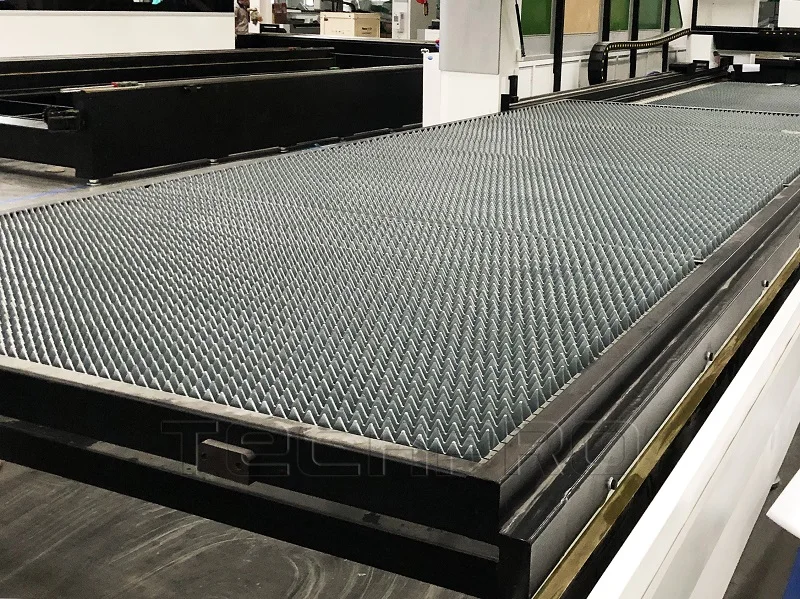

Blade Knife Cutting Table
Invariable, suitable for sheet metal processing, easy to cut

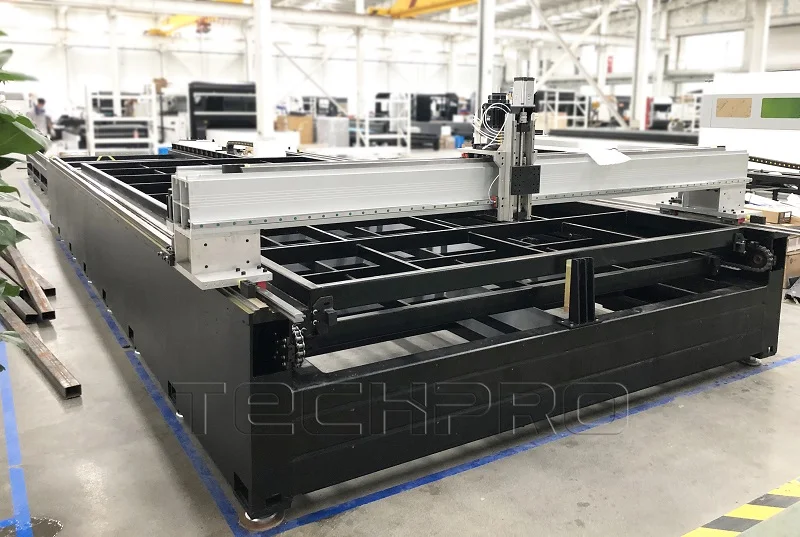

Heavy Structure Welding Bed
1. Z-shaped plate welding heavy work bed, No deformation in 20 years, suitable for ultra-high power 10,000-watt laser
2. For material : Through 600℃ heat treatment to keep stronger and more solid
Feature: High strength, stability, tensile strength, ensuring 20 years of use without distortion.

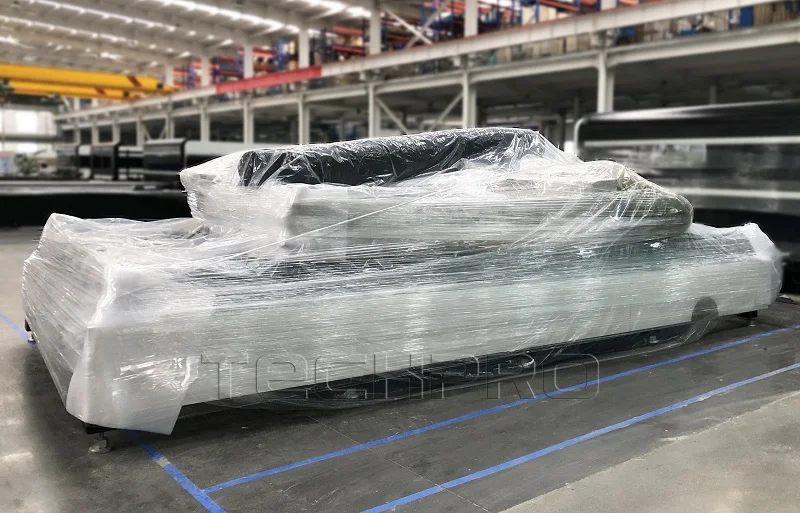

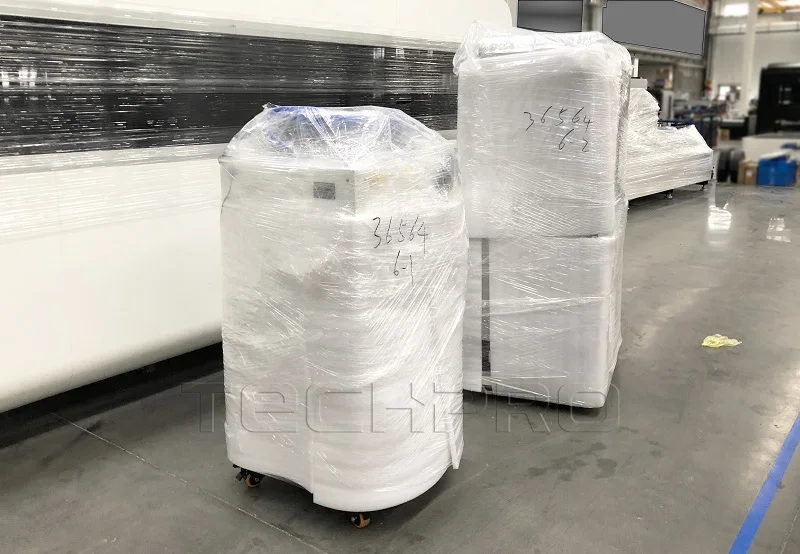

Packing&Shipping
Packaging detail:
1).Outside package: Standard marine export plywood case.
2). Inner package: Stretchy film and plastic film
2). Inner package: Stretchy film and plastic film
for humidity.
3). Machine packing size:3750*2110*1320mm ,
3). Machine packing size:3750*2110*1320mm ,
GW: 810kg
Shipping detail:
Shipped in 5-10 working days after payment.
1) Machine has been adjusted and test 48 hours before delivery.
2) English software, User manual and detailed installation & training video in USB
2) Some extra spare parts (Electrical components, limit switches etc)
1) Machine has been adjusted and test 48 hours before delivery.
2) English software, User manual and detailed installation & training video in USB
2) Some extra spare parts (Electrical components, limit switches etc)


After Service

1.) Warranty: One year on parts from date of shipping date, 3 years for free repair. Life-time technical support.
2.) Machine spare parts and repair service is offered in lifetime.
3.) Demand research, technical Seminar, laser application testing and samplings service.
4.) 30 domestic technicians, 10 oversea technicians, 5 online engineers, 24 hours technical online support by E-mail,Skype online contact software or door-to-door service.
2.) Machine spare parts and repair service is offered in lifetime.
3.) Demand research, technical Seminar, laser application testing and samplings service.
4.) 30 domestic technicians, 10 oversea technicians, 5 online engineers, 24 hours technical online support by E-mail,Skype online contact software or door-to-door service.
