    Factory Wholesale JQ LASER welded steel handheld 1500w 2000w mini fiber laser welding machine

    Factory Wholesale JQ LASER welded steel handheld 1500w 2000w mini fiber laser welding machine

    ¥740.00 CNY
    ¥740.00 CNY ¥740.00 CNY
    Sale Sold out
    Shipping calculated at checkout.
    Material
    Products Description
    Technical Advantages
    Model name
    Mini handle laser welding machine
    Model type
    JQ-mini
    Laser Power
    1000w/1500w/2000w
    Laser wavelength
    1070nm
    Fiber core diameter
    20μm
    Fiber length
    10m
    Laser working mode
    Continuous / Modulation
    Galvanometer width
    0.5-6mm
    Galvo scan speed
    ≤8000mm/s
    Welding speed
    0-120mm/s
    Refrigeration unit
    Intelligent dual temperature chiller
    Working environment
    temperature range
    15-35℃
    Total power
    ≤5KW
    Machine Advantage
    1.Compared with traditional welding machines, laser welding is fast, efficient, safe and environmentally friendly 2.Three-in-one function, one machine has the functions of welding, cleaning and cutting metal 3.Mini model, small footprint, easy to use and operate
    Product Details

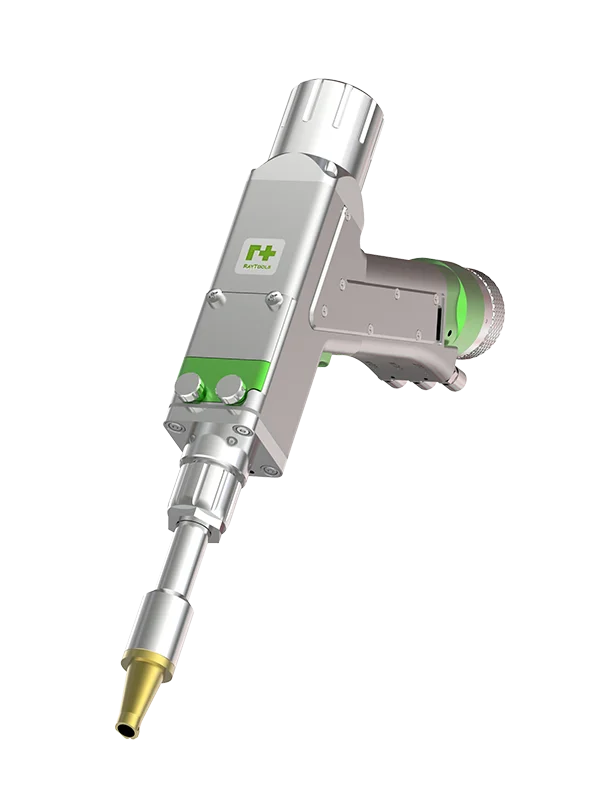

    Laser head



    Light weight, small size, simple operation, multiple safety protection



    Nozzle



    One set of nozzles, different nozzles for different functions


    Laser


    A variety of BWT, Reci and other brands can be selected

    Safety clip

    When the safety clip fixes the material, the laser head will emit laser light, otherwise it will not emit laser light

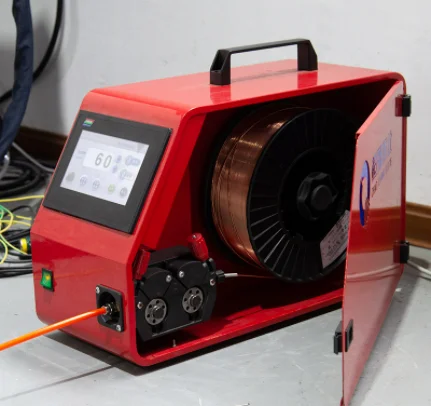

    Wire Feeder


    Selection of welding wire according to welding materials
    Sample Display

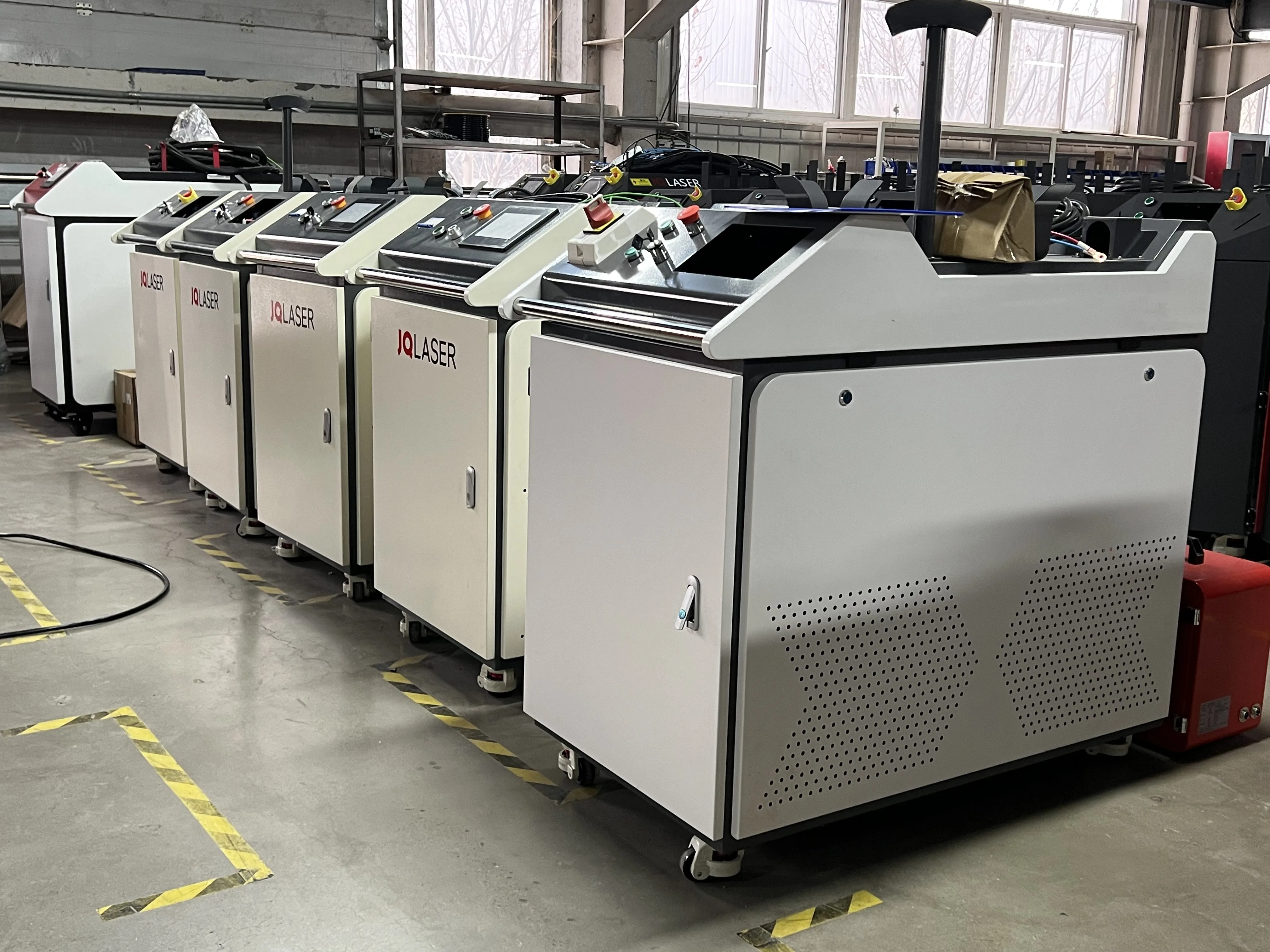

    Factory Display
    Customer Feedback
    With years of industry application experience, strong technical strength, JQ Laser has obtained SGS, CE and other certifications.Products are exported to more than 100 countries such as United States, Europe, Asia, South America,Southeast Asia, etc. the actual use effect of the product has been recognized by the majority of customers.
    FAQ
    1.How can I choose the most suitable machine ?
    (1)Please tell us what kind of work you would like the machine to do? Engraving, cutting, marking?
    (2)What kind of materials mainly?
    (3)Cutting/engraving, Max thickness for cutting? How big working area you need?

    2.If there is any technical help after we receive the machine?
    Yes, we have perfect after-sale service team to supply technical support to our customers.
    Our technical can assist you to install machine and give you free training after you receive machine.

    3. How soon can the machine be delivered?
    Ordinary machines can be shipped within 3 to 7 days. A custom machine takes two weeks.

    4. If there is a problem with some parts of the machine during the warranty period, will your company repair or replace it for me?
    Yes, we will. Please send the main parts back to our company, we will repair and send them back to you within the warranty period.
    If the problem part cannot be repaired, we will send you a new one within the warranty period. PS: Excluding wearing parts and man-made damage.
