1) It has the characteristics of corrosion resistance, light weight, and high rigidity.which ensures high-speed movement during
laser processing.
2) It has perfect dynamic performance, such as anti-distortion, anti-overturning
anti-deformation, etc, ensuring higher cutting accuracy.
007TECH

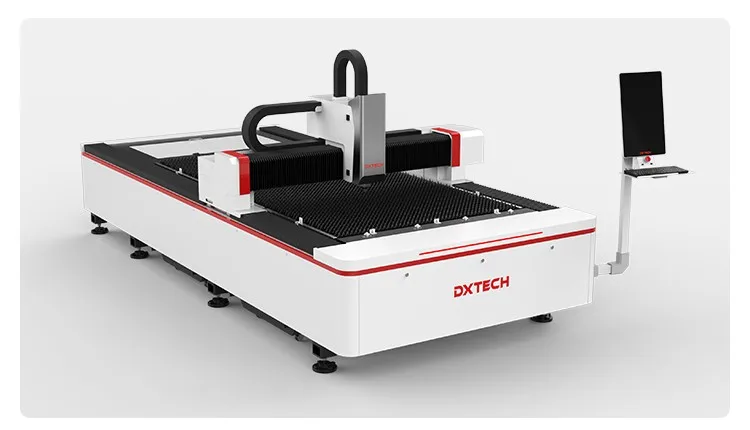

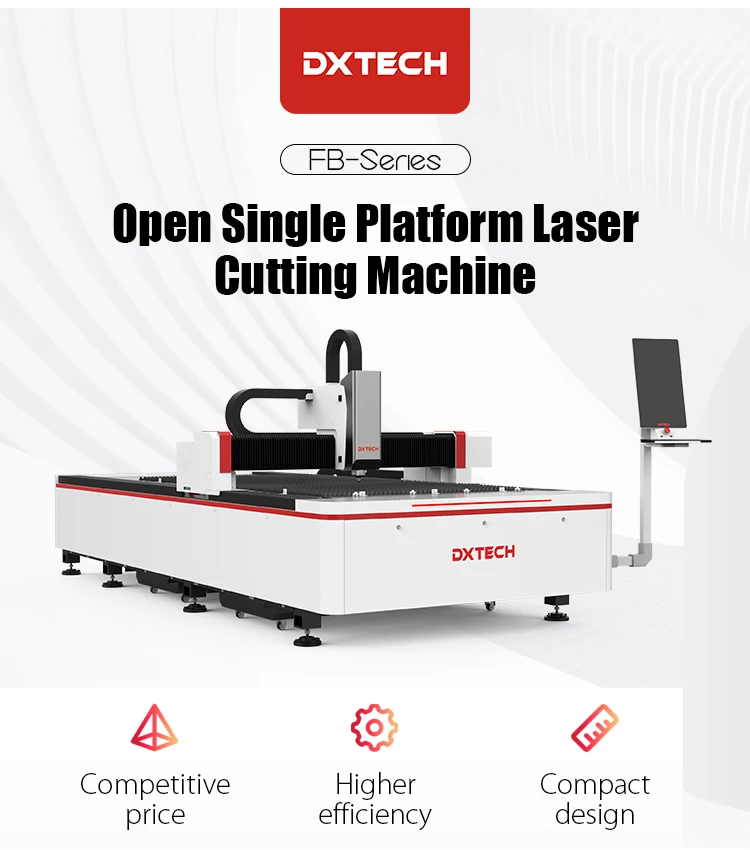

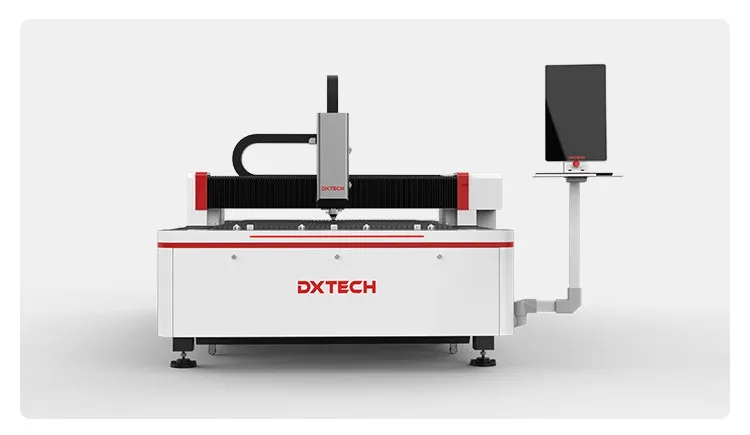

FB 1000w 1500w 2000w Metal Stainless Steel Cnc Fiber Laser Cutting Machine Good Price
FB 1000w 1500w 2000w Metal Stainless Steel Cnc Fiber Laser Cutting Machine Good Price
Regular price
¥742.00 CNY
Regular price
¥742.00 CNY
Sale price
¥742.00 CNY
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
FB 1000w 1500w 2000w Metal Stainless Steel Cnc Fiber Laser Cutting Machine Good Price
Products Description
1. Simple operating system, to realize rapid cutting on the shape what you want on the metal material, like Steel, Iron, Aluminum Plate, Carbon steel, Stainless steel, Cooper, and galvanized sheet .
2. Perfect cooling, lubricating and dust removal systems ensure stable performance, high efficiency and durability of the whole machine.
3. Aviation aluminum alloy beam to ensure the running speed is up to 150m/min.
4. World-class components like guide rails and racks to guarantee the cutting accuracy.
5. The strong iron flatbed to keep the machine for 20 years without distortion.
6. When considering sheet metal laser cutting prices, laser cutting has a higher quality cutting edge, it saves money and time cost if we count all cost all.
Aviation Aluminum Beam
Intelligent focusing laser head
Cooling: Both the collimating lens and the focusing lens group are cooling accessories. Besides, the cooling airflow nozzle is
added, which effectively protects the nozzle and the ceramics and prolongs the working time. Chasing Aperture: Through the 35 mm
aperture, the interference of stray light is effectively reduced. Autofocus: Without human interference, the focusing speed can
reach 10m/min, and the repeatability is about 50 microns.
added, which effectively protects the nozzle and the ceramics and prolongs the working time. Chasing Aperture: Through the 35 mm
aperture, the interference of stray light is effectively reduced. Autofocus: Without human interference, the focusing speed can
reach 10m/min, and the repeatability is about 50 microns.
Thick-walled carbon steel pipe welding bed
Adopting high-quality carbon steel welding bed, it is more stable and durable. The high-strength machine tool adopts 600 ℃ stress
relief annealing treatment, which has strong structural rigidity, small deformation, and low vibration to ensure cutting accuracy.
relief annealing treatment, which has strong structural rigidity, small deformation, and low vibration to ensure cutting accuracy.
Technical Paramenters
Model |
DXTECH-1530FB |
DXTECH-2040FB |
DXTECH-2560FB |
Machine size |
4320*2250*1950mm |
5350*2800*1950mm |
5350*3350*1950mm |
Working area |
1515*3030mm |
2020*4040mm |
2525*6050mm |
Positioning accuracy |
±0.03mm |
±0.03mm |
±0.03mm |
Repositioning accuracy |
±0.02mm |
±0.02mm |
±0.02mm |
Max. acceleration |
1.5G |
1.5G |
1.5G |
Laser power |
1kW – 2kW |
1kW – 2kW |
1kW – 2kW |
Laser |
Multiple options |
Multiple options |
Multiple options |
Focusing method |
Auto/manual |
Auto/manual |
Auto/manual |
Max. running speed |
140m/min |
140m/min |
140m/min |
Sample Show
Product Category
Company Profile
Quality Control
FAQ
01What is fiber laser cutting machine?
A:Fiber laser is a special type of solid state laser. Generally, fiber lasers are optically
pumped.This is done by coupling the radiation of diode laseers or other fiber lasers into the cladding or the core itself in a
direction parallel to the fiber core. In many cases, double clad fibers are used in order to achieve higher output power. What's material can fiber laser cut? All kinds of metal, such as Stainless Steel,Carbon Steel, Mild Steel, Galvanized Steel, Aluminum, copper, etc.
02What's the max. cutting thickness?
A:Cutting thickness is related to laser power.Note: only 1KW or above fiber laser could cut Aluminum, Copper, Brass and other high reflectionsheet metal.
03Do you have CE document and other documents for customs clearance?
A:Yes, we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.
04 Payment terms?
A:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.
05 I don't know how to use after i receive Or i have problem during use, how to do?
A:We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.
06 I don't know which one is suitable for me?
A:just tell us below information
pumped.This is done by coupling the radiation of diode laseers or other fiber lasers into the cladding or the core itself in a
direction parallel to the fiber core. In many cases, double clad fibers are used in order to achieve higher output power. What's material can fiber laser cut? All kinds of metal, such as Stainless Steel,Carbon Steel, Mild Steel, Galvanized Steel, Aluminum, copper, etc.
02What's the max. cutting thickness?
A:Cutting thickness is related to laser power.Note: only 1KW or above fiber laser could cut Aluminum, Copper, Brass and other high reflectionsheet metal.
03Do you have CE document and other documents for customs clearance?
A:Yes, we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.
04 Payment terms?
A:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.
05 I don't know how to use after i receive Or i have problem during use, how to do?
A:We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.
06 I don't know which one is suitable for me?
A:just tell us below information
1) Max work size:choose most suitable model.
2) Materials and Cutting thickness:Power of laser generator.
3) Business industries:We sell a lot and give advice on this business line.also provide Door service if you need.
