1 0

    007TECH

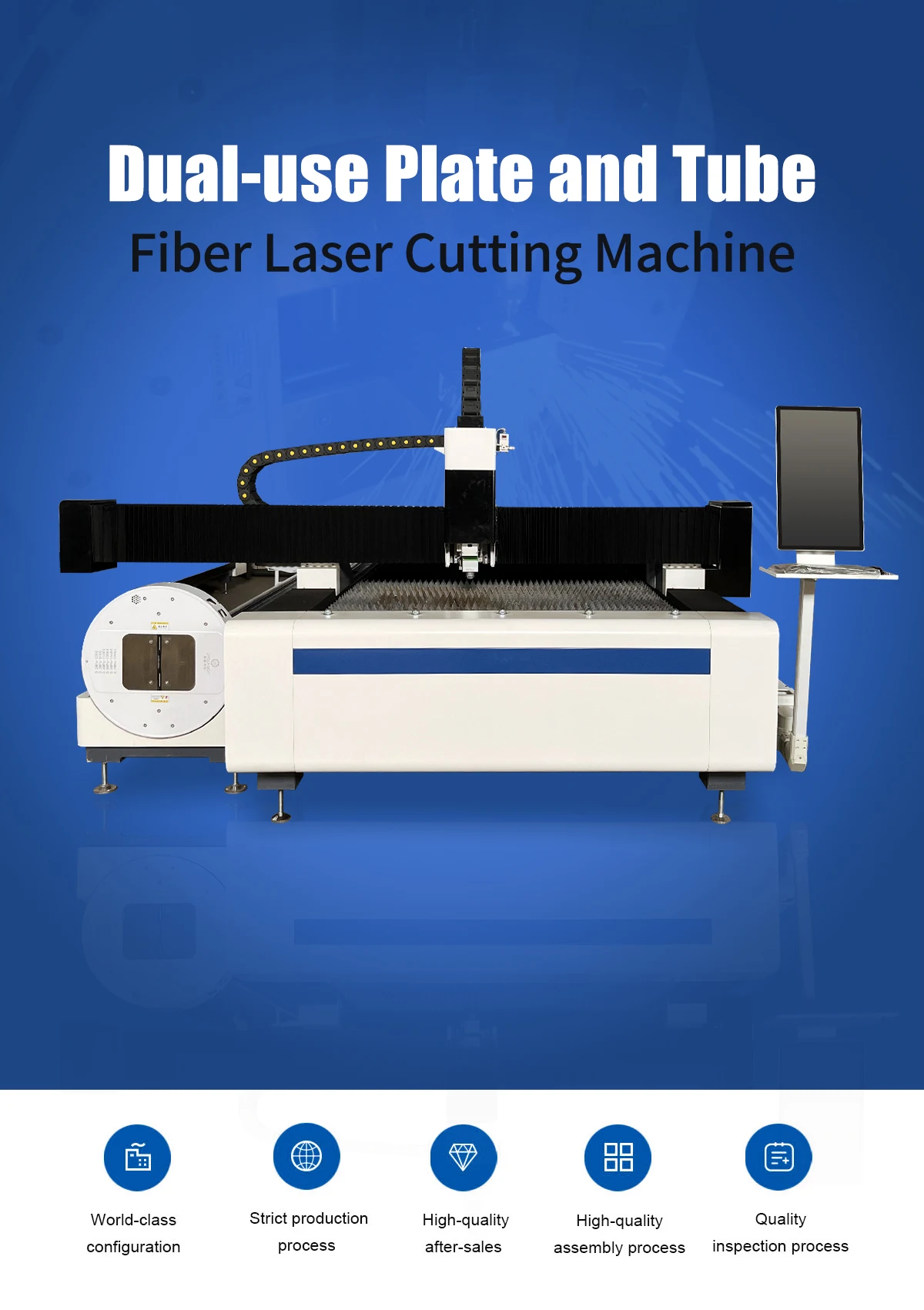

    fiber laser cutter laser cutting machine for iron 3015 fiber laser cutting machine 6000w

    fiber laser cutter laser cutting machine for iron 3015 fiber laser cutting machine 6000w

    ¥4,390.00 CNY
    ¥182,915.00 CNY ¥4,390.00 CNY
    Sale Sold out
    Shipping calculated at checkout.
    Model Number
    Power
    Product name
    Size Information
    JX3015 1000W Fiber Laser Cutting Machine (Single Bed)
    Mainframe structure
    Double drive gantry structure
    Working table width
    1525 mm
    Working table length
    3050 mm
    Cutting steel plate thickness
    Carbon steel≤16mm，Stainless steel≤8mm
    X, Y axis drive mode
    Imported precision rack and pinion (helical)
    X-axis effective cutting range
    1525 mm
    Y-axis effective cutting range
    3050 mm
    X/Y axis maximum linkage positioning speed
    100m/min
    X, Y axis maximum acceleration
    1.1G
    Power Parameters
    Phase No.
    3
    Power supply rated voltage
    380V
    Frequency
    50Hz
    Total power protection level
    IP54
    Weight and size
    Worktable maximum load
    1500kg
    Machine weight
    3800Kg
    Dimension（length×width×height）
    3600mm×2450mm×2230mm
    Remark
    Cutting area can be customized as per clients.
    Cutting Data Reference for Optical Fiber Laser Cutting Machine
    Power
    Carbon steel plate
    Stainless steel plate
    Copper
    Aluminium
    Red copper
    1000W
    0.5-12mm
    0.5-6mm
    1-3mm
    1-3mm
    1-2mm
    1500W
    1-16mm
    0.5-8mm
    1-5mm
    1-6mm
    1-2mm
    2000W
    1-16mm
    1-8mm
    1-5mm
    1-8mm
    1-3mm
    3000W
    1-20mm
    1-10mm
    1-6mm
    1-8mm
    1-4mm
    4000W
    1-20mm
    1-12mm
    1-8mm
    1-10mm
    1-5mm
    6000W
    1-25mm
    1-14mm
    1-8mm
    1-12mm
    1-6mm
    Details

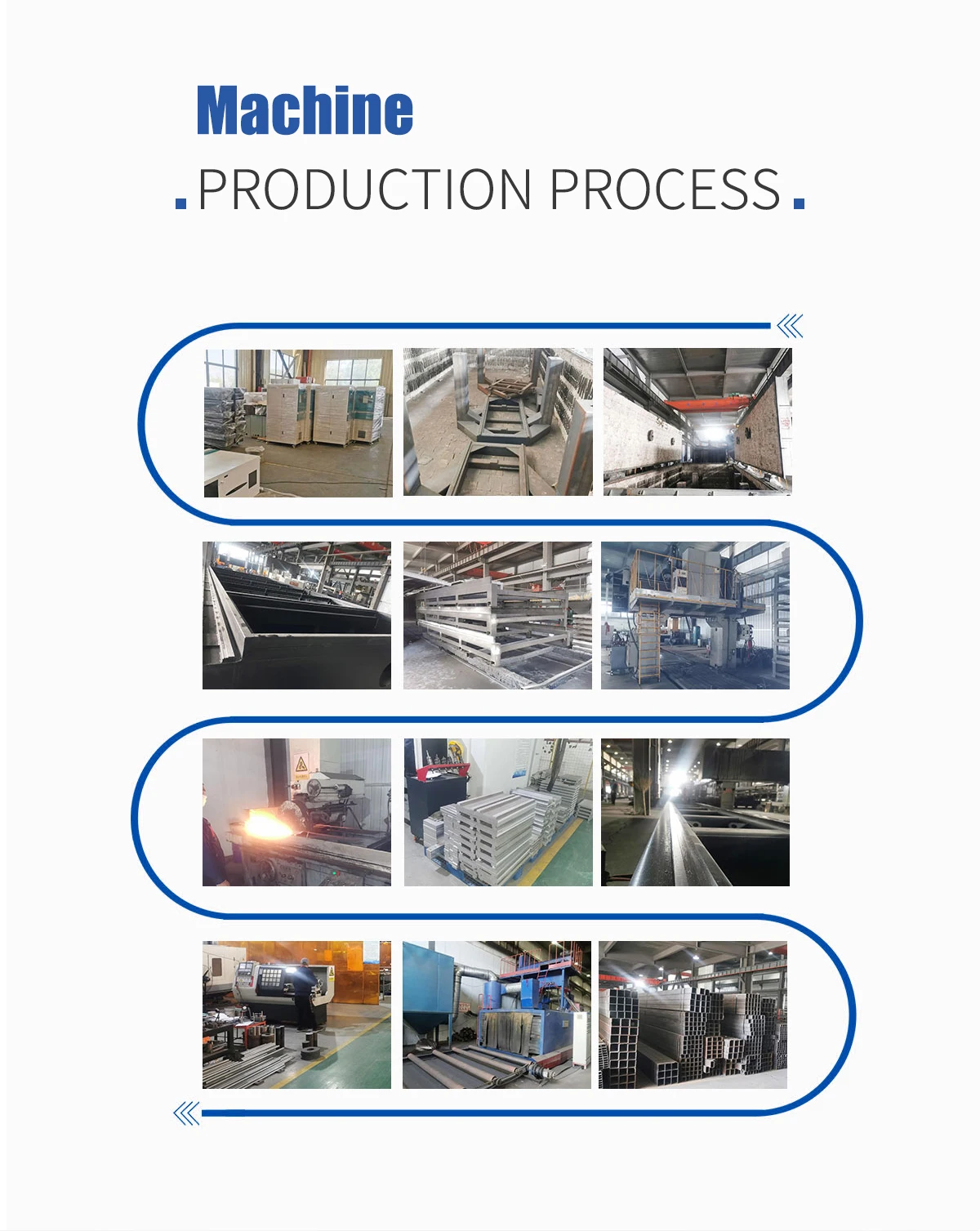

    Manufacturing Technique
    Packing & Delivery
    FAQ
    Q: What's the delivery time? A: 10-15 working days to delivery port. Q: What's the usually delivery terms? A: FOB, CNF, CIF, Exworks will be OK. Q: What's the MOQ? A: 1 set. Q: What’s the payment term? A: We accept T/T, L/C or Cash. Q: What's your delivery port? A: Usually Qingdao port, Shanghai port. Q: What's the packing? A: Iron Pallet and Plywood cases or carton or depending on your requires. Q: Can I change the motor to my local voltage and frequency, Is thereany extra charge? A: Yes, we can supply motor with frequency and voltage according to local standard. Such as 220V/380V/410V/415V/440V, and 50HZ/60HZ without extra charge. Q: Can you place OEM orders? A: Yes,OEM orders are acceptable. We can manufacture machines according to your requirement with your design,logo,color,materials or brand information. Q:Where is your factory located? How can I visit there? A:Our factory is located in Jining City, Shandong Province, China, about 2 hours from Beijing, 3 hours from Shanghai.
