Fiber Laser Cutting Machine 1500*3000mm
Fiber Laser Cutting Machine 1500*3000mm
Regular price
¥741.00 CNY
Regular price
¥741.00 CNY
Sale price
¥741.00 CNY
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description

Fiber laser cutting machine can do both plane cutting and oblique cutting, and its edges are neat and smooth, which is suitable for high-precision cutting of metal plates. At the same time, the mechanical arm can perform three-dimensional cutting instead of the original imported five-axis laser. Compared with ordinary carbon dioxide laser cutting machine, it saves space and gas consumption, and has high photoelectric conversion rate. It is a new product with energy saving and environmental protection, and it is also one of the technical products in the world

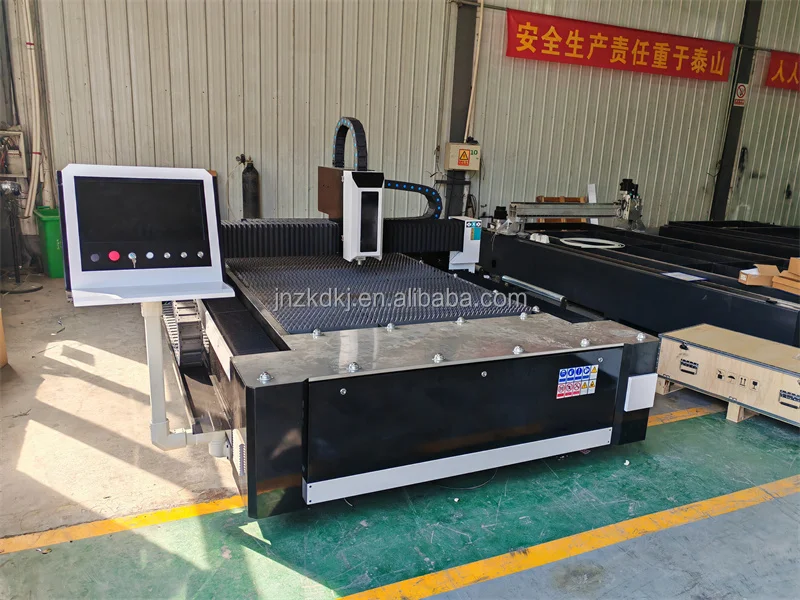

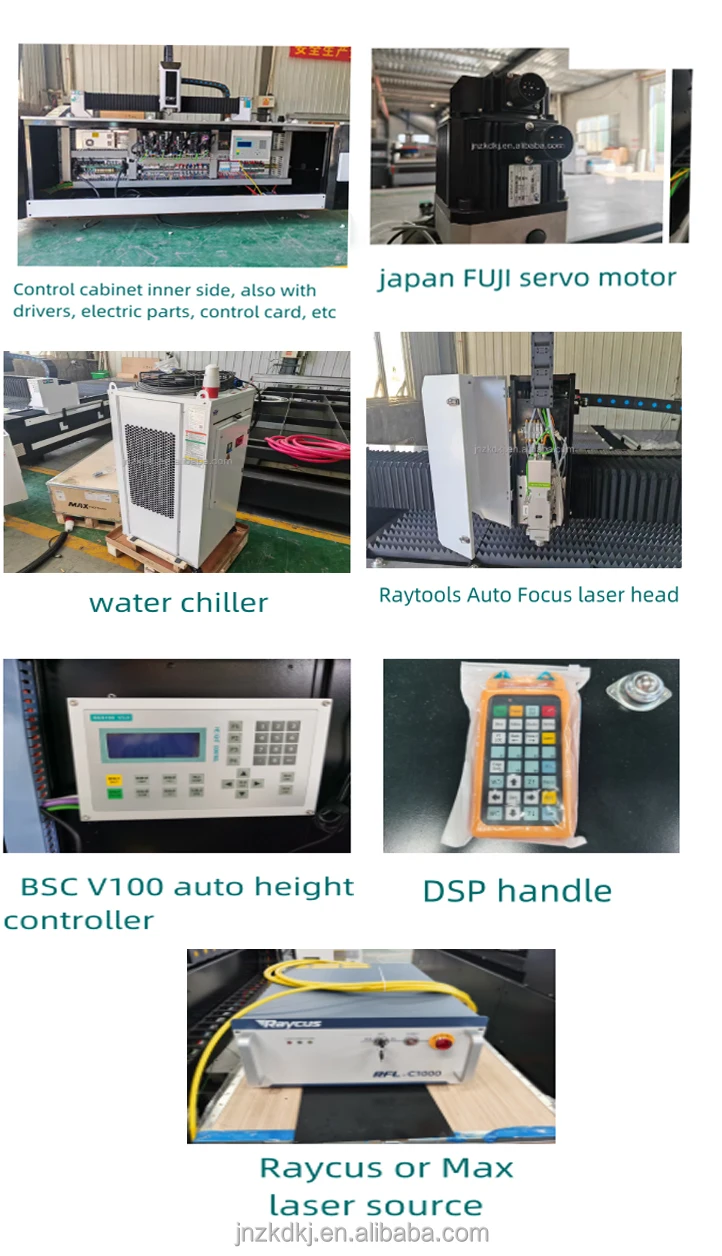

Machine detail photos

Specification
item |
value |
Application |
LASER CUTTING |
Applicable Material |
Metal |
Condition |
New |
Laser Type |
Fiber Laser |
Cutting Area |
1500mm*3000mm |
Cutting Speed |
680mm/sec |
Graphic Format Supported |
AI, PLT, DXF, Dst, Dwg |
Cutting Thickness |
1-20mm |
CNC or Not |
Yes |
Cooling Mode |
WATER COOLING |
Control Software |
Cyput |
Place of Origin |
Shandong, China |
Brand Name |
zhongeke |
Laser Source Brand |
MAX |
Laser Head Brand |
Raytools |
Servo Motor Brand |
FUJI |
Guiderail Brand |
HIWIN |
Weight (KG) |
2500KG |
Key Selling Points |
Easy to Operate |
Optical Lens Brand |
Wavelength |
Warranty |
1 Year |
Applicable Industries |
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Restaurant, Retail, Printing Shops, Construction works , Energy & Mining, Advertising Company |
Machinery Test Report |
Provided |
Video outgoing-inspection |
Provided |
Warranty of core components |
1 Year |
Core Components |
Pressure vessel, Motor, Bearing, Gear, PLC |
Mode of Operation |
continuous wave |
Configuration |
3-axis |
Products handled |
Sheet Metal |
Feature |
Automated Loading |
CNC laser cutter wavelength |
1064 nm |
Beam quality |
<0.373mrad |
Beam |
Integrated welding beam |
Guide |
Taiwan HIWIN |
Reducer |
France Motoly |
Low-voltage electrical appliances |
Chint |
Origin, limit switch |
Swiss Carole |
Cable |
Flexible shielded cable |
Gas circuit (proportional valve) |
NNT |
Chiller |
Han Li |

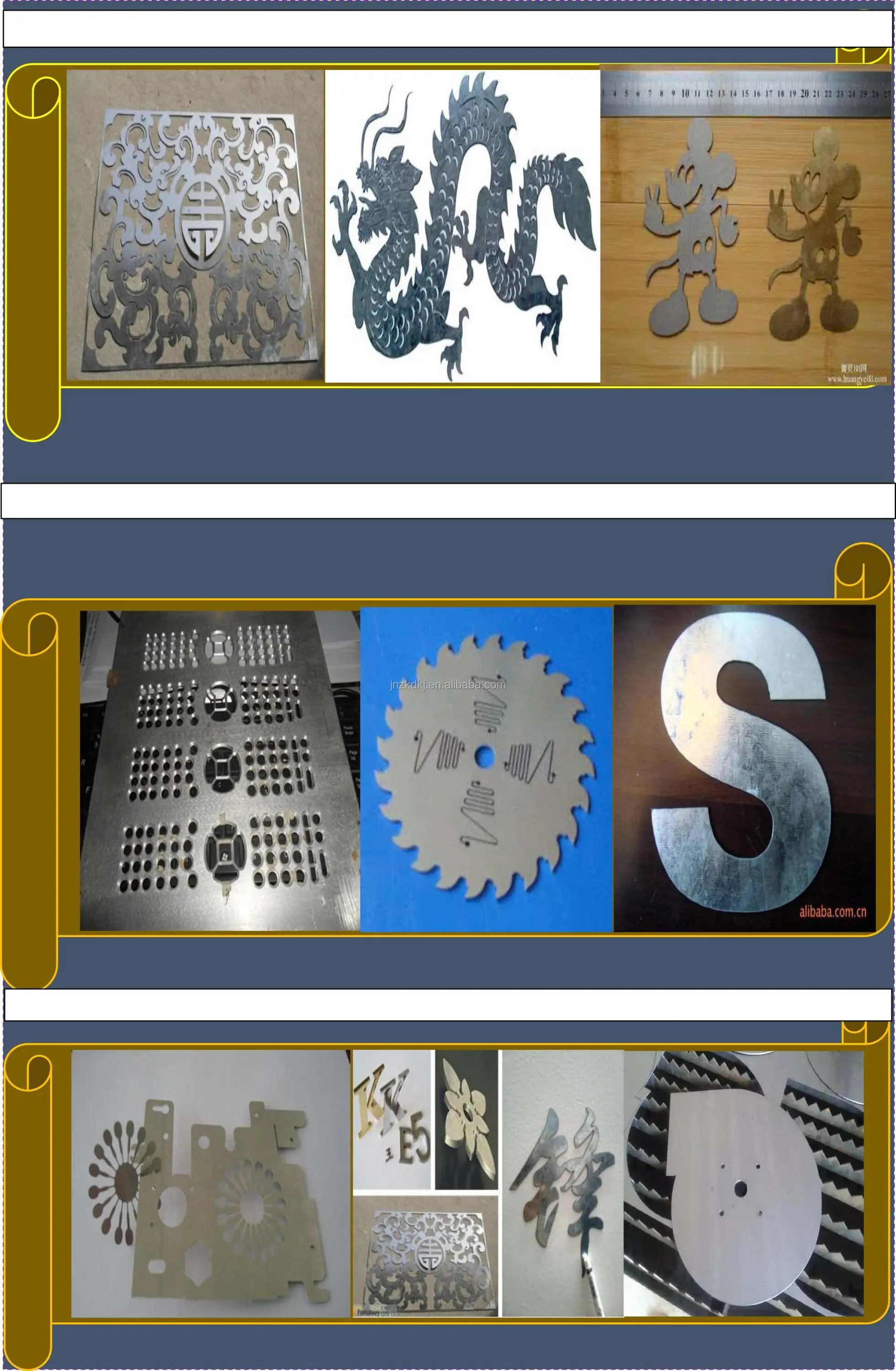

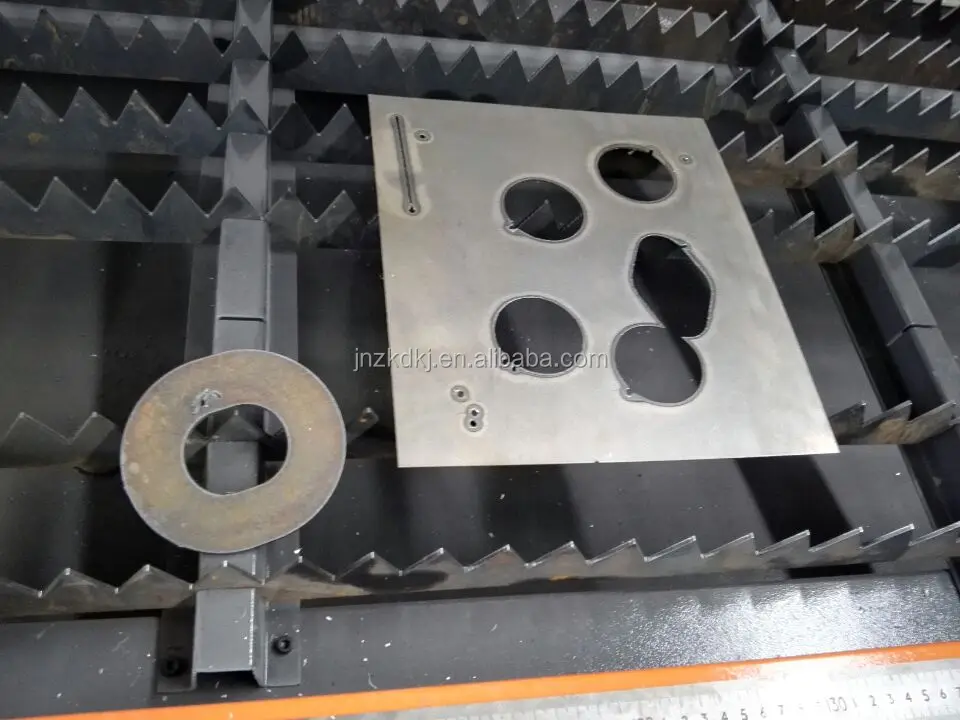

Sample photos


A, metal plate Laser cutting machine is suitable for cutting all kinds of metal plates, such as stainless steel plates, copper plates and aluminum plates. After the laser beam of the laser cutting machine is focused, it can quickly melt the plate, and then it is cut by oxidant jet, which makes the slit very fine and the accuracy is as high as 0.05 mm. Laser cutting machine has the characteristics of high efficiency and high precision, and is widely used in automobile manufacturing, aviation manufacturing, mechanical processing and other fields. .
Second, non-metallic plates In addition to metal plates, laser cutting machine is also suitable for cutting non-metal plates, such as wood plates and acrylic plates. Compared with the traditional mechanical cutting, the laser cutting machine can cut the plate into different shapes more accurately. Acrylic board is a transparent and hard plastic material, which can be cut into various shapes by laser cutting machine, and is widely used in advertising production, decoration and other fields.



Packing & Delivery
exporting plywood package for laser cutting machine

Company Profile
Jinan Zhongke CNC Equipment Co., Ltd. is located in Jinan City ,Shandong province and is specialized in manufacturing CNC routers, CNC plasma cutting machines, laser cutting machines and engraving machines. With an experienced and professional team, we have exported our products to many countries and regions all over the world, especially America, Europe, Oceania and Southeast Asia. We enjoy a good reputation among our customers. We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
Welcome to Jinan Zhongke CNC Equipment Co.,ltd to visit our machines!

FAQ
1. who are we?
We are based in Shandong, China, start from 2011,sell to South Asia(15.00%),Oceania(15.00%),Southeast Asia(10.00%),North America(6.00%),South America(6.00%),Western Europe(6.00%),Africa(6.00%),Domestic Market(6.00%),Eastern Asia(5.00%),Southern Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Eastern Europe(5.00%),Mid East(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Wood CNC Router, Advertising CNC Machine, Metal CNC Router, Plasma Cutting Machine, Laser Engraving Machine, Stone CNC Router
4. why should you buy from us not from other suppliers?
null
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Russian
We are based in Shandong, China, start from 2011,sell to South Asia(15.00%),Oceania(15.00%),Southeast Asia(10.00%),North America(6.00%),South America(6.00%),Western Europe(6.00%),Africa(6.00%),Domestic Market(6.00%),Eastern Asia(5.00%),Southern Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Eastern Europe(5.00%),Mid East(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Wood CNC Router, Advertising CNC Machine, Metal CNC Router, Plasma Cutting Machine, Laser Engraving Machine, Stone CNC Router
4. why should you buy from us not from other suppliers?
null
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Russian
Similar machines
using skills\Precautions for use
When using the fiber laser cutting machine to process objects, it is necessary to learn the skills of using and maintaining the fiber laser cutting machine equipment, so as to give full play to the efficacy of the equipment and improve the working efficiency of the equipment to the greatest extent.
How to use and maintain the fiber laser cutting machine:
1.Check the steel strip frequently to ensure that it is taut. Otherwise, if something goes wrong in operation, it may hurt people and even lead to death. The steel belt looks like a small thing, and the problem is still a bit serious.
2.Check the straightness of the track and the verticality of the machine every six months, and maintain and debug it in time if it is abnormal. If you don't do this, the cutting effect may not be very good, and the error will increase, which will affect the cutting quality. This is the top priority and must be done.
3.Vacuum the dust and dirt in the machine once a week, and all electrical cabinets should be tightly closed and dust proof.
4.Each guide rail should be cleaned frequently to eliminate dust and other sundries to ensure the normal operation of the equipment.The rack should be wiped frequently and lubricated to ensure lubrication without sundries. The guide rail should be cleaned and lubricated frequently, and the motor should also be cleaned and lubricated frequently, so that the machine can move better and cut more accurately when moving, and the quality of the cut products will be improved.
