Fiber Laser Cutting Machine For Metal Jewelry Cutting Remote Control laser cutter

Fiber Laser Cutting Machine For Metal Jewelry Cutting Remote Control laser cutter

Regular price ¥4,442.00 CNY
Regular price ¥185,044.00 CNY Sale price ¥4,442.00 CNY
Sale Sold out
Shipping calculated at checkout.
Model Number
Power
Products Description
   Sheet Metal Fiber Laser Cutting Machine ZL-3015A
This standard fiber laser cutting machine ZL-3015A, applicable for cutting various of metal plate, such as stainless steel, carbon steel, copper, aluminum, brass, gold, silver, iron, titanium, alloys, etc. It is widely used in the manufacture of billboards, signs, kitchenware, sheet metal processing, hardware parts, nameplates and so on.

Our advantage of fiber laser cutting machine:
-- High precision, fast speed, smooth cutting edge, no burrs. --The laser head will not touch the surface of the material and will not scratch the workpiece. --It has the narrowest cutting seam, the smallest heat affected zone, the least local deformation of the workpiece, no mechanical deformation. --Good processing flexibility, it can cut any graphics, such as pipes and other special-shaped materials.
Different cutting thickness requires different laser power, please tell us your material, size and thickness, therefore we can recommend you the suitable laser cutting machine.

Our products range: sheet metal fiber laser cutting machine, tube metal fiber laser cutting machine, combined sheet and tube fiber laser cutting machine, fiber laser welding cleaning machine, laser marking machine, laser engraving machine, all parts that related to the laser equipment such as laser head, laser source, control system, air compressor, blast engine, water chiller, consumables parts nozzle, ceramic ring, electronic components ect...

We pay the most attention to the quality and services, not to invest in advertising. We dare to say our quality is superb, and price is cheap. Welcome all to visit us for further understanding.

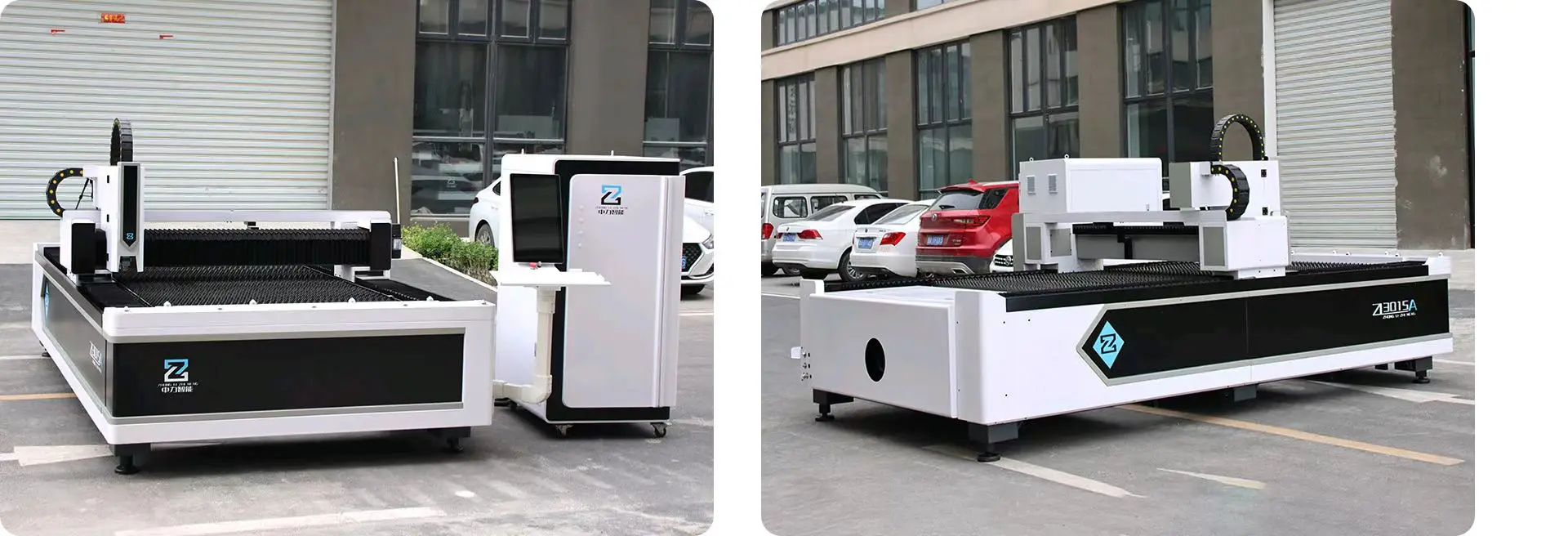

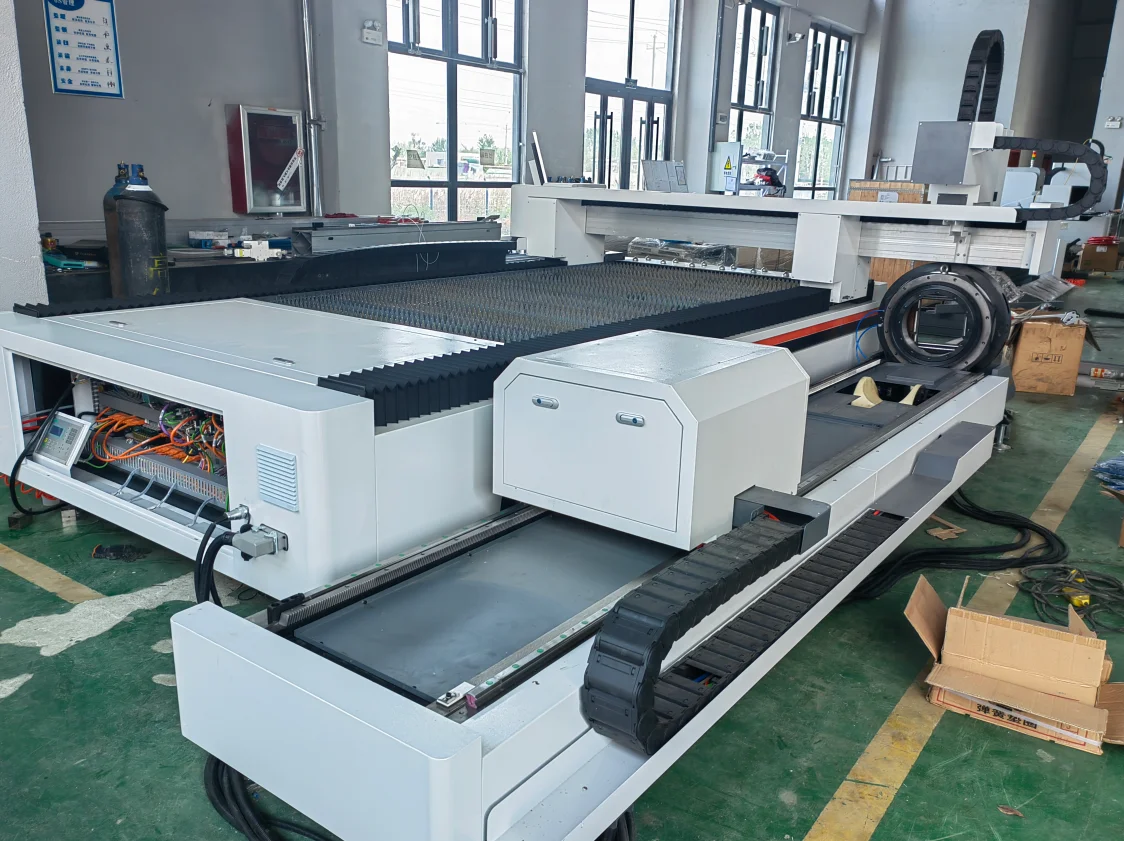

Machine Display

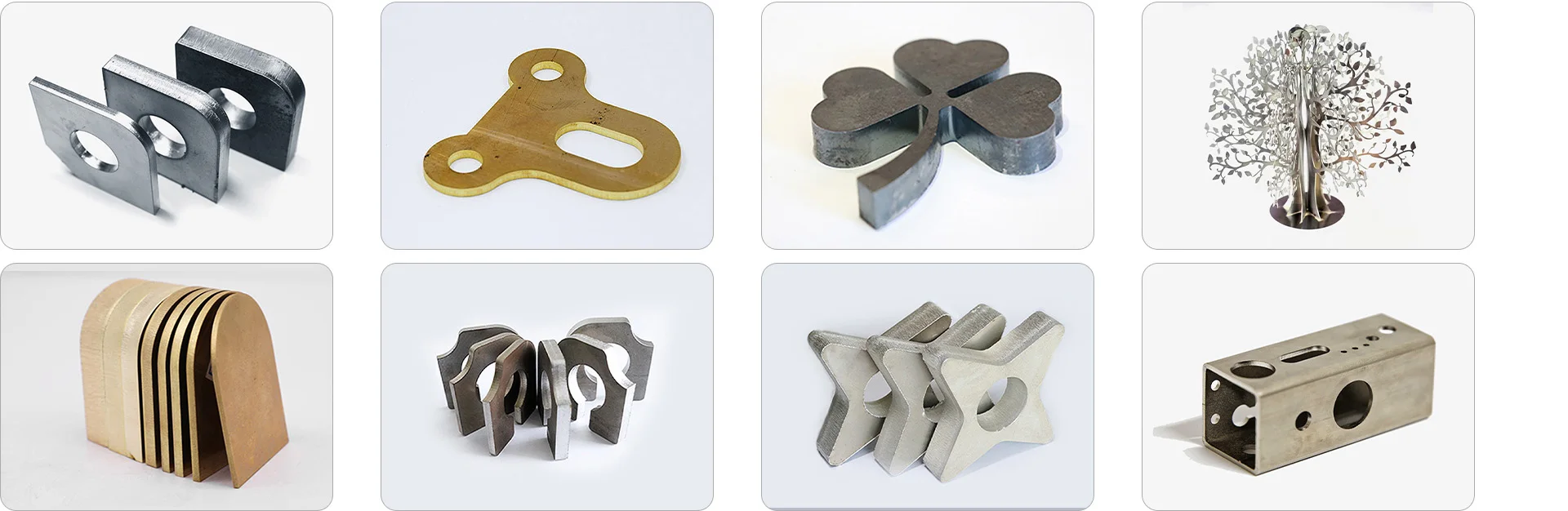

Application Sample
Product Paramenters
Machine Model
ZL-1313A/1390A
ZL-3015A
ZL-4015A/4020A
ZL-6020/6025
Cusomized
Laser Power
1kw/1.5kw/2kw/3kw/4kw/6kw/8kw/12kw/20kw
Accelaration
0.6G/0.8G/1.0G/1.5G/2.0G
Max Cutting Speed
80m/min

Laser Wavelength
1,070-1,080nm
Position Accuracy
±0.02mm
Repeatability Accuracy
±0.02mm
Motor and Drivers
Japan Fuji/Japan Yaskawa/Taiwan Delta/INOVANCE
Transmit System
Dual Rack & Pinion Type
Control System
FSCUT/Au3Tech/Raytools/Weihong
Cutting Head
Raytools/Au3Tech/FSCUT/Ospi/WSX/PRECITEC
Reducer
Japan Shimpo/France Motovario/Germany Lead-motion
Linear Guider System
Taiwan HIWIN/Taiwan PMI/Italy PEK
Gear Rack
Taiwan YYC/Germany HERION
Electrical Components
France Schneider/Honeywell
Water Chiller
Hanli/DVT/S&A
Optional
Rotary/Exchange Table/Protective Cover
Power Supply
3 Phase 380v 50HZ 60HZ (Customized)
Detailed Machine Configuration

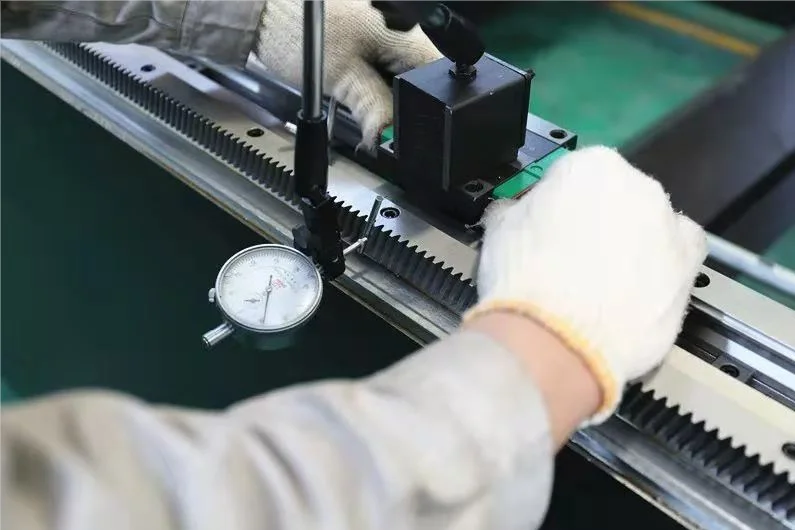

Fast Transmission and Super Precision

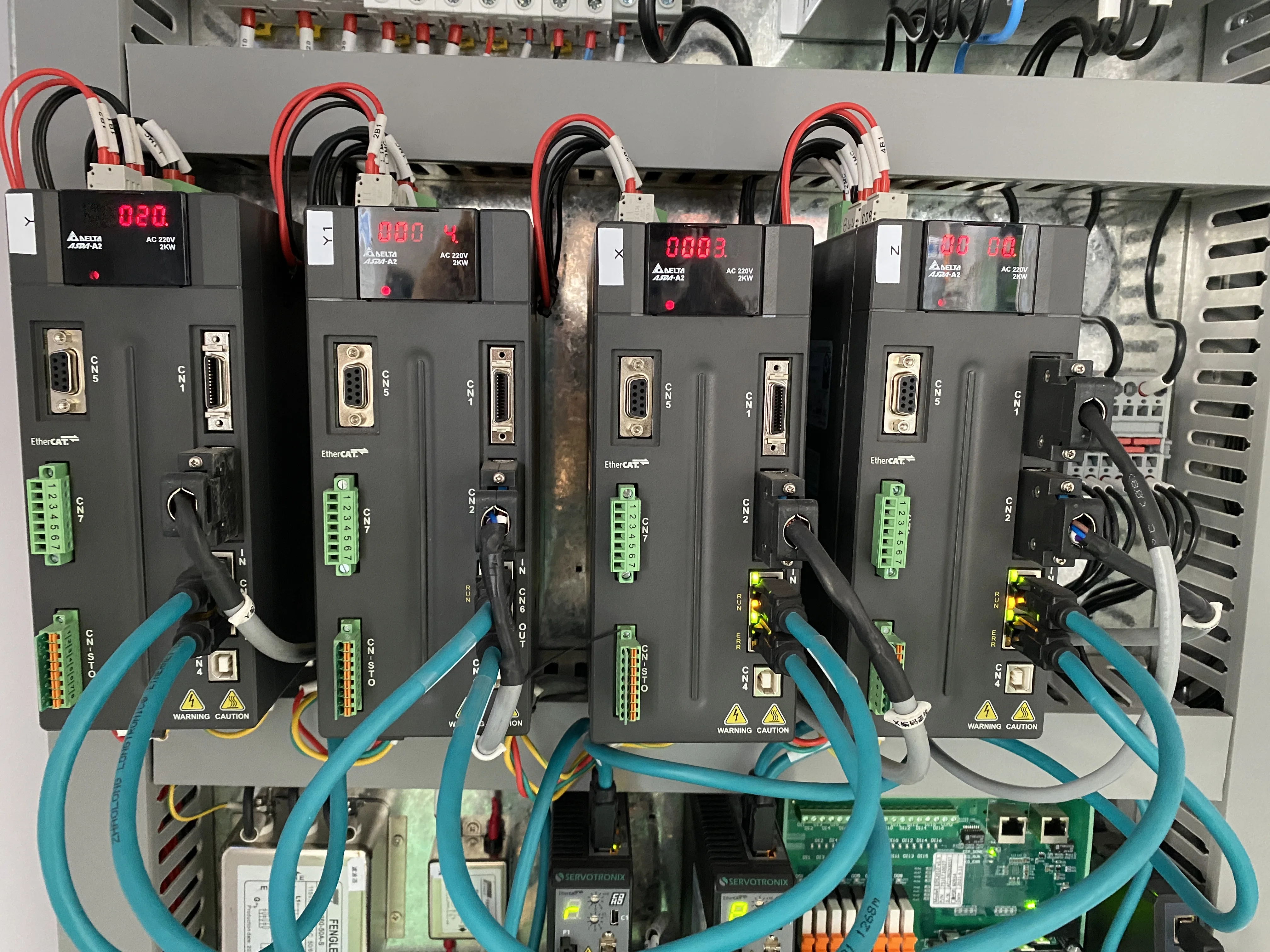

Adopts Japan Yaskawa motor, Japan Fuji motor or Taiwan Delta motor, with high precision, no step losing, high torque and low noise;Taiwan YYC / Germany HERION gears and Japan Shimpo / France MOTOVARIO / Germany Lead-motion reducers, which can make the machine position accuracy reach to 0.02mm

Aviation Cast Aluminum Beam

Machine adopts aviation cast aluminum beam, which is manufactured according to the aerospace standards and extruded with 4300 tons pressure; The beam is processed by T6 heat treatment which can make the beam obtain the highest strength and strong deformation resistance; Using ultra-high pressure tensile technology and light weight design, the beam weight is reduced by 30% compared with cast aluminum beam and the strength and rigidity are increased by more than 20%.

Super heavy Steel Welding Machine Bed

The bed is welded with big thickness square tubes, which has stiffeners inside to increase the structure strength and tensile strength; With high temperature annealing and natural aging, the welding stress is eliminated, which can prevent the deformation of the bed , reduce vibration and guarantee a good cutting accuracy.

Auto Focus Cutting Head

Laser head with automatic focus function, which can adjust the focus automatically, no need to adjust it by hand. The software can change the focusing lenses automatically according to the different thickness of the materials. It can shorten the perforation time, improve the perforation quality and cutting speed. It’s simple, convenient and fast; Long life span; Full-circle water cooling around the focusing component, which can realize no heat, no fog with high power cutting, small volume cutting and long term cutting, the lifetime of the cutting head is improved greatly.

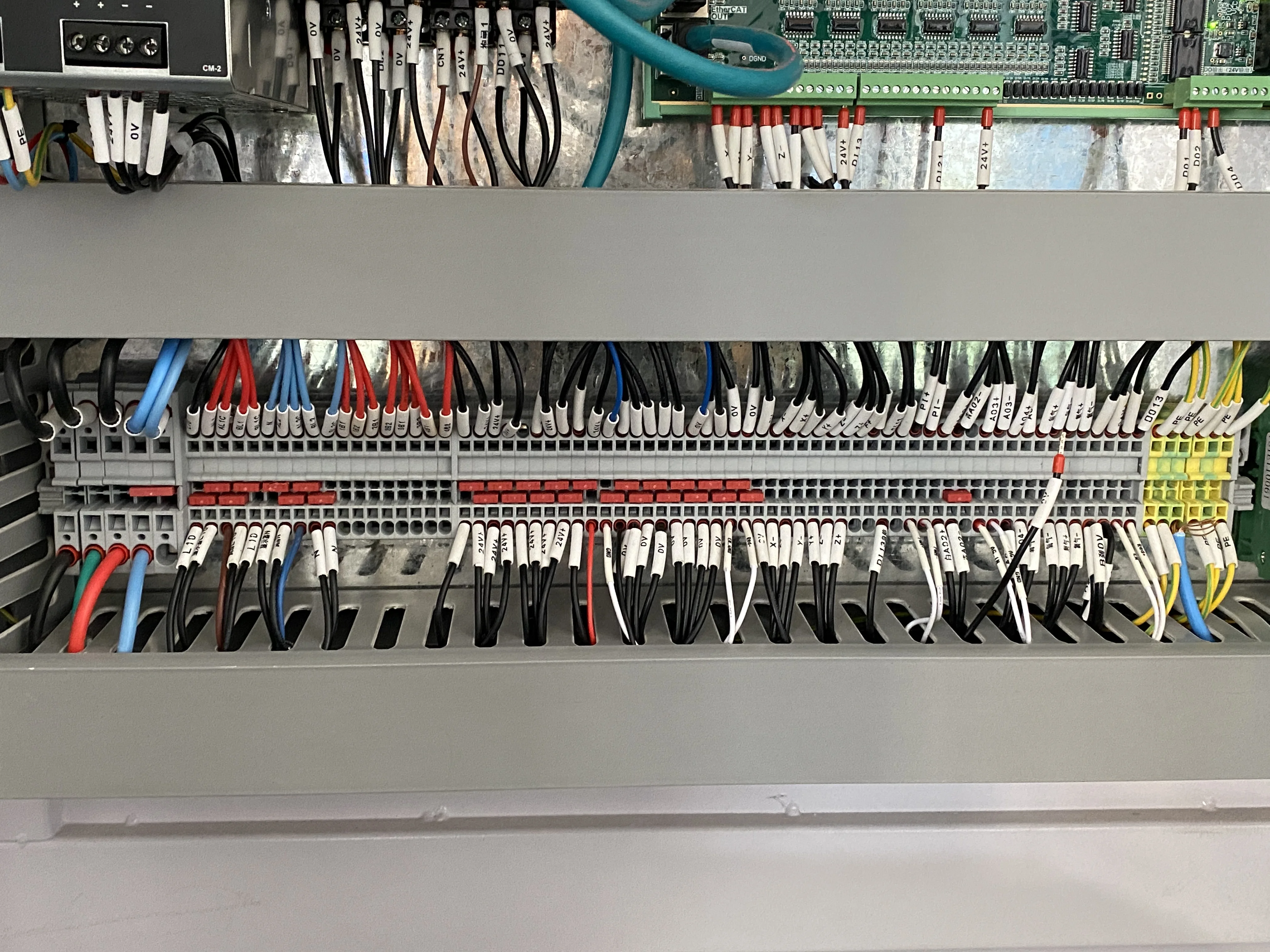

Independent Control Cabinet

Dust-proof We put all electrical components and laser source into the independent control box, it is dust proof which can guarantee the life span of the components; Automatic Thermostat The control cabinet is equipped with air conditioner which can keep the constant temperature automatically. It can prevent the high temperature damage for the components in summer.

Intelligent operation software

Adopts high definition toughened glass, intelligent touch, fast response and smoother operation. Ultra low power consumption and high resolution; The new intelligent alarm system is pushed to the interface through the control center to find abnormalities in advance, quickly eliminate and feed back, reduce hidden dangers, and there is no danger in remote alarm operation; Cypcut is one professional software for fiber laser cutting, easy operation and its is suitable for many different processing occasions.

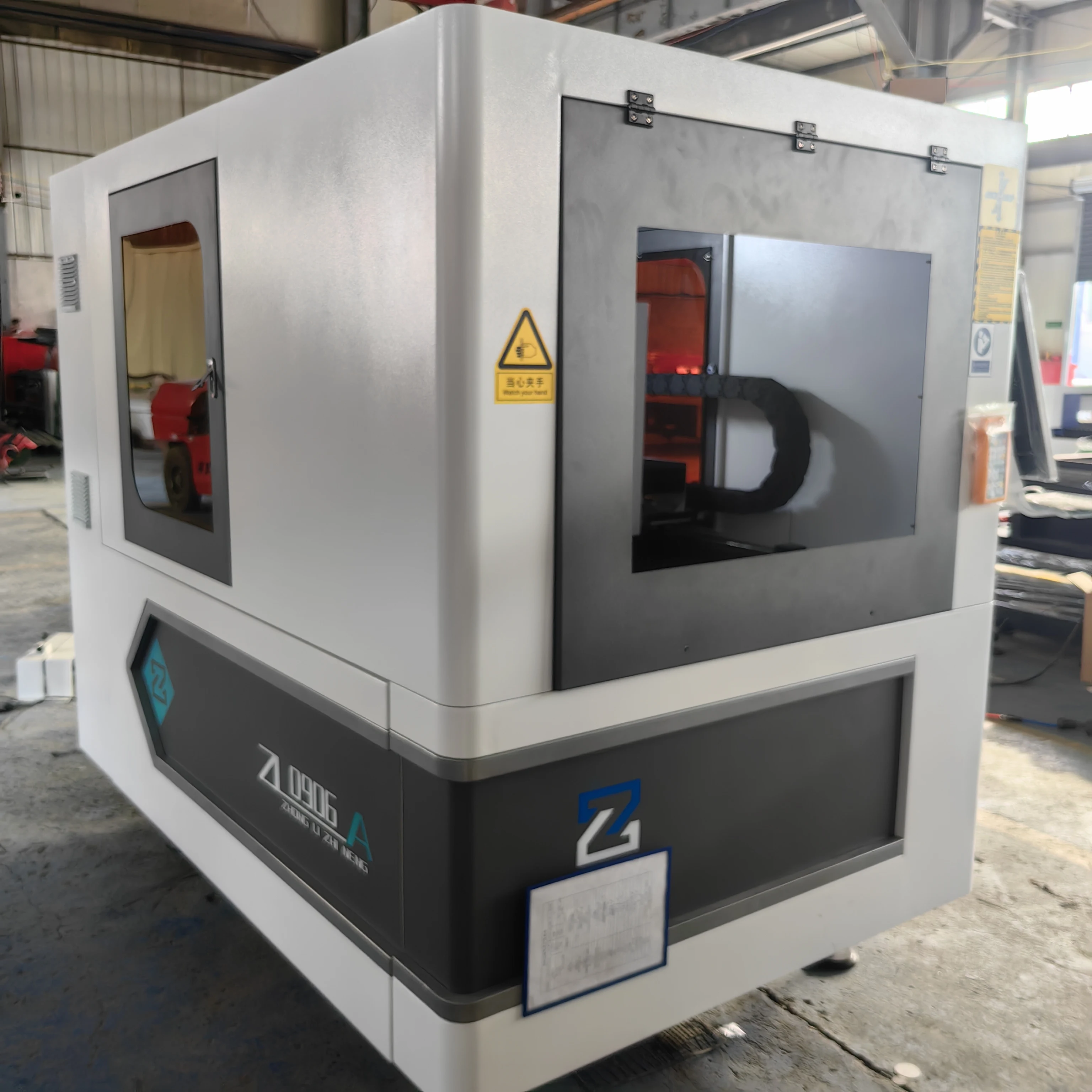

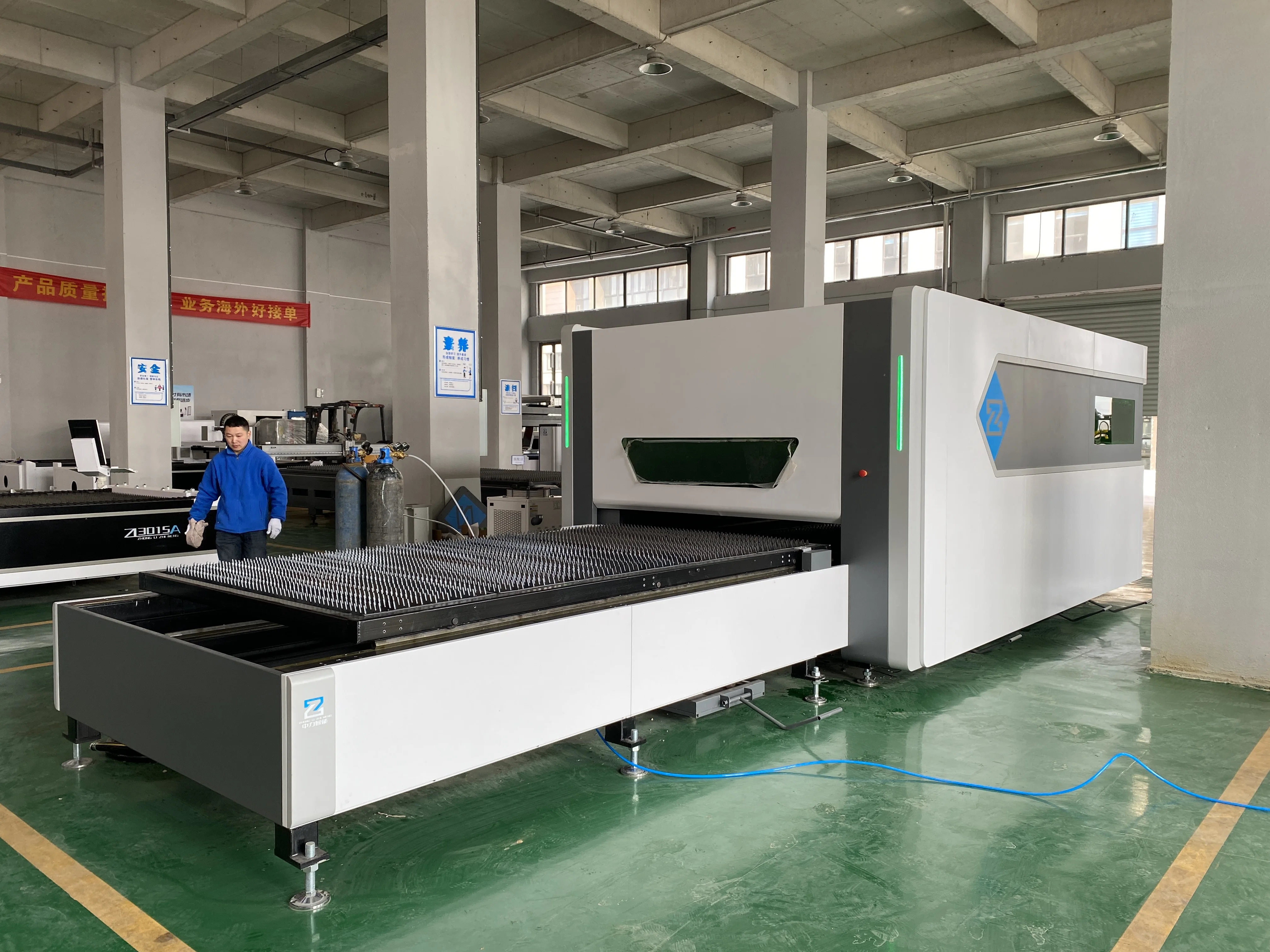

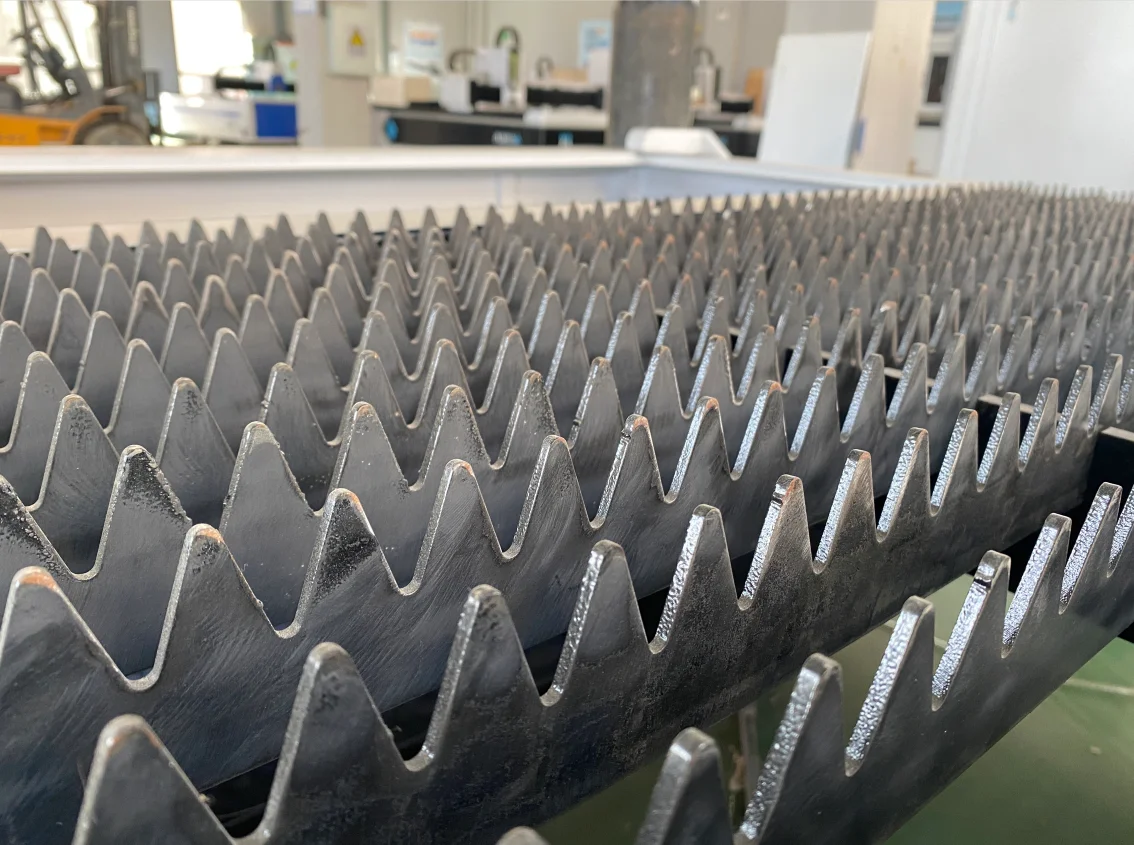

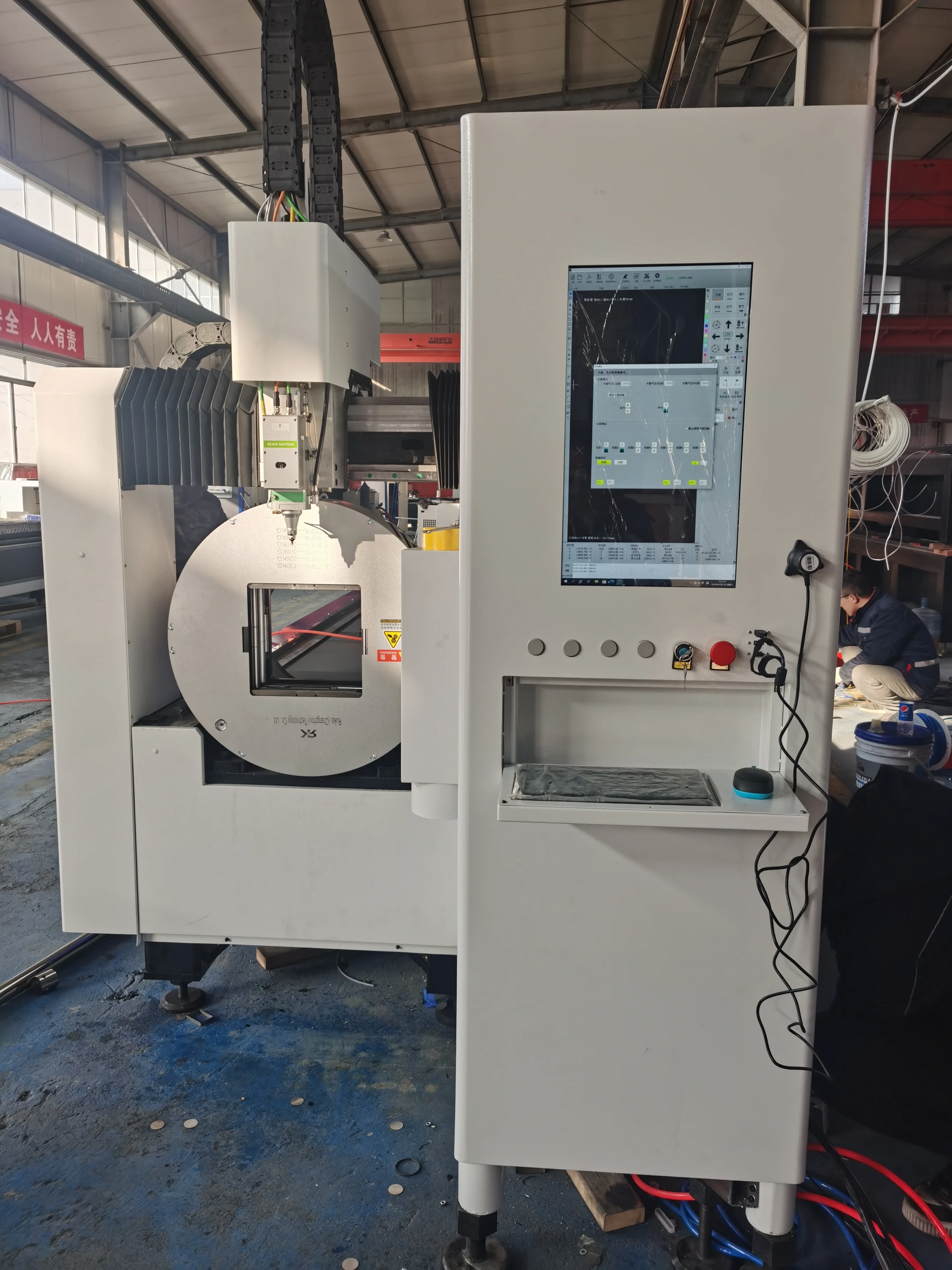

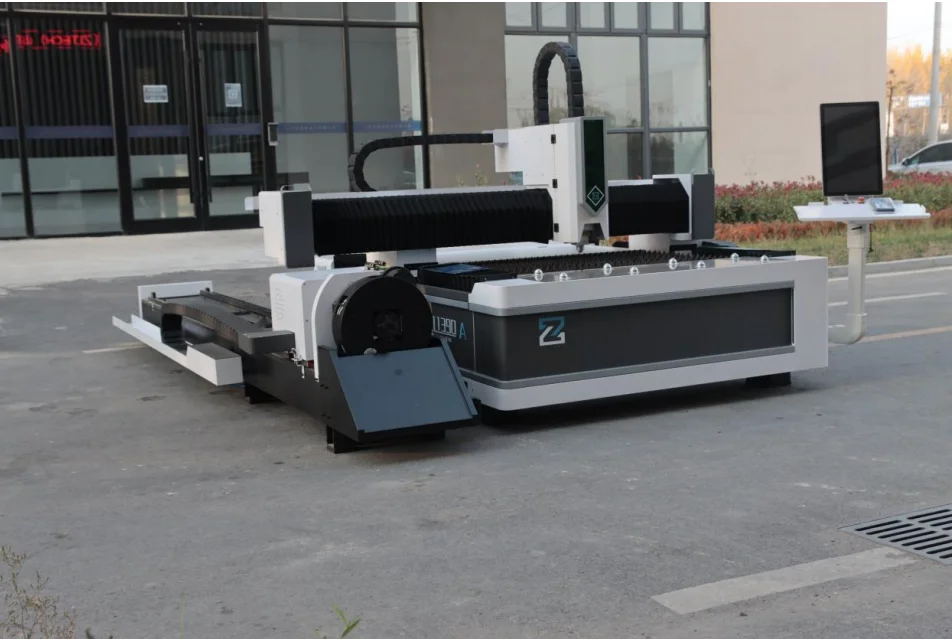

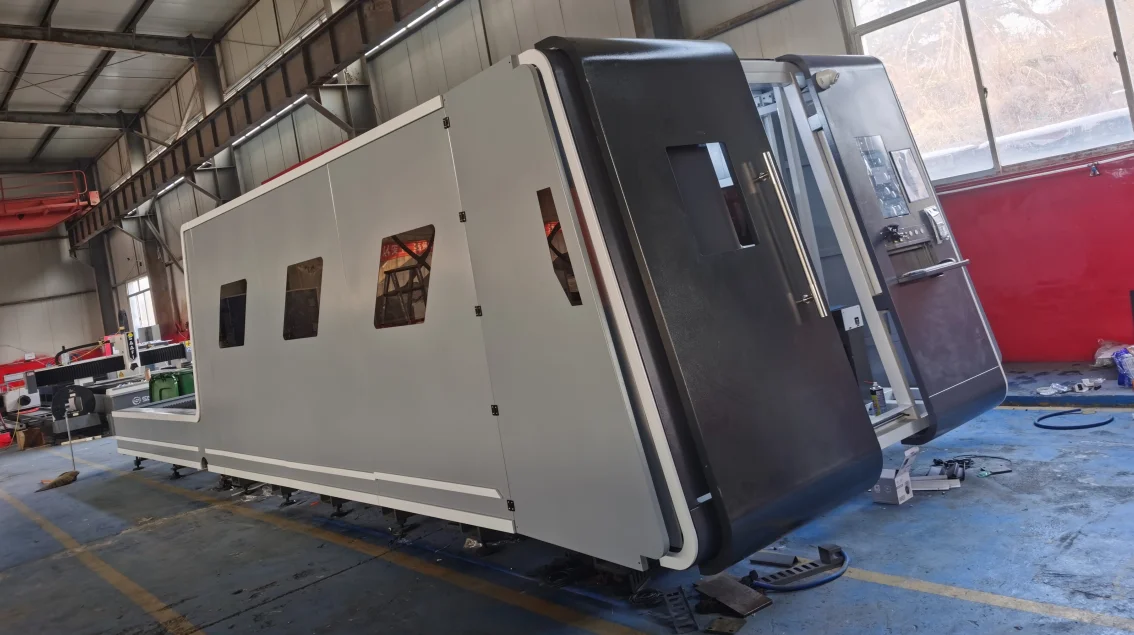

More Detailed Pictures of the Machine

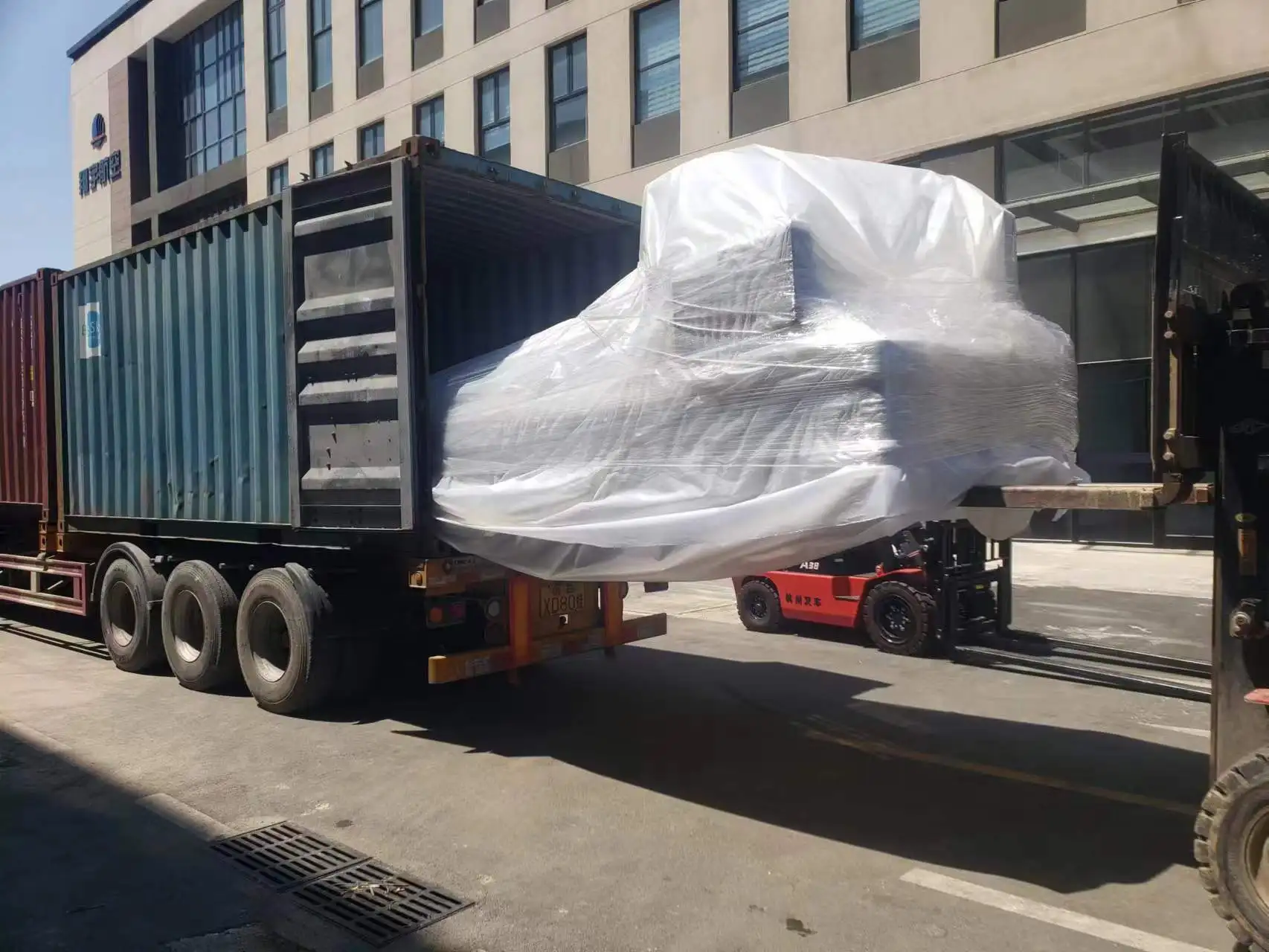

Package and Shipping

We provide the most professional package service to ensure the safety of the goods.
1. Whole film packaging tube laser cutting machine;
2. Anti-collision package edge;
3. Fumigation-free plywood wooden box and pallets with iron binding belt.

Our Advantages

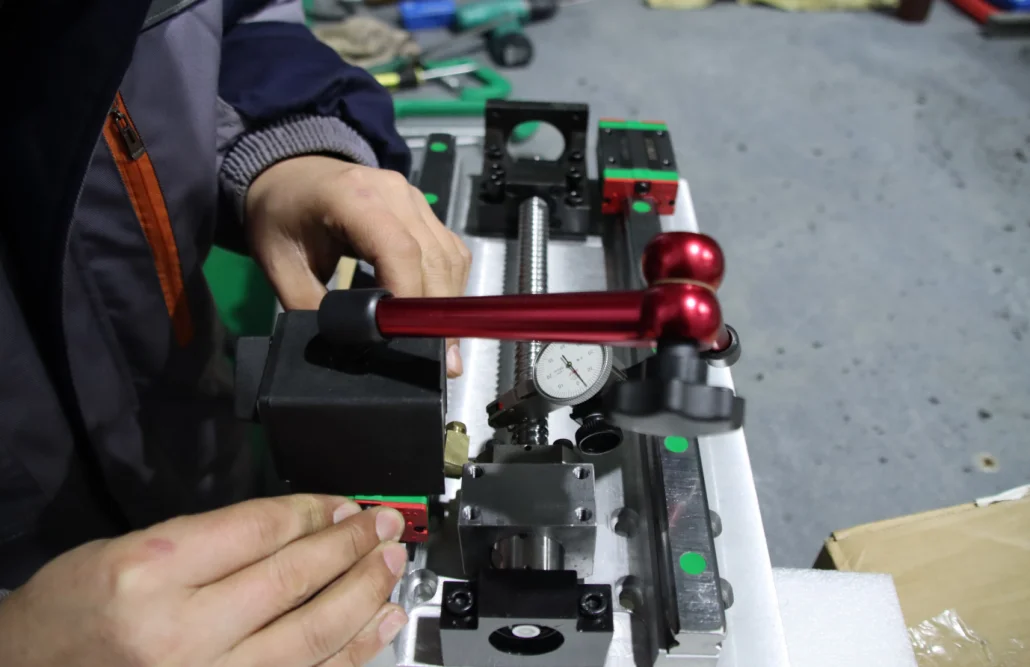

From the very beginning manufacturing process, welding, fine milling, shot blasting, annealing, anti-corrosion. Every steps use real stuff, accurate measurements, only for giving you the best performance products.

1. Lower Shipping Cost.
We have abundant exporting experience and cooperate with professional forwarders, every steps from buying to shipping will be smooth and successfully, save your time and money.
2. Flexible Component Options
Various of brands of laser source, control system, laser head, water chiller, drive system...according to your request and budget, making the machine that just perfect for you.
3. Strict Quality Control System
All our products series has gained CE ISO FDA Certificate. Quality always priority, we pursue sustainable development together with our customers. Good faith is our label, let customers own the most cost-effective machines is our tenet.
4. Well-established after-sales services
Quick response for online technical support via video or call.
Detailed installation video and user manual, no need to worry if you use the machine for the first time.
Free training, you can visit us for 7 days free training, or we send our staff to your place to train and guide you how to install and use.


More Popular Products

Company Profile
Jinan Zhanfeng Laser Equipment Company is mainly engaged in the research and development, production and sales of laser cutting equipment and laser welding equipment.
Adhering to the professional philosophy of quality oriented, leading technology, rapid response, high quality and efficient, the company has the dream of equipment the world and applying science and technology to create value for customers.
Certifications

FQA


Q1. Are you a factory or a foreign trade company?
We are a factory of laser cutting and welding machine, where located in Licheng District, Jinan City, Shandong Province.
We have our own professional R&D team, therefore we are able to accept OEM and ODM cases.

Q2. Do you offer after-sales service?
We established professional technical team since the foundation of our company, to solve any possible technical
issues, guiding and training customers to use the machines properly.
Our warranty is 3 years, if any parts broken during warranty, we will send you parts free of charge. Also our engineers
will provide you support online or on site.

Q3. Which model should I choose?
We need to know your specific working content, such as the materials, thickness, size and the cutting objects (plates, tubes, etc) then we will recommend you the most suitable machines.

Q4. How about the shipping cost?
Sea transportation, we choose 20-foot container or 40-foot container according to the size you buy. We have a shipping company that has cooperated for many years, which can help you save costs.

Q6. Do I need the gas for my fiber laser cutting machine?
Yes. The compressed air, O2 or N2 are necessary for one fiber laser cutter. For different materials, it will require different
gas. Please feel free to contact our sales to get professional suggestion.
