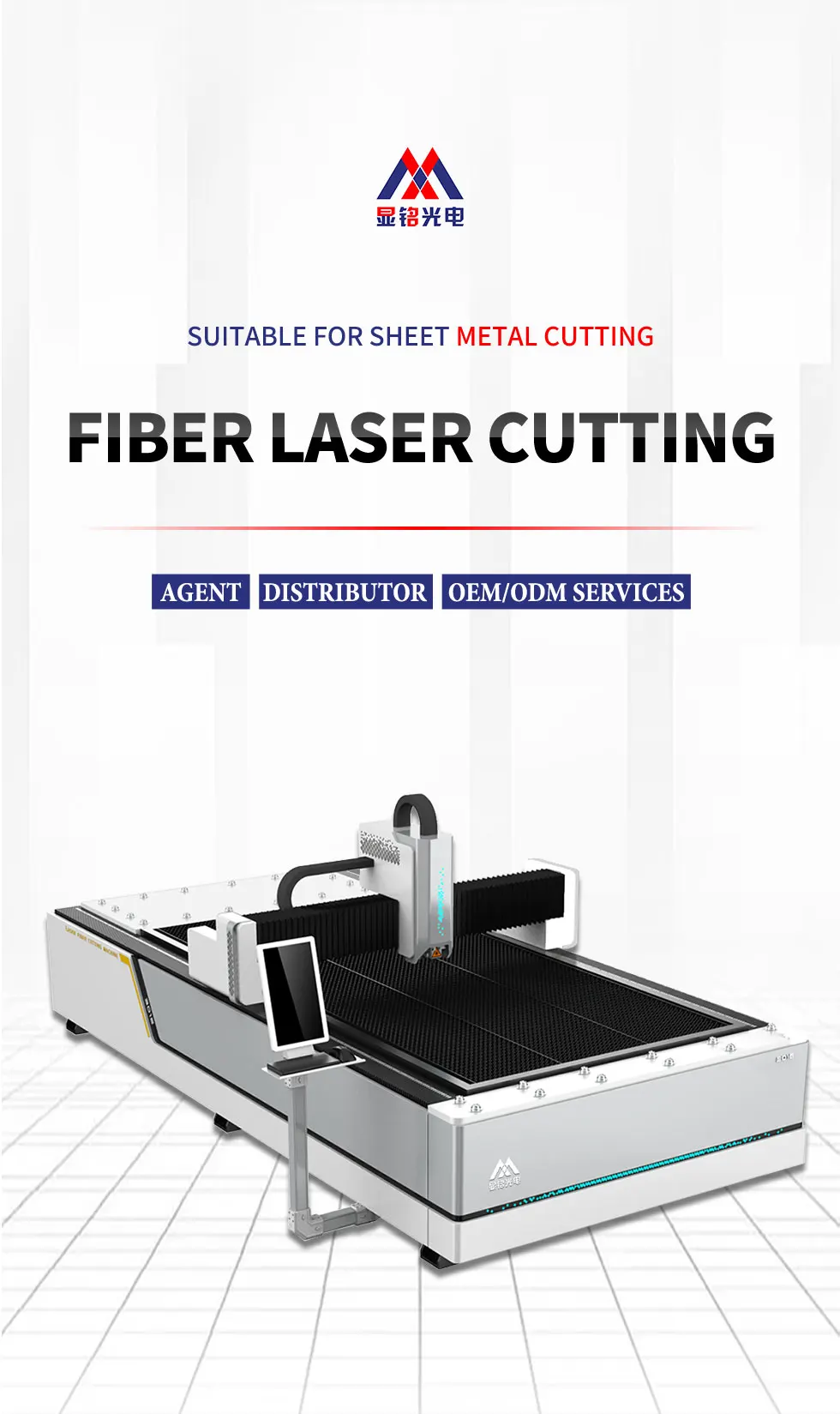

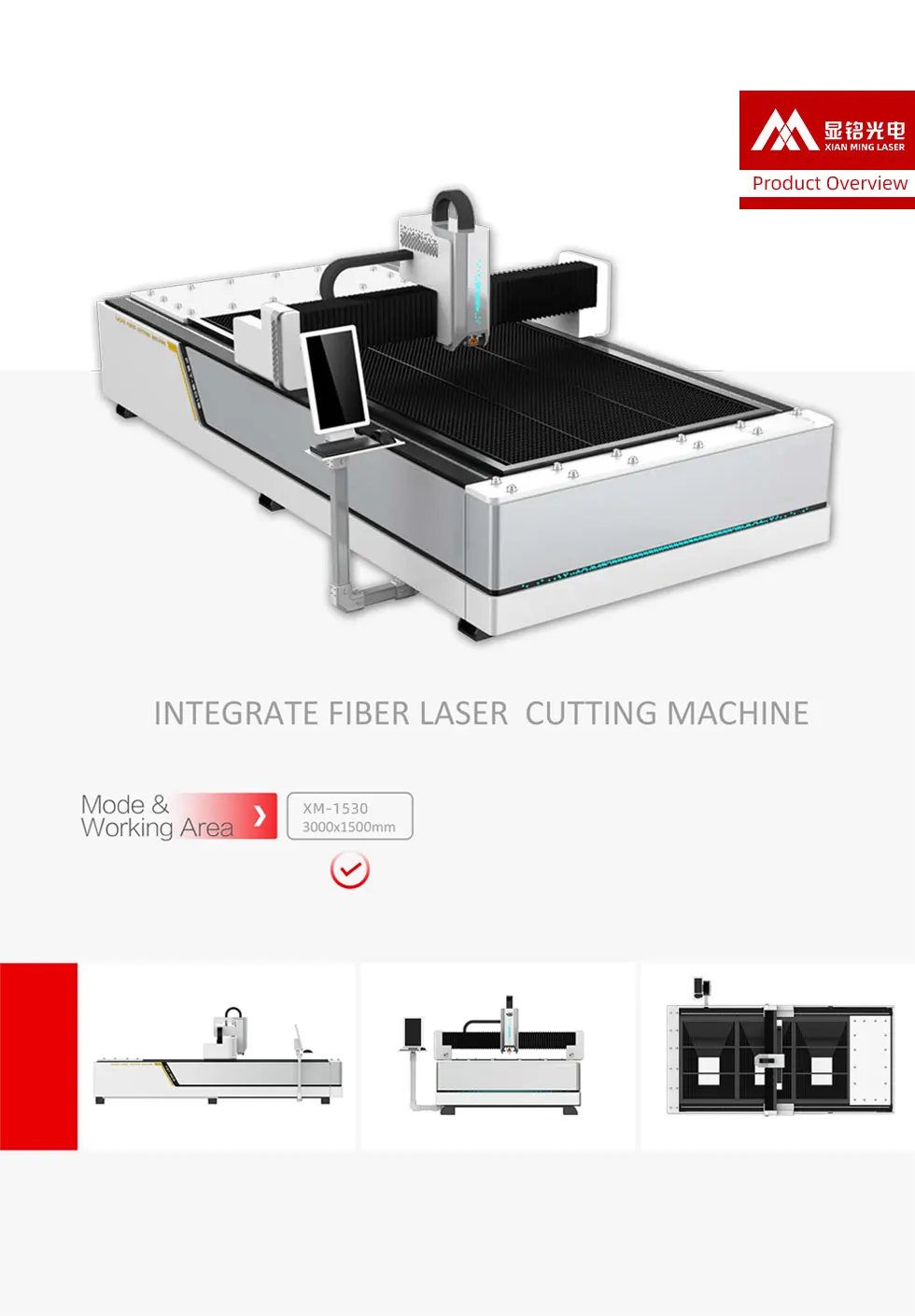

    fiber laser cutting machine for pipe cutting sheet metal Advertising decoration

    fiber laser cutting machine for pipe cutting sheet metal Advertising decoration

    ¥740.00 CNY
    ¥740.00 CNY ¥740.00 CNY
    Sale Sold out
    Shipping calculated at checkout.
    Material

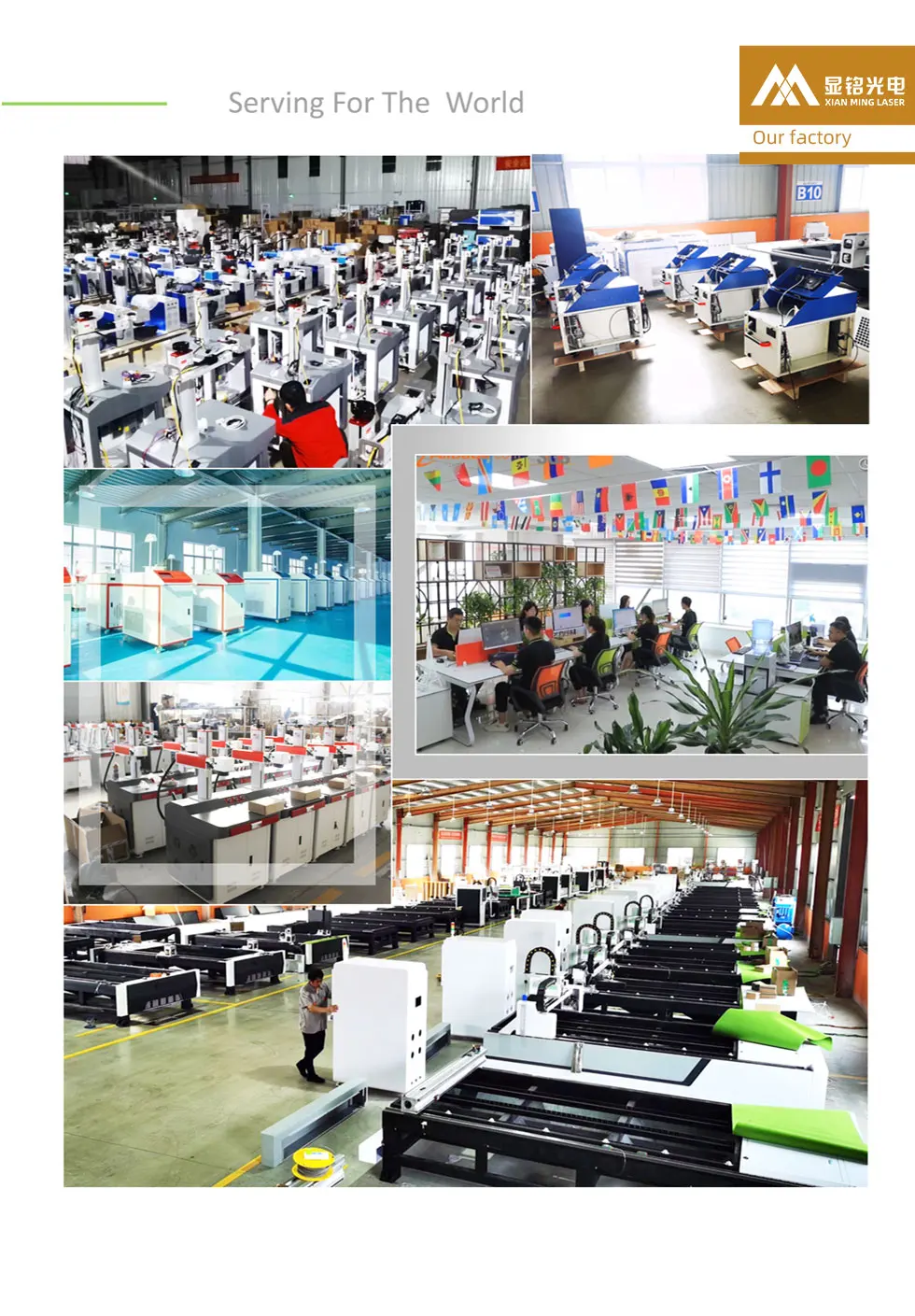

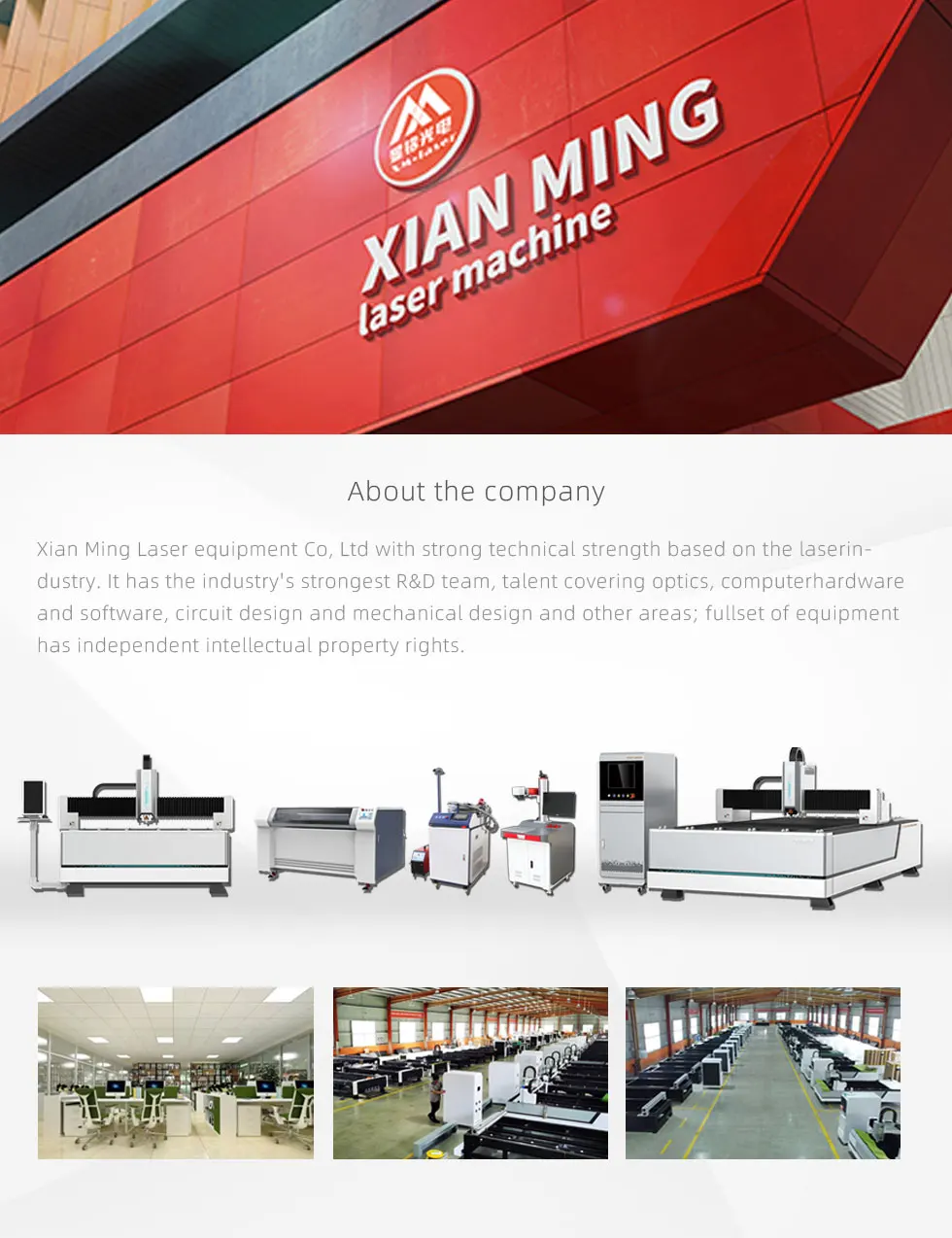

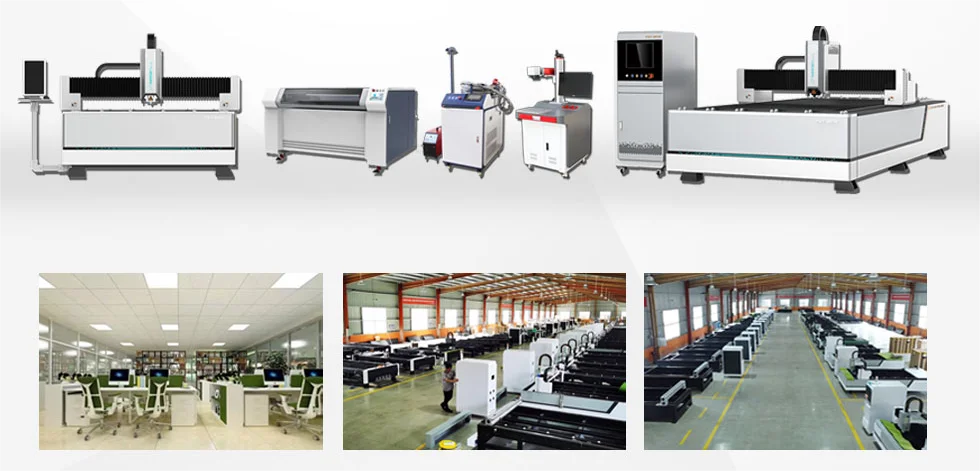

    About the company
    About the company
    Xian Ming Laser equipment Co, Ltd with strong technical strength based on the laserin-dustry. lt has the industry's strongest R&D team, talent covering optics, computerhardwareand software, circuit design and mechanical design and other areas; fullset of equipmenthas independentintellectual property rights.
    PRODUCT DETAILS

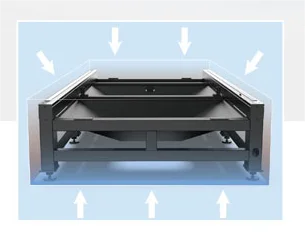

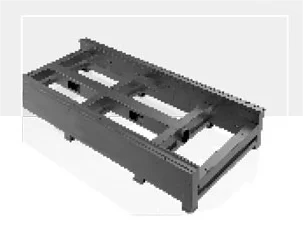

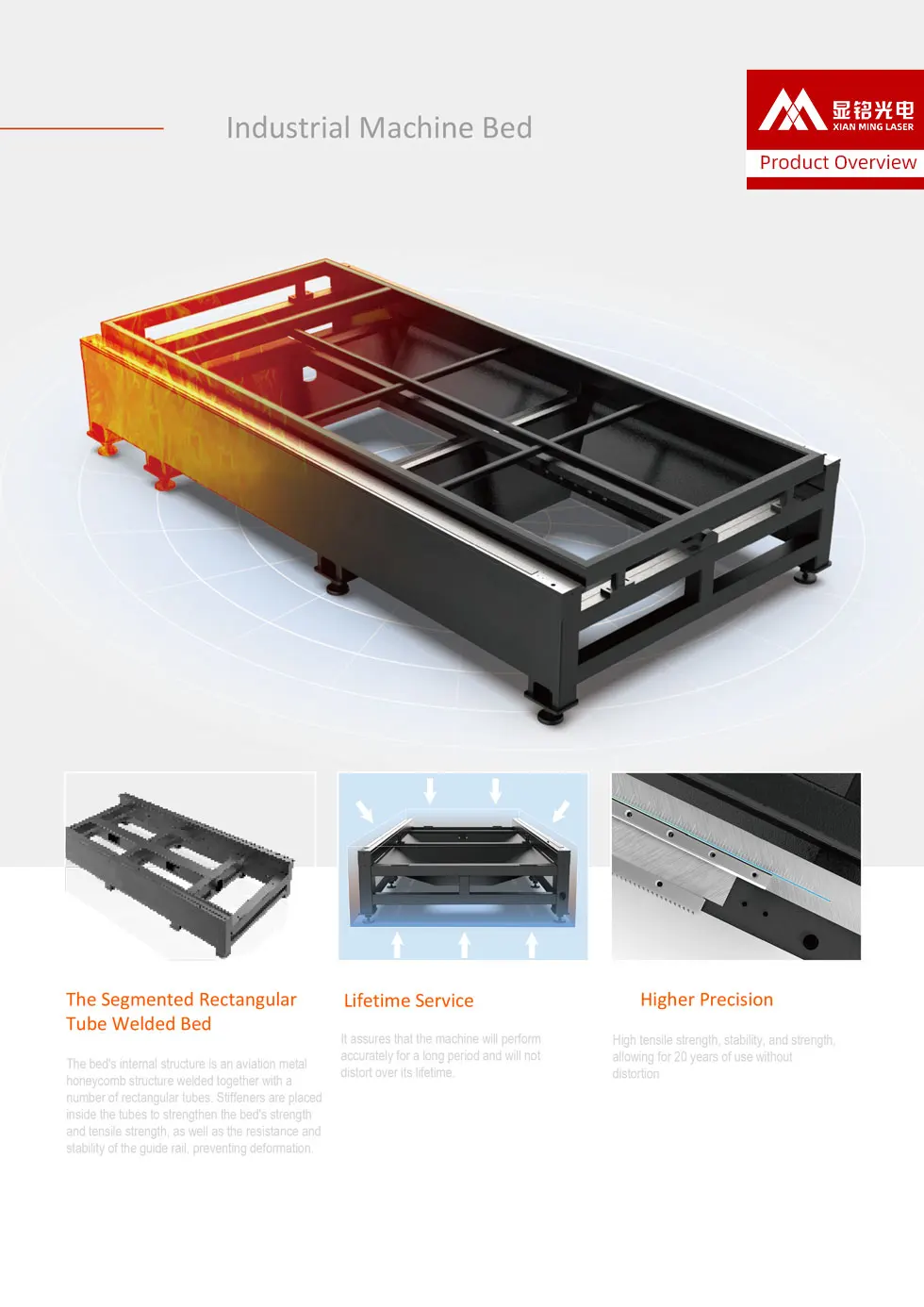

    The Segmented RectangularTube Welded Bed

    The bed's intemal structure is an aviation metahoneycomb structure welded together with anumber of rectanqular tubes. Stiffeners are placedinside the tubes to strengthen the bed's strengthand tensile strenath as well as the resistance andstability of the quide rail, preventing deforation.

    Lifetime Service

    lt assures that the machine will performaccurately for a long period and will notdistort over its lifetime

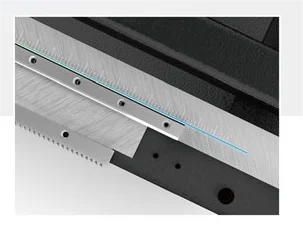

    Higher Precision

    High tensile strength, stability, and strength.allowing for 20 years of use without distortion

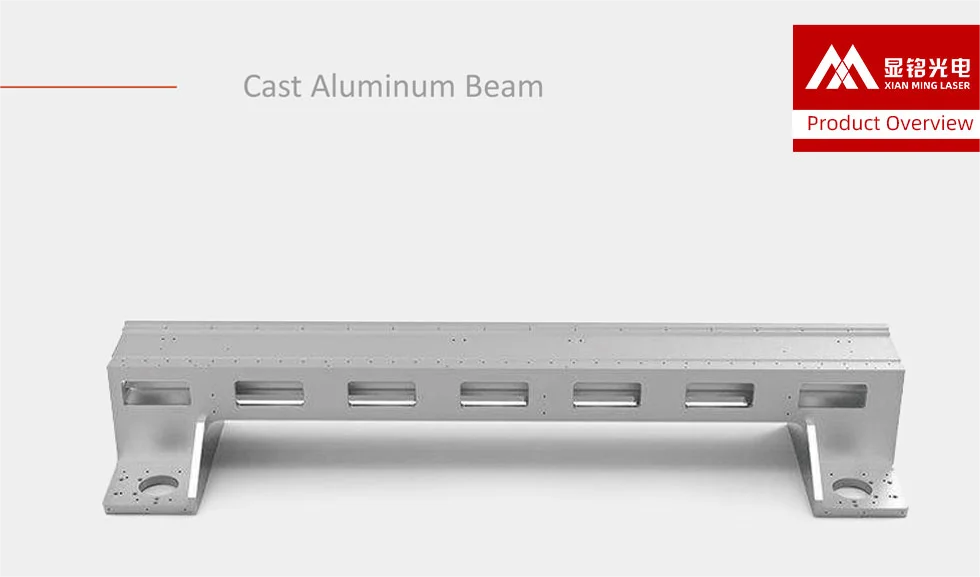

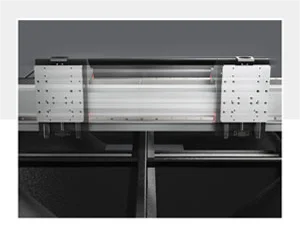

    Monolithic cast aluminum beam

    No deformation, light weght high strength Lighthe loht cressbeam aloas ihe machne ccross beams alow oqu oment to operae at a fastermove at a faster rate and enhance cuttingrate, boosting processing etficency and qualfty.

    High Speed

    The light crossbeam alows the machine to move at a faster rate and enhance cutting eficency

    More Efficient

    The aerospace industry's aluminum profile beam ensures that the equipment has etficient dynamic pertormance, considerably increasing processing etficiency while mainta ning processing quality.
    Product Parameters
    Multiple Protection 3 protective lenses, highly effective collimatingfocus lens protection. 2-way optical watercooling extends the continuous working time effectively. High-precision To successfully avoid step loss, a closed-loopstepping motor is used. The repetition accuracyis 1 M and the focusing speed is 100 m m / s.Dust-proof to IP65, with a patent-protectedmirror cover plate and no dead angle. Various Brands Of Laser Head Are Available We can provide all high quality laser heads. Ithas been tested by us for a long time.

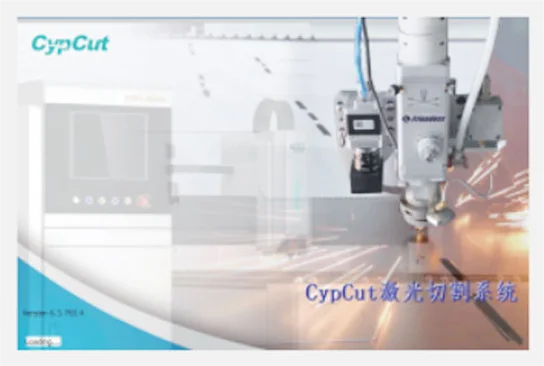

    CypCut sheet cutting software is anin-depth design for fiber laser cuttingindustry. It simplifies complex CNCmachine operation and integratesCAD, Nest and CAM modules in one.From drawing, nesting to workpiece
    cutting all can be finished by a fewclicks. 1.Auto Optimize lmported Drawing
    2.Graphical Cutting Technique Setting
    3.Flexible Production Mode
    4Statistic of Production
    5.Precise Edge Finding
    6.Dual-Drive Error Offset

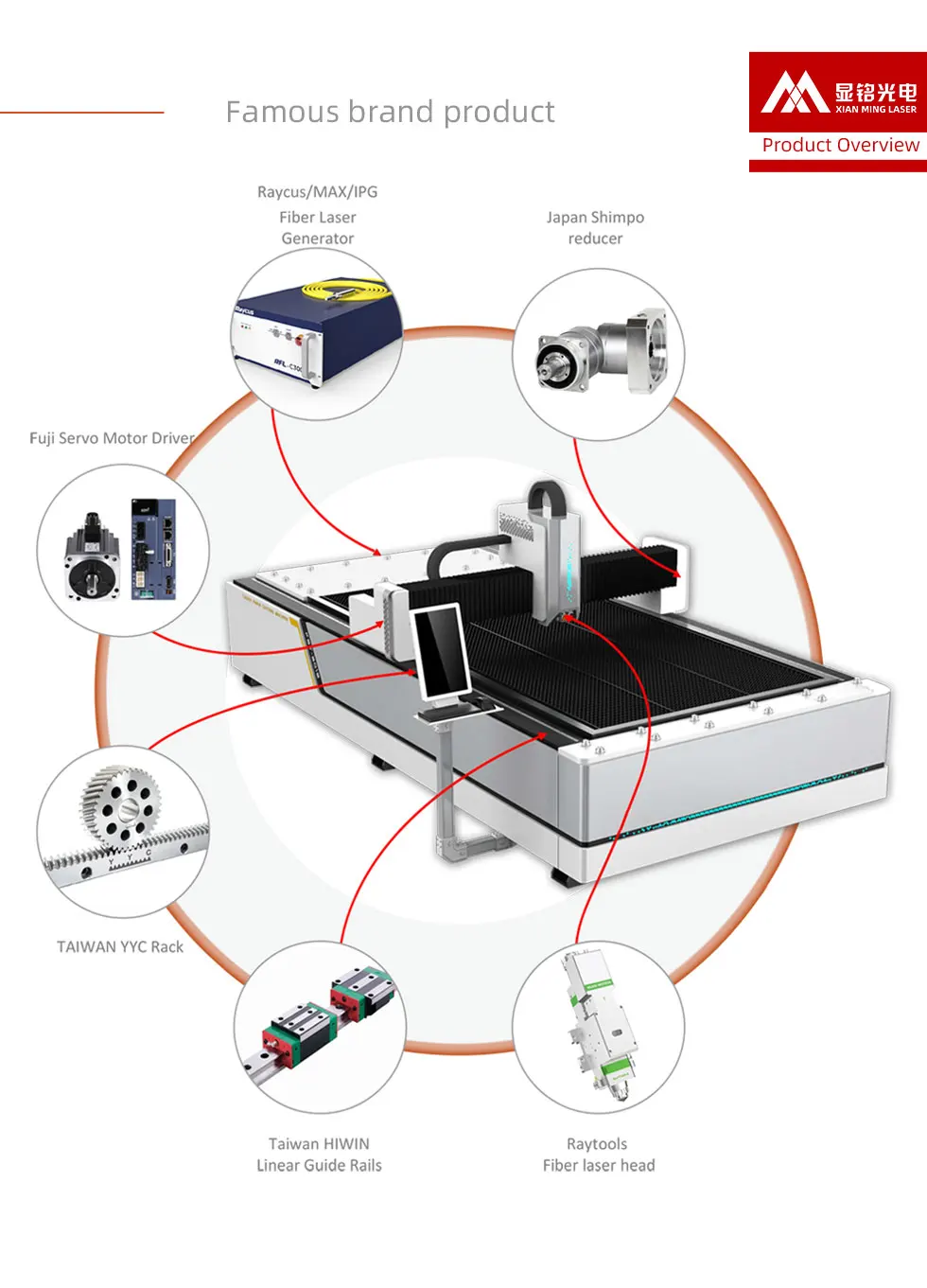

    Main Configuration
    Model
    XM-FM Series
    Control System
    CypOne/CypCut - Friendess
    Drives and Motors
    Japan Fuji Servo Motor System

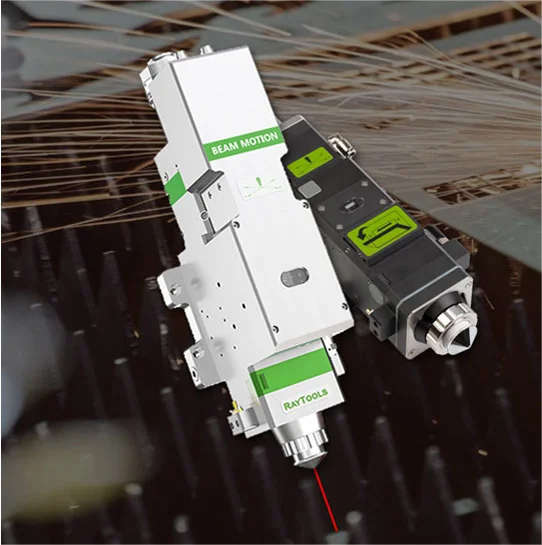

    Fiber Laser Head
    Raytools Laser Head
    Fiber Source
    Raycus or Max orIPG
    Lubrication System
    Electrical Motored
    Guide Rails
    Taiwan HIWIN Rails
    Rack and Gear
    Taiwan YYC Rack
    Driver system power
    X=0.75/1.3KW,Y=0.75/1.3KW,Z=400W
    Reducer
    Japan SHIMPO
    Electron Component
    DELIXI ELECTRIC
    Chiller
    HanLi/S&A
    Voltage
    220V 1Ph or 380V 3Ph,50/60Hz
    Gross weight
    1.9T
    Optional Configuration
    Model
    Detail
    Control System
    CypCut
    Drives and Motors
    Yaskawa Servo Motor System
    Fiber Laser Head
    RAYTOOLS BM110 Automatic Focus Laser Head
    Stabilizer
    Made in Chinia
    Exhaust fan
    3KW
    Wooden packing
    With metal bracket
    Technical Parameters
    Model
    Fiber Laser Cutting Machine

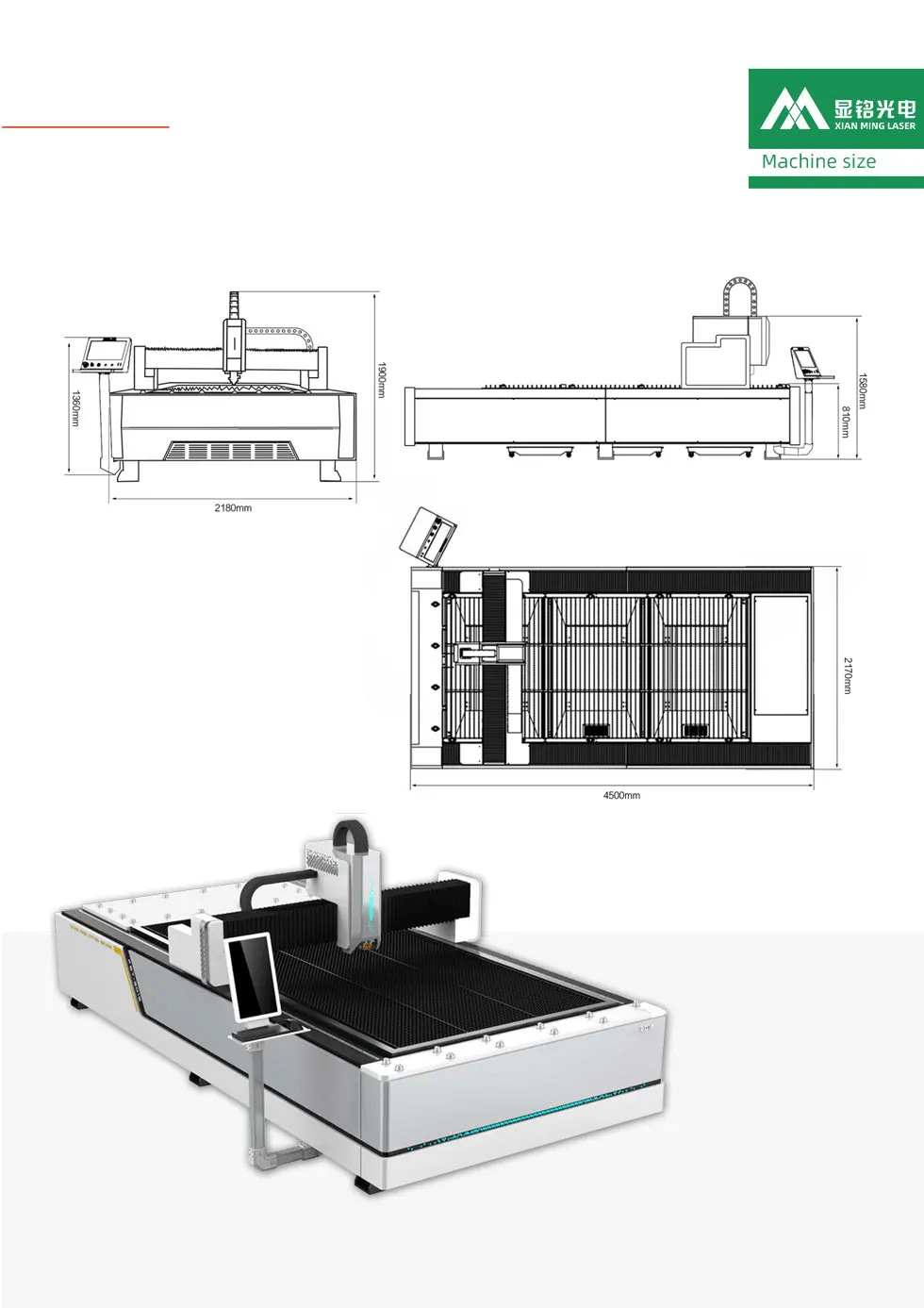

    Working Size
    1500*3000mm
    Laser Power
    1/1.5/2/3/4/6/8/12KW
    Laser Wavelength
    1080nm
    Laser Beam quality
    <0.373mrad
    Working Life of Fiber Source
    More than 10,0000 hours
    Position Type
    Red Dot Pointer

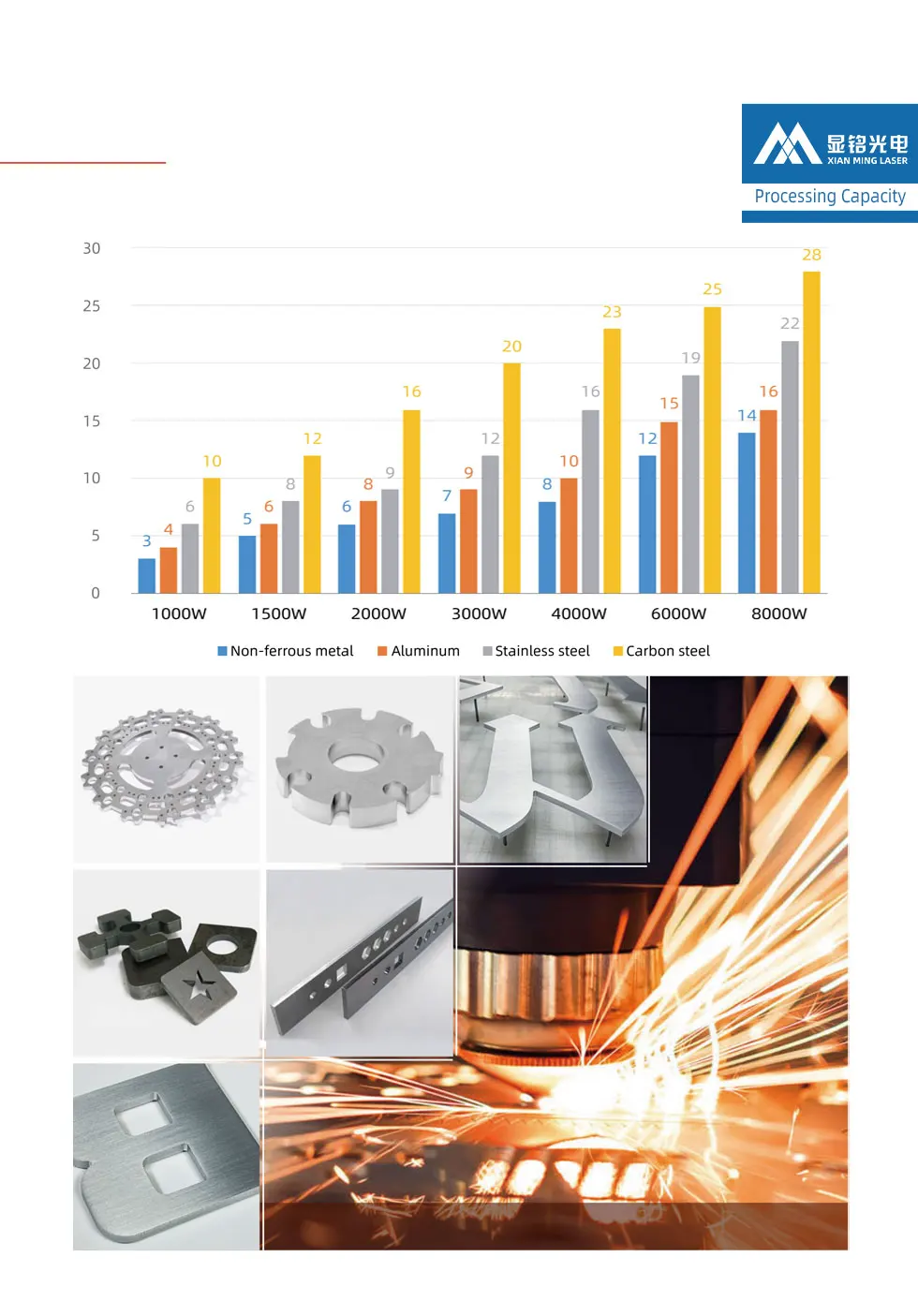

    Cutting Thickness
    0.5-10mm Within The Range Standard Precision
    Max. Idle Running Speed
    80-110M/min
    Max acceleration
    1G
    Reorientation Accuracy
    Within +0.01mm
    Lubrication System
    Electrical Motored
    Cooling mode
    Water cooling and protection system
    Machine power
    9.3KW/13KW/18.2KW/22.9KW
    Auxiliary Gas for Cutting
    Oxygen, Nitrogen, Compressed Air
    Compatible Software
    AutoCAD, CorelDraw, etc
    Handle Control
    Wireless Control Handle
    Graphic Format
    DXF/PLT/AI/LXD/GBX/GBX/NCcode
    Power Supply Voltage
    220V 1Ph or 380V 3Ph,50/60Hz
    Warranty
    2 Years
    Instruction

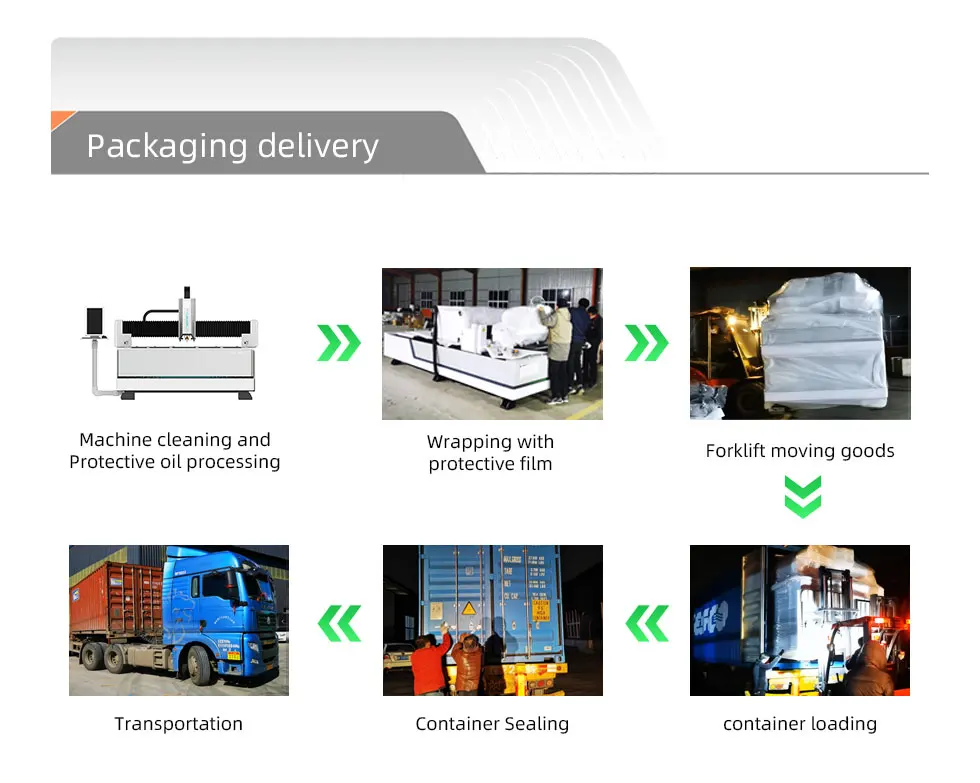

    Product packaging
