fiber laser marking machine for ring 30w 50w 80w jewelry laser engraving machine
fiber laser marking machine for ring 30w 50w 80w jewelry laser engraving machine
Couldn't load pickup availability

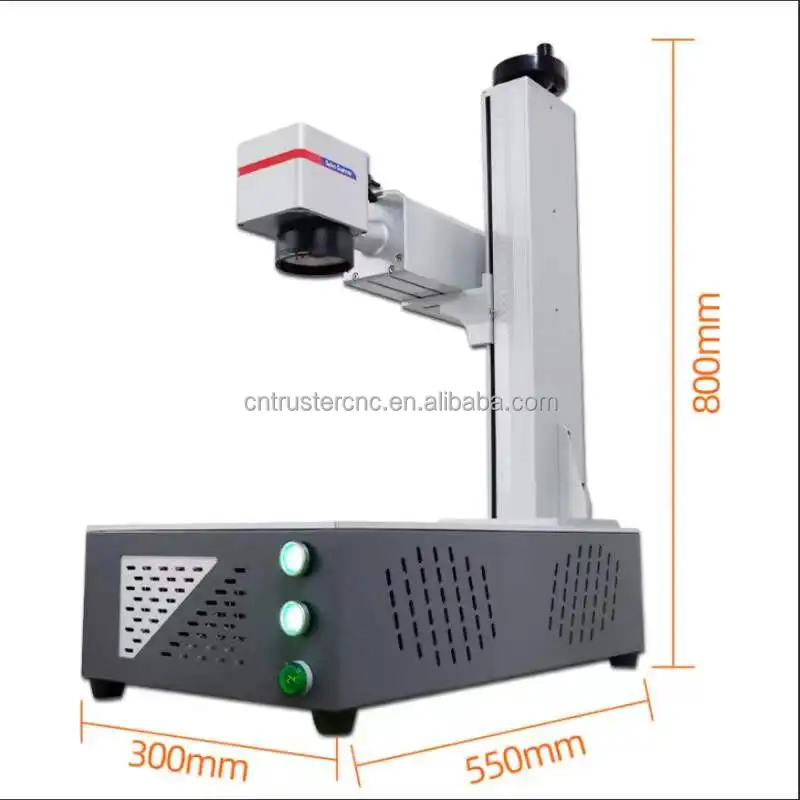

laser marking machine for ring jewelry
Machine features:

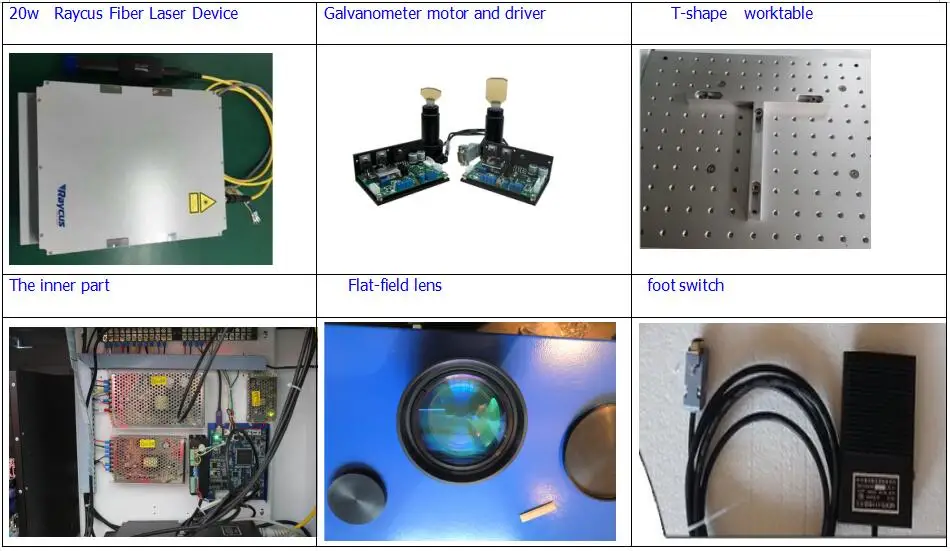

1.The fiber laser generator is high integrated, has superior laser beam and uniform power density. Output laser power is stable. This design highly increase the machine’s anti-reflection ability with optical isolator, be able to mark on most high reflective materials such as aluminum, copper, gold and silver without the shadow and virtual open phenomenon.
2. Adopts advanced digital high speed scanning galvanometer, quick speed without deviation, small volume, good stability, and performance reached the international advanced level.
3. Modular design, separate laser generator and lifter, more flexible, can mark on bigger area and complicated surface. Air-cooled inside, small occupation, easy to install.
4. Adopt the embedded operating system, which the performance is leading domestic peers, good touch interface and powerful control system, can meet the demand of most industry application process in market.
5. High efficiency for photoelectric conversion, simple operation, Compact in structure, support harsh working environment, no consumables.
Machine parameter
|
Product Name |
Fast Speed Laser Marking Machine |
|
Laser Type |
Fiber |
|
Modol |
TL-M-50W |
|
Certificatons |
CE, ISO,OTHER |
|
Power |
20W(30W,50W optional) |
|
Brand |
Truster |
|
Country of Origin |
CHINA |
|
Work Precision |
±0.01mm |
|
Support Format |
PLT, DST, AI, DXF, BMP, JPG, CAD,CDR, DWG,PCX |
|
Software |
EZCAD |
|
Cooling Way |
AIR COOLING |
|
NC |
YES |
|
Condition |
NEW |
|
Warranty |
24 Months |
|
Work Area (mm) |
110x110/175x175/200X200/300X300mm etc |
|
Min Line Width |
0.017mm |
|
Min Character |
0.15mmx0.15mm |
|
Wavelength |
1064nm |
|
After-Service |
Engineers available to service machinery overseas |
|
Laser Module Life |
100000hours |
|
Laser Repetition Frequency: |
20KHz-80KHz(adjustable) |
|
Power Demand |
AC220V/50HZ/2A |
|
Optimum Working Temperature |
10-35 °C |
|
Marking Depth |
0.01-1.0mm(subjejct to material) |
Machine Application:
1).Applicable Materials:
Applies To Metal Materials, Stainless Steel, Copper, Brass, Plastic, Electroplating Materials, Coating Materials, Spraying Materials, Rubber, Resin, Ceramic And So On.
2).Application Area:
The Device Is Widely Used In Electronic Components, Communications Equipment, Automobile And Motorcycle Parts, Instrumentation, Military Products, Mechanical Hardware, Measuring And Tools, Etc.
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity.
We can package according to your requests.
1.Guarantee for 3 years.
2. Maintenance free of charge for 3 years .
3.We will provide the consumable parts at an agency price.
4.24 hours online service, free technical support.
5.Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me.
6.We have manual instruction and CD (Guiding Videos) for software Installation, operation and machine's using and maintenance.
