    Fiber Laser Sheet Cutting Machine 3KW Cnc Laser Fiber Machine for Cutting Metal Price 1305*1305mm Large 1500W 3000W Pulsed

    Fiber Laser Sheet Cutting Machine 3KW Cnc Laser Fiber Machine for Cutting Metal Price 1305*1305mm Large 1500W 3000W Pulsed

    ¥741.00 CNY
    ¥741.00 CNY ¥741.00 CNY
    Sale Sold out
    Shipping calculated at checkout.
    Material
    1305*1305mm large 1500W 3000W fiber laser sheet cutting machine 3KW cnc laser fiber machine for cutting metal price
    Products Description
    1. Strong stability, high precision, and with no deformation for 20 yearsThe carbon steel structure has good toughness, excellent ductility, and great welding and heat treatment performance. Besides, the stress annealing and vibration aging function are used
    to deal with the stress in the welding and machining process of the machine tool, so that the machine is more durable.
    2. High precision linear motorAdopts a high-precision linear motor, which has the features of compact structure and low power consumption. In addition, there is no mechanical contact and less friction. Moreover, it has the advantages of smooth motion, high positioning and repositioning accuracy, high speed and acceleration, fast response, high sensitivity, excellent tracking performance, low noise, high efficiency, and good cutting quality.
    3. Cast aluminum beamAfter artificial aging and solution treatment, it has good integrity, high rigidity, great surface quality, high toughness and ductility, etc. The aluminum alloy has light weight and strong rigidity, which is conducive to high-speed movement and high-precision cutting of various graphics during the fast laser cutting process.

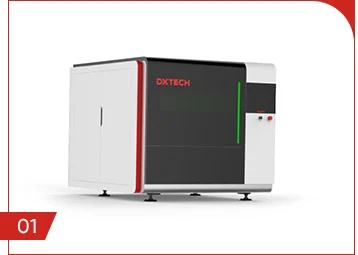

    Fully enclosed protective cover
    ·Eco-friendly and safer
    Fully enclosed protective cover is designed to improve the safety of use. Equipped with a smoke purification system to avoid environmental pollution and protect the health of operators. ·
    More stable
    Compliant with EU and ISO
    standard certification, the weight of the bed can reach 10 tons, which makes the machine more stable when operating at high speed.

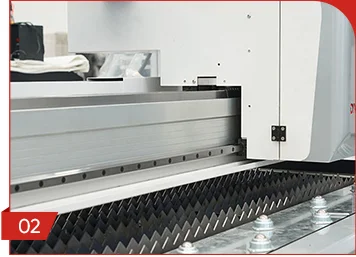

    Aviation aluminum beam
    ·It has the characteristics of corrosion resistance, light weight, and high rigidity, which ensures high-speed movement during
    laser processing. · It has perfect dynamic performance, such as anti-distortion, anti-overturning, anti-deformation, etc.,
    ensuring higher cutting accuracy.

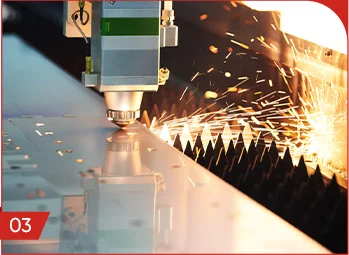

    Raytools laser head
    Multi-level perforation
    It has multi-level perforation process and ultra-fine cutting functions. Compared with Au3tech laser head, its cutting precision is higher, and the processing effect will be better.
    ·Autofocus
    Without human interference, the focusing
    speed can reach 10m/min, and the repeatability is about 50 microns.
    Technical Paramenters
    Model
    9090Q
    1390Q
    1313Q
    Working area
    905*905mm
    1305*905mm
    1305*1305mm
    Positioning accuracy
    ±0.03mm
    ±0.03mm
    ±0.03mm
    Repositioning accuracy
    ±0.02mm
    ±0.02mm
    ±0.02mm
    Max. acceleration
    1.2G
    1.2G
    1.2G
    Laser power
    1kW – 3kW
    1kW – 3kW
    1kW – 3kW
    Laser
    Multiple options
    Multiple options
    Multiple options
    Focusing method
    Auto/manual
    Auto/manual
    Auto/manual
    Max. running speed
    140m/min
    140m/min
    140m/min
    Sample Show
    Product Category
    Company Profile
    Quality Control
    FAQ
    01What is fiber laser cutting machine?
    A:Fiber laser is a special type of solid state laser. Generally, fiber lasers are optically
    pumped.This is done by coupling the radiation of diode laseers or other fiber lasers into the cladding or the core itself in a
    direction parallel to the fiber core. In many cases, double clad fibers are used in order to achieve higher output power. What's material can fiber laser cut? All kinds of metal, such as Stainless Steel,Carbon Steel, Mild Steel, Galvanized Steel, Aluminum, copper, etc.

    02What's the max. cutting thickness?
    A:Cutting thickness is related to laser power.Note: only 1KW or above fiber laser could cut Aluminum, Copper, Brass and other high reflectionsheet metal.

    03Do you have CE document and other documents for customs clearance?
    A:Yes, we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.

    04 Payment terms?
    A:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.

    05 I don't know how to use after i receive Or i have problem during use, how to do?
    A:We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.

    06 I don't know which one is suitable for me?
    A:just tell us below information
    1) Max work size:choose most suitable model.
    2) Materials and Cutting thickness:Power of laser generator.
    3) Business industries:We sell a lot and give advice on this business line.also provide Door service if you need.
