    Fiber Laser Welding Machine

    Fiber Laser Welding Machine

    ¥730.00 CNY
    ¥730.00 CNY ¥730.00 CNY
    Sale Sold out
    Shipping calculated at checkout.
    Material
     More payment options

    Fiber Laser Welding Machine





    Working Principle



    Laser welding, occurs when the laser is used as an intense energy source to selectivey heat materials to a point between their melting and vaporizing temperature.Once molten,the materials are allowed to alloy and then re-solidify in a controlled

    atmosphere. The result is a reliable, oxide-free weldment.By adjusting various

    parameters such as the laser energy and focal point position,one can create

    weld ratio ranging from wide and shallow to narrow and deep. In most

    cases the welded part geometry dictates this ratio.

    Laser welding offers a variety of benefits over other types of welding: deep penetration  of precise narrow welds, small heat affected zone, low heat input, fast weld times,minimum part distortion, no secondary processing and high repeatability.







    Specifications



    Specification form of this laser welding machine



    Model

    SCH-1500

    Laser power

    1500W

    Cooling method

    AIR COOLING

    Laser medium

    Nd:FIBER

    Laser wavelength

    1064nm

    Welding minimum molten pool

    0.1mm

    Welding depth

    1mm

    Pulse width

    0.1-20ms(continuously adjustable)

    Pulse rate

    1-200Hz (continuously adjustable)

    Viewing system

    CCD camera and red light positioning

    Power

    ≤7KW

    Power source

    220V/380v 50Hz/40A

    Table format

    1000x800mm



    This is only for your reference.Speed may be different as for different figures.

     It should be based on practical test results of this laser welding machine.

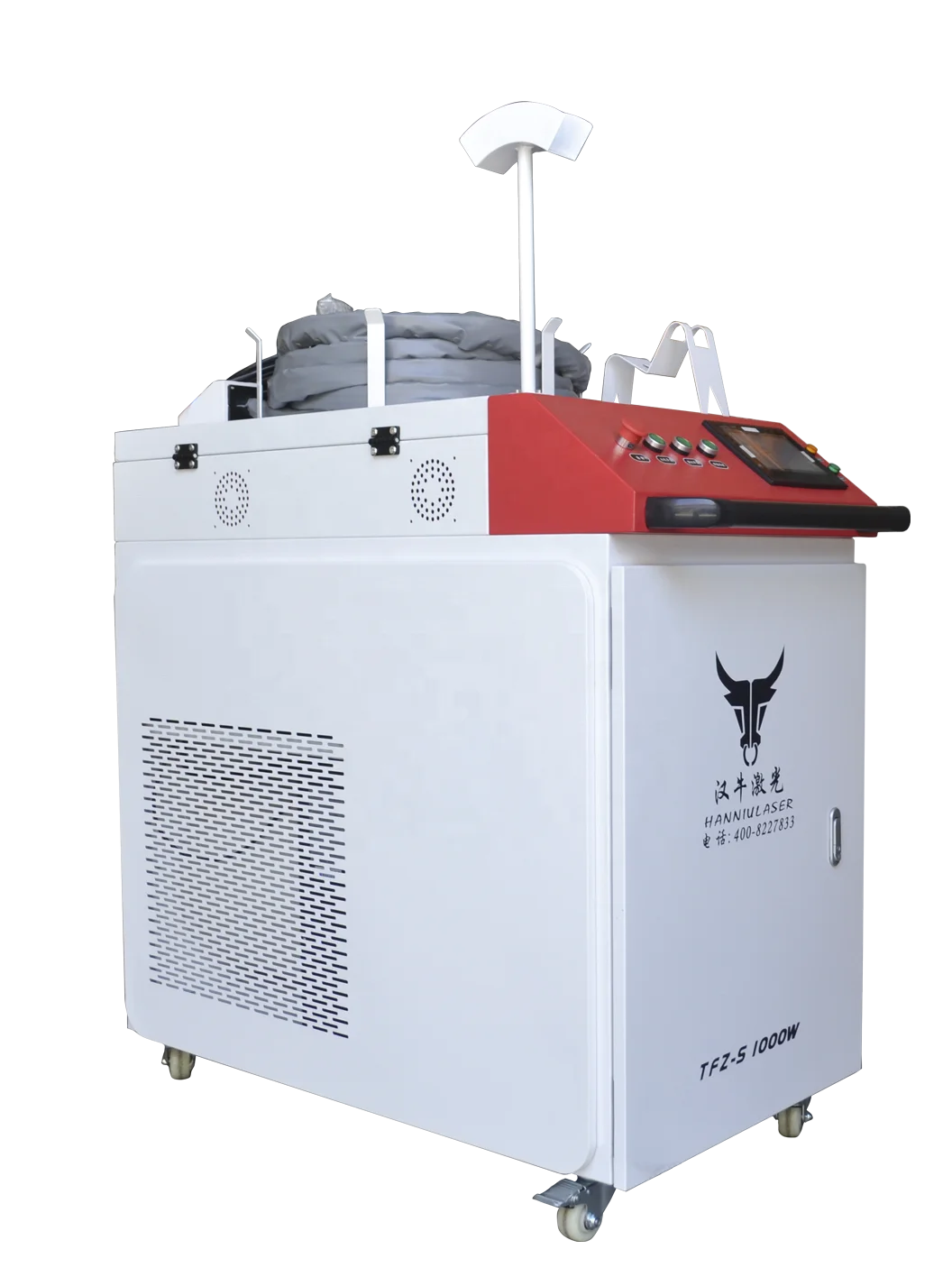

    Detail pictures



    Detail pictures of laser welding machine

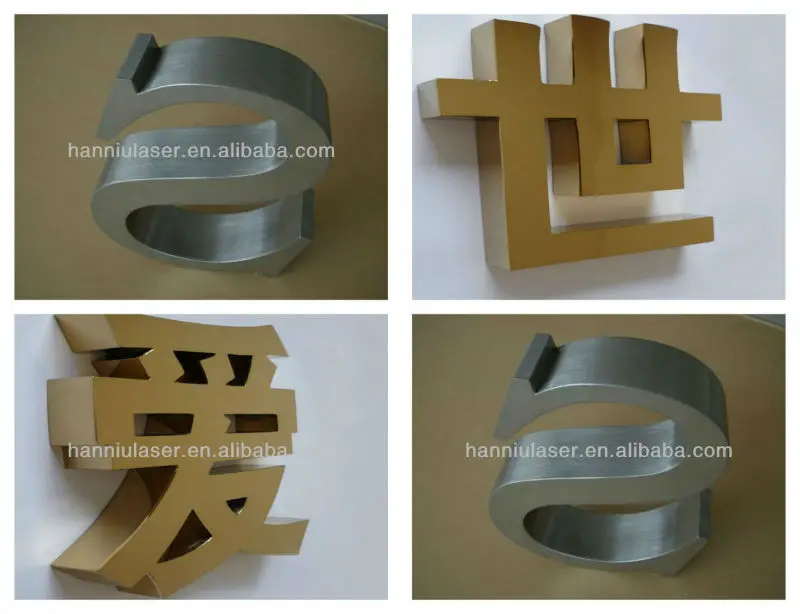

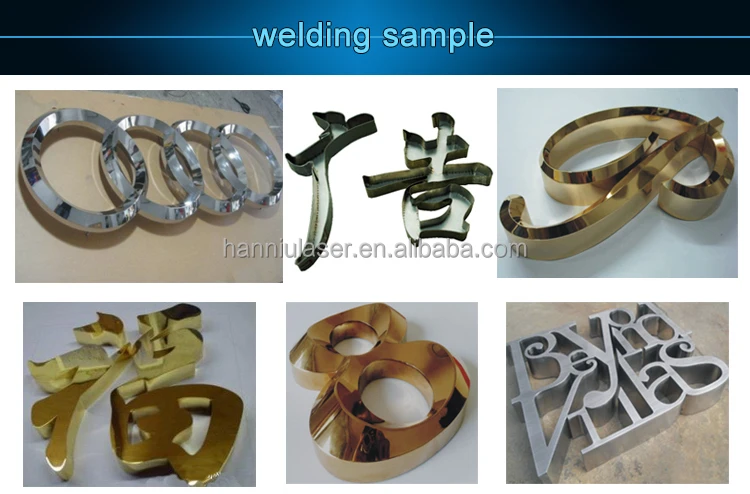

    Samples



    Samples of the laser welding machine















    Application



    Brief Introduction for laser welding machine

    Suitable for welding thin plates;3D work bench and the master unit are integrated;
    This machine can weld space curve,LED metal,all kinds of words.Applied in medical,electronics components,circuit boards,IC,battery,instrument, etc.



    Suitable materials and application of laser welding machine

    Suitable for welding kettle,vacuum cup,stainless steel bowl,sensor,tungsten wire,
    high power diode (triode),aluminum alloy,laptop shell,mobile phone battery,door
    handle,mould,electric apparatus fittings,filter,nozzle,stainless steel products,golf head,zinc alloy artworks.
    Weld point,straight line,circle,square or any plane graphs drawn by AUTOCAD;weld vertical track.



    Advantages

    Our advantages for laser welding machine



    1.8 electricity capacitor.Srong power supply.

    2.Good light intensity.

    3.High voltage,very stable.

    4.High precision extended light path,CCD camera to help position.



    Our Services

    ♦ This laser welding machine warranty for one year. We will offer good parts for free if your parts are broken during warranty,which was not caused by artificial.

    ♦ Our technican can offer free training in our workshop.

    ♦ Our technican can go to your place and offering service if you want.

    ♦ We are no holiday and vacations for your after-sale problems.

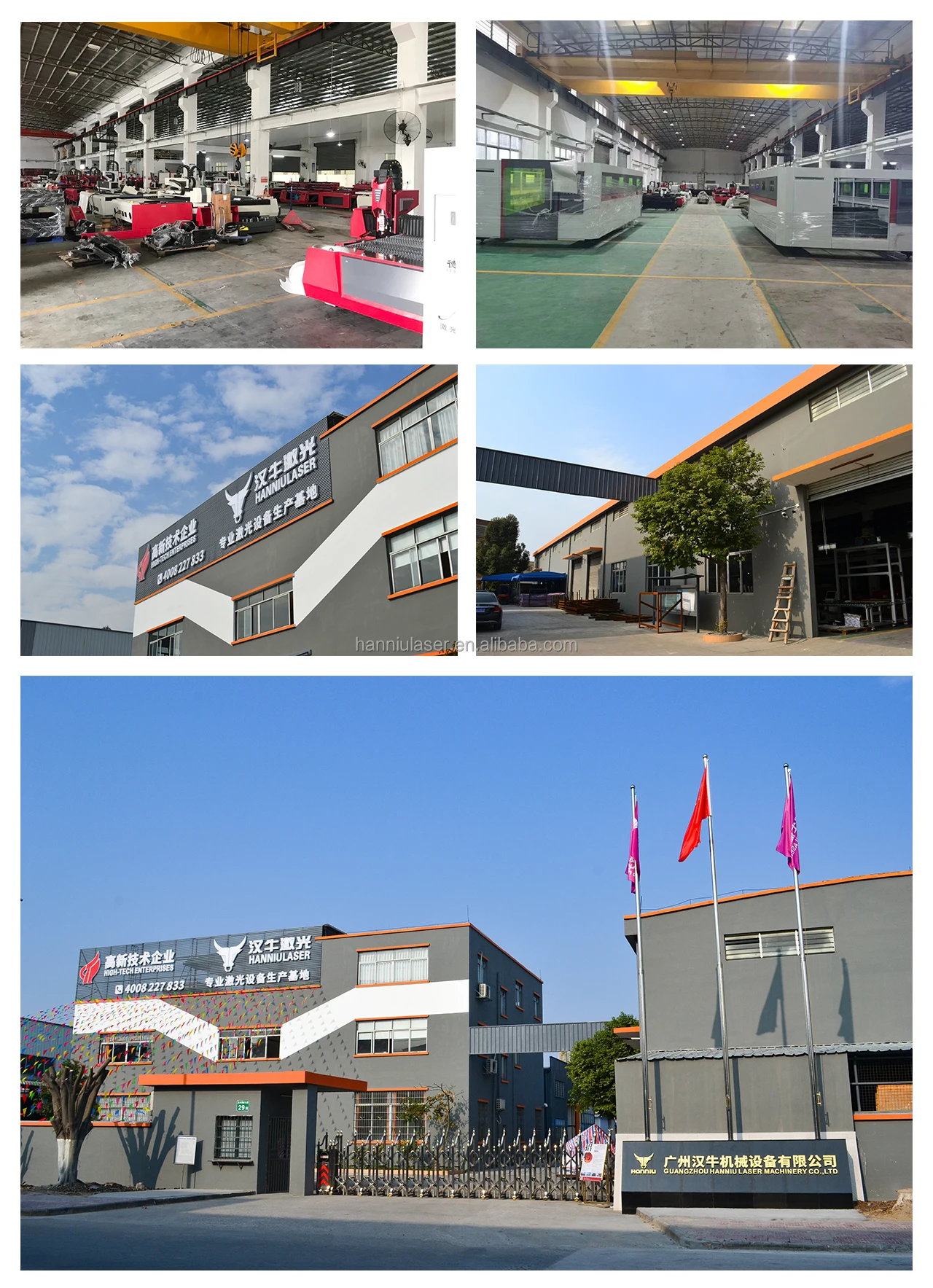

    Company Strength
