High absorption rate, small heat affected area;
High power density, high reliability, wide modulation frequency .
007TECH
Fiber laser welding machine for welding stainless steel iron aluminum 1000w 1500w 2000w 3000w and cutting cleaning machine
Fiber laser welding machine for welding stainless steel iron aluminum 1000w 1500w 2000w 3000w and cutting cleaning machine
Regular price
¥731.00 CNY
Regular price
¥731.00 CNY
Sale price
¥731.00 CNY
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description
Fiber laser welding machine for welding stainless steel iron aluminum 1000w 1500w 2000w 3000w and cutting cleaning machine
Technical Parameters
Item |
Laser Welding Machine |
Condition |
new |
Power |
1000w 1500w 2000w 3000w |
Laser Type |
Fiber continuous laser |
Wavelength |
1080nm |
Frequency |
20-5000Hz |
Output Focal Length |
120mm |
Power Consumption |
6KW- 10KW |
Electricity demand |
220V 1Ph 50/60Hz 380V 3Ph 50/60Hz |
Machine Model |
TSP- 1500 |
Laser wavelength |
1080nm |
Laser power |
1.5KW MAX |
Weldable material |
CS, SS, Al, etc |
Optical fiber |
50um,10m |
Modulation frequency |
20KHz |
Energy stability |
＜3% |
Cooling medium |
Distilled water/pure water |
Welding speed range |
0~120m/s |
Welding gap requirement |
≤0.5mm |
Net weight |
160KG |
Spot diameter (swing optional) |
0-5mm |
Package size (mm) |
1140*880*1420mm |
Power consumption |
8KW |
Recommended Environment |
Clean and dust-free, no source, 10℃-40℃, humidity < 70% |
Operating mode |
LCD touch screen |
Power supply |
220V 1Ph 50HZ or 60HZ optional based on country and region |
Control system |
Touch screen control system |
Welding head |
New generation of handheld welding gun |
Why choose a laser welding machine？
As a laser cleaning machine, it is a “green” cleaning method. It does not require the use of any chemical reagents and cleaning solutions. The cleaned waste is basically a solid powder. It is small and easy to store and recycle. It can easily solve the problem of environmental pollution caused by chemical cleaning.
As a laser welding machine, the welding seam is flat and beautiful, with no grinding, no deformation, no welding marks, and the parts are firmly welded. Save time and increase efficiency. Welding on thin stainless steel plates, iron plates, galvanized plates and other metal materials can perfectly replace traditional argon arc welding, electric welding, and other processes. Hand-held laser welding machines can be widely used in complex and irregular welding processes in cabinets, kitchens, stairs, elevators,clothes hangers, ovens, stainless steel doors, window guardrails, power distribution boxes, stainless steel homes, and other industries.
As a laser cutting machine, it is very easy to operate for cutting all kinds of metals.
Detailed description
High absorption rate, small heat affected area;
High power density, high reliability, wide modulation frequency .
Handheld laser welding gun
It is small and light, weighing only 0.75kg, making it convenient for handheld work;
Multi-point temperature measurement inside the fuselage, real-time monitoring;
Dust-proof and wear-resistant, with excellent anti-interference performance,work efficiency is greatly improved;
The focusing lens and protective lens are transformed into drawer-type, which is efficient and convenient.
It supports multiple languages for your convenience;
Multi-function, smart and easy to operate;
Simple interface.
wire feeding speed adjustable.
Active cooling;
Integrated alarm functions
Back mounted fill port and visual water level;
Optimized for high performance at low temperatures;
Integrated alarm functions
Back mounted fill port and visual water level;
Optimized for high performance at low temperatures;
Efficiency & Environmental prote.
Application & Samples
Application:
Sheet metal processing, railway transportation, automobiles, construction machinery, agricultural and forestry machinery, electrical manufacturing, elevator manufacturing, household appliances, food machinery, textile machinery, tools Processing, petroleum machinery, food machinery, kitchen and bathroom, decorative advertising, laser external processing service.

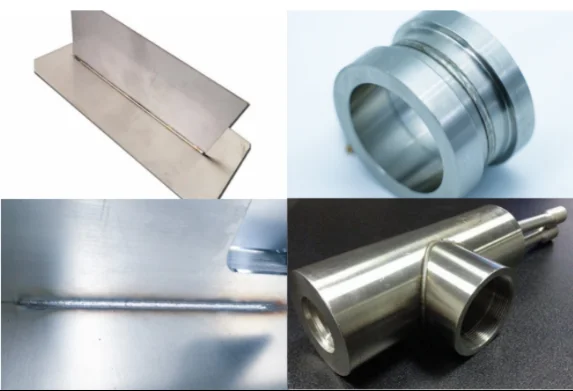

Samples:
